16X2 LCD Character - SJXD1602A-S (STN Positive)

16X2 LCD Character is a compact display module for showing clear two-line text, numbers, and operating messages in small equipment panels. It uses STN positive technology, a white LED backlight, 16PIN connection, and 3.3V/5V drive support. The 80.0x36.0mm structure helps save installation space while supporting meters, controllers, appliances, medical devices, industrial instruments, and embedded products needing stable character readability during daily operation, testing, and maintenance workflows across customized product designs.

Parameters:

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective

Key Specifications

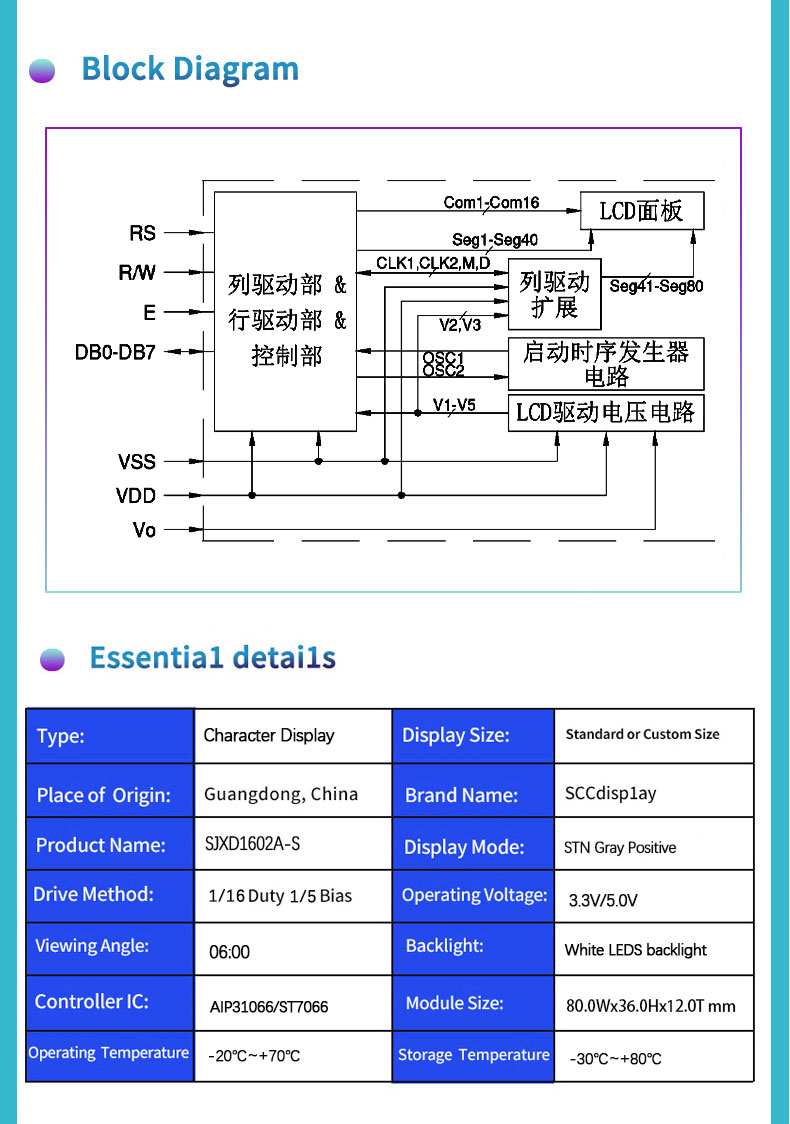

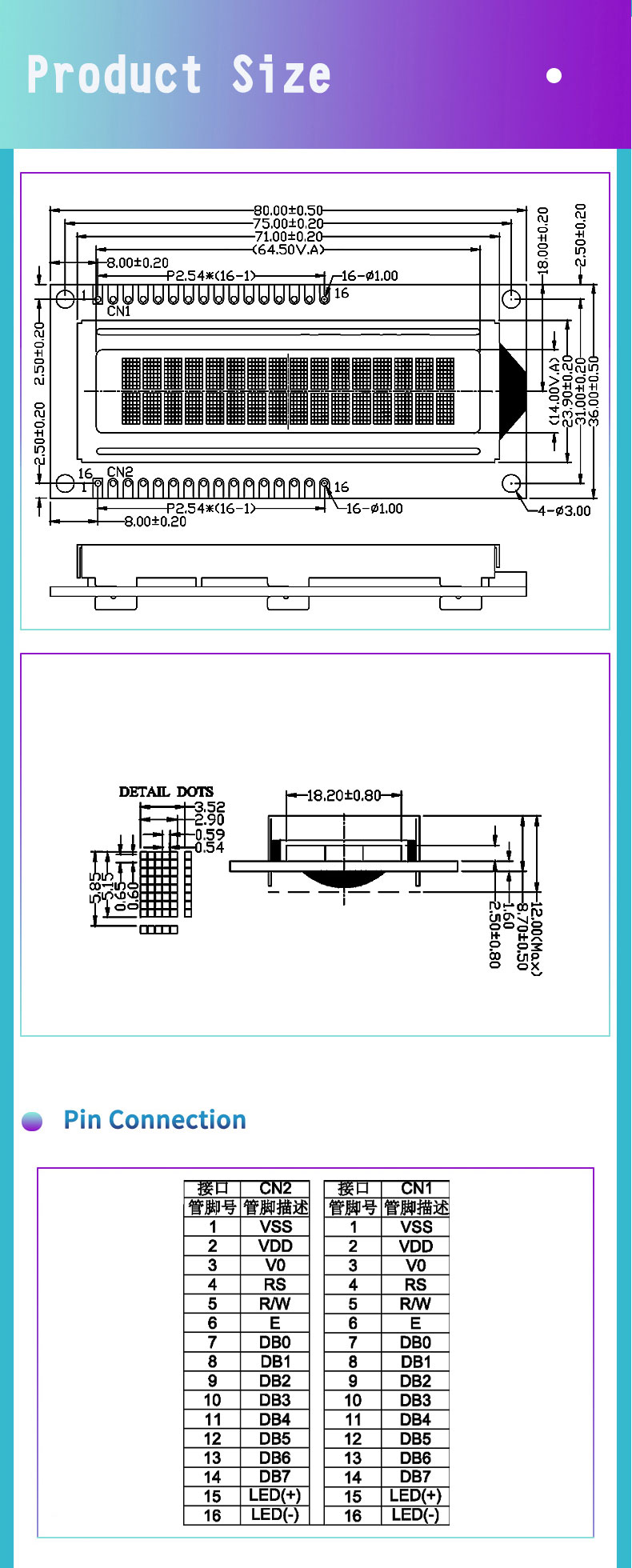

16X2 LCD Character is a compact display module for two-line alphanumeric information in electronic products. The SJXD1602A-S model uses an 80.0×36.0×12.0 mm module size and a 64.5×14.0 mm viewing area, helping engineers fit readable text output into limited panel space. It supports 5.0V/3.3V drive voltage, ST7066/AIP31066 driver IC, 16PIN interface, white LED backlight, and STN positive LCD type. The module operates from -20°C to +70°C and stores from -30°C to +80°C, making it practical for equipment that needs stable character display performance in different working environments.

Design Standards

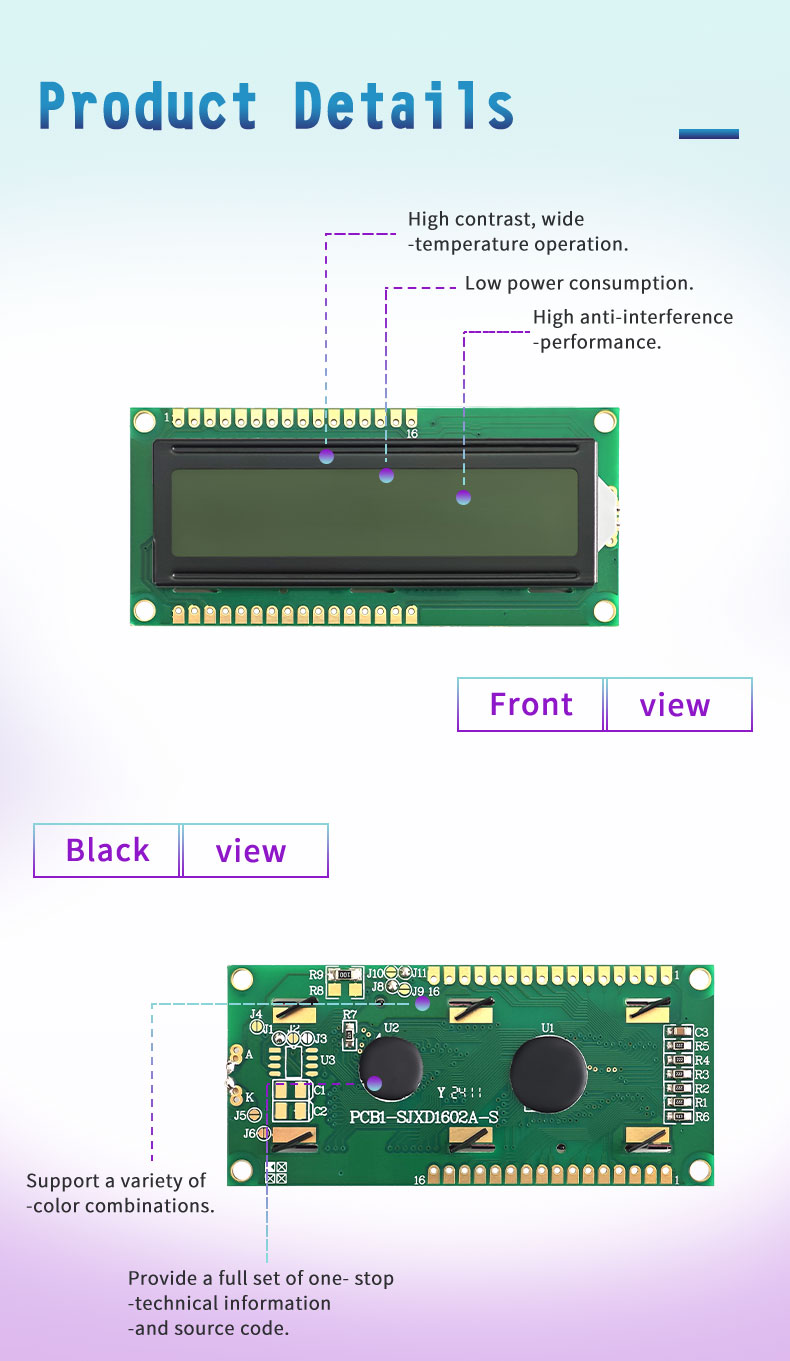

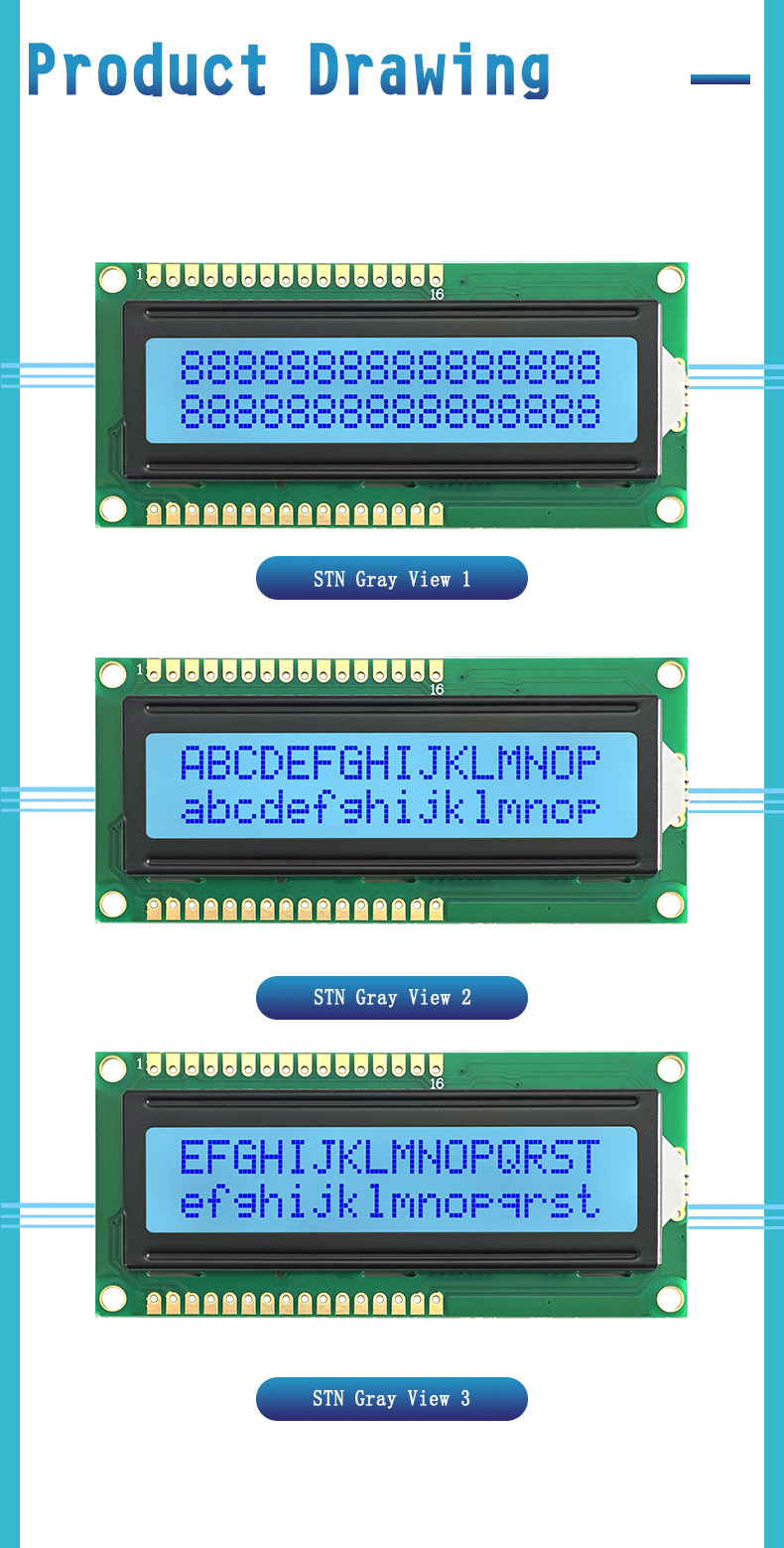

16X2 LCD Character is designed for reliable text visibility, simple hardware matching, and efficient product integration. Its STN positive display structure creates a clear light-background viewing effect, while the white LED backlight supports clean character recognition in indoor equipment panels. The 16PIN interface works with common character LCD control designs, reducing the difficulty of circuit adaptation during prototype evaluation or replacement development. The product also supports low power consumption, high anti-interference performance, multiple color combinations, full technical information, source code support, customization, and fast sample preparation within 1–3 days.

Applications

16X2 LCD Character works well for devices that need basic text, numbers, and status messages without using a complex graphic screen. It can display menu labels, operating modes, measurement values, warning notices, timer data, and system prompts in a simple two-row layout. Typical uses include meters, equipment control panels, information display systems, industrial instruments, medical devices, household appliances, consumer electronics, and embedded development boards. Its compact outline, white backlight, STN positive readability, and standard character format make it suitable for cost-sensitive OEM panels and customized equipment interfaces.

Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
