Basic Information
1602 Characters provides a compact 16x2 LCD solution for products that need clear text, values, and status prompts. It combines FSTN positive viewing, a red LED backlight, 16PIN connection, and 3.3V/5V drive support. The 80.0x36.0mm outline helps designers save panel space while maintaining readable output for meters, instruments, appliances, medical devices, industrial controllers, and embedded projects requiring dependable display feedback during production testing, daily operation, and maintenance in compact systems.
Parameters:
| Character Type | 16×2 |
| Model | SJXD1602A-S |
| Model Size | 80.0×36.0×12.0 mm |
| VA Size | 64.5×14.0 mm |
|
Drive Voltage
|
5.0V/3.3V
|
|
Drive IC
|
ST7066/AIP31066
|
|
Backlight
|
Red LED backlight
|
|
LCD Type
|
FSTN positive
|
|
Interface
|
16PIN
|
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |

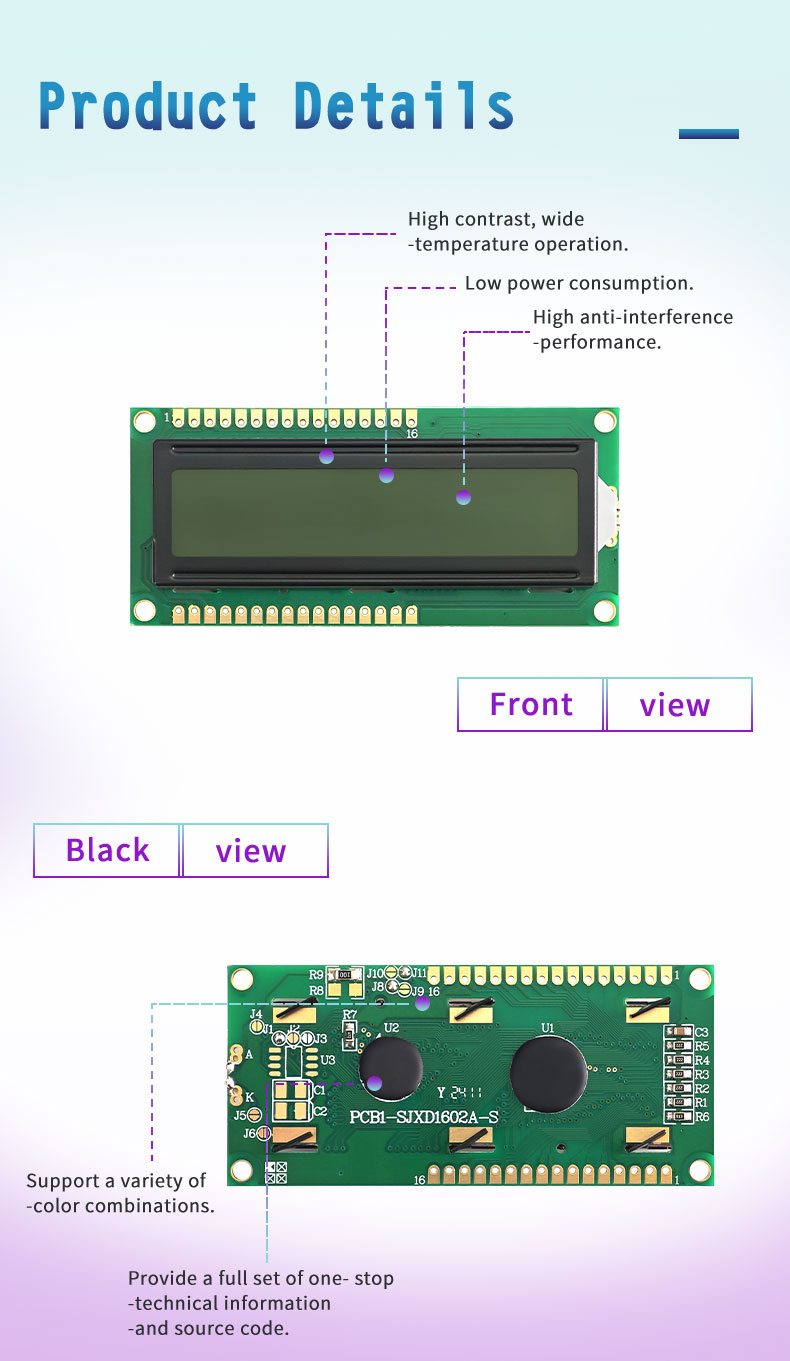

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
1602 Characters is a compact 16×2 alphanumeric LCD module built for clear text, number, and symbol display in equipment with limited panel space. The SJXD1602A-S model features an 80.0×36.0×12.0 mm module outline and a 64.5×14.0 mm viewing area. It supports 5.0V/3.3V drive voltage, ST7066/AIP31066 driver IC, 16PIN interface, red LED backlight, and FSTN positive LCD technology. The module operates from -20°C to +70°C and stores from -30°C to +80°C, making it suitable for products that require stable display output under wider temperature conditions.
Design Standards
1602 Characters is designed for high-contrast character presentation, efficient circuit connection, and dependable long-term use in embedded products. The FSTN positive display structure improves visual clarity compared with standard TN-style display solutions, while the red LED backlight creates a distinctive interface appearance for device panels. Its 16PIN format supports common character LCD control designs, helping developers shorten hardware matching work during prototype testing and customized product integration. The module also supports low power consumption, anti-interference performance, multiple color combinations, technical documentation, source code support, customization service, 1–3 day samples, and cost-effective production planning.
Applications
1602 Characters is suitable for products that need direct information feedback without complex graphic display functions. It can show menu labels, setting values, operating states, warning messages, counter data, measurement readings, and system prompts in a simple two-line layout. Typical application fields include meters, microcontroller-based instruments, equipment control panels, information display systems, industrial devices, consumer electronics, household appliances, medical equipment, and embedded development projects. Its small outline, FSTN positive readability, red backlight, and standard character format make it practical for customized interfaces and compact electronic products.

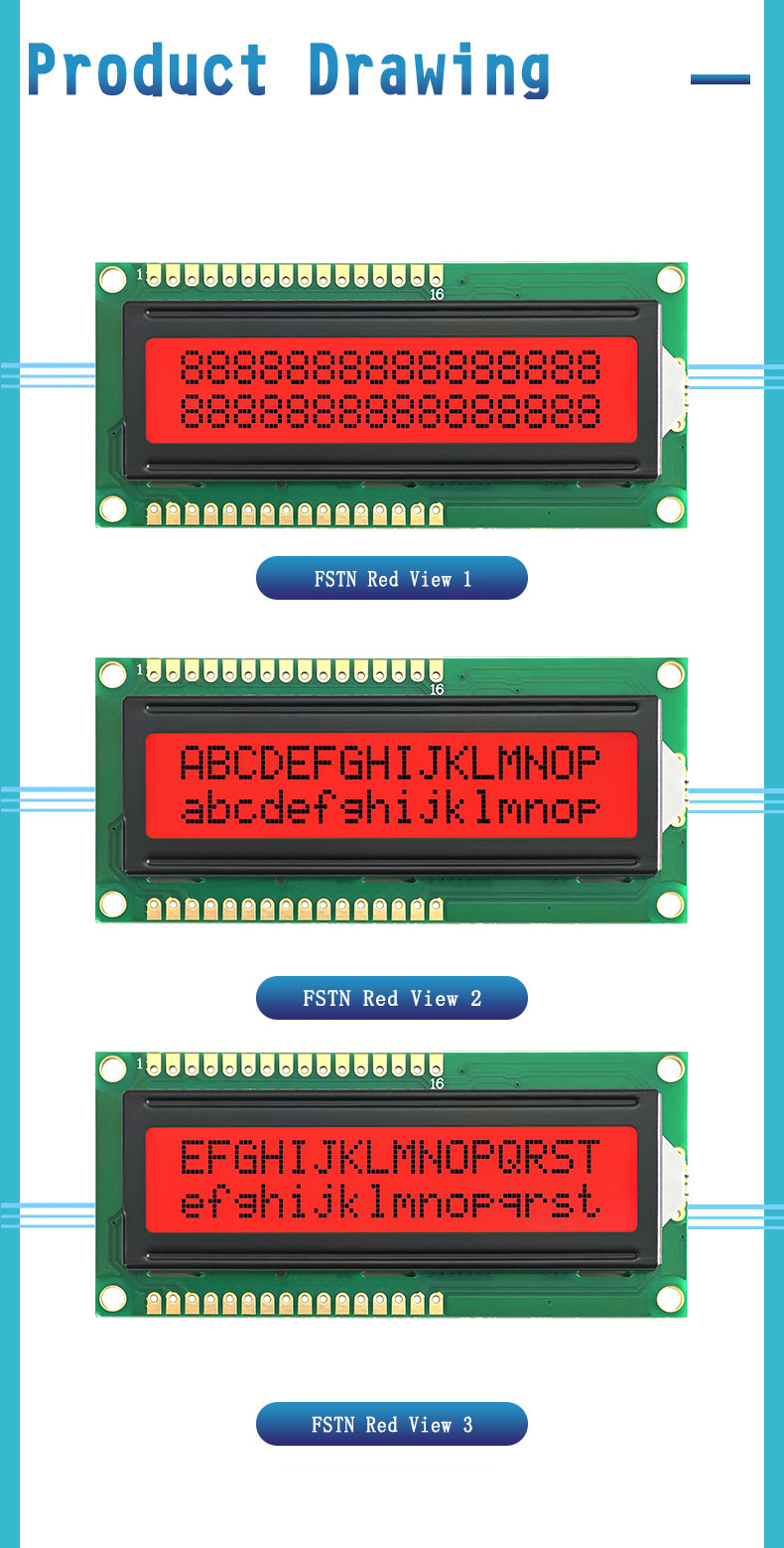

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
