Character 1602 LCM - SJXD1602A-S (STN Positive)

Character 1602 LCM is a compact two-line display module built for clear text, value, and status presentation in small electronic products. It uses STN positive technology, a yellow LED backlight, 16PIN connection, and 3.3V/5V drive support. The 80.0x36.0mm body saves panel space and fits meters, appliances, controllers, medical equipment, industrial instruments, and embedded projects needing simple readable information output during daily operation, maintenance, and product testing workflows with fast integration.

Parameters:

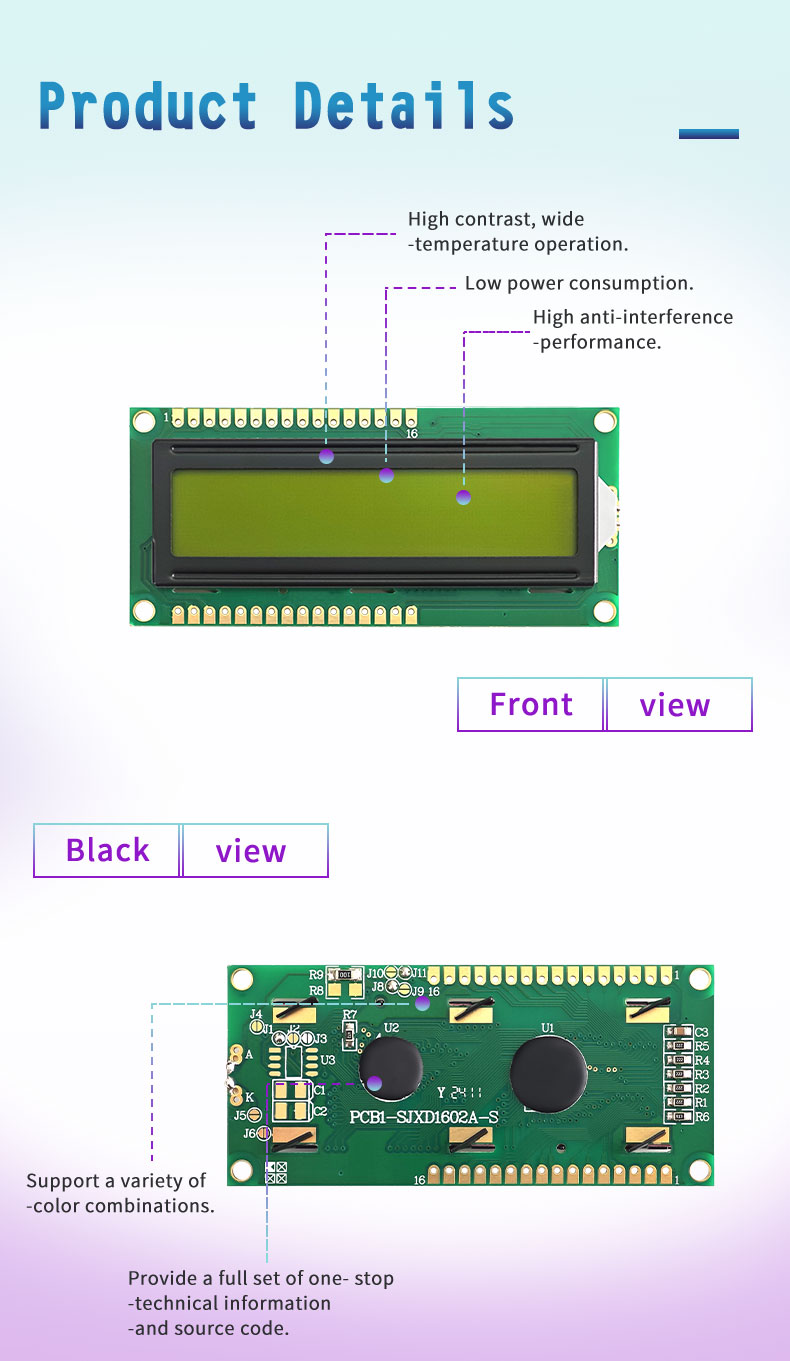

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective

Key Specifications

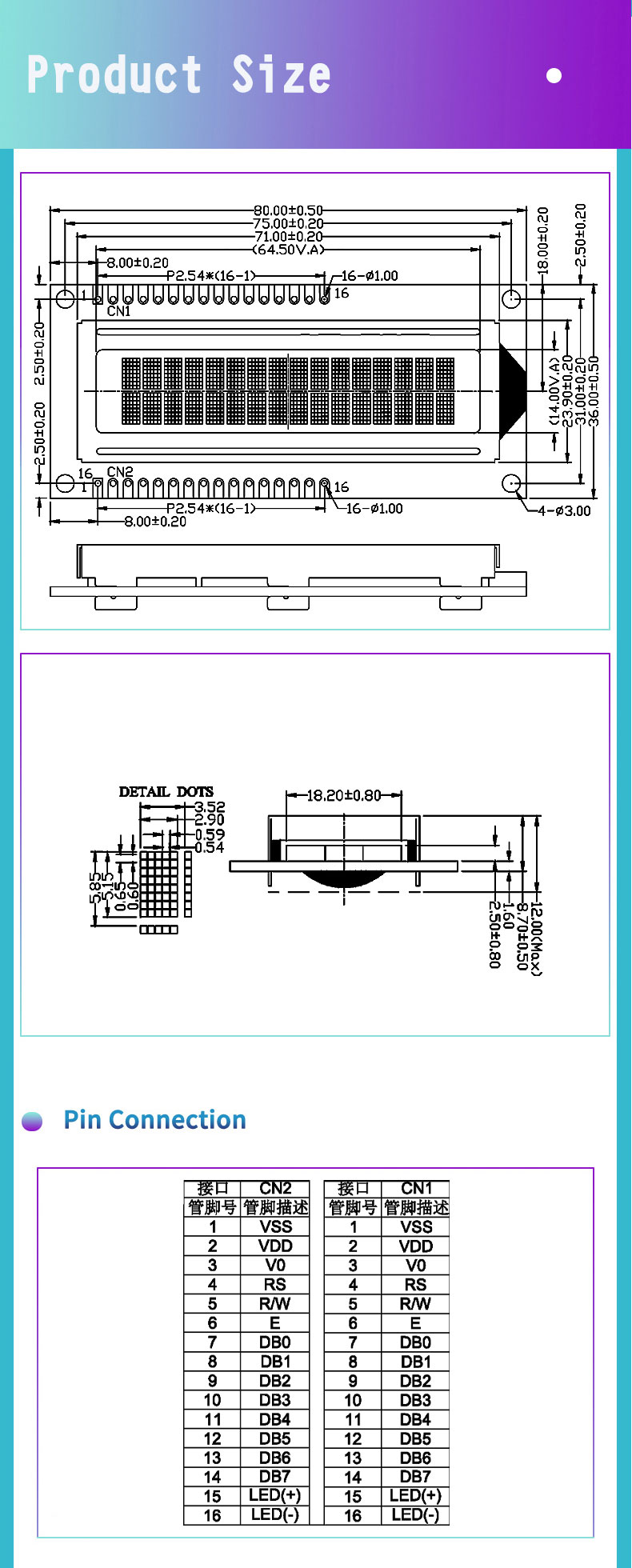

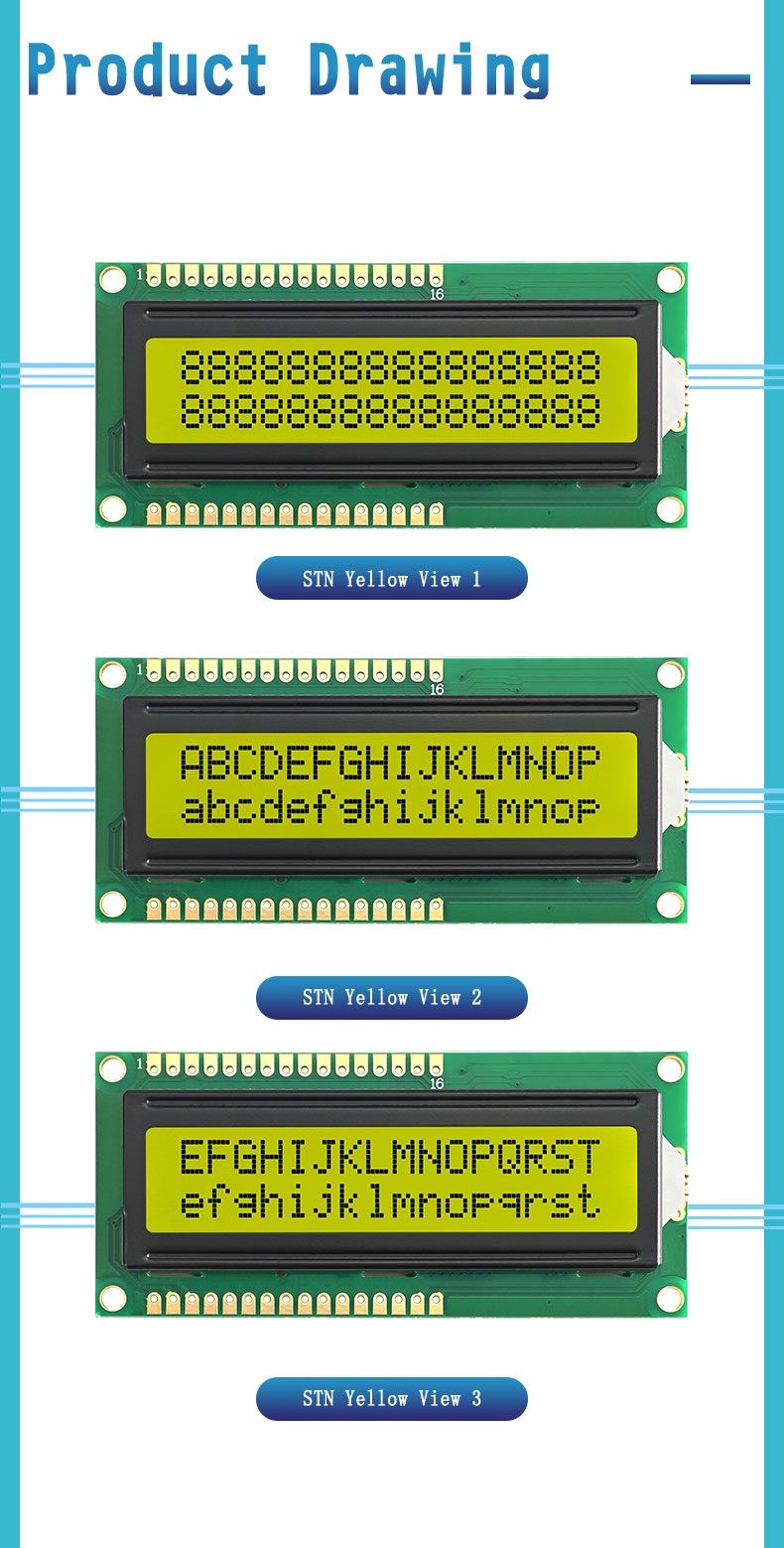

Character 1602 LCM is a 16×2 character display module designed for readable letters, numbers, and symbols in compact electronic equipment. The SJXD1602A-S model uses an 80.0×36.0×12.0 mm outline with a 64.5×14.0 mm viewing area, giving engineers a space-saving option for smaller panel layouts. It supports 5.0V/3.3V drive voltage, ST7066/AIP31066 driver IC, 16PIN interface, yellow LED backlight, and STN positive LCD type. The module also works from -20°C to +70°C and can be stored from -30°C to +80°C, supporting dependable use across different product environments.

Design Standards

Character 1602 LCM is built for practical integration, stable signal control, and consistent front-panel readability. The STN positive display structure provides a clean light-background viewing effect, while the yellow LED backlight gives the screen a warmer visual style for equipment interfaces. Its standard 16PIN connection supports common character LCD control circuits, helping engineers simplify replacement, prototype testing, and customized device development. The module also supports low power consumption, anti-interference performance, multiple color combinations, complete technical information, source code support, customization service, and 1–3 day sample availability for project evaluation.

Applications

Character 1602 LCM is suitable for products that need simple text feedback rather than graphic or touch display functions. It can present menu options, operating status, parameter values, warning prompts, counting data, and basic measurement information in a clear two-line format. Typical applications include meters, equipment control panels, information display systems, industrial controllers, medical devices, home appliances, consumer electronics, and embedded development projects. Its compact body, yellow backlight, STN positive readability, and standard character layout make it useful for cost-sensitive panels and customized control interfaces.
