Basic Information

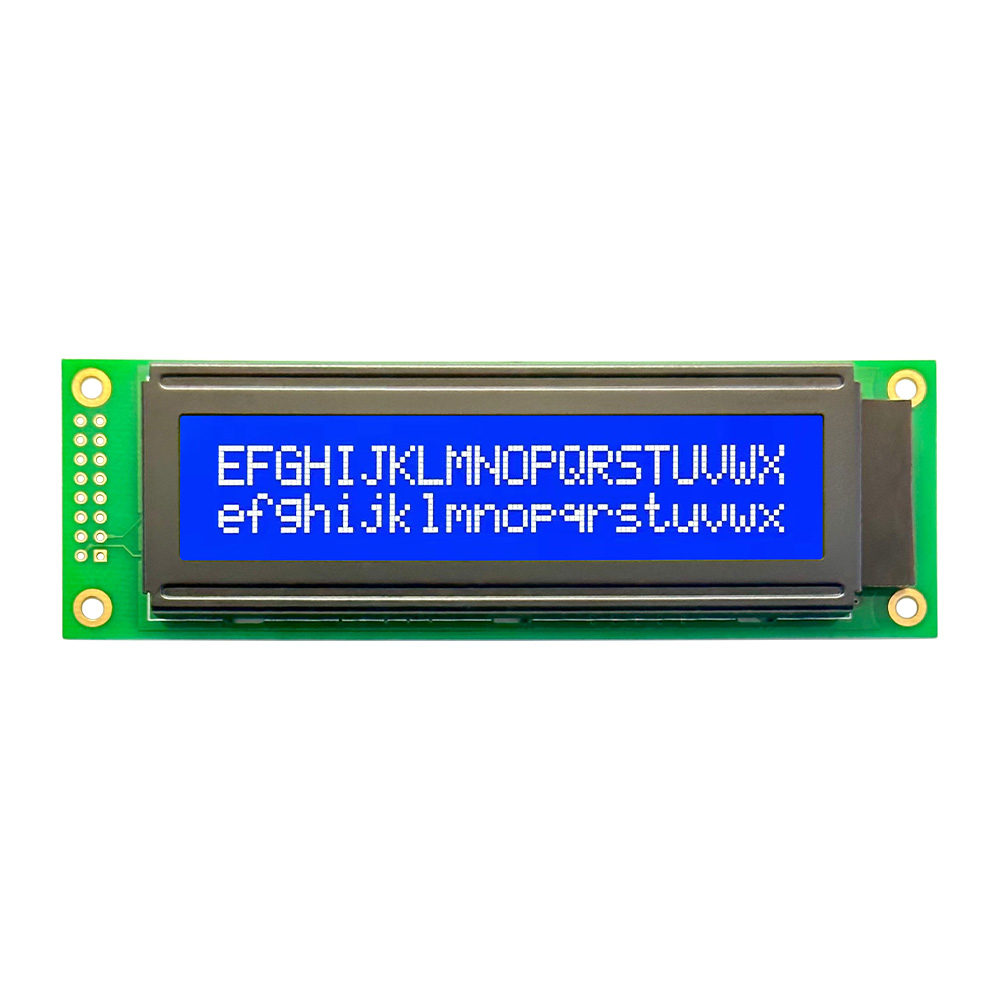

LCD Display Character Table SJXD2002A is a 20×2 character module for displaying fixed text, values, menus, symbols, and device prompts. It uses a 116.0×37.0×12.5 mm outline, 83.0×18.5 mm viewing window, STN negative display mode, white LED backlight, and ST7066/AIP31068L controller IC. With 3.3V/5.0V drive support, wide temperature operation, low power performance, and customization flexibility, it suits meters, instruments, industrial panels, control terminals, and embedded electronic products.

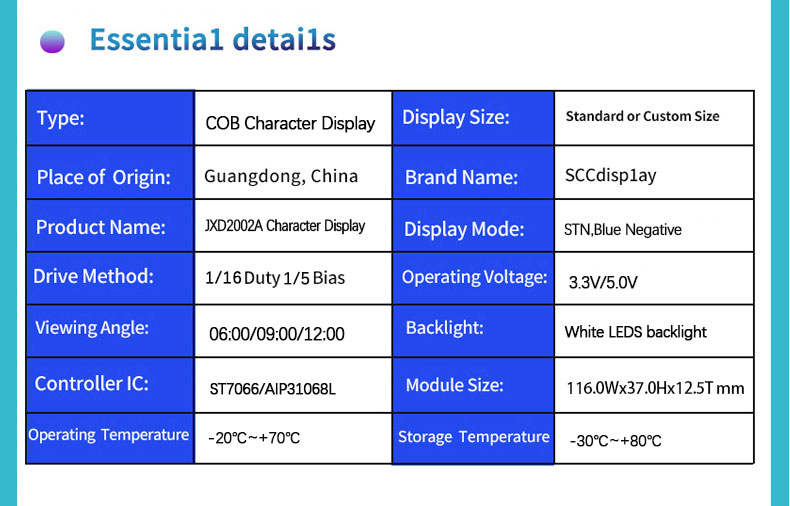

Parameters:
| Character Type | 20×02 |
| Model | SJXD2002A |
| Model Size | 116.0×37.0×12.5 mm |
| VA Size | 83.0×18.5 mm |
|
Drive Voltage
|
5.0V or 3.3V
|
|
Drive IC
|
ST7066/AIP31068L
|
|
Backlight
|
white LED backlight
|
|
LCD Type
|
STN Negative
|
|
Interface
|
16PIN dual interface
|
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
LCD Display Character Table SJXD2002A is a 20×2 character module designed to present letters, numbers, symbols, and short data fields in a clear fixed-format layout. It uses a 116.0×37.0×12.5 mm module structure with an 83.0×18.5 mm viewing area, giving compact devices enough room for two lines of readable information. The module supports 3.3V or 5.0V driving, ST7066/AIP31068L control IC, STN negative display mode, white LED backlight, and a 16PIN dual interface.
Design Standards
LCD Display Character Table is developed for applications that need stable character mapping, clean text output, and easy controller connection. The STN negative display style creates bright characters on a darker background, making the screen suitable for product interfaces that require a stronger visual contrast. It supports wide operating conditions from -20°C to +70°C and storage from -30°C to +80°C. The design also considers low energy use, anti-interference performance, multiple color options, technical documentation, source code support, and customized production needs.
Applications
LCD Display Character Table works well in products where users need to read fixed text, menu labels, setting values, error codes, and operating instructions quickly. It can be used in measuring instruments, industrial controllers, power supply units, access systems, automation panels, household equipment, medical devices, communication terminals, test tools, and embedded development boards. Its 20×2 format helps engineers build a simple and reliable display interface without increasing product size or system complexity.
Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
