Character LCD Display Module 5v SJXD4002A is a wide 40×2 text display for long values, menu items, alerts, and operating instructions. It uses a 182.0×33.5×14.5 mm module size, 154.4×16.5 mm viewing area, STN positive display mode, white LED backlight, and AIP31066 driver IC. With stable 5V drive support, wide temperature performance, low power consumption, and customization flexibility, it suits industrial instruments, meters, automation panels, power devices, medical electronics, and embedded control systems.

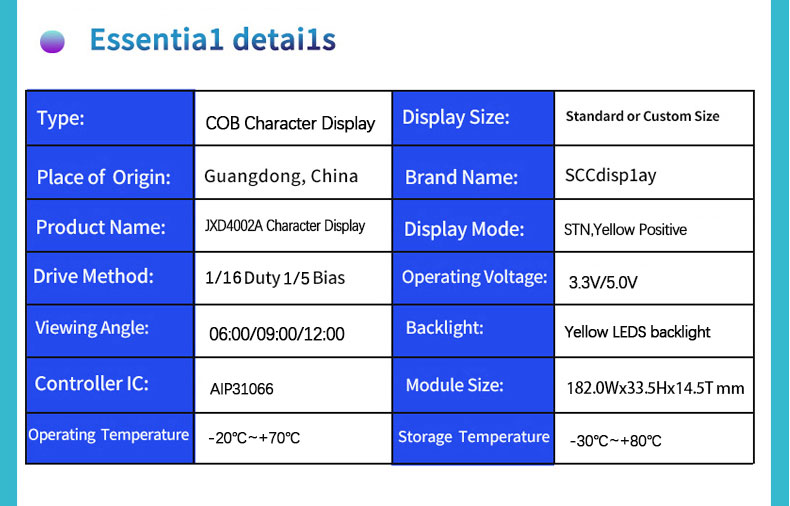

Parameters:
| Character Type | 40×02 |
| Model | SJXD4002A |
| Model Size | 182.0×33.5×14.5 mm |
| VA Size | 154.4×16.5 mm |
|
Drive Voltage
|
5.0V or 3.3V
|
|
Drive IC
|
AIP31066
|
|
Backlight
|
white LED backlight
|
|
LCD Type
|
FSTN positive
|
|
Interface
|
16 double interfaces
|
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
Character LCD Display Module 5v SJXD4002A is a 40×2 character screen designed for wide two-line text output in industrial and embedded products. It supports long values, menu names, status messages, and simple symbols on a slim display area. The module uses a 182.0×33.5×14.5 mm outline with a 154.4×16.5 mm viewing area. It features AIP31066 driver IC, white LED backlight, STN positive display mode, 16 double interfaces, and 5V drive support.
Design Standards
Character LCD Display Module 5v is built for clear character readability, stable signal response, and practical panel installation. The STN positive structure presents dark text on a bright background, making data easy to read in equipment interfaces. Its white LED backlight improves visibility during daily operation, while the wide temperature design supports -20°C to +70°C working conditions and -30°C to +80°C storage. Low power use, anti-interference performance, color options, sample support, and customization help simplify OEM integration.
Applications
Character LCD Display Module 5v is suitable for products that need longer two-line information display without using a graphic LCD. It can show measurement values, operation steps, setting menus, alarm codes, production data, and system prompts. Common applications include industrial instruments, smart meters, control panels, automation terminals, power supply equipment, medical electronics, communication devices, access systems, home appliances, and microcontroller-based projects that require a dependable 40×2 character display.
