Basic Information
The Small Size Segment SJXDGW053 is a compact segmented display solution designed for miniature electronic systems that require clear numeric or icon-based output in a highly space-efficient form. It is engineered for applications where display size is limited but readability and stability remain essential. With a focus on low power consumption and reliable performance, this display is ideal for portable devices, compact instruments, and embedded control systems.
Parameters:
| Character Type | Customized |
| Model | SJXDGW053 |
| Model Size | 50.0×45.0×2.8 mm |
| VA Size | 47.0×39.0 mm |
|
Connector
|
Conductive adhesive strip |
|
LCD Type
|
HTN Positive |
|
Drive Conditions
|
1/4 D 1/3 B
|
|
Working Temperature
|
-20C TO +70°C
|
| Storage Temperature |
-30°C TO +80°C
|
|
Working Voltage
|
5.0V |
Feature

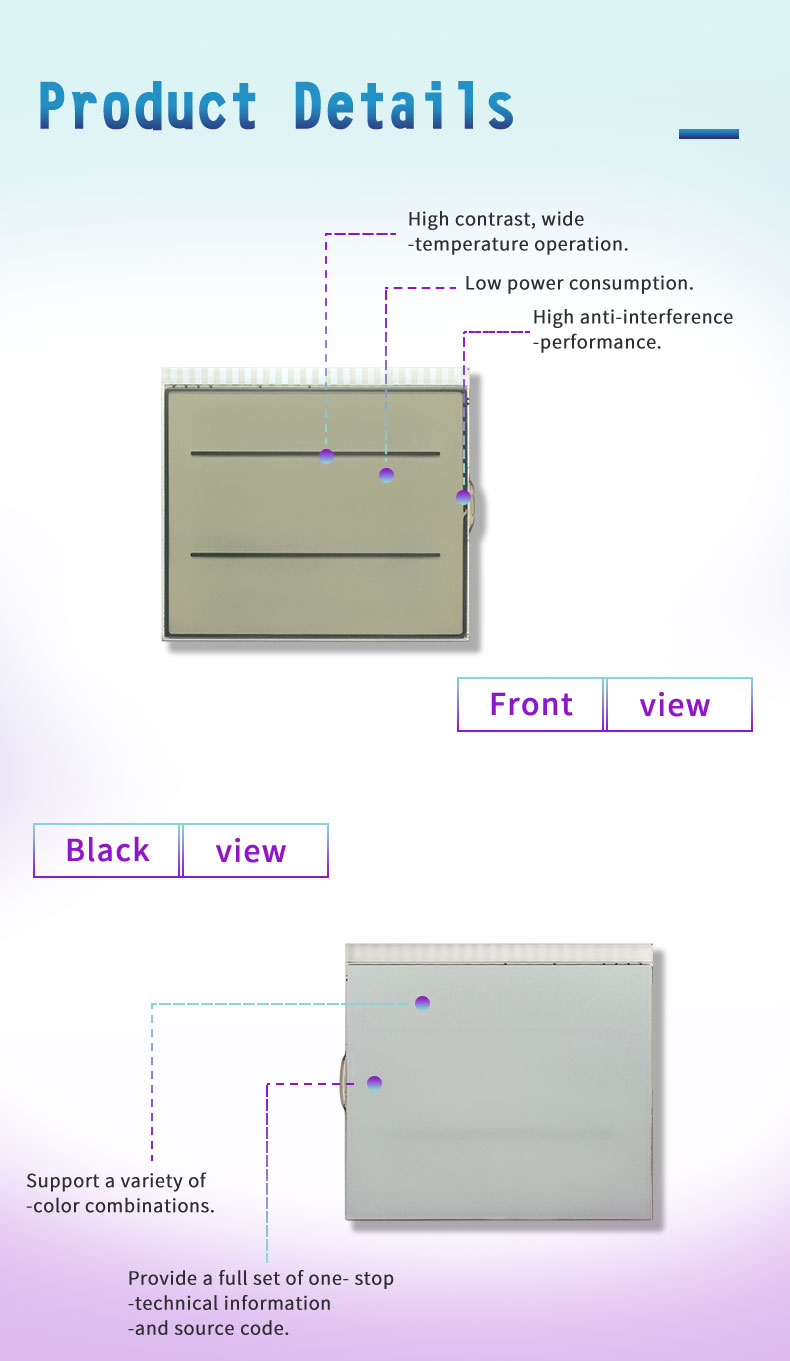

- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications
This Small Size Segment display features a miniaturized segmented LCD structure optimized for clear and precise numeric representation. It provides strong contrast performance to ensure visibility in different lighting environments, including low-light and indoor conditions. The module operates at low voltage, making it suitable for battery-powered and energy-efficient applications. It is designed to maintain stable electrical performance with minimal energy consumption, supporting long operational life in compact devices. The display is engineered to function reliably across a wide temperature range, ensuring consistent output in various environmental conditions. Its ultra-compact layout allows seamless integration into space-constrained electronic designs and miniature system architectures.
Design Standards
The module is manufactured according to strict industrial-grade electronic display standards to ensure durability, precision, and long-term reliability. The segmented structure is optimized for uniform brightness distribution and stable optical performance. High-quality materials are used to enhance resistance to thermal stress, mechanical vibration, and environmental aging. Circuit design optimization reduces electromagnetic interference and ensures stable signal transmission during continuous operation. The product follows low power engineering principles to improve energy efficiency and extend device battery life. Each unit undergoes rigorous testing to ensure consistent performance under long-term usage and varying environmental conditions.
Applications
The Small Size Segment display is widely used in portable instruments, digital meters, compact control panels, wearable devices, and small electronic appliances. It is also suitable for smart sensors, measurement tools, and battery-powered equipment requiring clear and reliable numeric output. Its combination of ultra-compact design, low power consumption, and stable readability makes it an ideal solution for modern miniaturized electronic systems requiring efficient segmented display performance.

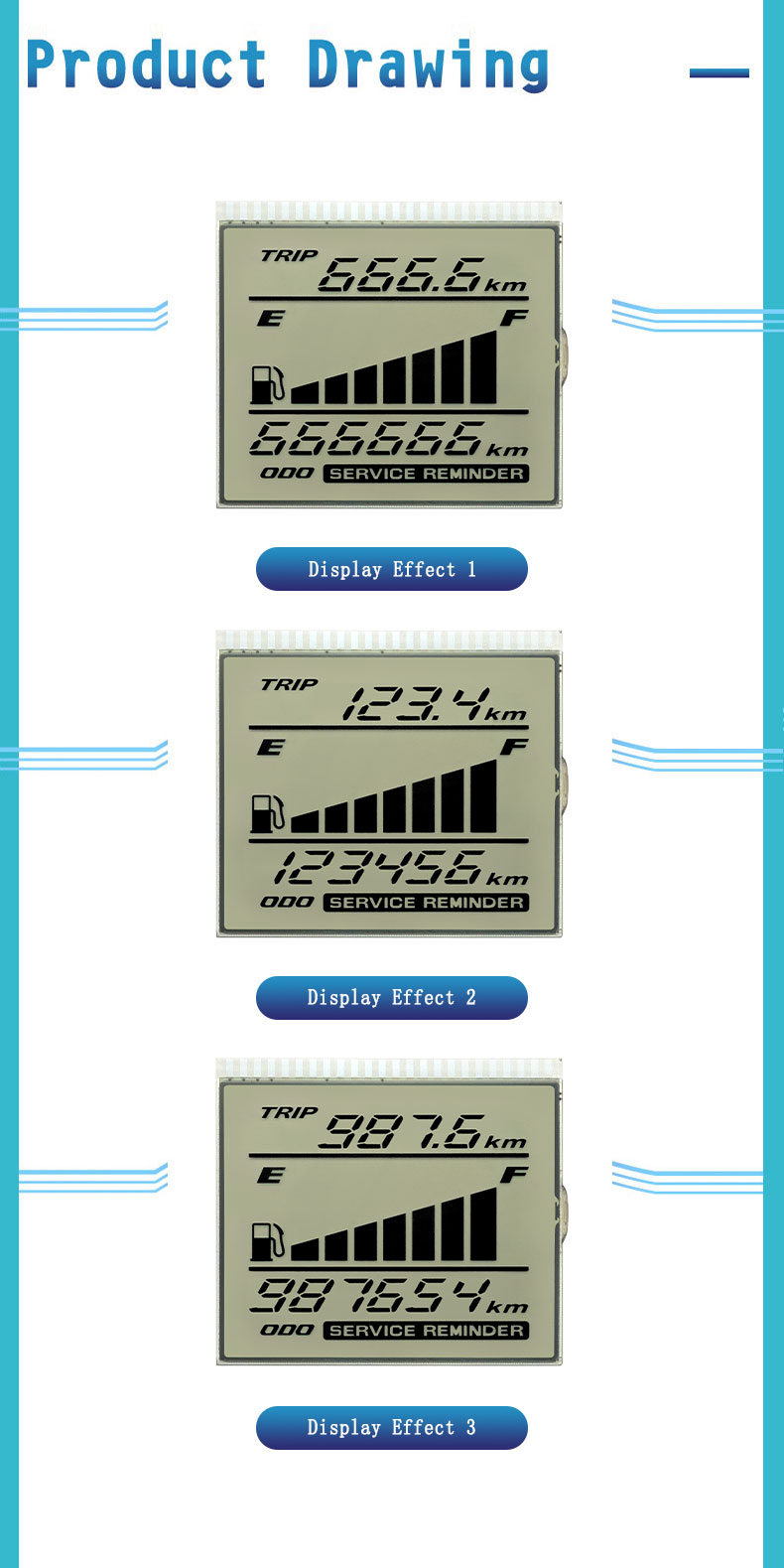

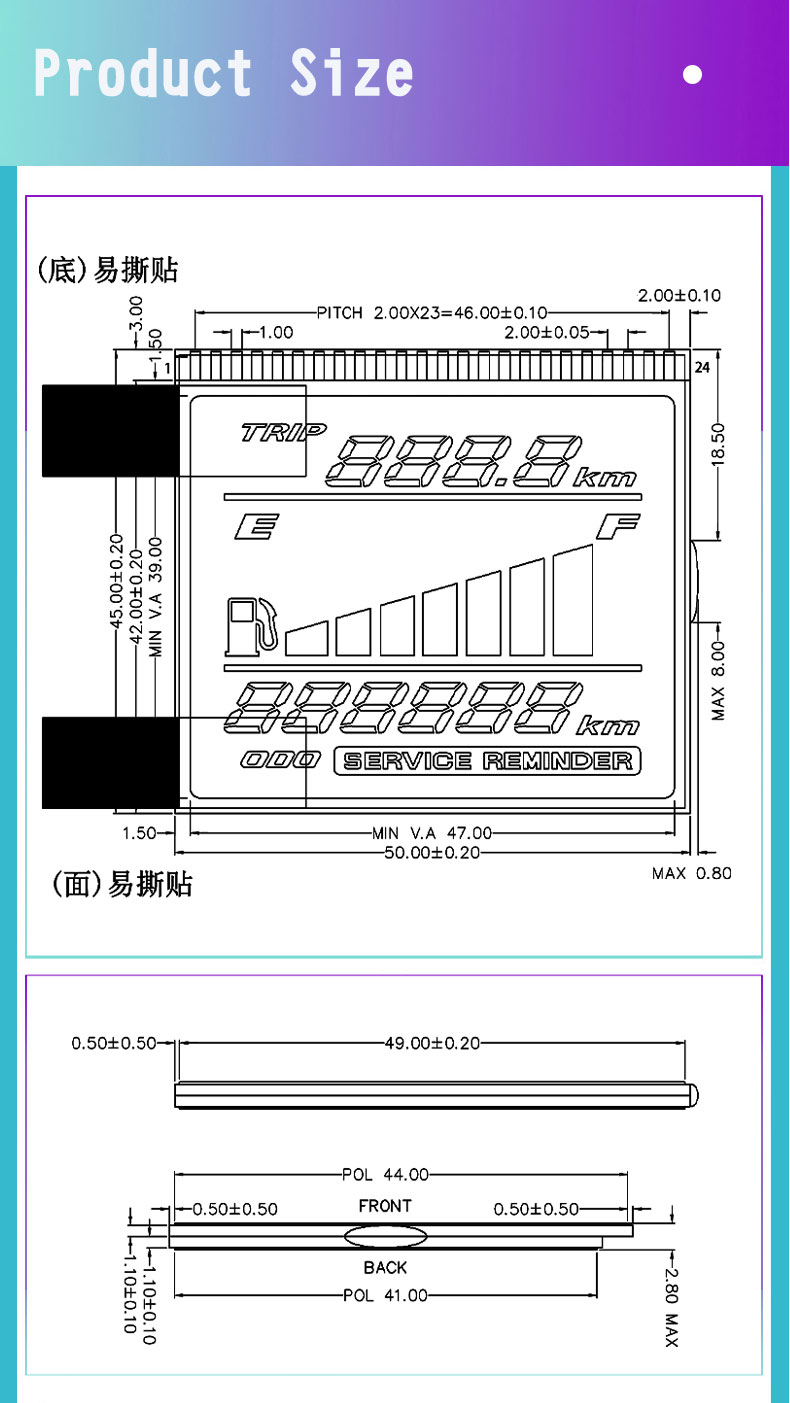

Product Size
