Basic Information

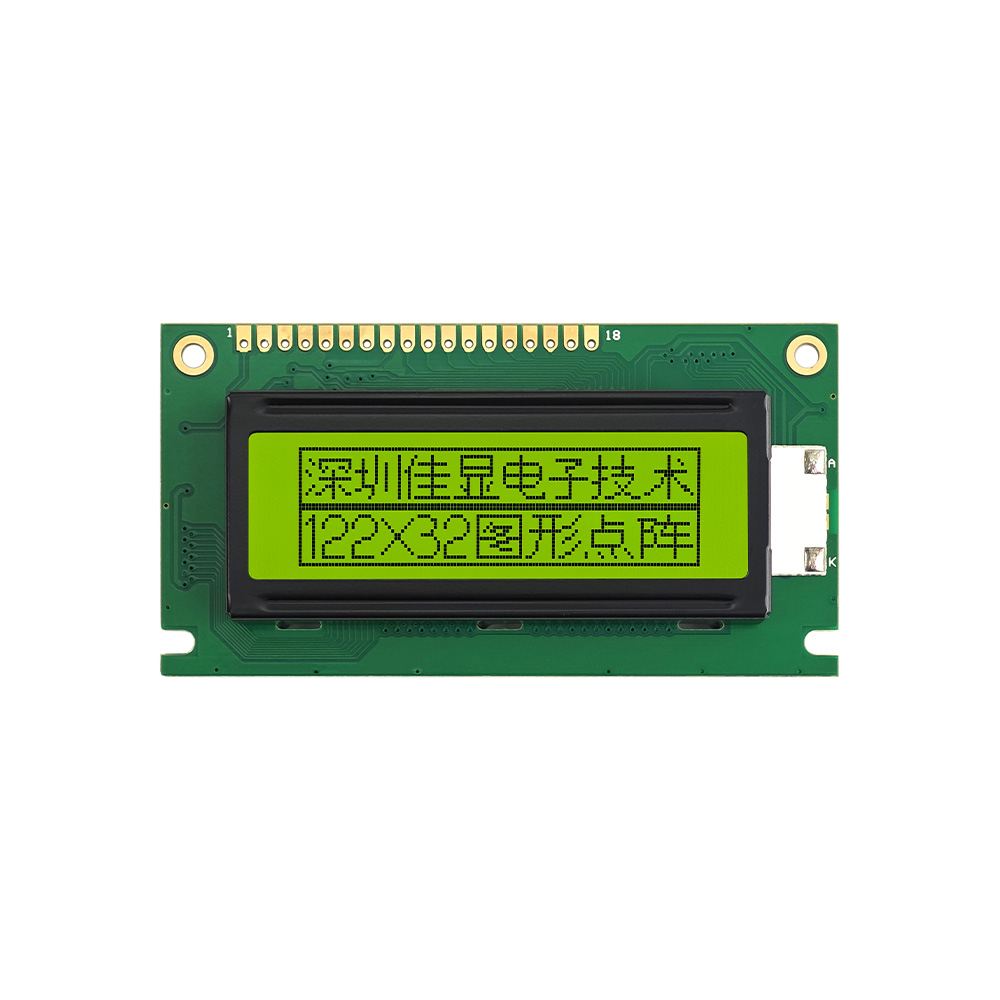

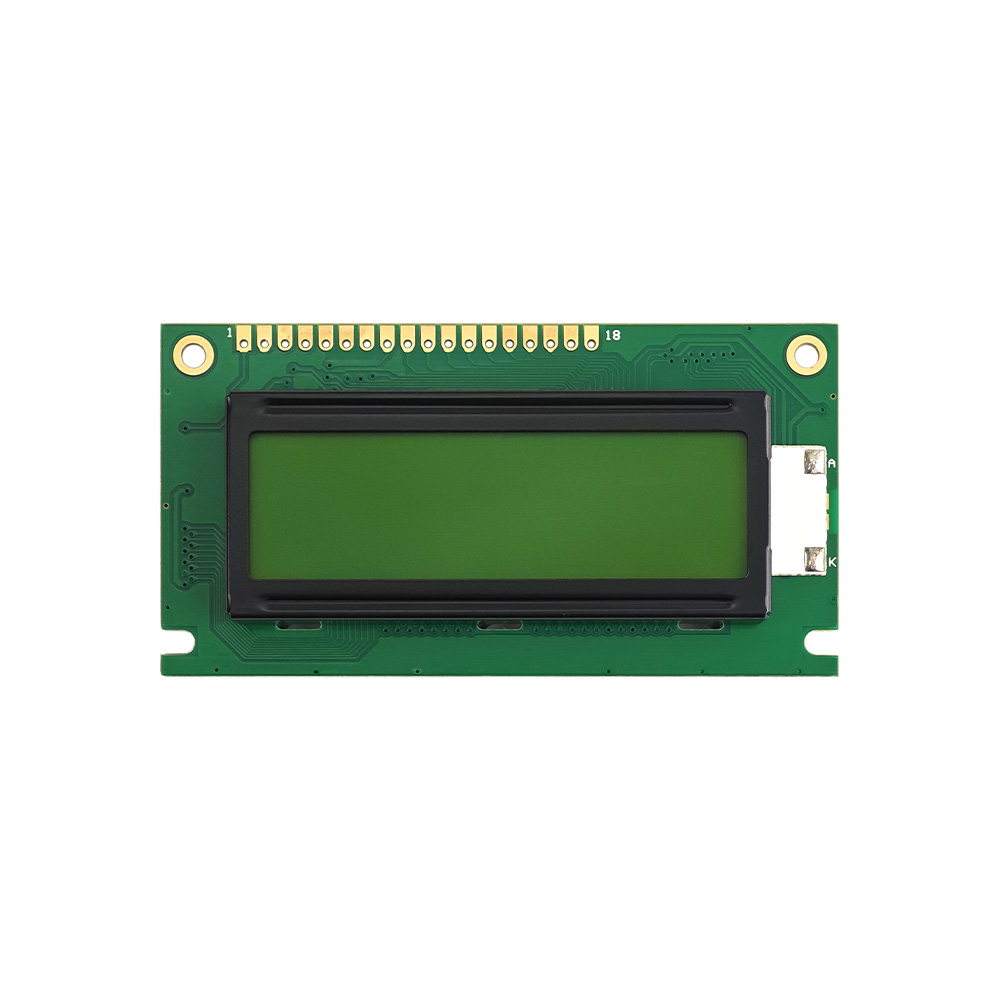

The Industrial LCM Module JXD12232B is a compact monochrome display solution designed for embedded systems that require stable and efficient visual output in industrial environments. It is engineered to present clear alphanumeric characters and basic graphical elements, making it suitable for control interfaces, measurement devices, and automation equipment. With a focus on reliability and low power operation, this module ensures consistent performance in continuous-use applications where durability and readability are essential.
Parameters:
| Character Type | 122X32 |
| Model | JXD12232B |
| Model Size | 84.0×44.0×13.0 MM |
| VA Size | 60.5×18.0 MM |
|
Drive Voltage
|
3.3V/5.0V
|
|
Drive IC
|
AIP31520
|
|
Backlight
|
Yellow background backlight
|
|
LCD Type
|
STN Positive
|
|
Interface
|
18PIN |
| Working Temperature |
-0°C - +50°C
|
|
Storage Temperature
|
-10°C - +60°C |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- The fastest batch delivery can be achieved within 15 days
Key Specifications
This Industrial LCM Module features a 122×32 dot matrix resolution, providing sufficient display space for simple interface layouts and data visualization. It is based on FSTN positive LCD technology, offering improved contrast and enhanced viewing clarity under different lighting conditions. The module operates at standard embedded system voltage levels, ensuring compatibility with a wide range of microcontroller platforms. It integrates a stable controller interface for efficient data communication and accurate pixel control. LED backlight technology delivers uniform brightness while maintaining low energy consumption and extended service life. The display is designed to operate reliably across industrial temperature ranges, ensuring stable performance in both standard and demanding environments. Its compact structure supports easy integration into space-constrained electronic designs.
Design Standards
The module is manufactured according to strict industrial-grade quality and reliability standards to ensure long-term durability and consistent performance. The circuit layout is optimized to minimize electromagnetic interference and maintain stable signal transmission during continuous operation. High-quality LCD materials are used to ensure consistent optical performance and resistance to environmental stress such as vibration and temperature fluctuations. The mechanical design supports secure installation and stable operation in embedded and industrial systems. Low power design principles are applied to reduce energy consumption and improve overall system efficiency, making it suitable for always-on industrial applications.
Applications
The Industrial LCM Module is widely used in industrial automation systems, measurement instruments, medical monitoring devices, communication equipment, and embedded control panels. It is also commonly integrated into human-machine interface (HMI) systems and portable electronic devices. Its combination of reliability, clarity, and compact design makes it an excellent choice for applications requiring stable data display, efficient system feedback, and long-term operational performance in industrial and commercial environments.
Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
