Basic Information
The 7-Segment LCD Display GN001016 is a precision-engineered numeric display solution designed for electronic systems that require clear, stable, and low-power visual output. Built around a classic segmented architecture, this module delivers reliable digit presentation for a wide range of instrumentation and embedded applications. It is suitable for devices that demand accurate numeric indication combined with long-term operational stability and compact integration.
Parameters:
| Model | GN001016 |

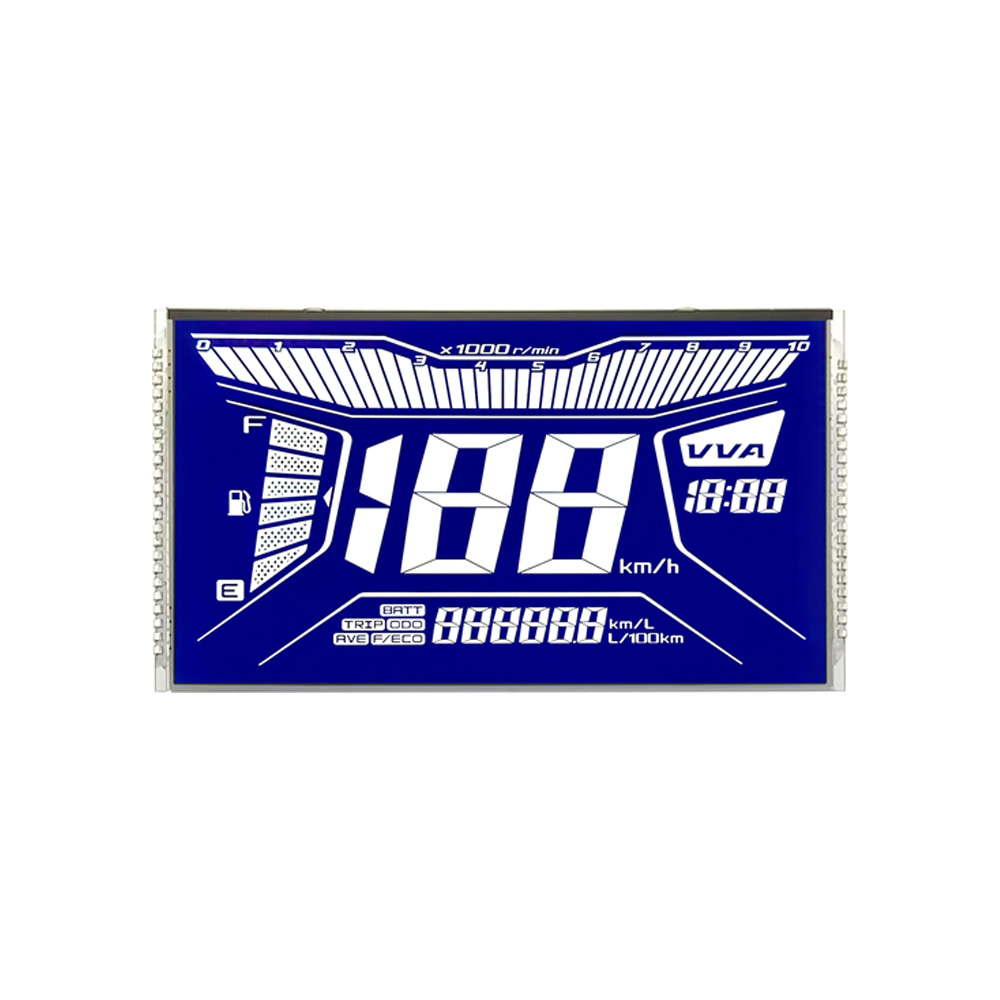

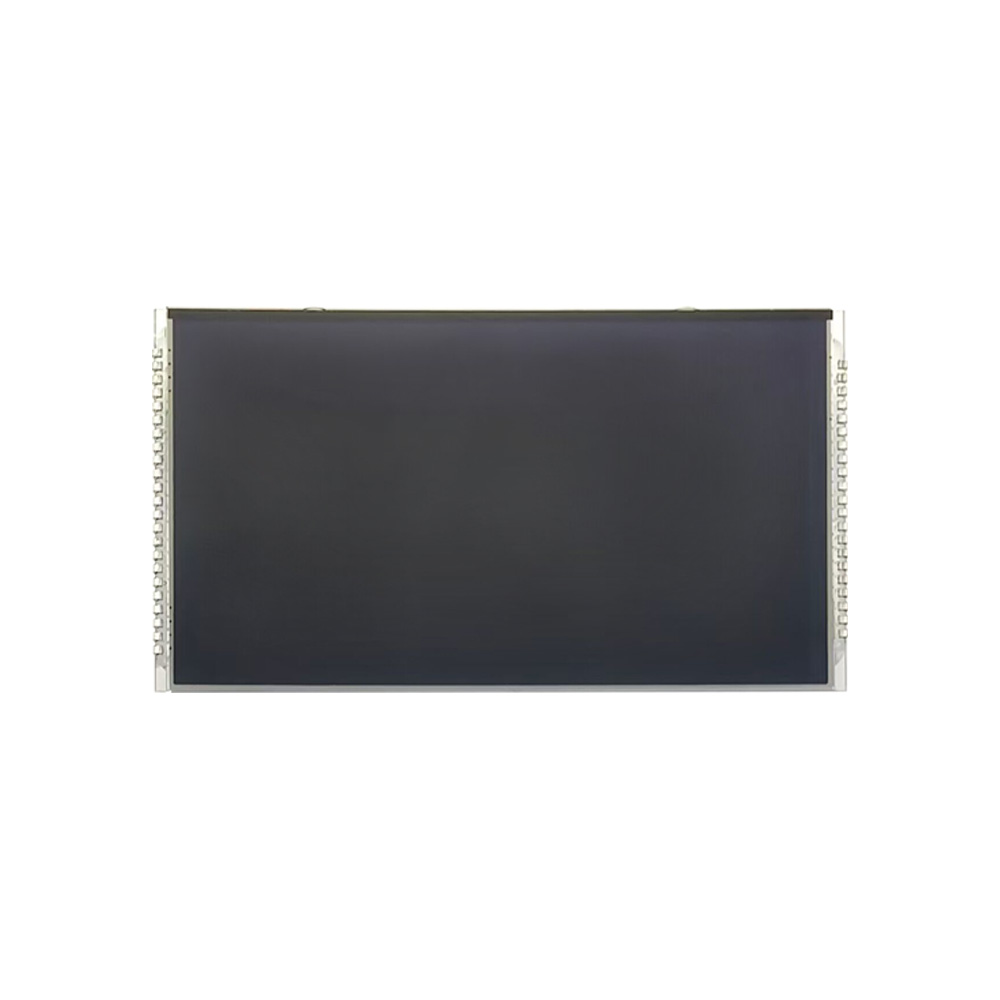

| Model Size | 130x72x2.8mm |
| Field of View Size | 122x 69mm |
| Viewing Direction | 12o'clock |
| Display Mode | HTN Positive |
|
Drive mode
|
1/4 duty cycle, 1/3 bias Vop=5.0V |
|
working temperature
|
-40'C ~ +85°C |
|
Storage temperature
|
-45°C ~ +90“C
|
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
This 7-Segment LCD Display utilizes a refined segmented liquid crystal structure optimized for numeric visualization. It provides crisp and well-defined digit rendering, ensuring that values such as measurements, counters, and system data are displayed with high readability. The display operates at low voltage, making it compatible with energy-efficient circuits and battery-powered electronic products. It is engineered for ultra-low power consumption, supporting continuous operation without significant energy demand. The module maintains stable optical performance and consistent contrast, allowing clear visibility under standard indoor lighting conditions. Its compact design enables seamless integration into handheld instruments, industrial meters, and embedded control systems. The fast response of segment switching ensures real-time data updates without delay or visual distortion, supporting accurate dynamic display performance.
Design Standards
The module is manufactured according to strict LCD industry standards to ensure durability, consistency, and long-term reliability. High-quality liquid crystal materials are selected to maintain uniform segment clarity and stable optical behavior throughout the product lifecycle. Circuit design is optimized to reduce electromagnetic interference and ensure stable signal transmission in electronic environments. The structure is reinforced to withstand mechanical stress, temperature variation, and continuous operational cycles. Each unit undergoes comprehensive inspection to verify segment accuracy, brightness uniformity, and electrical stability. Low power design principles are applied to enhance energy efficiency and extend operational lifespan.
Applications
The 7-Segment LCD Display is widely used in digital meters, industrial control systems, handheld measuring devices, consumer electronics, and embedded systems. It is also suitable for utility monitoring equipment, portable diagnostic tools, timing devices, and compact numeric interfaces requiring reliable and energy-efficient display output. Its combination of clarity, stability, and low power operation makes it an effective solution for modern electronic products requiring precise numeric visualization.
Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
