Basic Information
The Segmented Display Screen SJXDGW052 is a high-efficiency visual output solution designed for electronic systems that require clear and stable segmented information display. It is engineered to present numeric and icon-based data in a simple, highly readable format, making it suitable for a wide range of industrial and consumer applications. With a focus on reliability, low power consumption, and long operational life, this display ensures consistent performance in both portable and fixed electronic devices.
Parameters:
| Character Type | Customized |
| Model | SJXDGW052 |
| Model Size | 158.0×56.0×2.8 mm |
| VA Size | 155.0×51.0 mm |
|
Connector
|
Metal pins |
|
LCD Type
|
HTN Negative |
|
Drive Conditions
|
1/4 D 1/3 B
|
|
Working Temperature
|
-30C TO +80°C
|
| Storage Temperature |
-35°C TO +85°C
|
|
Working Voltage
|
4.0V |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications
This Segmented Display Screen features a segmented LCD structure optimized for precise numeric and symbol representation. It provides strong contrast performance, ensuring excellent readability under different lighting conditions, including indoor and moderately bright environments. The module operates at low voltage levels, making it suitable for battery-powered and energy-efficient systems. It is designed to maintain stable electrical performance with minimal power consumption, supporting long-term operation in compact devices. The display is engineered to function reliably across wide temperature ranges, ensuring consistent output in various environmental conditions. Its compact design allows easy integration into space-limited electronic products and embedded system architectures. The segmented layout ensures fast response and stable visual updates for real-time data presentation.
Design Standards
The module is manufactured according to strict industrial-grade electronic display standards to ensure durability, stability, and consistent performance. The segmented structure is optimized for uniform brightness distribution and clear optical output. High-quality LCD materials are used to enhance resistance to environmental stress such as temperature variation, vibration, and long-term aging. Circuit design optimization reduces electromagnetic interference and ensures stable signal transmission during continuous operation. The product follows low power design principles to improve energy efficiency and extend device battery life. Each unit undergoes rigorous testing to ensure reliable performance under extended operational conditions and diverse environmental scenarios.
Applications
The Segmented Display Screen is widely used in digital meters, industrial control systems, medical devices, household appliances, and embedded electronic equipment. It is also suitable for portable instruments, smart sensors, and battery-powered devices requiring clear and efficient numeric display. Its combination of clarity, low power consumption, and reliable performance makes it an ideal solution for modern electronic systems requiring stable segmented visual output in both industrial and consumer environments.

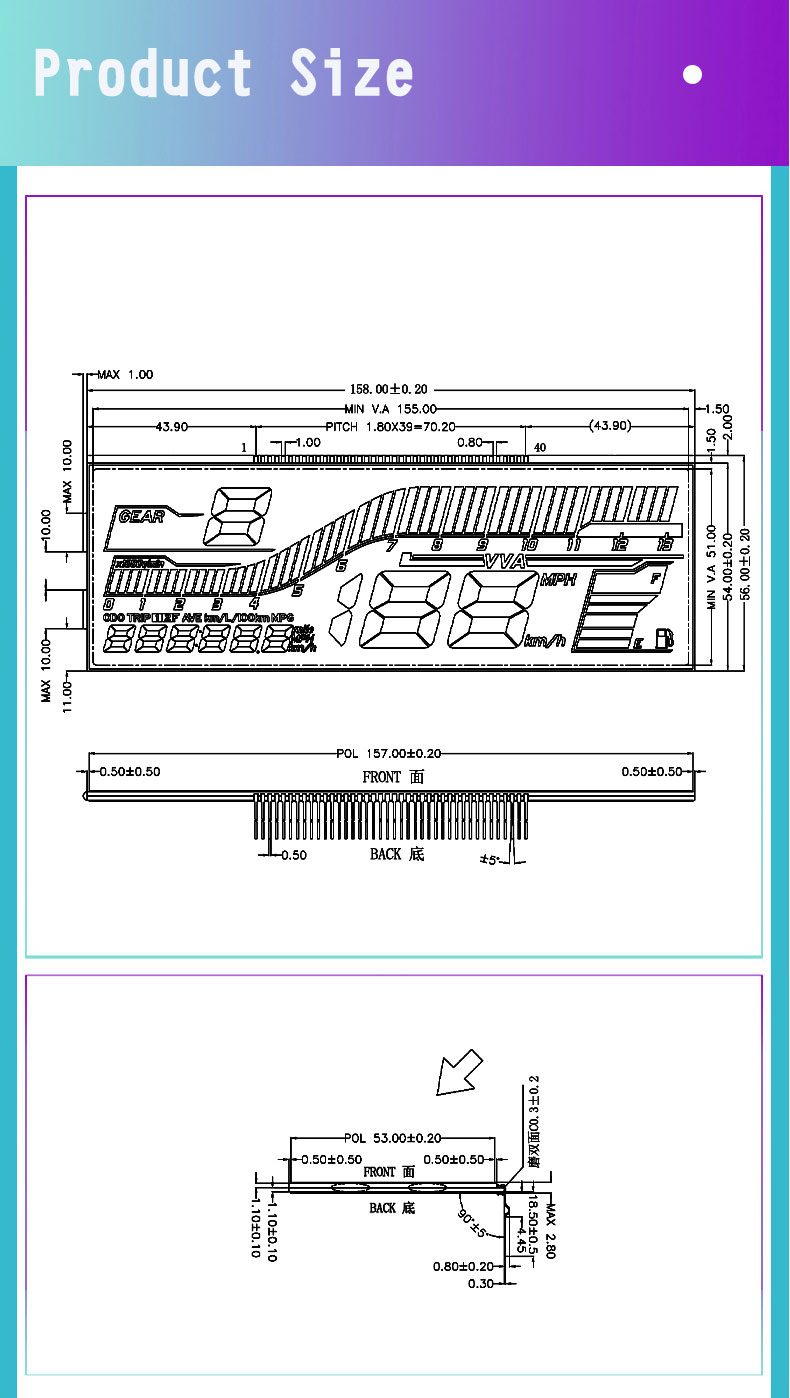

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
