Basic Information
The Segment Instrument Screen SJXDGW039 is a dedicated display component developed for professional instrumentation and equipment interfaces. Designed to provide efficient visual communication of operational parameters, the module combines customized segment arrangements with dependable LCD technology. Its display structure enables the presentation of numerical values, status symbols, and function indicators in a format optimized for quick recognition. The product is intended for applications that require stable display behavior, extended service life, and consistent readability in demanding operating environments.
Parameters:
| Character Type | Customized |
| Model | SJXDGW039 |
| Model Size | 100.0×42.0×2.8 mm |
| VA Size | 97.0×36.5 mm |
|
Connector
|
Metal pins |
|
LCD Type
|
HTN Positive |
|
Drive Conditions
|
1/4D 1/3B
|
|
Working Temperature
|
-20°C TO +70'C
|
| Storage Temperature |
-30'C TO +80'C
|
|
Working Voltage
|
5.0 V |

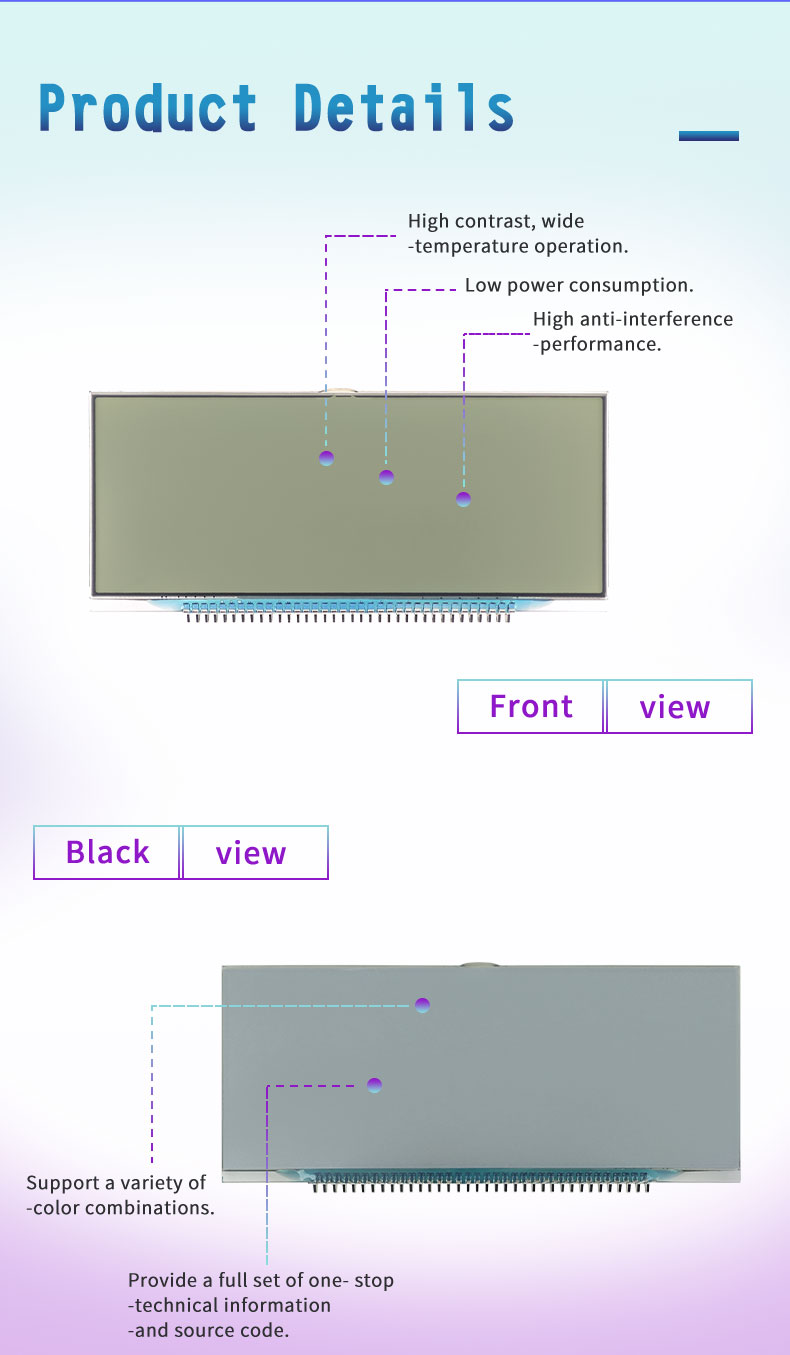

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications
This Segment Instrument Screen incorporates a specialized segment configuration tailored to instrumentation requirements. The display delivers sharp visual definition, allowing measurement data and system indicators to be viewed clearly during continuous operation. The module supports low-voltage functionality, helping reduce overall system power consumption while maintaining dependable display performance. Optimized liquid crystal characteristics contribute to stable image quality and efficient segment activation. The screen is designed to operate reliably across varying environmental conditions and offers consistent visibility under different lighting environments. Its compact mechanical profile supports flexible integration into control panels, monitoring devices, and measurement equipment. The display architecture also allows customized symbol layouts to accommodate application-specific interface requirements.
Design Standards
Manufacturing processes are implemented according to stringent quality control procedures focused on display uniformity, reliability, and long-term operational consistency. High-grade materials are selected to improve resistance to temperature variation, mechanical vibration, and environmental exposure. Optical performance is carefully calibrated to maintain clear segment boundaries and balanced viewing characteristics. Internal circuitry is optimized to enhance signal stability and reduce susceptibility to electrical noise generated by surrounding equipment. Structural components are engineered to support long service cycles in industrial and professional environments. Each module undergoes comprehensive inspection and functional verification before delivery to ensure dependable field performance.
Applications
The Segment Instrument Screen is suitable for industrial instruments, process controllers, laboratory equipment, environmental monitoring systems, testing devices, and embedded electronic interfaces. It can also be integrated into utility monitoring products, portable diagnostic tools, and specialized control terminals requiring customized segment displays. Its combination of efficient power usage, application-specific display flexibility, and durable construction makes it a practical solution for equipment manufacturers seeking reliable visual interface technology for modern instrumentation platforms.

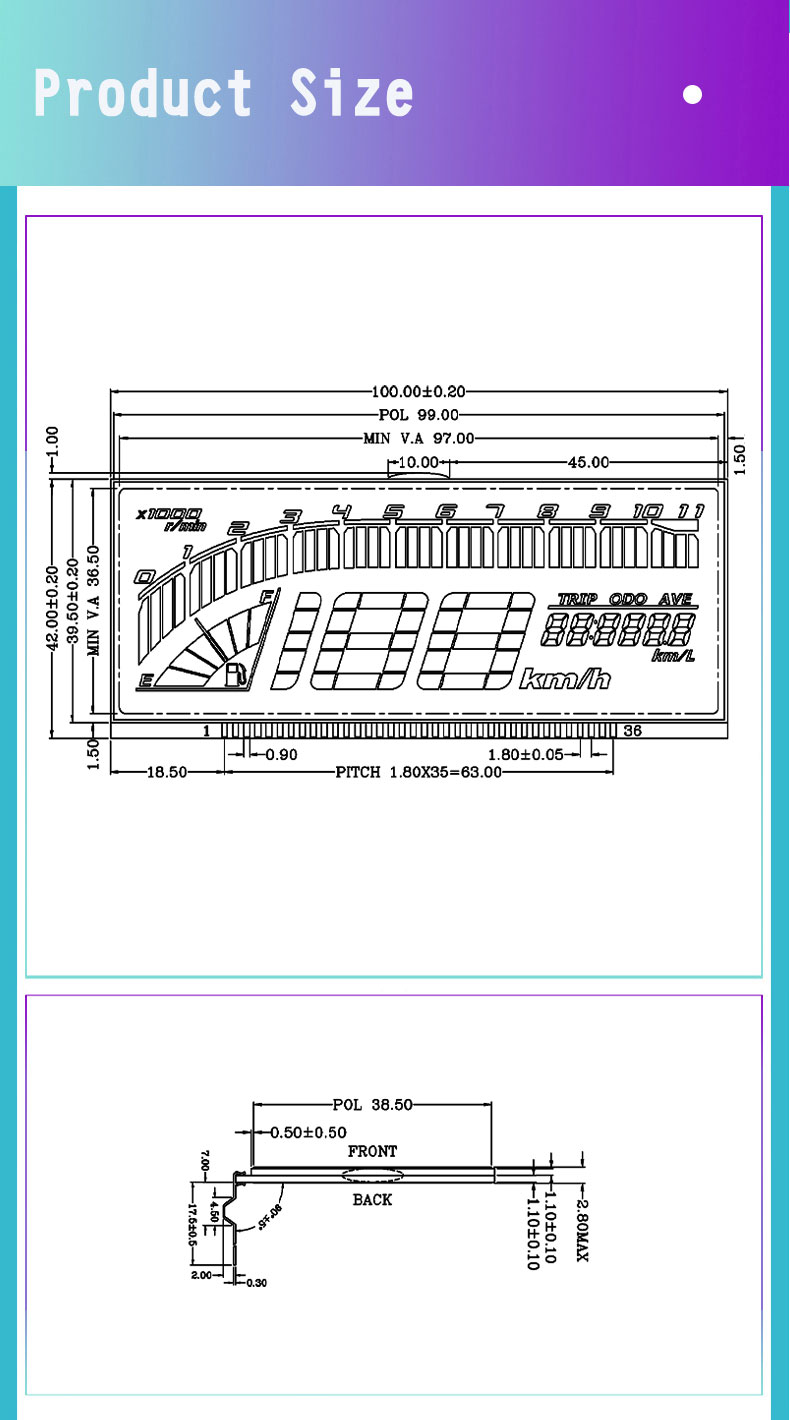

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
