Basic Information
The Instrument Display Screen SJXDGW038 is a dedicated visual interface component designed for precision equipment and industrial control systems. It is engineered to present operational data in a clear and structured format, enabling fast and accurate interpretation of instrument readings. With a focus on reliability and long-term stability, this display solution is suitable for environments where continuous monitoring and consistent visual output are required. Its optimized segment layout ensures that critical information is presented in an intuitive and easily readable manner.
Parameters:
| Character Type | Customized |
| Model | SJXDGW038 |
| Model Size | 50.0×45.0×2.8 mm |
| VA Size | 47.0×38.5 mm |
|
Connector
|
Conductive adhesive strip |
|
LCD Type
|
HTN Positive |
|
Drive Conditions
|
1/4D 1/3B
|
|
Working Temperature
|
-20°C TO +70'C
|
| Storage Temperature |
-30'C TO +80'C
|
|
Working Voltage
|
5.0 V |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications
This Instrument Display Screen utilizes a customized segmented LCD structure designed for instrument-level applications. It delivers high-clarity visual output for numerical values, status indicators, and system symbols. The display is engineered to maintain strong contrast performance, ensuring readability in both low-light and moderately illuminated environments. Low-voltage operation allows integration into energy-efficient systems, including battery-powered devices. The module is designed for stable electrical behavior with minimal power demand, supporting long-duration operation. It functions reliably across a wide temperature range, ensuring consistent performance in varying industrial conditions. Its compact physical design allows seamless integration into control panels, measurement equipment, and embedded electronic systems. The screen also supports flexible segment configuration to accommodate different instrument interface requirements.
Design Standards
The module is manufactured under strict industrial-grade quality control standards to ensure durability, precision, and operational consistency. High-quality liquid crystal materials are selected to enhance optical stability and resistance to environmental stress. The segment architecture is optimized for uniform visual output and minimal display distortion. Circuit design is refined to reduce electromagnetic interference and maintain stable signal transmission in complex electrical environments. Structural components are reinforced to withstand vibration, thermal variation, and long-term mechanical stress. Each unit undergoes comprehensive testing to ensure consistent performance and reliability before deployment in field applications.
Applications
The Instrument Display Screen is widely used in industrial measurement systems, laboratory instruments, automation equipment, energy monitoring devices, and embedded control panels. It is also suitable for portable diagnostic tools, smart sensors, and custom electronic instrumentation requiring reliable segmented display output. Its combination of clarity, stability, and low power consumption makes it a practical solution for modern industrial and electronic applications requiring dependable visual data presentation.

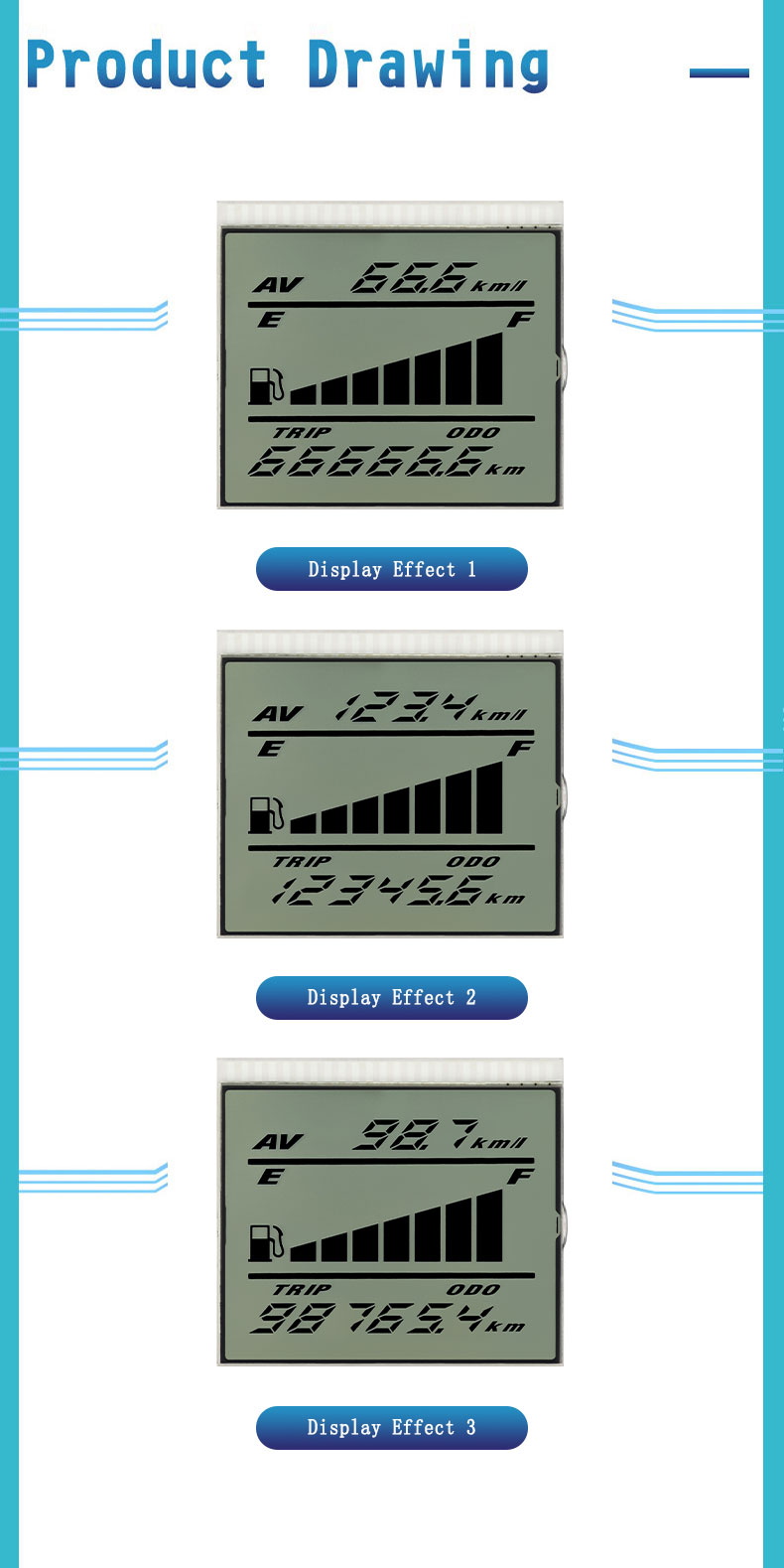

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
