Basic Information

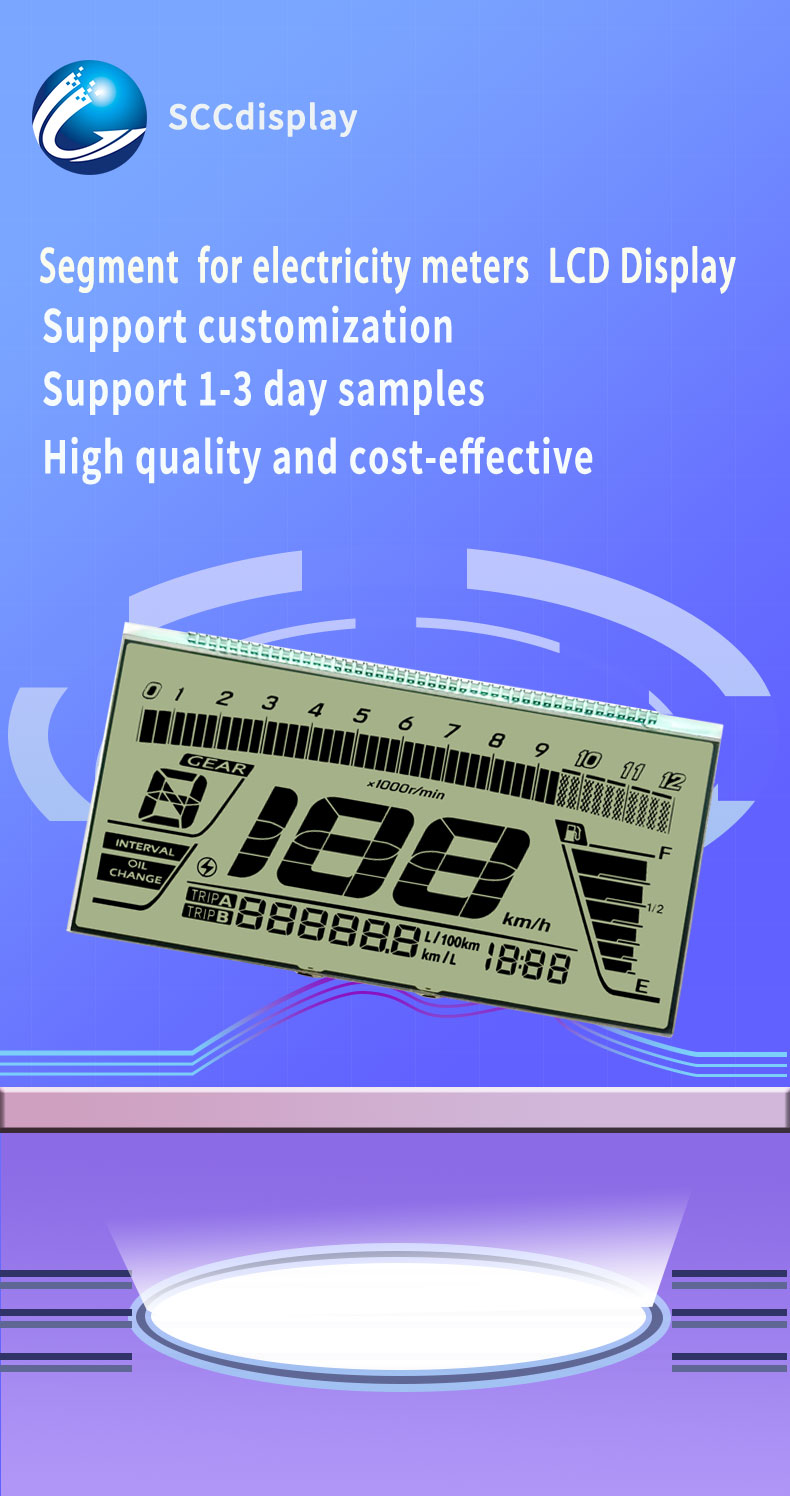

The Custom LCD Segment Display Transparency SJXD-GW009 is a specialized segmented LCD solution designed to deliver enhanced visual clarity and transparent display characteristics for modern electronic systems. It is engineered to support customized segment layouts while maintaining improved see-through optical performance, making it suitable for innovative interface designs and advanced instrumentation. This module is ideal for products that require both functional numeric display and enhanced visual integration with background or layered display structures.
Parameters:
| Character Type | Customized |
| Model | SJXDGW009 |
| Model Size | 102.7×54×2mm |
| VA Size | 99.7×48.5mm |
|
Polarizer
|
Transflective |
|
Working Voltage
|
5.0 V
|
|
LCD Type
|
HTN positive
|
|
Drive Conditions
|
1/4 Duty，1/3 Bias
|
| Working Temperature |
-30'C TO +80C
|
|
Storage Temperature
|
-40'C TO +90'C |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
This custom LCD segment display transparency module utilizes a tailored segmented liquid crystal architecture that supports flexible numeric and symbolic configurations. It provides clear and stable visual output while allowing improved transparency characteristics for advanced display integration. The module operates at low voltage, making it suitable for energy-efficient systems and battery-powered electronic devices. It is designed for ultra-low power consumption, enabling long-term operation with minimal energy demand. The display ensures balanced contrast performance, allowing readable output under standard lighting conditions while maintaining its transparent visual effect. Its compact structure supports seamless integration into embedded systems, industrial instruments, and specialized electronic interfaces. The module maintains stable optical and electrical behavior across a wide temperature range, ensuring reliable performance in diverse environments. Fast segment response ensures real-time display updates without flicker or delay, supporting accurate dynamic information presentation.
Design Standards
The module is manufactured according to advanced LCD engineering and customization standards to ensure consistent quality and optical performance. High-grade liquid crystal materials are selected to achieve uniform segment clarity and controlled transparency behavior. Circuit design is optimized to minimize interference and maintain stable signal transmission in electronic systems. Structural reinforcement enhances resistance to mechanical stress, temperature variation, and long-term operational conditions. Each unit undergoes strict inspection to verify segment accuracy, transparency consistency, and electrical reliability. Energy-efficient design principles are implemented to improve performance stability and extend product lifespan.
Applications
The Custom LCD Segment Display transparency module is widely used in smart instruments, industrial control systems, medical devices, automotive displays, and advanced embedded interfaces. It is also suitable for innovative consumer electronics, transparent display panels, and specialized visualization equipment requiring both numeric output and visual layering effects. Its combination of transparency, customization flexibility, and stable performance makes it an ideal solution for next-generation electronic display applications.
Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
