Basic Information

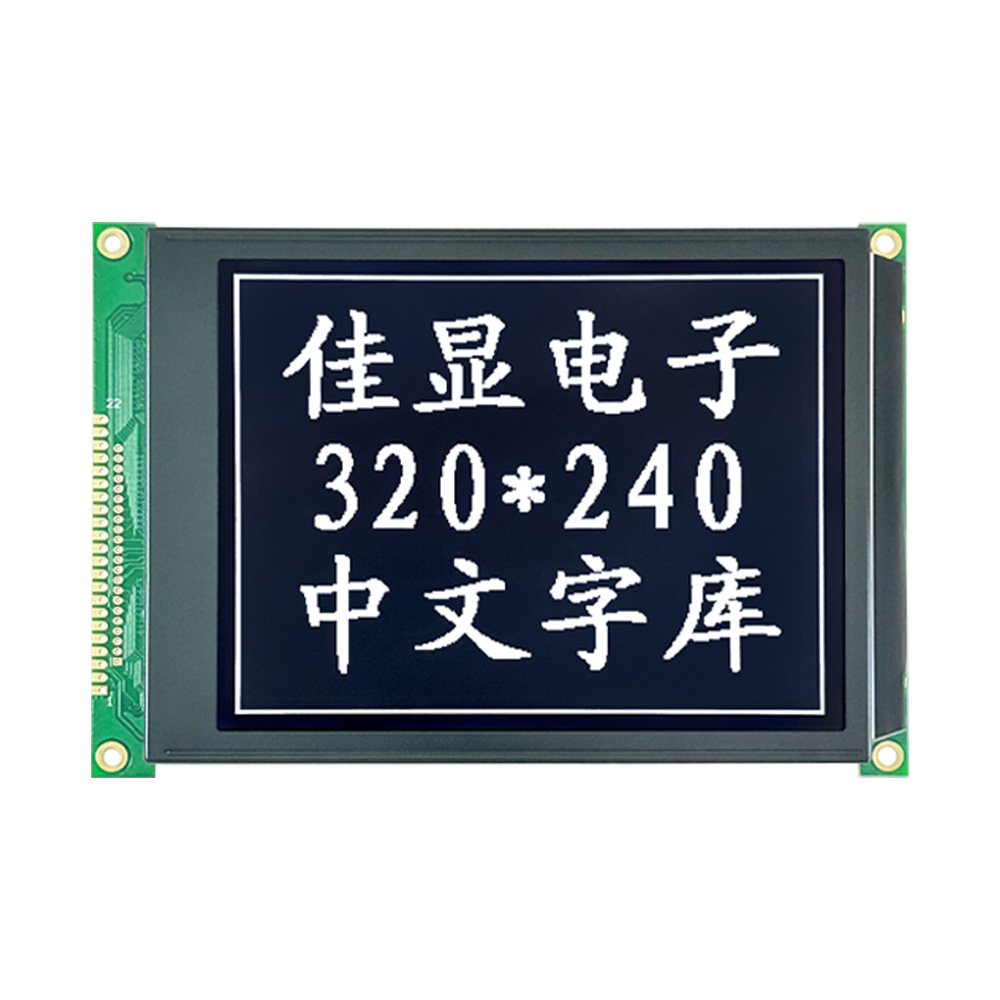

The Embedded LCD Display Module JXD320240F is a high-performance monochrome display designed for embedded applications where clarity, reliability, and compact design are essential. With a resolution of 320×240 pixels, this module offers sharp text and graphical output, making it ideal for industrial controls, measurement devices, and portable electronics. Its lightweight and compact form factor allows for seamless integration into small devices without compromising visual quality. The module’s energy-efficient design ensures minimal power consumption, making it suitable for battery-powered systems.
Parameters:
| Model | JXD320240F |
| Model Size | 160×109×13 mm |
| Field of View Size | 122×92mm |
| Backlight | LED Side Backlight |
| Drive Conditions | 1/240 Duty Cycle,1/16Bias |
| IC |
RA8806
|
|
Colour of Backlight
|
White |
|
Power Supply
|
5.0V/3.3V |
|
LCD Type
|
DFSTN Negative |
|
Viewing Angle
|
6 o'clock |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
The Embedded LCD Display Module features a 320×240 pixel matrix that delivers high-contrast, readable content. It supports standard communication interfaces, including SPI and parallel connections, which allow easy integration with popular microcontrollers and processors. The module operates at a low voltage while providing fast response times, ensuring smooth updates for dynamic data and graphics. Its built-in driver IC simplifies hardware connections, reducing the need for additional circuitry and accelerating development. The display can also handle custom fonts, icons, and symbols, providing flexibility for various user interfaces.
Design Features
Engineered for durability and efficiency, the JXD320240F module comes with a robust PCB layout and a reliable backlight system. Its monochrome display ensures clear visibility under diverse lighting conditions, and wide viewing angles allow consistent readability from different positions. The module’s compact size and lightweight construction make it ideal for embedded systems with space constraints. Developers can utilize existing software libraries to implement menus, status indicators, and graphical dashboards quickly and efficiently.
Applications
The Embedded LCD Display Module is commonly used in industrial machinery, medical instruments, laboratory equipment, home automation devices, and other embedded electronics requiring clear monochrome display output. Its low power consumption and high visibility make it particularly suitable for portable devices, control panels, and handheld systems.
Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
