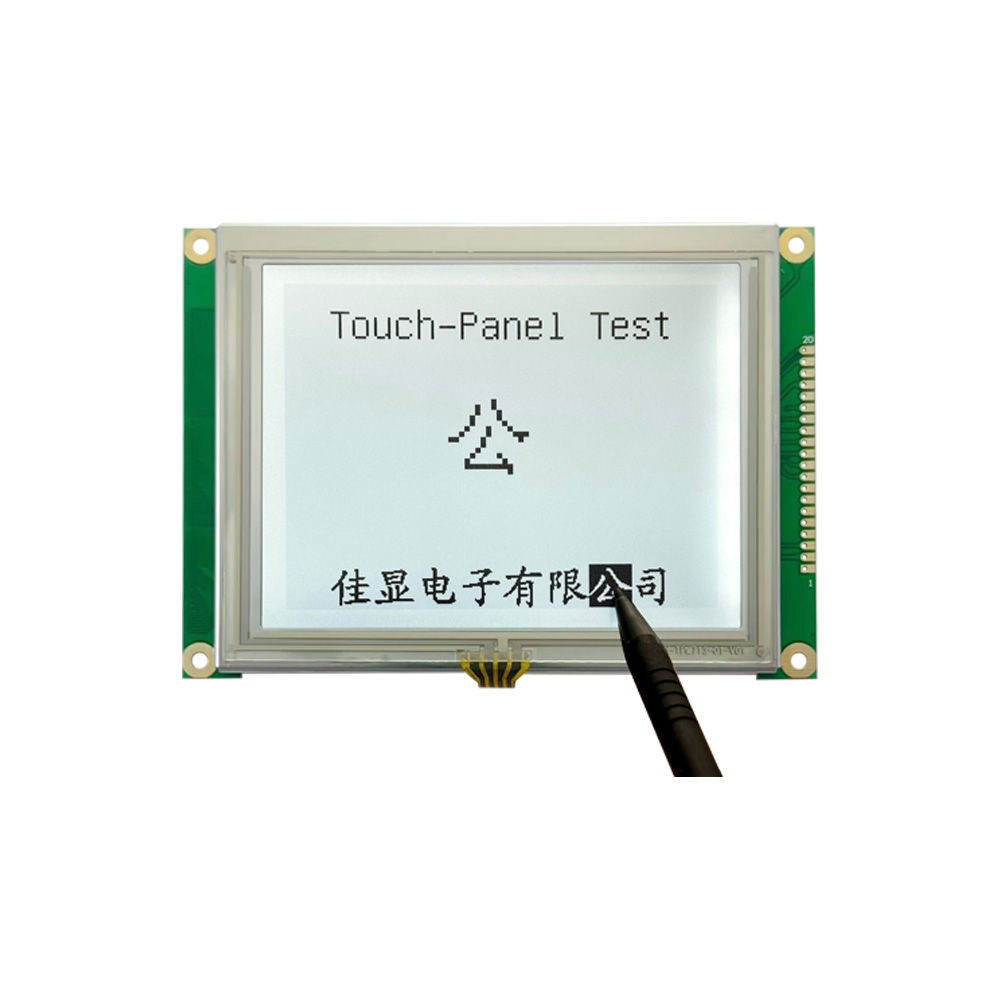

Custom Graphic LCD Screen is engineered for applications that require tailored display solutions with high flexibility and reliable performance. The JXD320240BF-TP model is designed to support complex visual content, including detailed graphics, multi-line text, and interactive interface elements. It is suitable for advanced embedded systems where standard display formats are insufficient, and customization is essential for optimal user experience.
Parameters:
| Model | JXD320240BF（FSTN） |
| Model Size | 139×100×13 mm |
| Field of View Size | 103×79mm |
| LCD Type | FSTN Positive |
| Viewing Angle | 6 o'clock |
| Temperature Range |
-20℃~+70℃
|
|
Backlight
|
White LEDs backlight |
|
Drive IC
|
RA8835A |
|
Drive Conditions
|
1/240 Duty Cycle,1/16Bias |
|
Drive Voltage
|
5.0V or 3.0V |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
This module features a 320×240 dot matrix resolution, providing a significantly larger active display area for rich information presentation. The monochrome graphic LCD structure ensures strong contrast and stable readability under typical indoor lighting conditions. It is optimized for low power consumption, making it suitable for portable devices and continuously operating embedded systems. The display supports flexible interface configurations, enabling seamless integration with microcontrollers and industrial control platforms. The TP (touch panel) design enhances interactive capability, allowing intuitive user input for modern control applications. Stable driving architecture ensures consistent refresh performance and reduces flickering during dynamic content updates. The viewing performance is optimized to maintain clarity across multiple angles, improving usability in both handheld and panel-mounted systems.
Design Standards
Custom Graphic LCD Screen modules are manufactured under strict industrial-grade reliability standards. The construction uses reinforced glass substrates combined with precision-aligned liquid crystal layers to ensure long-term optical stability. Anti-electromagnetic interference design helps maintain signal integrity in electrically noisy environments such as industrial automation systems and complex electronic assemblies. Thermal stability engineering ensures reliable operation across a wide temperature range without degradation in contrast or response speed. The design supports long lifecycle performance, making it suitable for demanding embedded applications that require continuous operation and durability. Manufacturing consistency ensures uniform quality across production batches.
Applications
This display module is widely used in industrial automation systems, medical equipment, communication devices, and advanced instrumentation. It is particularly effective in control interfaces, diagnostic systems, and monitoring terminals requiring large-format graphical visualization. Engineers also integrate it into testing equipment, smart devices, and customized embedded solutions. Custom Graphic LCD Screen provides a balanced combination of flexibility, clarity, and durability, making it a strong choice for modern electronic system development.
Product Size
FAQ
Q: Does this screen have touch function?
A: This screen comes with a touch function.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
