Basic Information

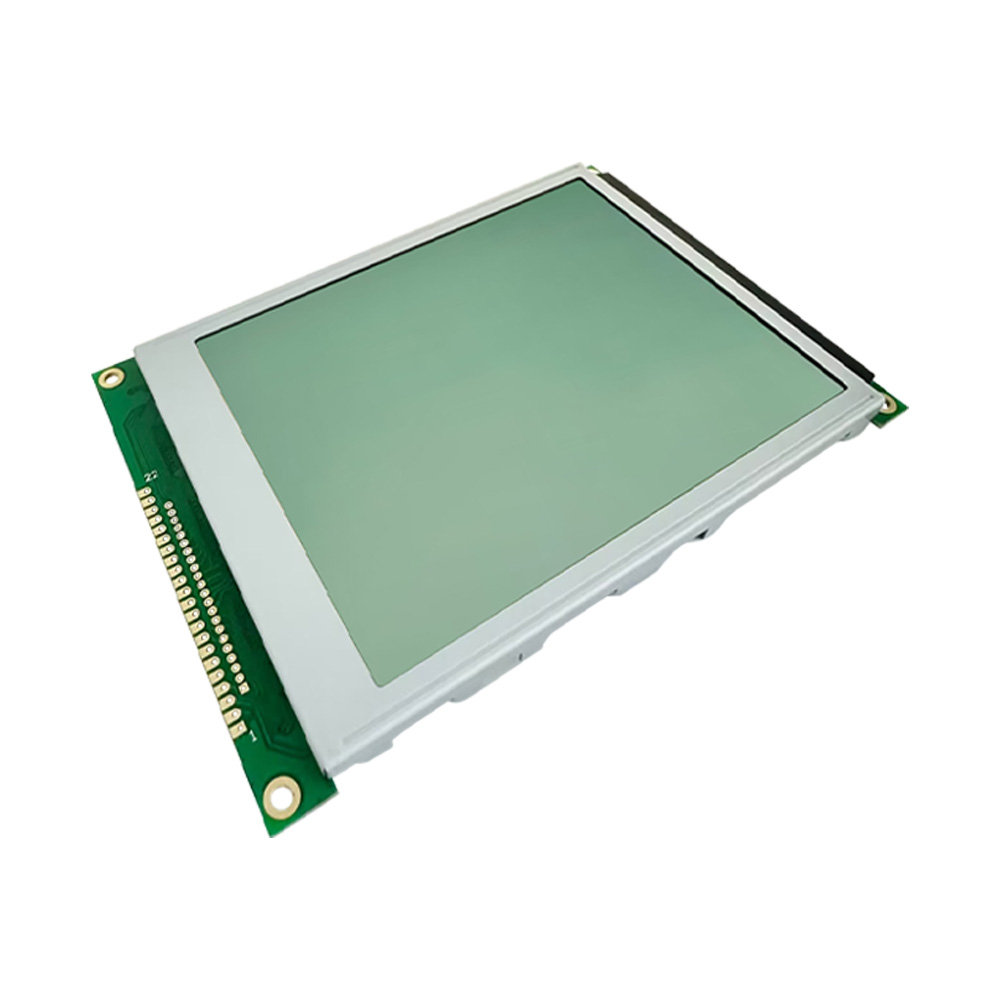

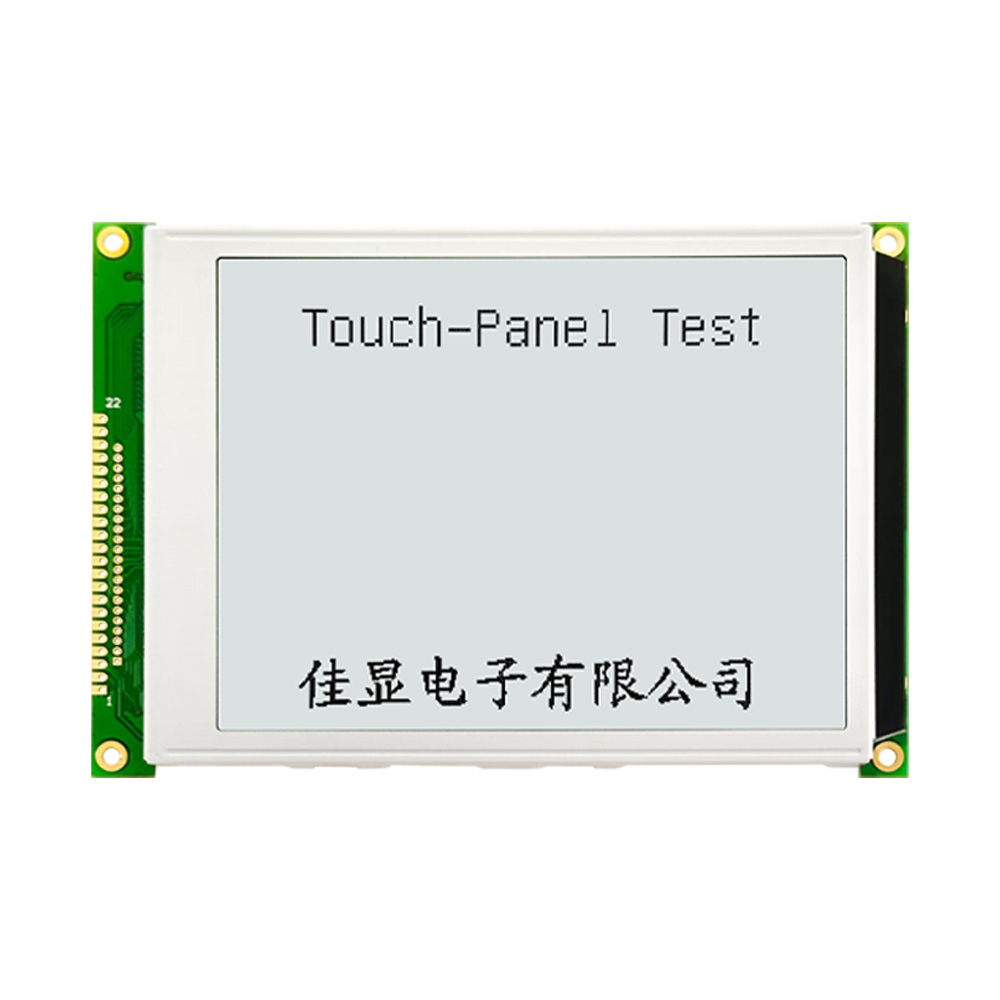

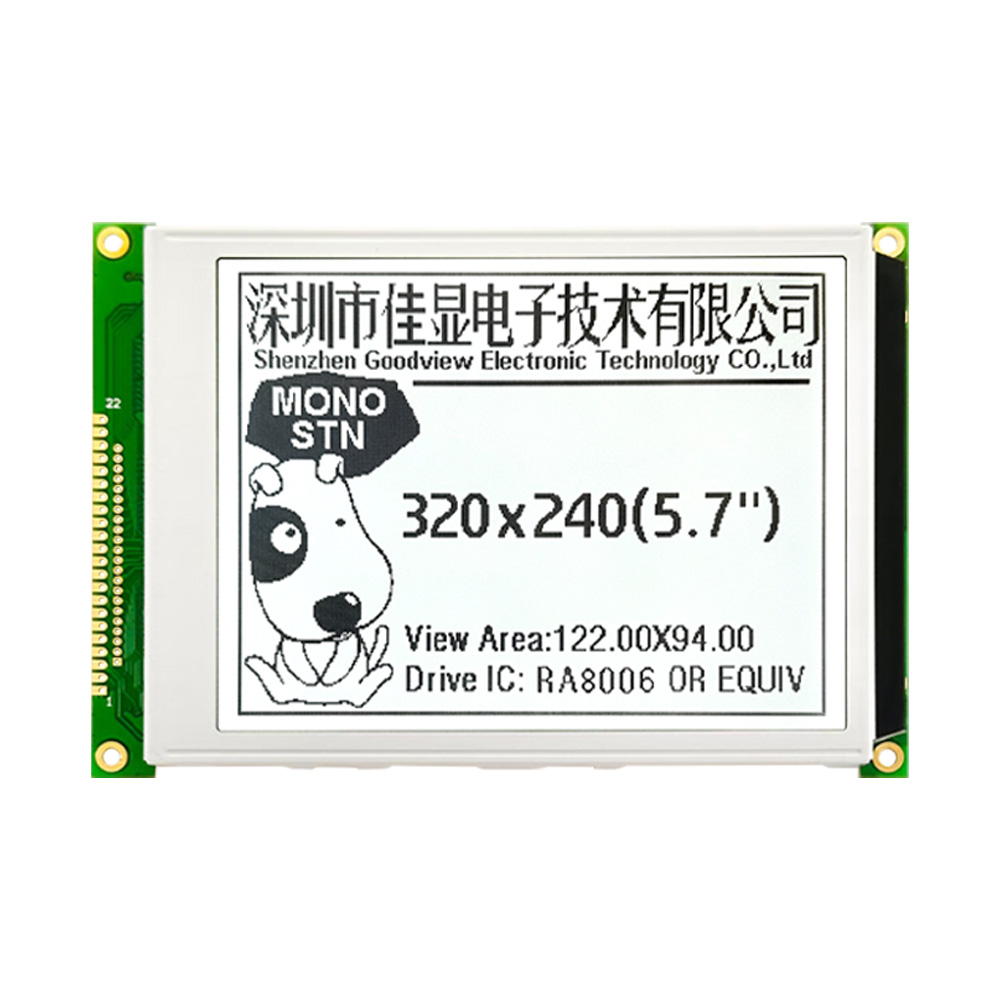

Electronic LCD display panel is designed for high-resolution monochrome visual output in advanced embedded and industrial systems. The JXD320240F model delivers a 320×240 dot matrix configuration, enabling detailed graphical rendering and clear text presentation in compact equipment environments. It is engineered to support stable operation in demanding applications where precision information display is essential, such as measurement interfaces, control terminals, and diagnostic devices. The panel structure emphasizes consistent visibility and long-term operational reliability.

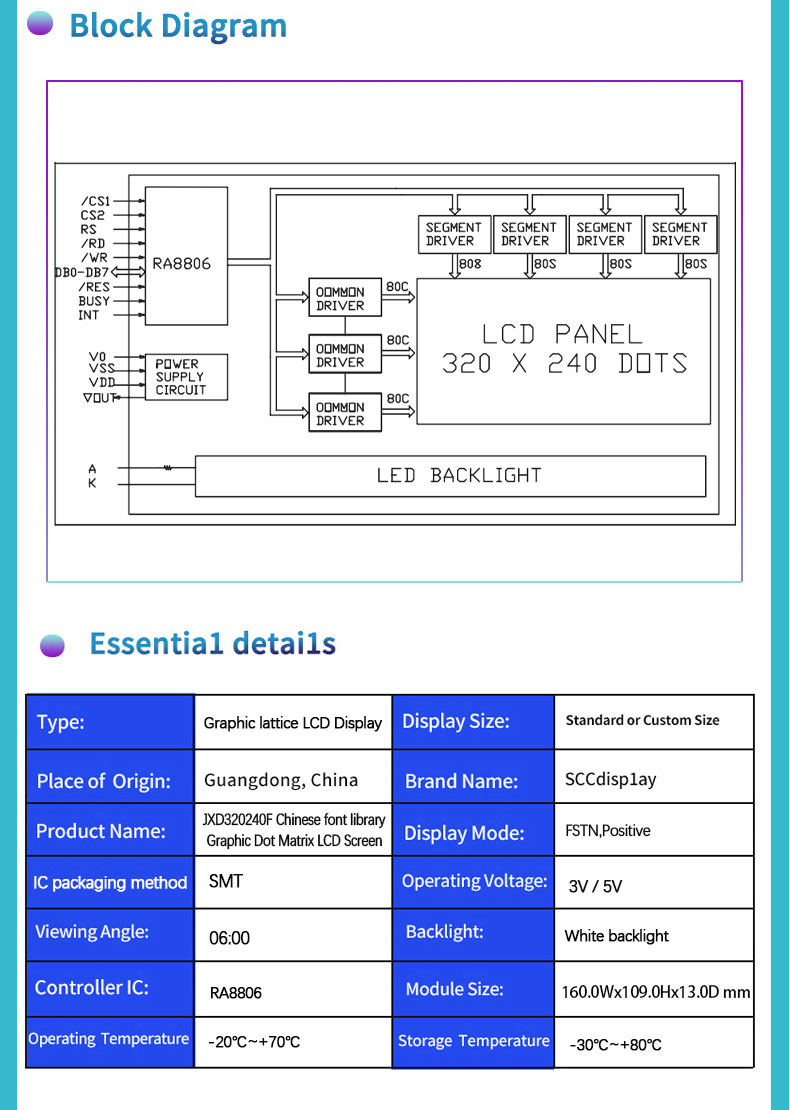

Parameters:
| Model | JXD320240F |
| Model Size | 160×109×13 mm |
| Field of View Size | 122×92mm |
| Backlight | LED Side Backlight |
| Drive Conditions | 1/240 Duty Cycle,1/16Bias |
| IC |
RA8806
|
|
Colour of Backlight
|
White |
|
Power Supply
|
5.0V/3.3V |
|
LCD Type
|
FSTN Positive |
|
Viewing Angle
|
6 o'clock |
Feature

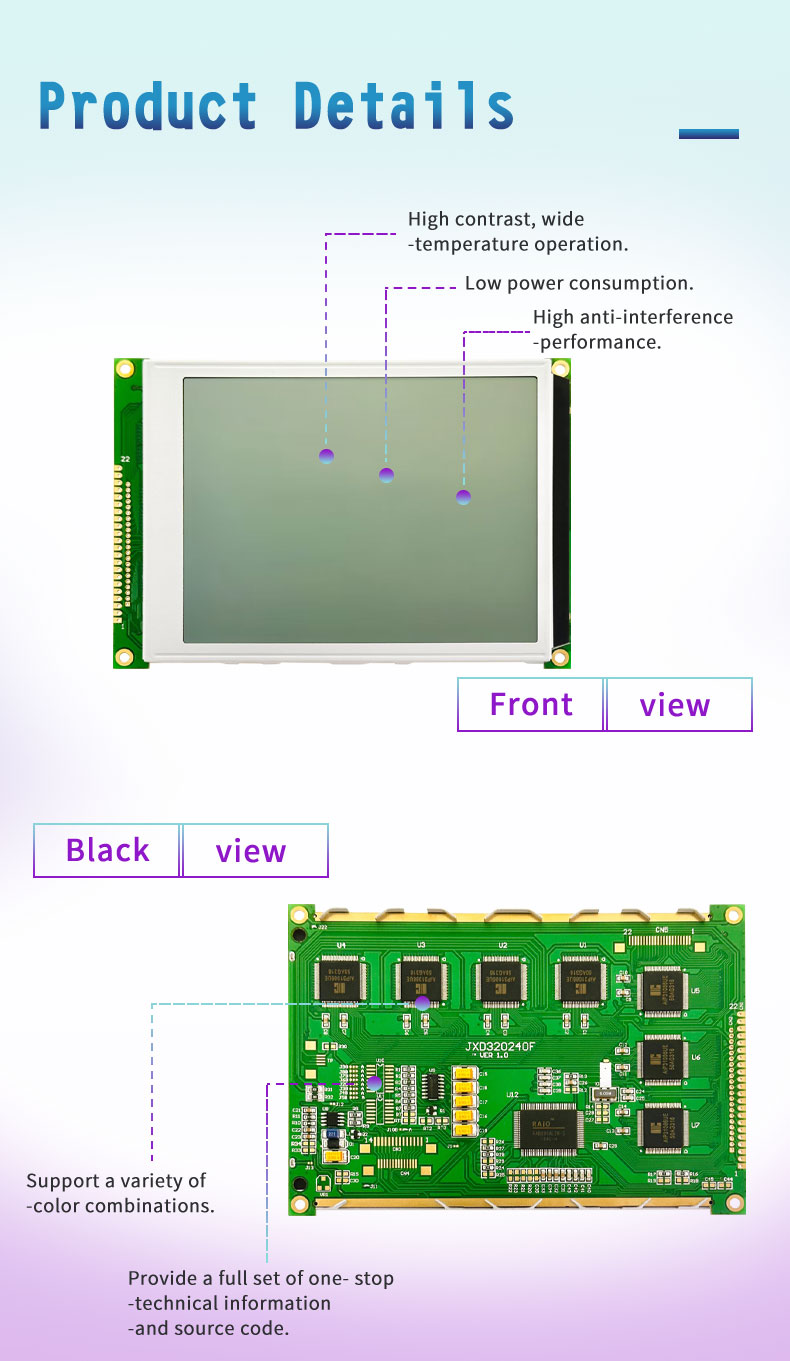

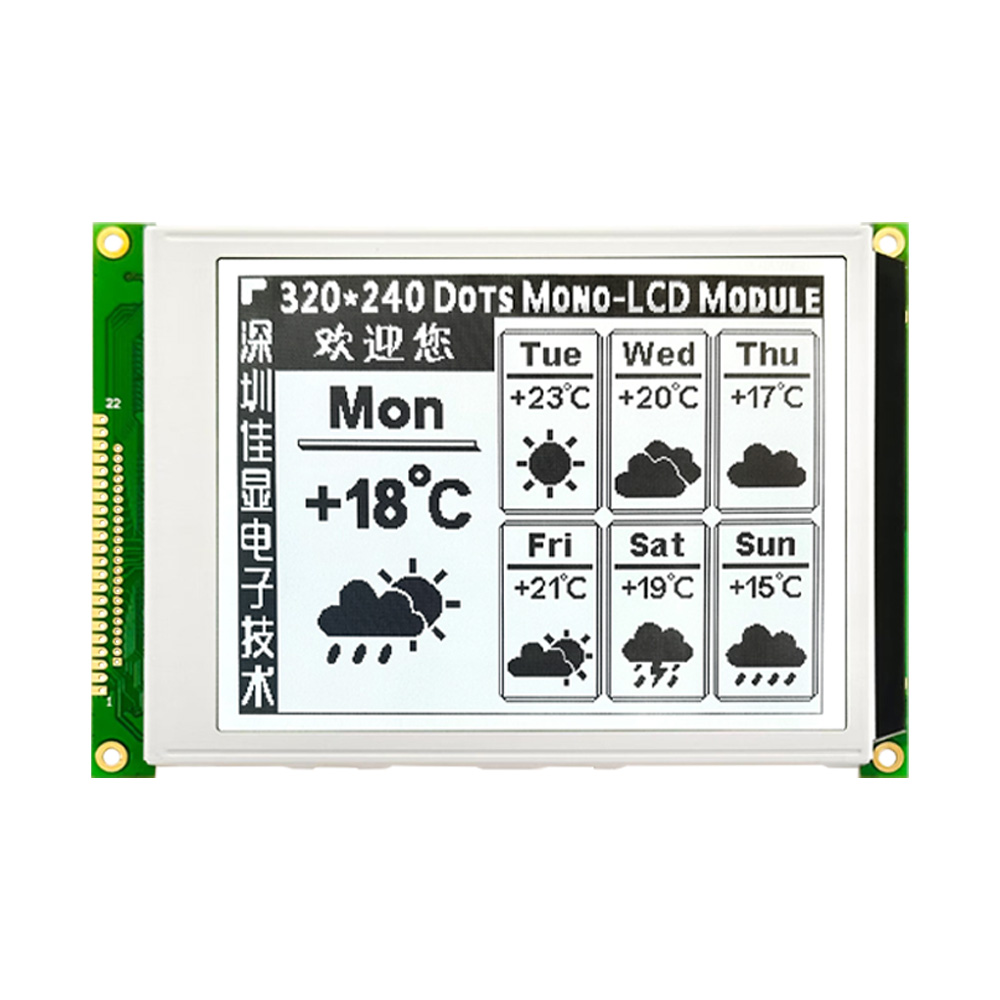

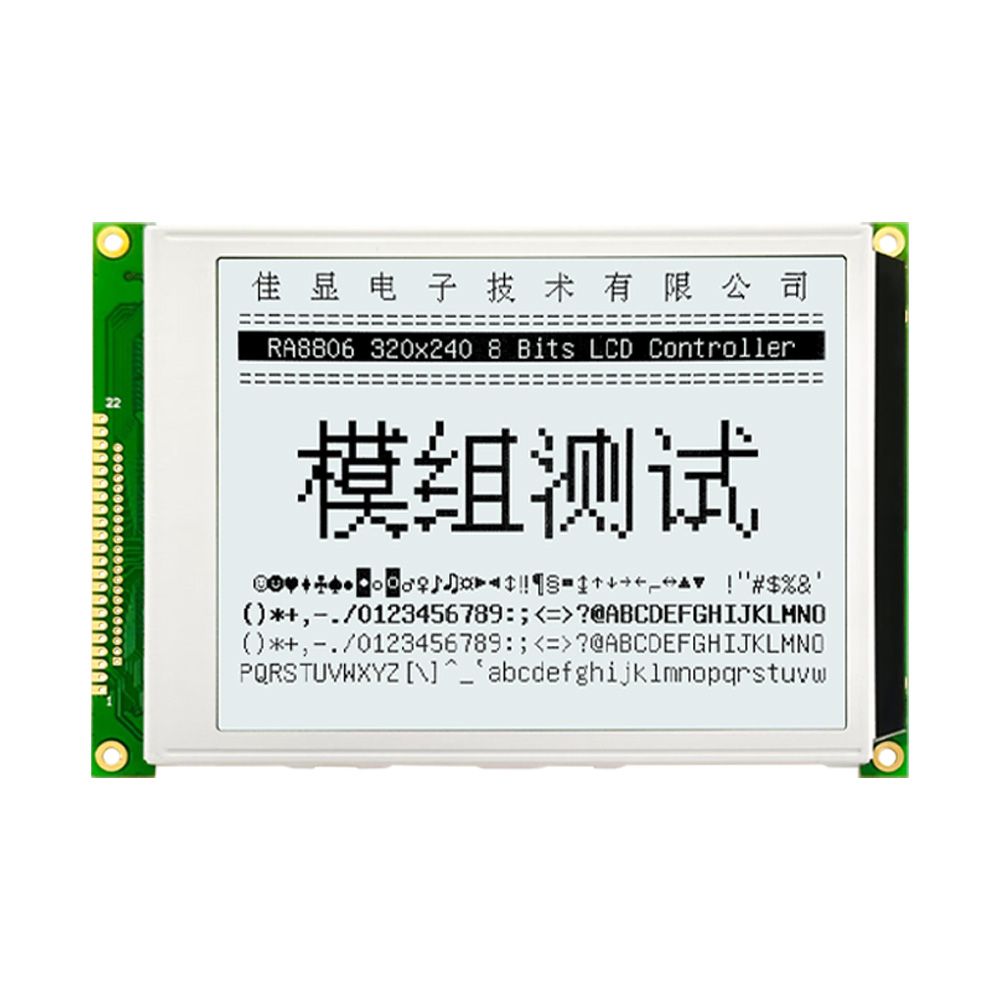

- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
The display utilizes a 320×240 pixel resolution architecture, providing sufficient density for both graphical elements and multi-line text layouts. High contrast liquid crystal technology ensures strong readability even under low or variable lighting conditions. The module operates with low power consumption, making it suitable for energy-sensitive embedded systems. It supports standard controller communication protocols, enabling smooth integration with microcontroller and industrial processing units. The viewing characteristics are optimized to reduce distortion across a wide angle range, ensuring consistent readability in real-world usage environments. Stable refresh behavior enhances the accuracy of dynamic data display.
Design Standards
The electronic LCD display panel is manufactured under strict industrial-grade quality controls, ensuring durability and long service life. Reinforced glass substrates and precision alignment of liquid crystal layers contribute to structural stability and resistance against mechanical stress. Anti-electromagnetic interference design principles are applied to maintain signal integrity in electrically complex environments. The module is also designed for thermal resilience, allowing reliable operation across extended temperature variations without degradation in performance or visual quality. Each unit undergoes testing to ensure consistent optical and electrical characteristics.
Applications
This monochrome LCD solution is widely used in industrial automation systems, laboratory instruments, medical monitoring devices, and communication equipment. It is particularly effective in embedded control interfaces where compact size and high information density are required simultaneously. Engineers also deploy it in handheld diagnostic tools, testing equipment, and production line controllers. The electronic LCD display panel provides a dependable visualization solution for systems requiring stable, long-term operational clarity and efficient data presentation.

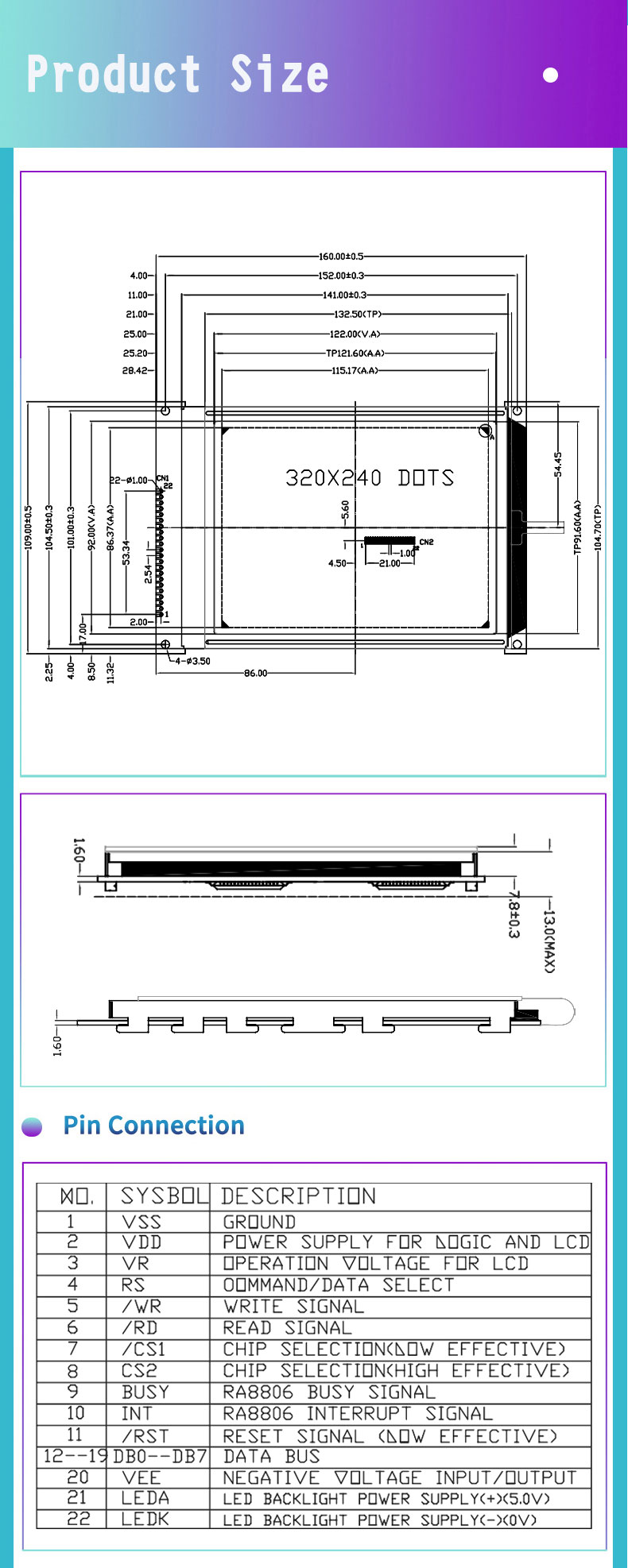

Product Size
FAQ

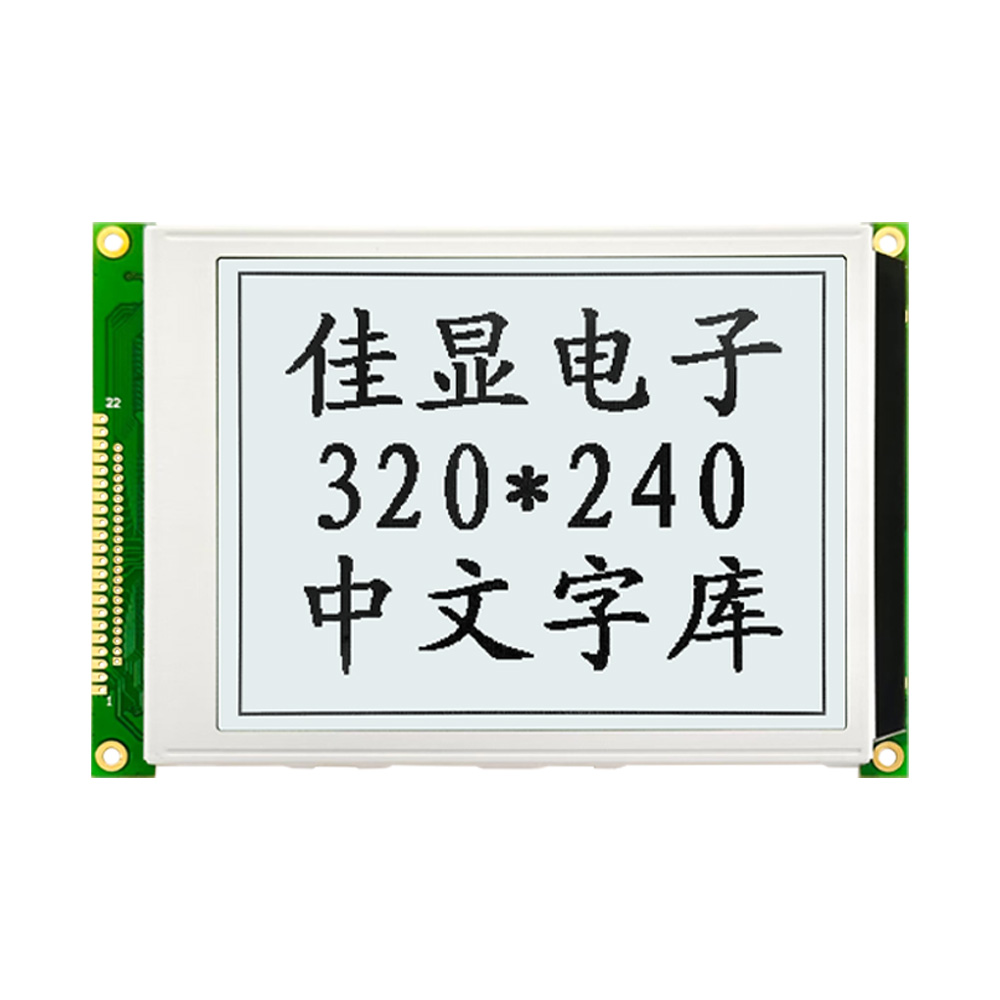

Q: Does this display screen come with a Chinese character library？
A: Yes, I carried a Chinese character library.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
