Basic Information

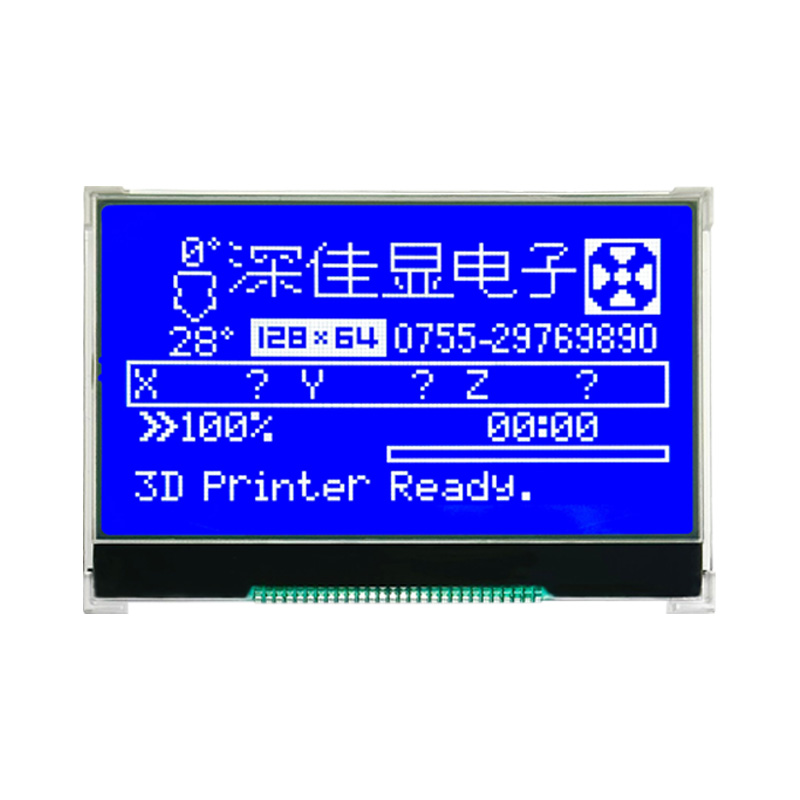

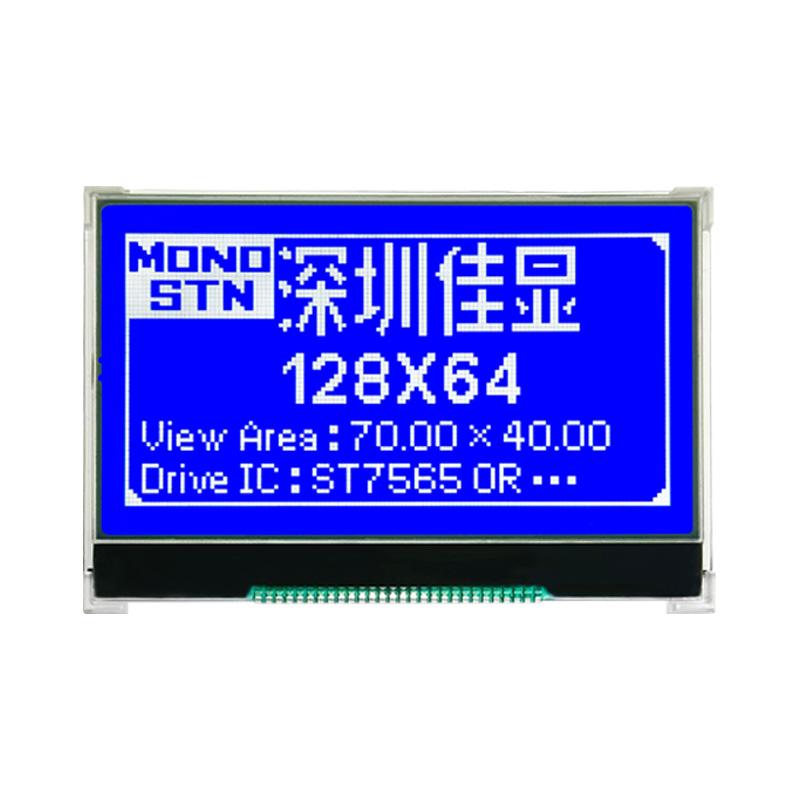

The SJXD12864-338 LCD COG Display is a high-quality graphical LCD module designed for advanced embedded systems and industrial applications. Built with Chip-On-Glass (COG) technology, the driver IC is directly integrated onto the glass substrate, significantly reducing external components and improving overall system reliability. This structure allows for a compact design, stable performance, and low power consumption, making it ideal for portable and energy-efficient electronic devices. The module provides clear graphical and alphanumeric display output, suitable for a wide range of professional applications.
Parameters:
| Model | SJXD12864-338 |
| Model Size | 77.4×52.4×6.5 mm |
| Field of View Size | 70.0×40.0 mm |
| Drive lC | ST7565R |
|
Display Type
|
STN Negative
|
|
Viewing Direction
|
6:00
|
|
Drive Mode
|
1/65Duty, 1/9Bias
|
|
Operating Voltage
|
VOP=9.0V, VDD=3.0V
|
| Operating Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |
|
Backlight
|
LED(4Pcs, white, IF=60mA, VF=3.0V), LUM=30CD/M2 (mix) |
|
Connector
|
COG+PIN(7mm)/28PIN |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
The SJXD12864-338 LCD COG Display features a 128×64 dot matrix resolution, enabling detailed rendering of text, symbols, and custom graphics. Its COG architecture ensures high integration, reducing PCB space requirements and simplifying circuit design. The display operates at low voltage with minimal power consumption, making it suitable for battery-powered systems. It offers high contrast and wide viewing angles, ensuring excellent readability under different lighting conditions. The module supports stable electrical performance, fast response time, and consistent refresh rates, ensuring smooth and reliable display output. Its durable construction allows long-term operation in demanding environments, including industrial and outdoor conditions.
Design Features
This LCD COG Display is engineered for efficiency, compactness, and integration flexibility. The chip-on-glass structure eliminates the need for complex external driver circuits, reducing overall system cost and design complexity. It supports precise pixel control, enabling detailed graphical interfaces, icons, and text layouts. The module is compatible with various microcontrollers and embedded platforms, making it suitable for OEM and ODM development projects. Its stable architecture ensures long-term reliability and consistent performance across different operating conditions.
Applications
The SJXD12864-338 LCD COG Display is widely used in industrial control systems, medical equipment, automotive dashboards, smart home devices, handheld instruments, and measurement tools. It is particularly suitable for applications requiring graphical user interfaces, data visualization, and embedded display solutions. Engineers often use this module in customized electronic products and interactive control panels.
Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
