Basic Information
Parameters：
| Model | SJXD12864F-6 |
| Model Size | 113.4×65.4×13.0 mm |
| Field of View Size | 72.0×40.0mm |
| Display Mode | STN positive |
| Viewing Angle | 6 o'clock |
| Operating Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |
|
Drive IC
|
ST7920 |
|
Backlight
|
Yellow LEDs backight |
|
Drive Voltage
|
5.0V or 3.3V |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications

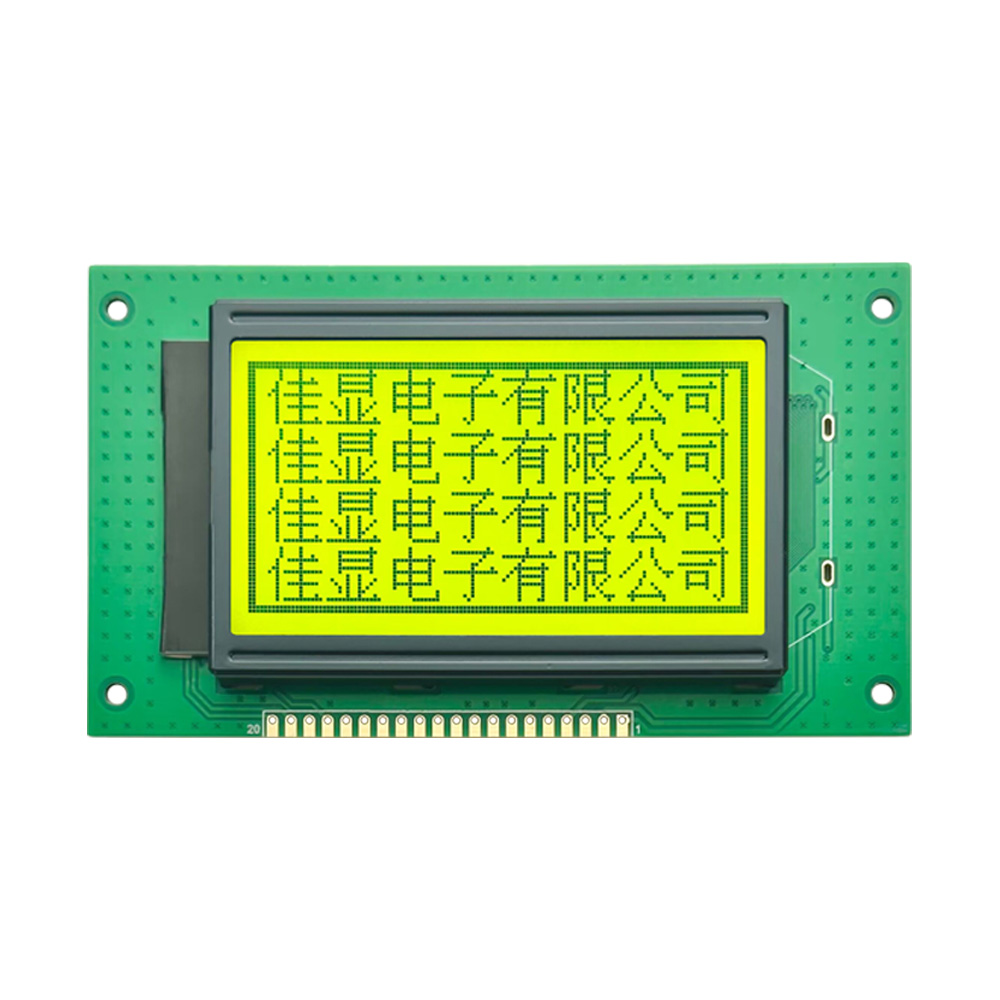

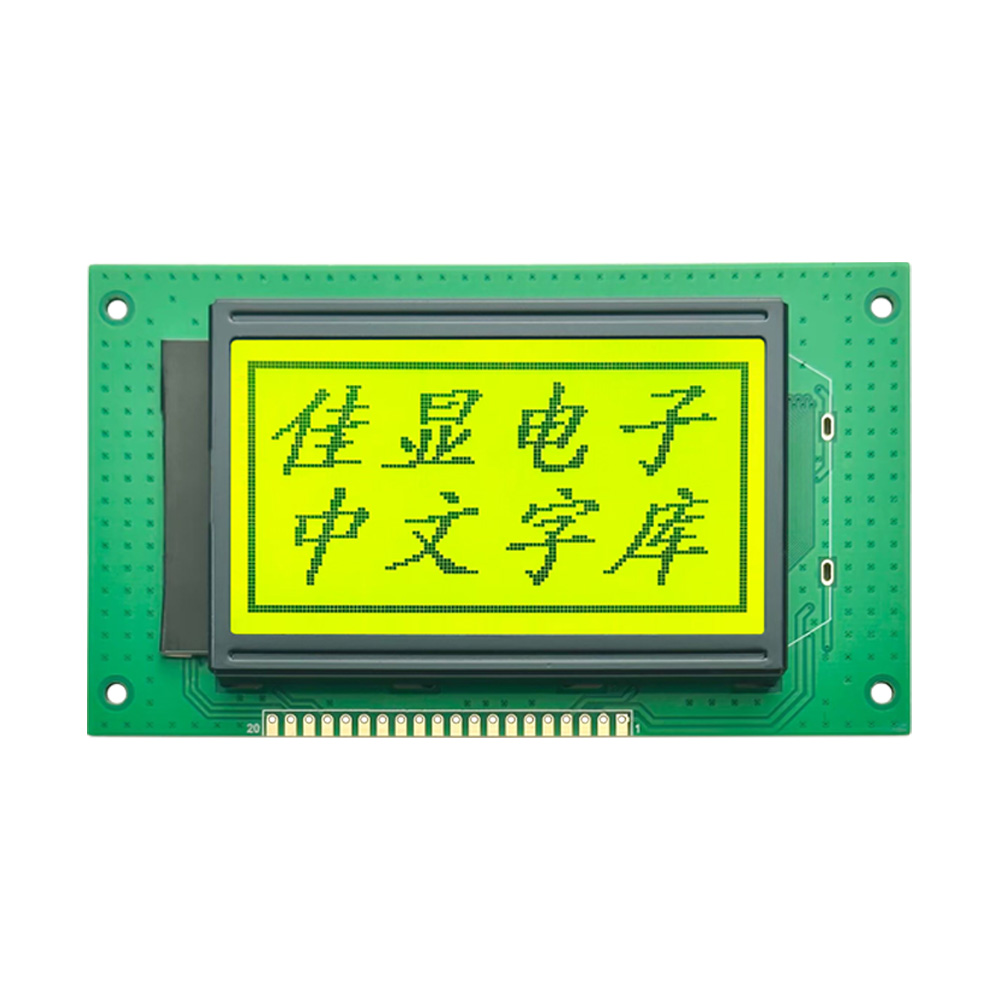

This display board utilizes a 128×64 dot matrix structure, enabling structured information display with multi-line text and basic graphic capability. The monochrome LCD technology delivers strong contrast, ensuring clear visibility in standard lighting conditions. It is optimized for low power operation, making it suitable for energy-efficient systems and portable equipment. The module supports common controller interfaces, allowing straightforward integration with embedded microcontrollers and industrial processing units. Stable driving circuitry ensures reliable refresh performance and reduces visual flicker during dynamic content updates. Its viewing performance is designed to maintain readability across different angles, improving usability in both handheld devices and fixed installation panels.
Design Standards
Monochrome LCD Display Boards are manufactured under strict industrial-grade reliability standards. The construction uses reinforced glass substrates combined with precisely aligned liquid crystal layers to ensure long-term optical stability. Anti-interference design minimizes the impact of electromagnetic noise commonly found in industrial environments such as factories and automation systems. Thermal resistance engineering allows stable operation across a wide temperature range without degradation in contrast or response time. The design emphasizes durability and long lifecycle performance to support continuous use in demanding embedded applications.
Applications
These display boards are widely used in industrial automation systems, medical devices, testing instruments, and communication equipment. They are particularly effective in control panels, diagnostic tools, and embedded monitoring terminals that require compact yet informative display solutions. Engineers also integrate them into handheld meters, educational equipment, and factory control systems. Monochrome LCD Display Boards offer a balanced combination of clarity, efficiency, and stability, making them a practical choice for modern electronic system development.
Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
