LCD Display Module 16x2 Datasheet-SJXD1602A-D (DFSTN Negative)

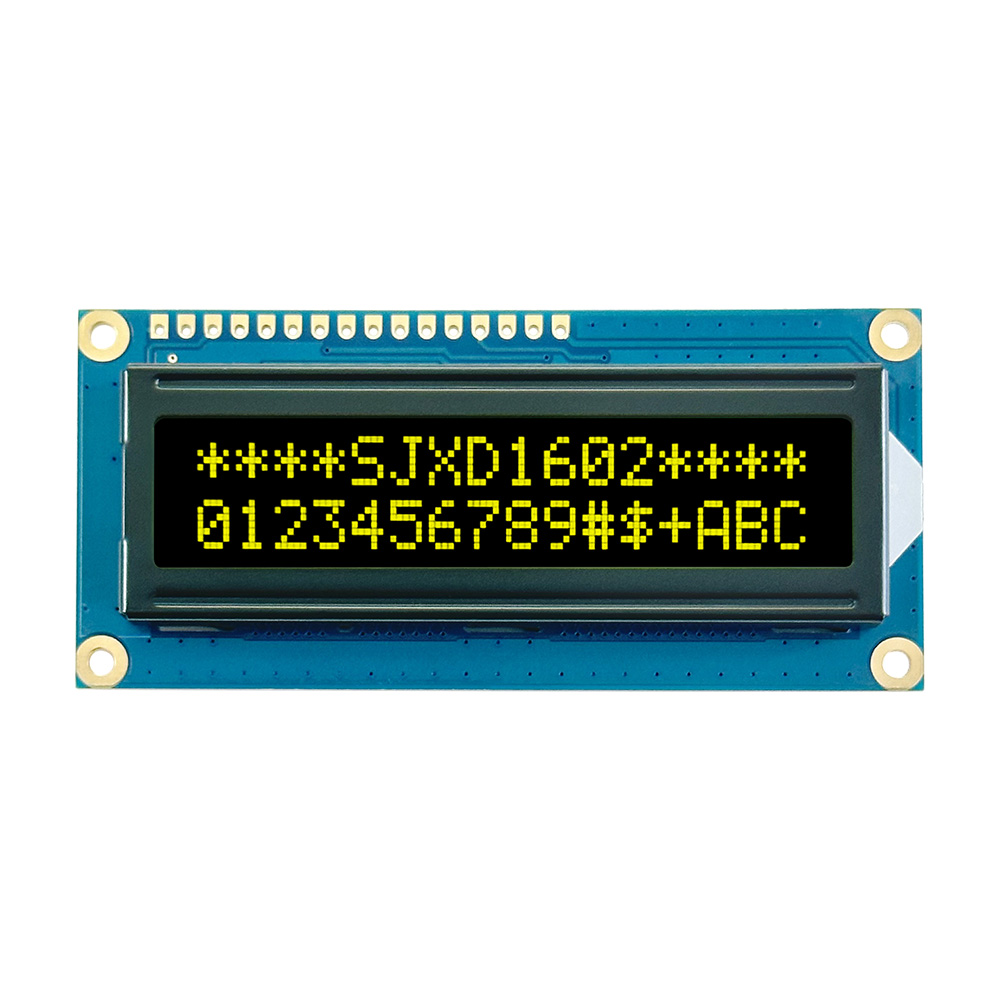

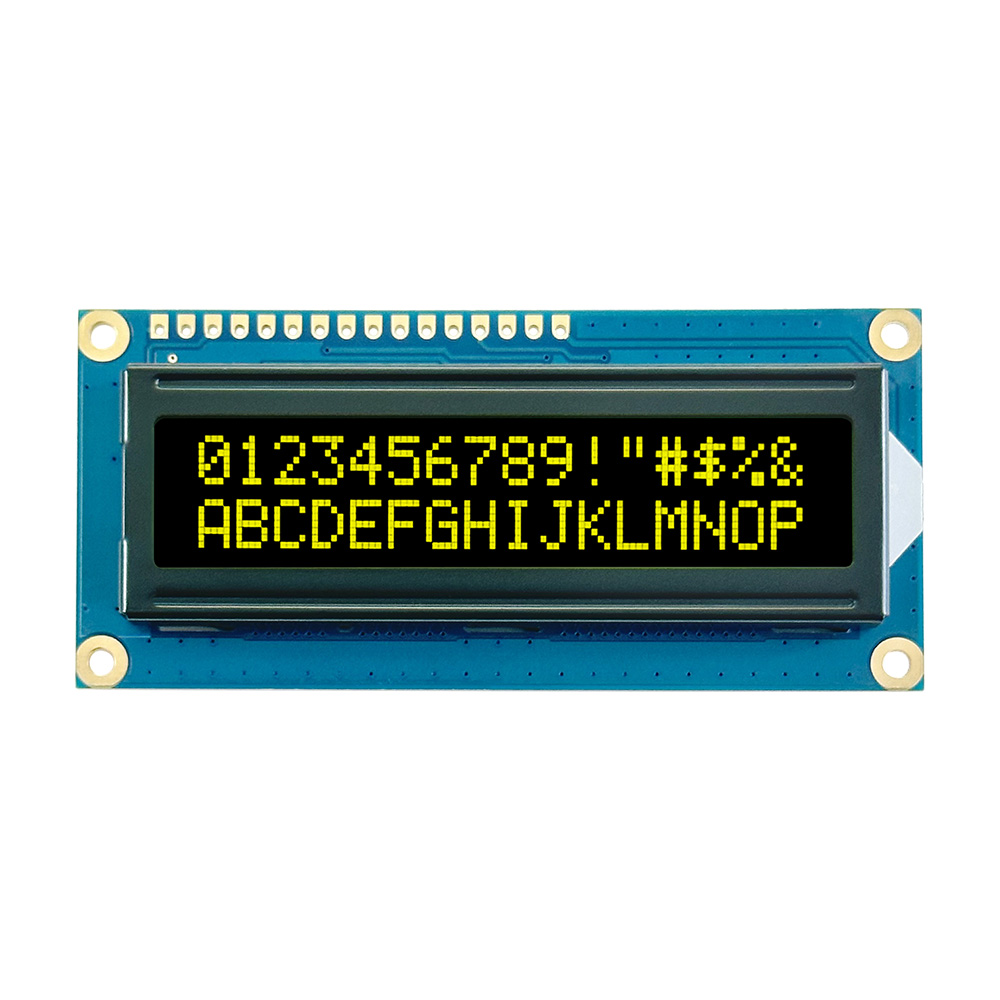

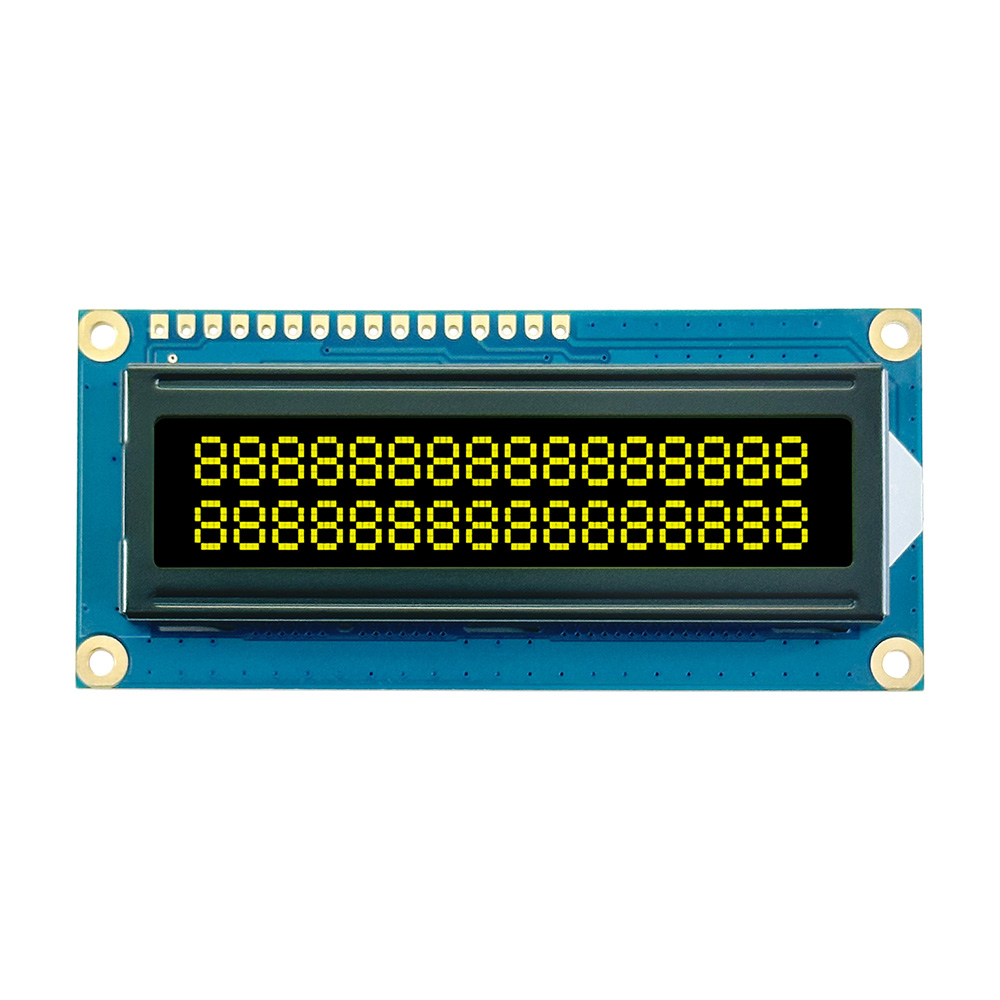

LCD Display Module 16x2 Datasheet details the SJXD1602A-D character LCD for two-line alphanumeric output in embedded products. It features an 80.0×36.0×12.0mm outline, 64.5×14.0mm viewing area, 5.0V/3.3V drive support, AIP31068L drive IC, white LED backlight, DFSTN negative LCD type, 06:00 viewing angle, and 16 single interfaces with SPI or IIC options. It can display values, menus, alarms, timers, counters, and status data in meters, appliances, medical devices, instruments, vending systems, education kits, and control panels.

Parameters:

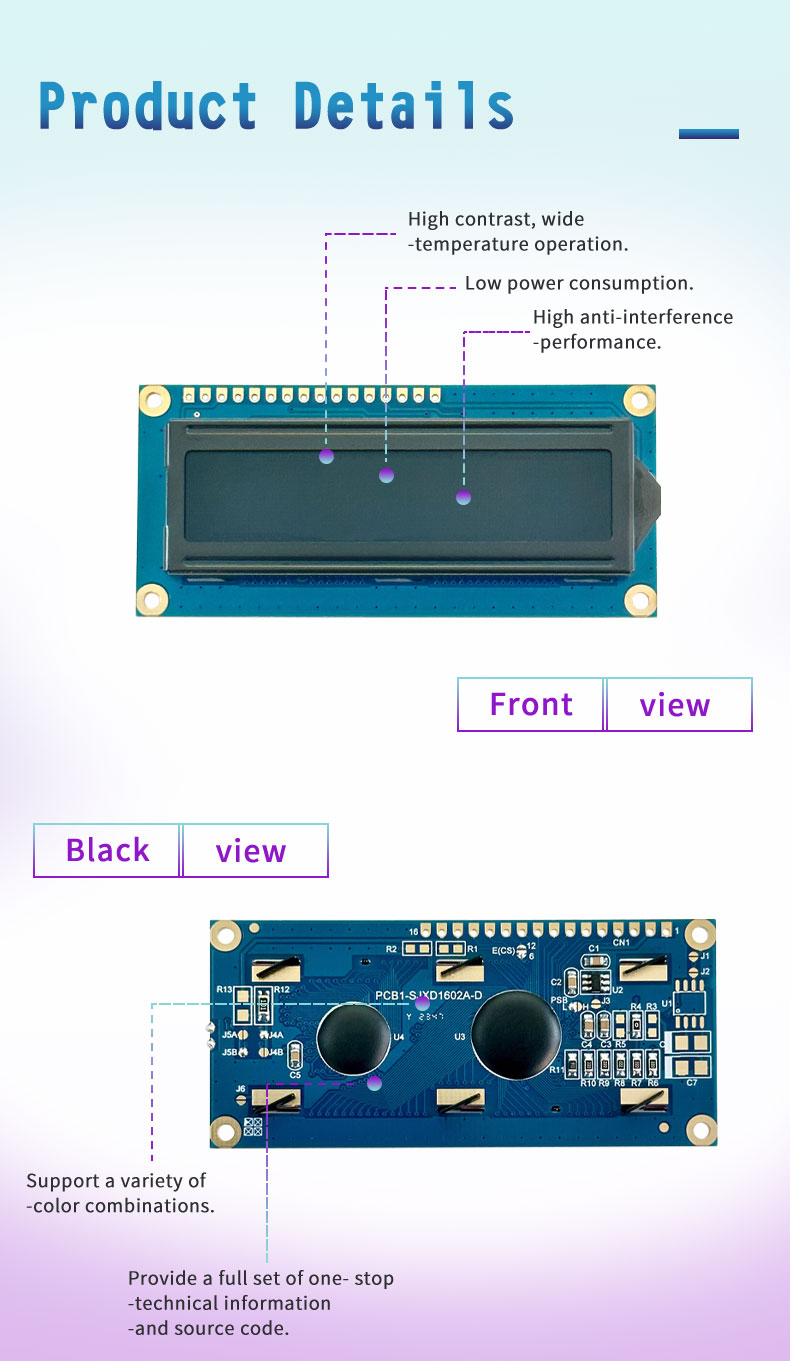

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective

Key Specifications

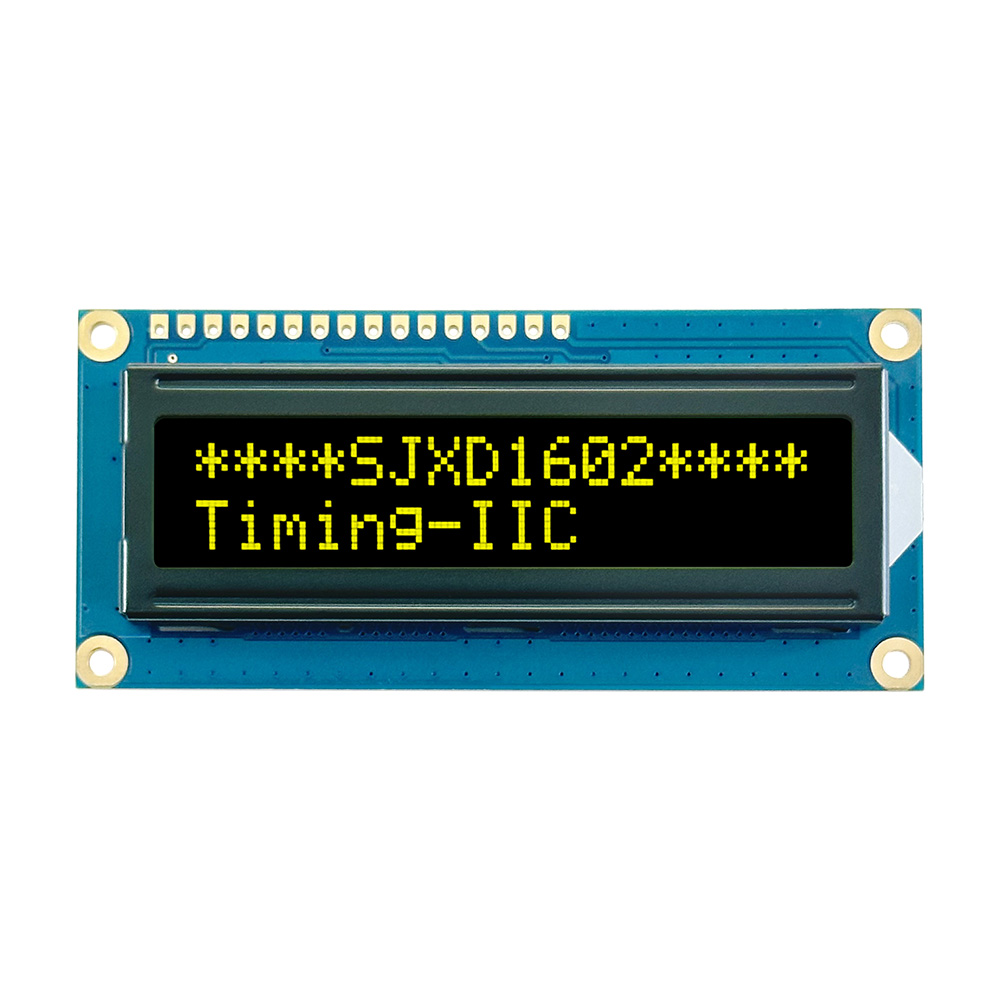

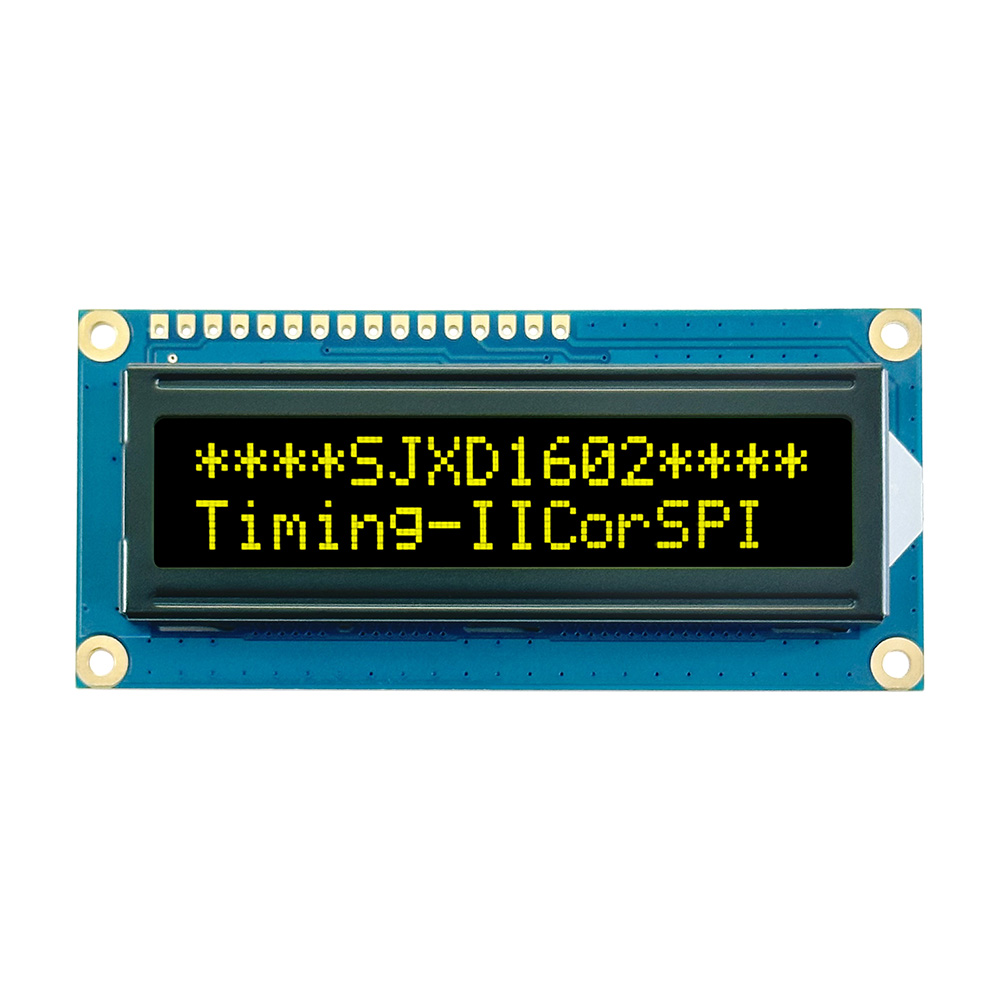

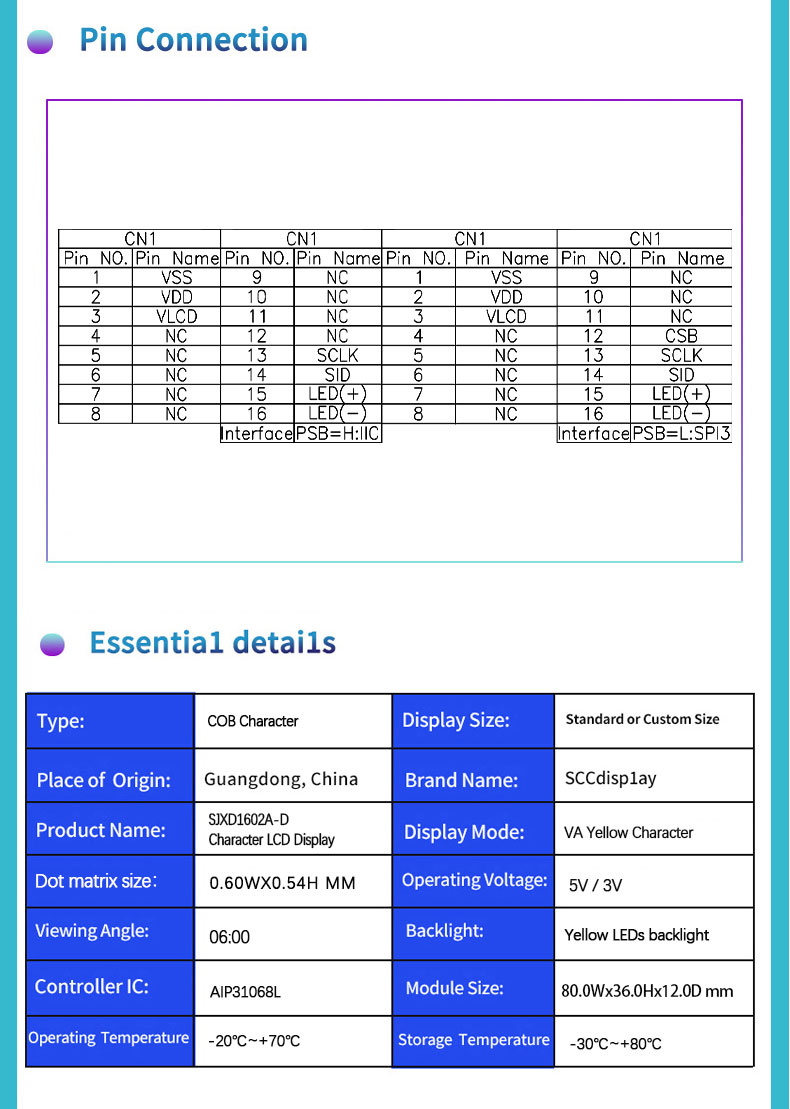

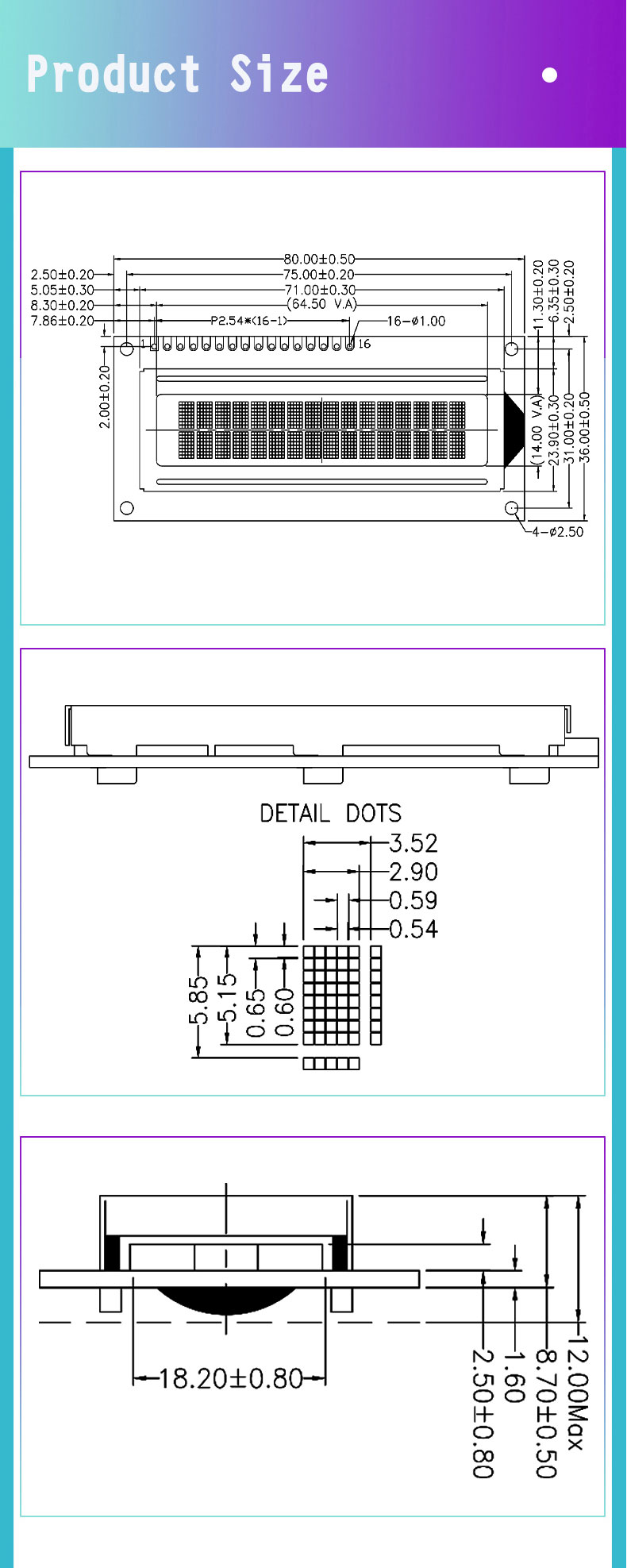

LCD Display Module 16x2 Datasheet describes the SJXD1602A-D character LCD module for projects that require two rows of stable alphanumeric output. The module provides a 16×2 character format, 80.0×36.0×12.0mm outline size, and 64.5×14.0mm viewing area. It supports 5.0V/3.3V drive voltage, AIP31068L drive IC, white LED backlight, DFSTN negative LCD type, 06:00 viewing angle, and 16 single interfaces with SPI or IIC interface options. It operates from -20°C to +70°C and stores from -30°C to +80°C.

Design Standards

LCD Display Module 16x2 Datasheet is designed as a practical reference for engineers selecting a reliable 16×2 display for embedded devices. The DFSTN negative display mode delivers high contrast, while the white LED backlight improves readability for values, menus, codes, and short instructions. The module supports low power consumption, anti-interference performance, wide-temperature operation, and flexible interface selection for different circuit layouts. It also provides technical documentation, source-code support, 1-3 day sample availability, and customization for character content, backlight color, shell design, and application-specific parameters.

Applications

LCD Display Module 16x2 Datasheet is suitable for equipment that needs clear two-line display data with stable long-term performance. It can show meter readings, large font numbers, voltage values, timer information, setting menus, alarm messages, counter data, and device status. Typical applications include meters, equipment control panels, information display systems, industrial controllers, home appliances, medical devices, consumer electronics, laboratory instruments, vending equipment, educational kits, DIY projects, and embedded boards. Its compact size and 16×2 capacity make it useful for both prototype evaluation and production designs.

Q: Can we support small batch customization？
A: Sure, customization is required based on the provided samples and drawings.

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
