I2C 16x2 Arduino Lcd Display Module-SJXD1602A-I(FSTN Positive)

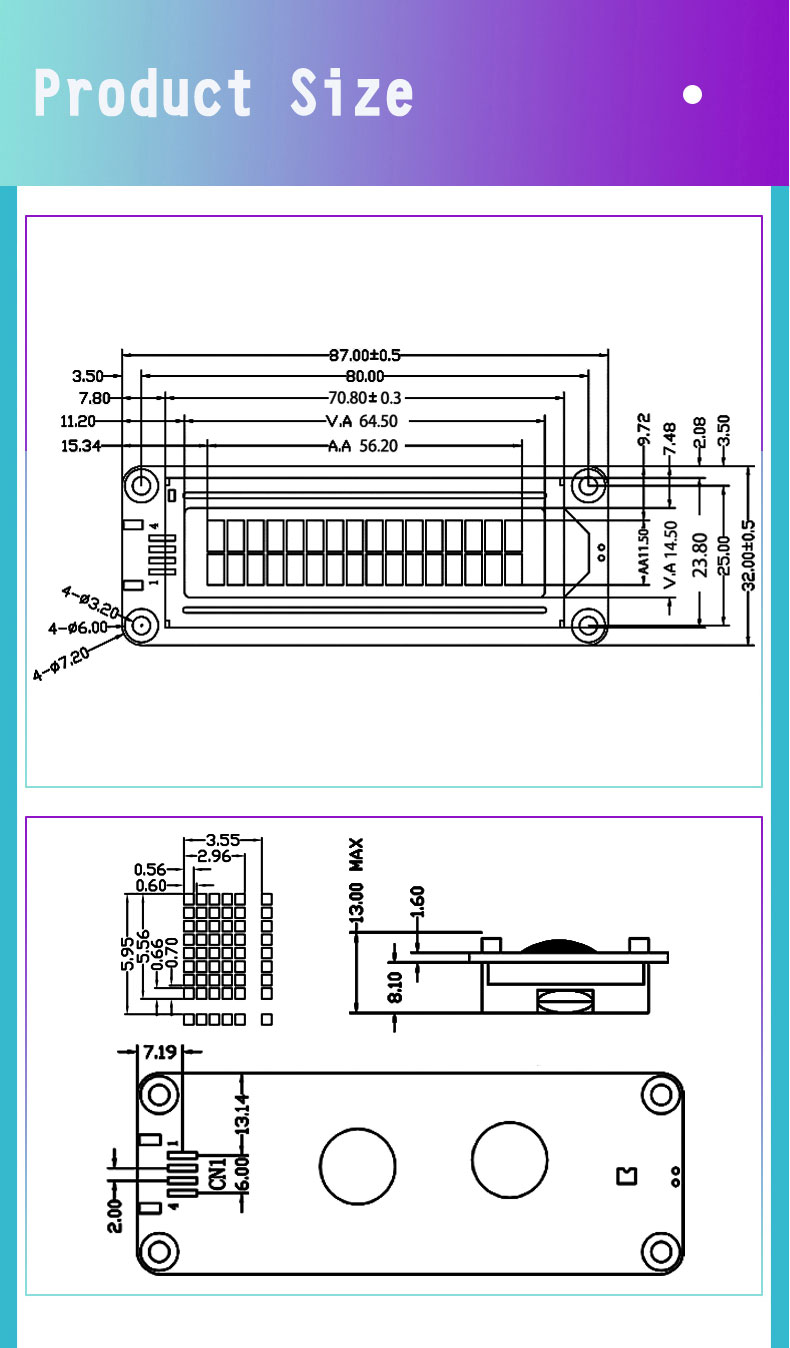

I2C 16x2 Arduino Lcd Display Module is a two-row character screen for Arduino boards, training kits, and embedded control projects. The SJXD1602A-I model provides an 87.0×32.0×13.0mm outline, 64.5×14.5mm viewing area, 3.3V/5V drive support, AIP31068L drive IC, white LED backlight, FSTN positive display type, 16 double interfaces, and 06:00 viewing angle. It can show sensor data, menus, voltage readings, timers, warnings, and system status in meters, appliances, medical panels, lab tools, and DIY electronics.

Parameters:

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective

Key Specifications

I2C 16x2 Arduino Lcd Display Module is a two-line character display for Arduino projects that need readable values, menu text, and device feedback. The SJXD1602A-I model uses an 87.0×32.0×13.0mm outline size with a 64.5×14.5mm viewing area, providing 16 characters per row across two rows. It supports 3.3V/5.0V drive voltage, AIP31068L drive IC, white LED backlight, FSTN positive LCD type, 16 double interfaces, and 06:00 viewing angle. The module operates from -20°C to +70°C and stores from -30°C to +80°C.

Design Standards

I2C 16x2 Arduino Lcd Display Module is designed for clear Arduino display integration, stable character contrast, and dependable long-term operation. The FSTN positive display type helps improve readability for values and prompts, while the white LED backlight supports bright viewing in development boards and equipment panels. Its interface design supports direct command control for initialization, cursor movement, row selection, and text writing. The module also provides wide-temperature resistance, low power consumption, strong anti-interference performance, technical documentation, source-code support, multiple color combinations, sample availability, and customization for display content, backlight color, structure, and other project requirements.

Applications

I2C 16x2 Arduino Lcd Display Module is suitable for Arduino-based devices, training kits, and embedded products that need simple two-row information output. It can display sensor data, voltage readings, temperature values, menu items, timer information, warning messages, counter results, and system status. Typical uses include industrial meters, smart appliances, access control units, medical equipment panels, consumer electronics, laboratory instruments, vending machines, power monitoring devices, DIY controllers, and educational electronics. Its 16×2 format helps users view essential information clearly without adding a larger graphic screen.

Q: What are the advantages of your display module？
A: High strength and long lifespan, fast response speed, even distribution of backlight.

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
