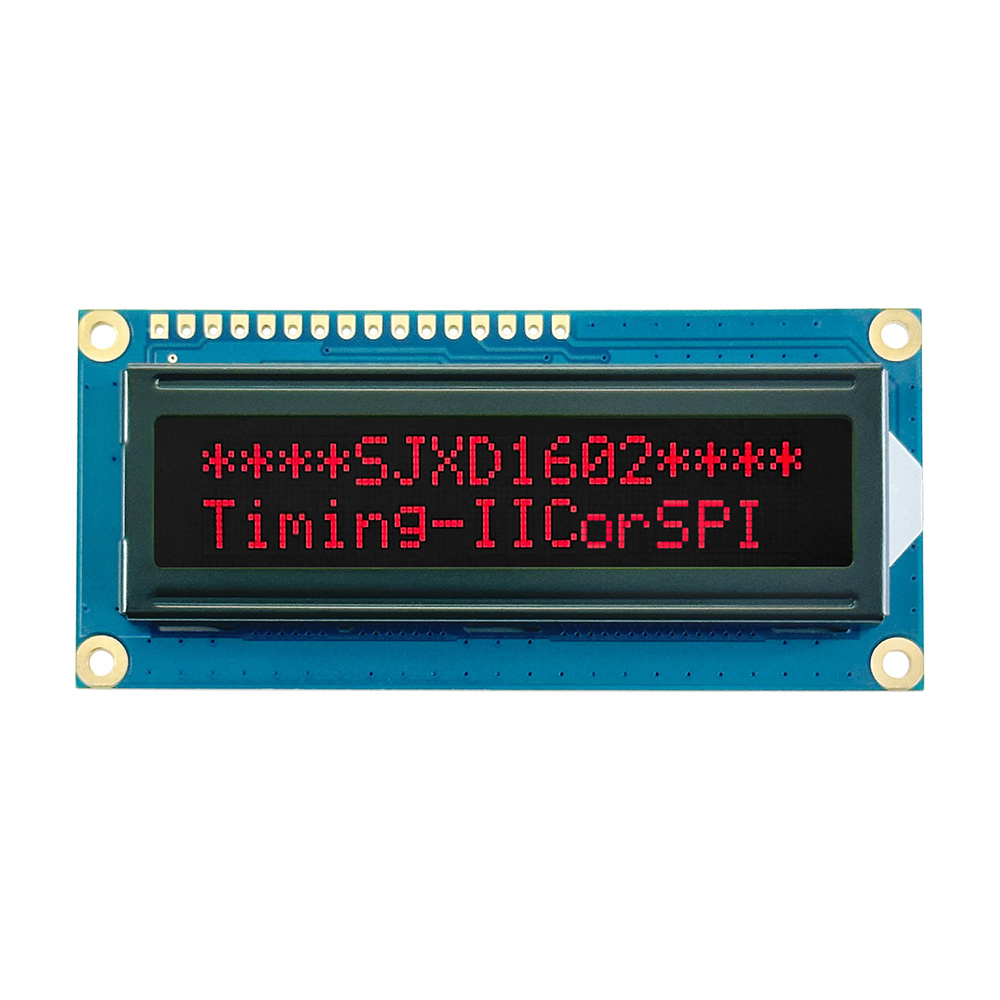

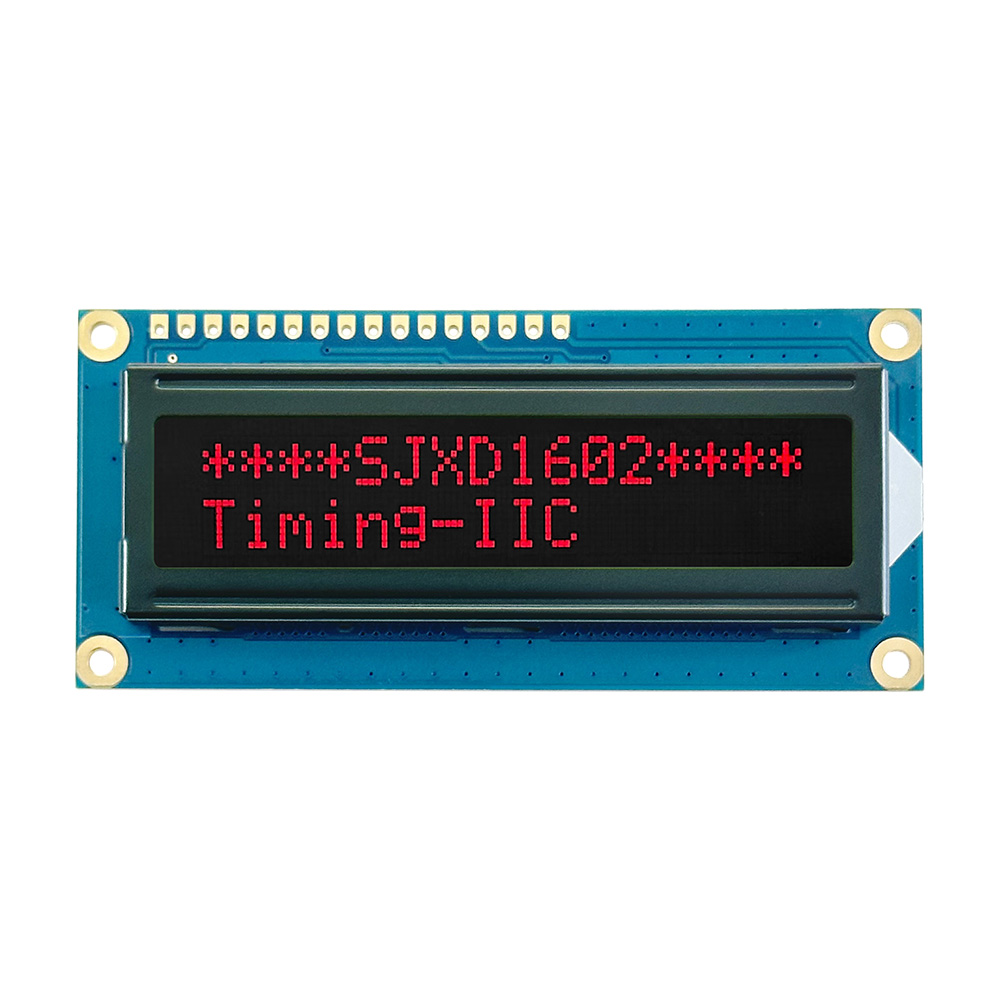

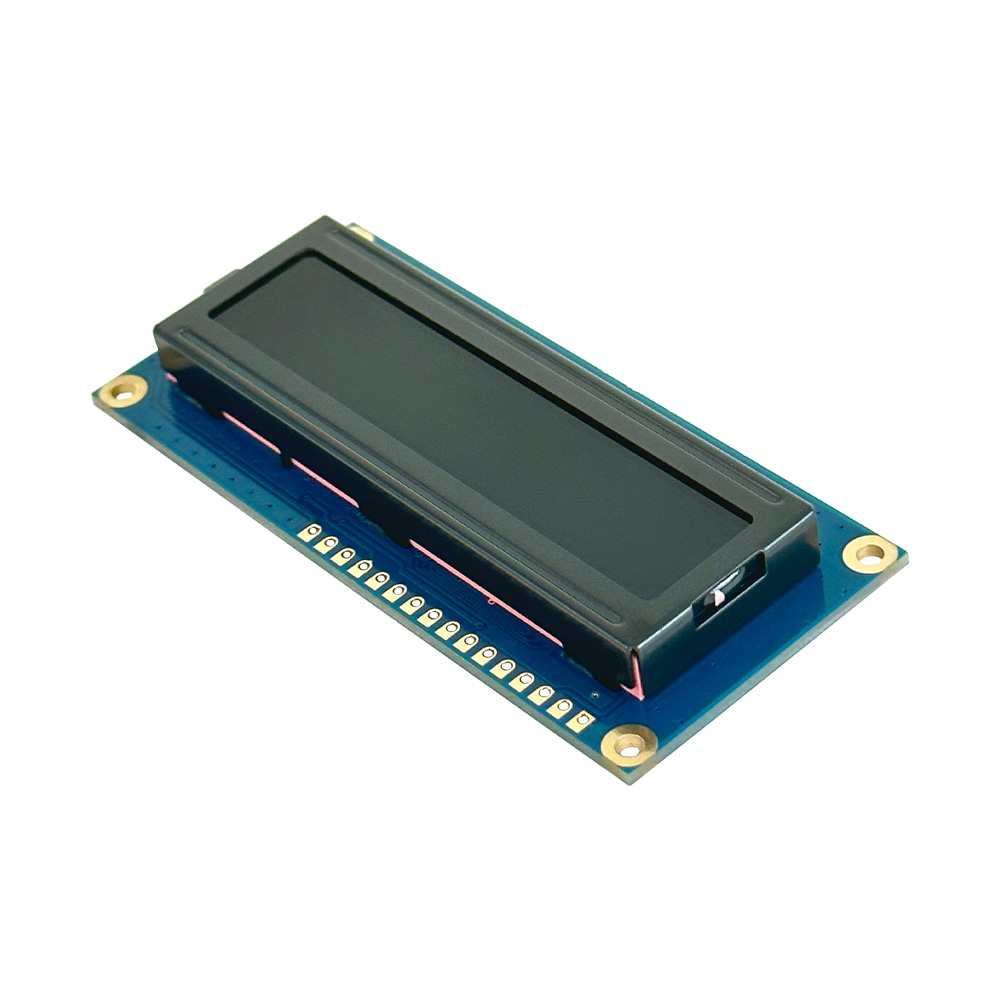

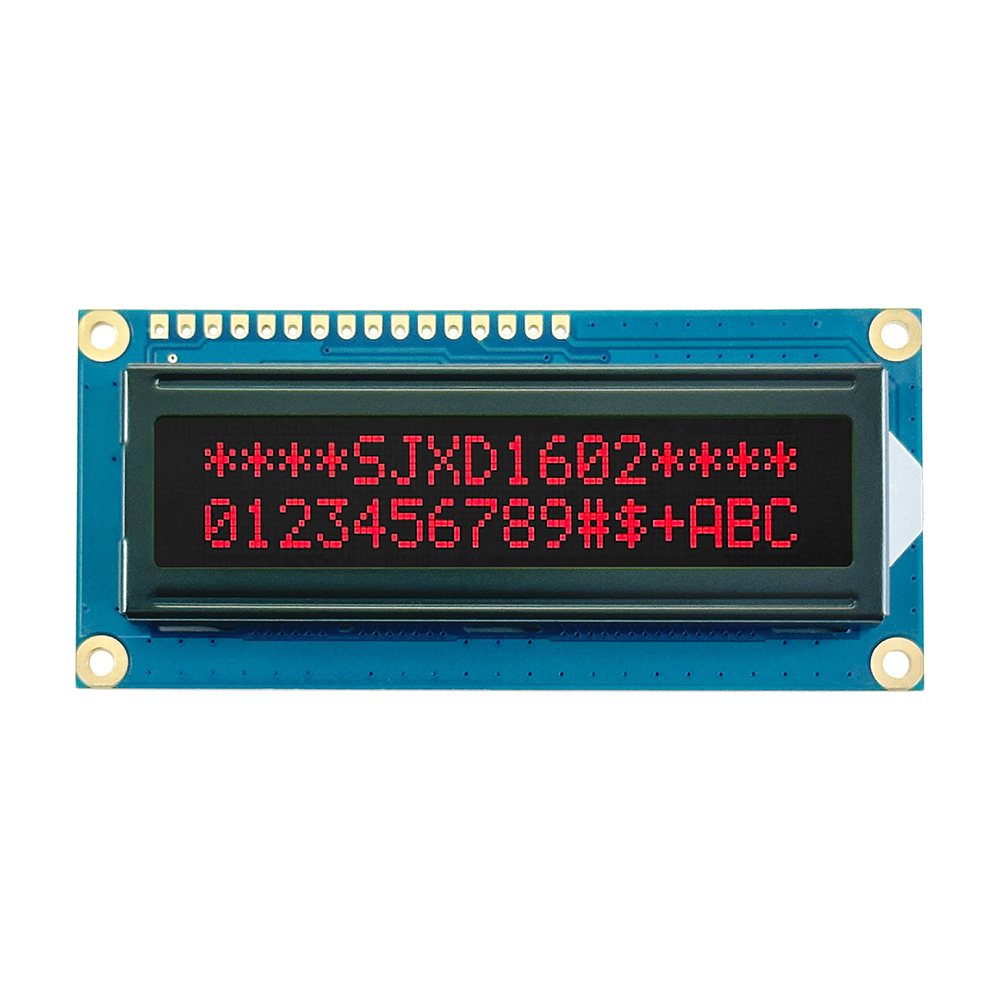

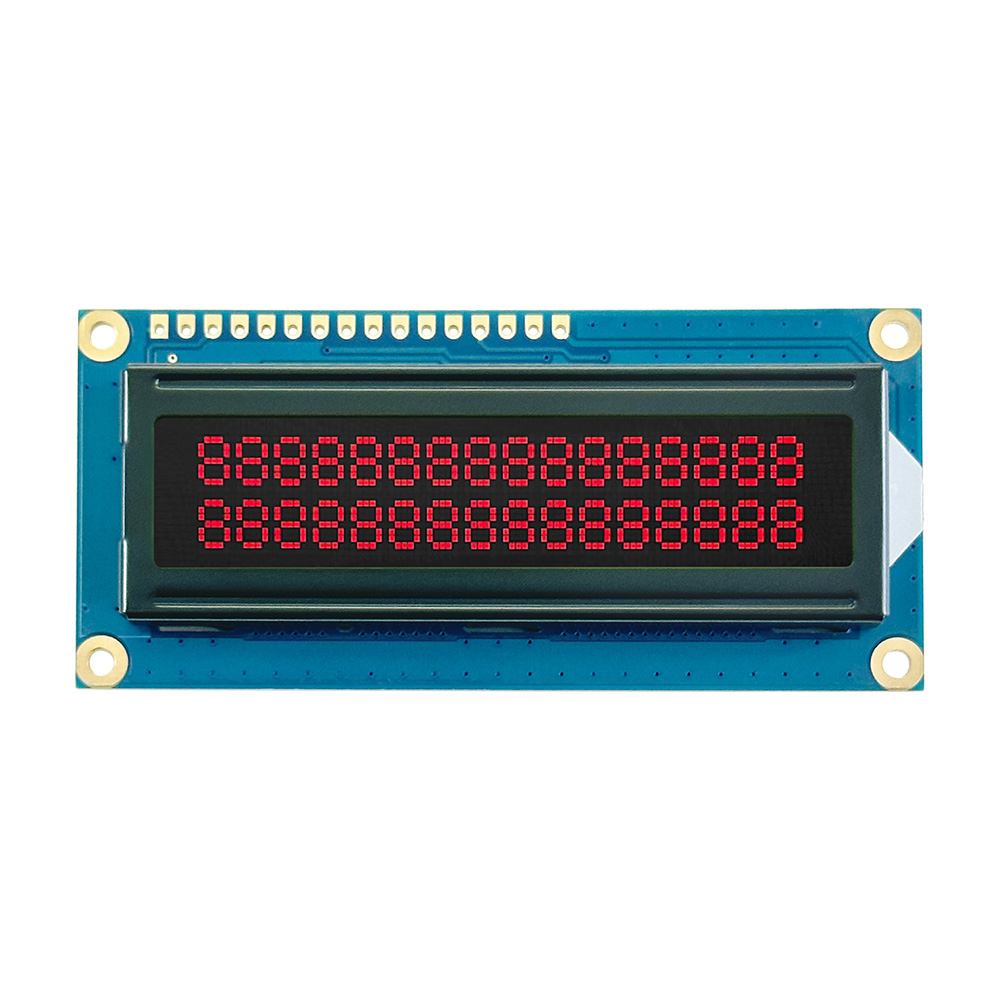

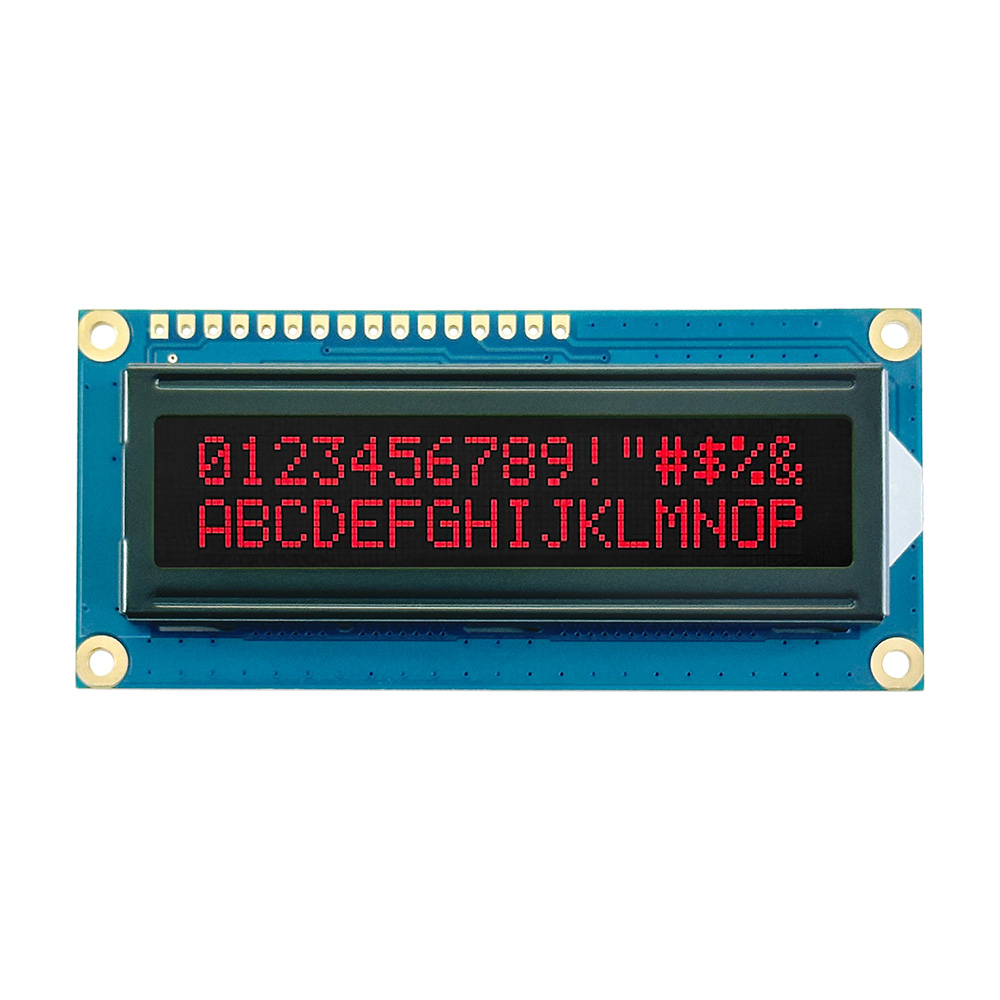

LCD Display With I2C Module-SJXD1602A-D (DFSTN Negative)

LCD Display With I2C Module is a 16x2 character screen for compact devices that need two-line information with simplified wiring. The SJXD1602A-D model offers an 80.0x36.0x12.0mm outline, 64.5x14.0mm viewing area, 5V/3.3V drive support, AIP31068L drive IC, white LED backlight, DFSTN negative display type, and IIC interface. It can show values, menus, alarms, timers, counters, and status messages in meters, appliances, medical panels, access systems, lab tools, and embedded controllers.

Parameters:

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective

Key Specifications

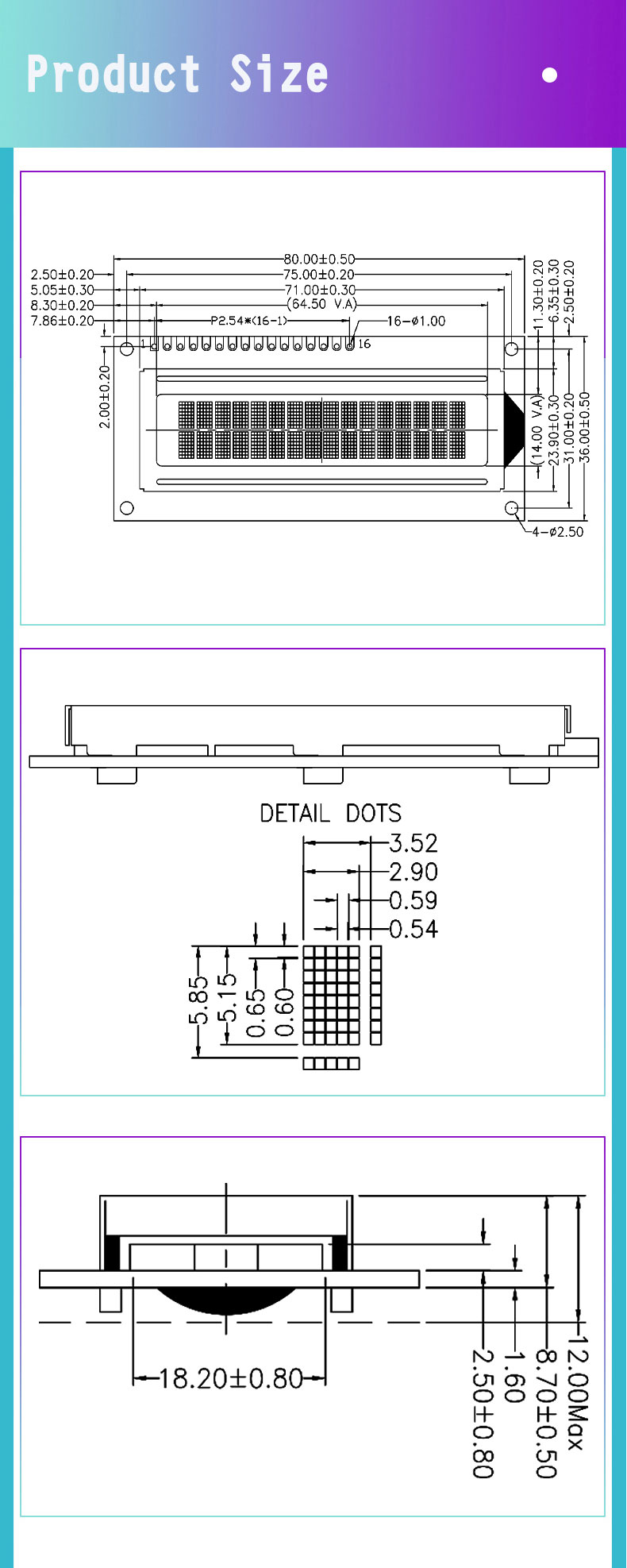

LCD Display With I2C Module is a 16x2 character LCD designed for compact products that need clear two-line text output with fewer signal connections. The SJXD1602A-D model features an 80.0x36.0x12.0mm outline size and a 64.5x14.0mm viewing area. It supports 5.0V/3.3V drive voltage, AIP31068L drive IC, white LED backlight, DFSTN negative LCD type, 06:00 viewing angle, and IIC interface support. Its display format is suitable for values, codes, menus, counters, and operating messages.

Design Standards

LCD Display With I2C Module is designed to simplify wiring while maintaining strong text contrast and stable character control. The I2C interface helps reduce pin occupation, making it easier to integrate the display with sensors, keys, relays, and communication circuits in limited PCB space. Its DFSTN negative mode and white backlight provide a high-contrast visual effect for equipment panels. The module also supports low power use, anti-interference performance, wide-temperature reliability, technical documentation, source-code assistance, sample supply, and customization for backlight color, display content, shell design, and project parameters.

Applications

LCD Display With I2C Module is suitable for electronic devices that require readable information display without a large graphic screen. It can show temperature data, voltage readings, timer values, alarm codes, setup menus, running states, counter results, and user prompts. Typical applications include industrial meters, equipment control panels, home appliances, medical devices, access control systems, vending machines, laboratory instruments, power monitoring units, educational kits, DIY electronics, and embedded controllers. Its 16x2 layout and I2C communication make it practical for both prototype development and production designs.

Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
