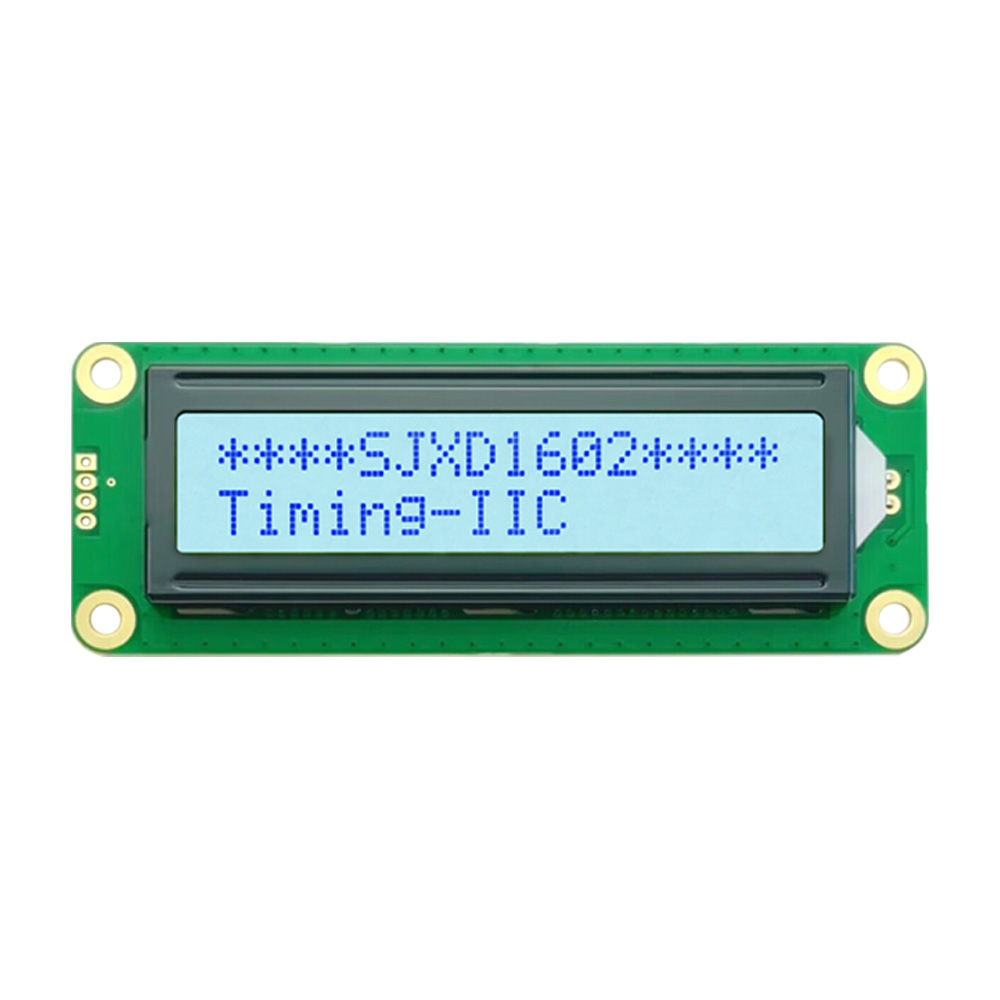

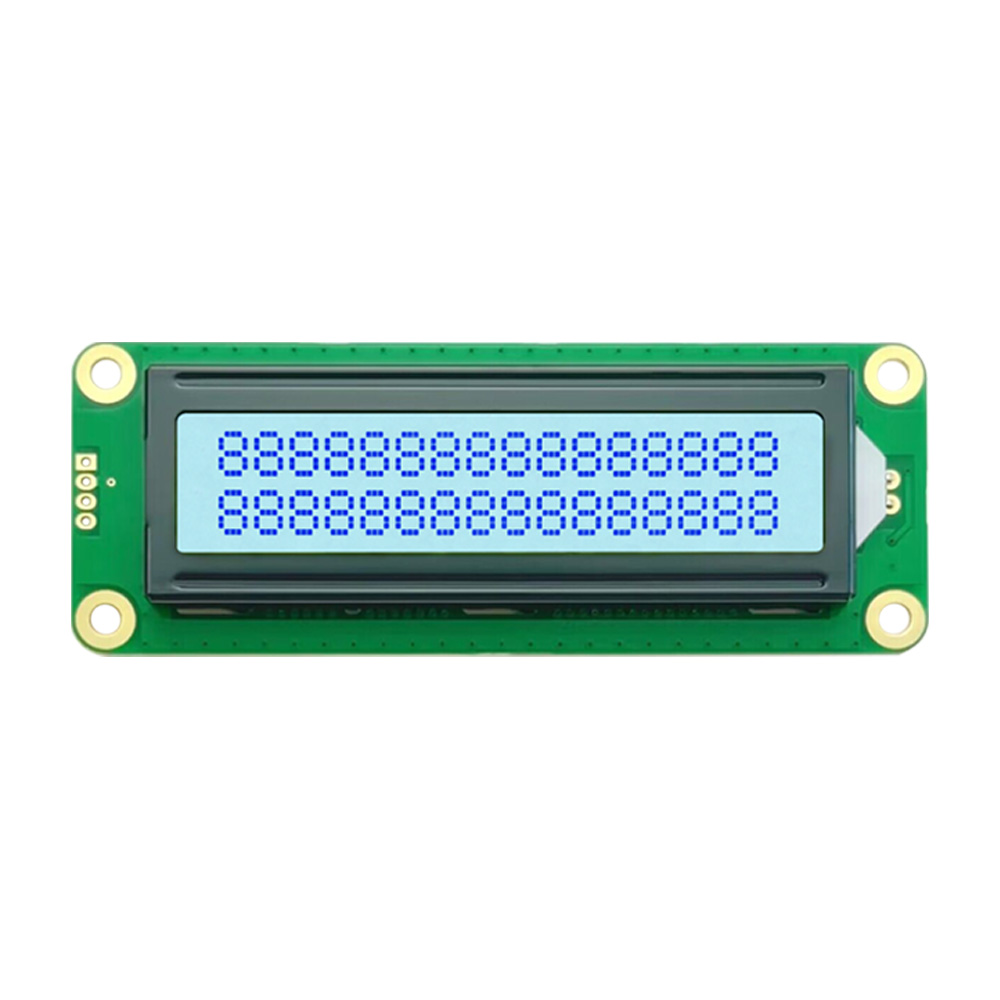

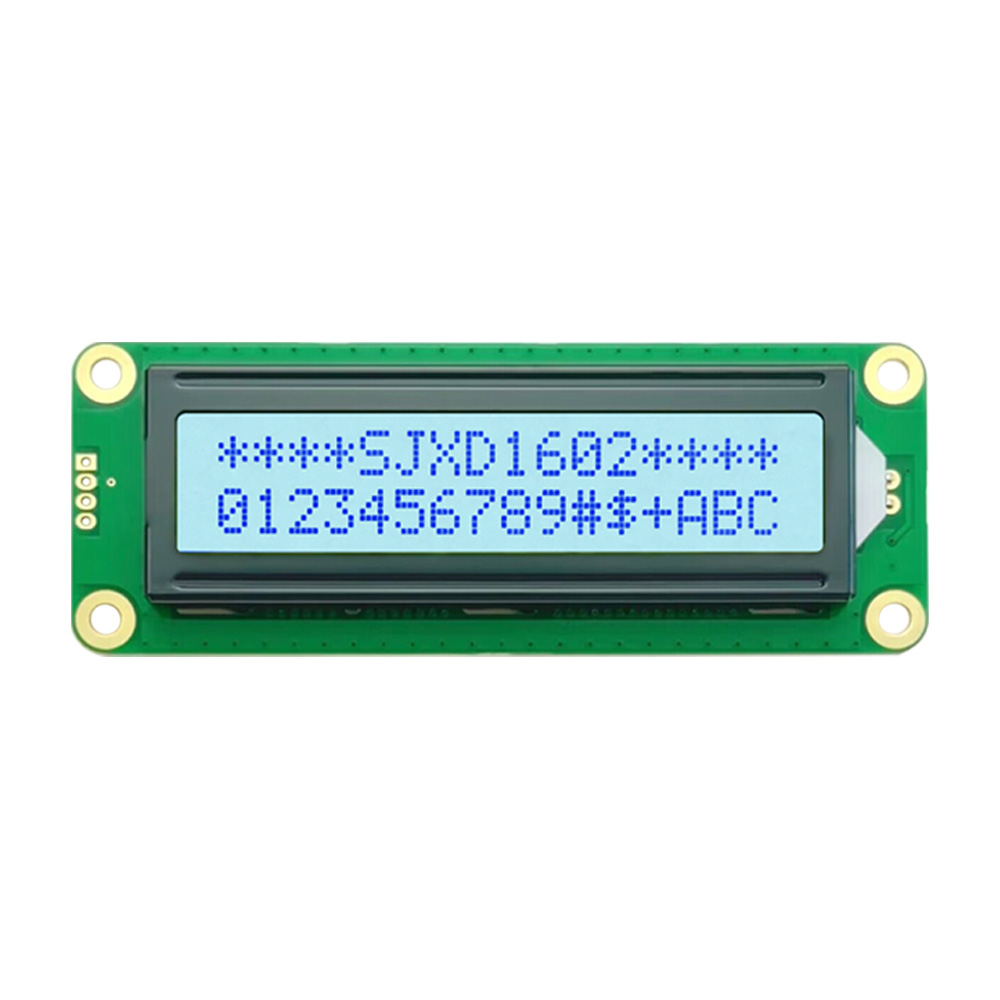

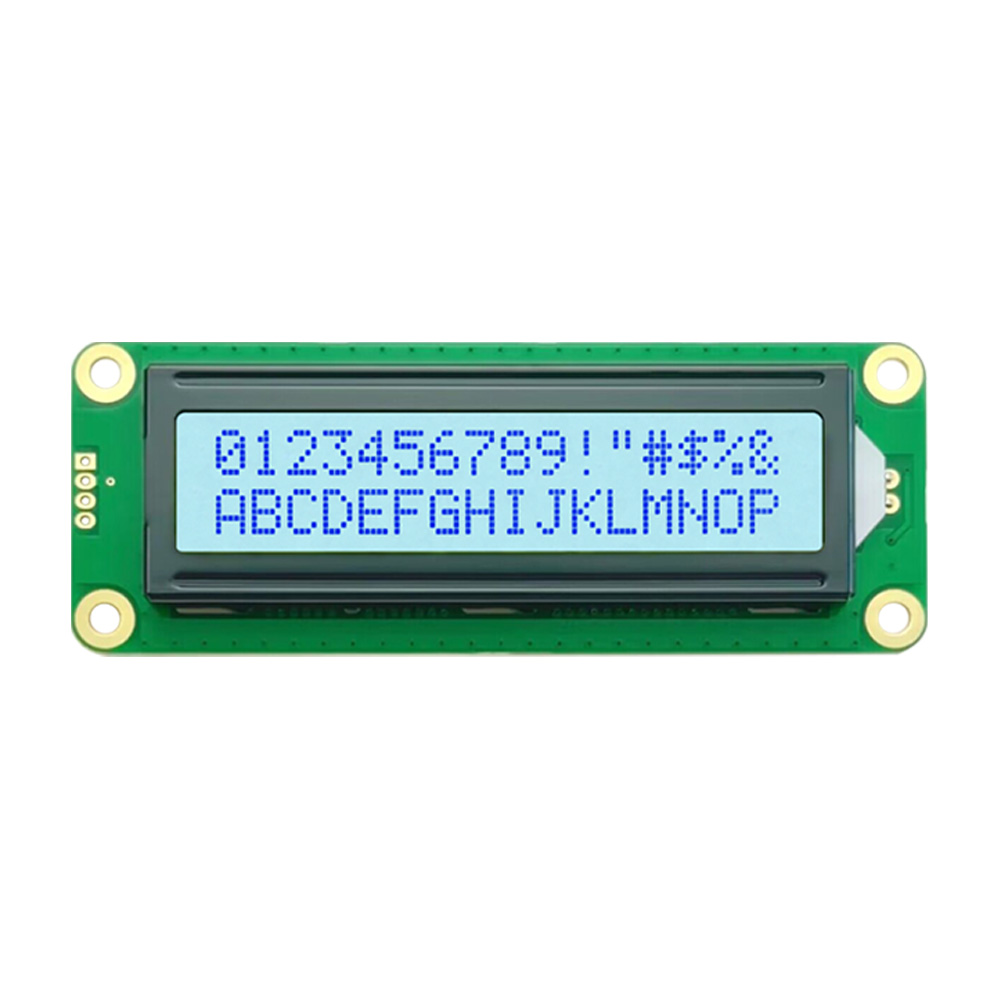

16x2 Character LCD Display Module-SJXD1602A-I (STN Positive)

16x2 Character LCD Display Module is a compact alphanumeric screen for two-row text and numeric output in embedded products. The SJXD1602A-I model has an 87.0×32.0×13.0mm outline, 64.5×14.5mm viewing area, 3.3V/5V drive support, AIP31068L drive IC, white LED backlight, STN positive display type, 16 double interfaces, and 06:00 viewing angle. It can present readings, menus, warnings, counters, timers, and status messages in meters, appliances, medical devices, instruments, vending systems, education kits, and control panels.

Parameters:

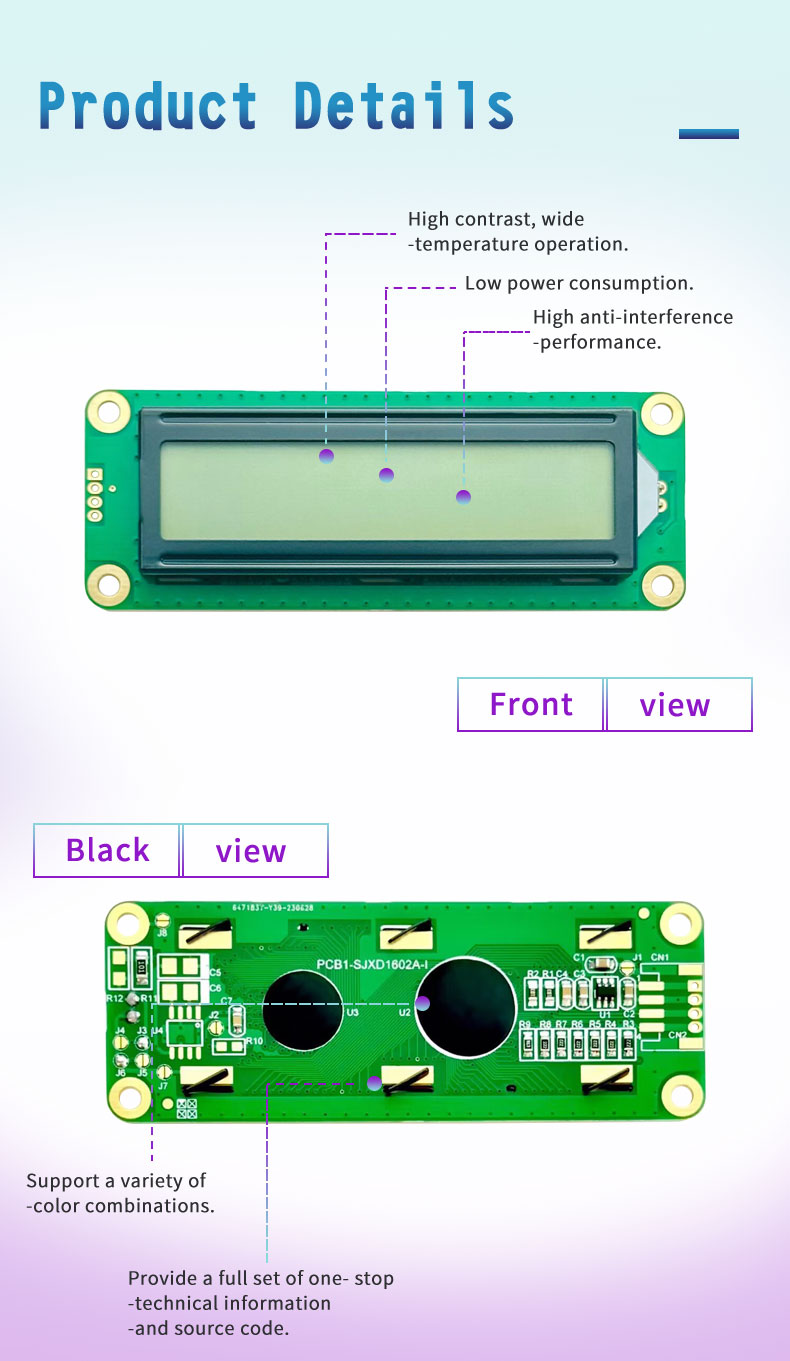

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective

Key Specifications

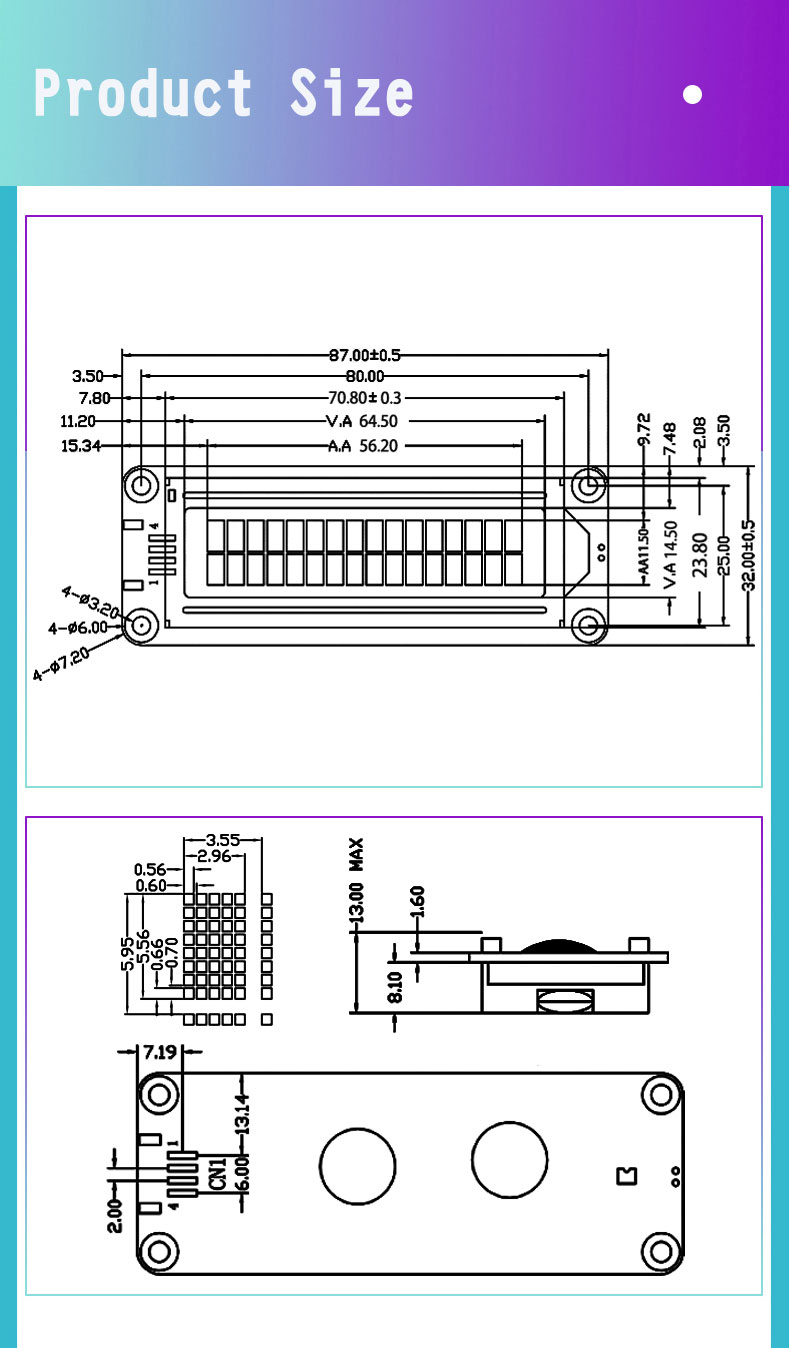

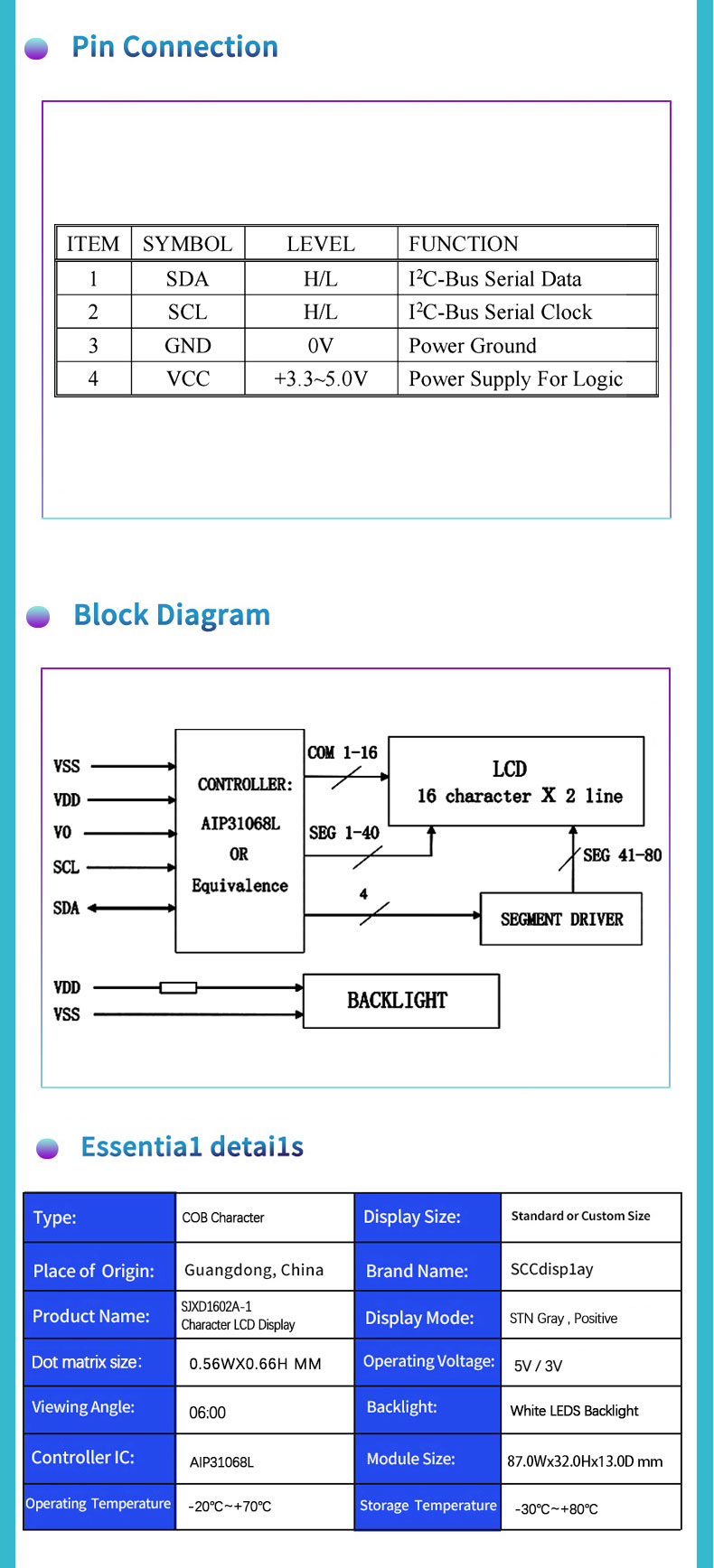

16x2 Character LCD Display Module is a two-line alphanumeric display designed for compact product interfaces that need clear text and number output. The SJXD1602A-I model uses an 87.0×32.0×13.0mm outline size with a 64.5×14.5mm viewing area, providing 16 characters per row across two rows. It supports 3.3V/5.0V drive voltage, AIP31068L drive IC, white LED backlight, STN positive LCD type, 16 double interfaces, and 06:00 viewing angle. The module operates from -20°C to +70°C and stores from -30°C to +80°C.

Design Standards

16x2 Character LCD Display Module is designed for stable two-row readability, simple control logic, and dependable operation in embedded equipment. The STN positive display structure provides clear character contrast, while the white LED backlight supports readable output in instruments, control terminals, and information panels. Its 16 double interface design helps maintain reliable signal connection for standard text commands. The module also supports low power consumption, strong anti-interference performance, wide-temperature operation, adjustable brightness, technical documentation, source-code support, 1-3 day samples, and customization for display content, backlight color, shell design, and project parameters.

Applications

16x2 Character LCD Display Module is suitable for devices that need practical text feedback without using a graphic screen. It can display measurement values, large font numbers, menu names, warning codes, timer data, counter results, operating states, and simple user instructions. Common applications include meters, equipment control panels, information display systems, industrial controllers, home appliances, medical devices, consumer electronics, laboratory instruments, vending equipment, educational kits, DIY projects, and embedded control boards. Its 16×2 format gives enough space for essential information while keeping the display compact.

Q: Is the brightness of the LCD screen adjustable?
A:Yes, the display brightness can be adjusted.

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
