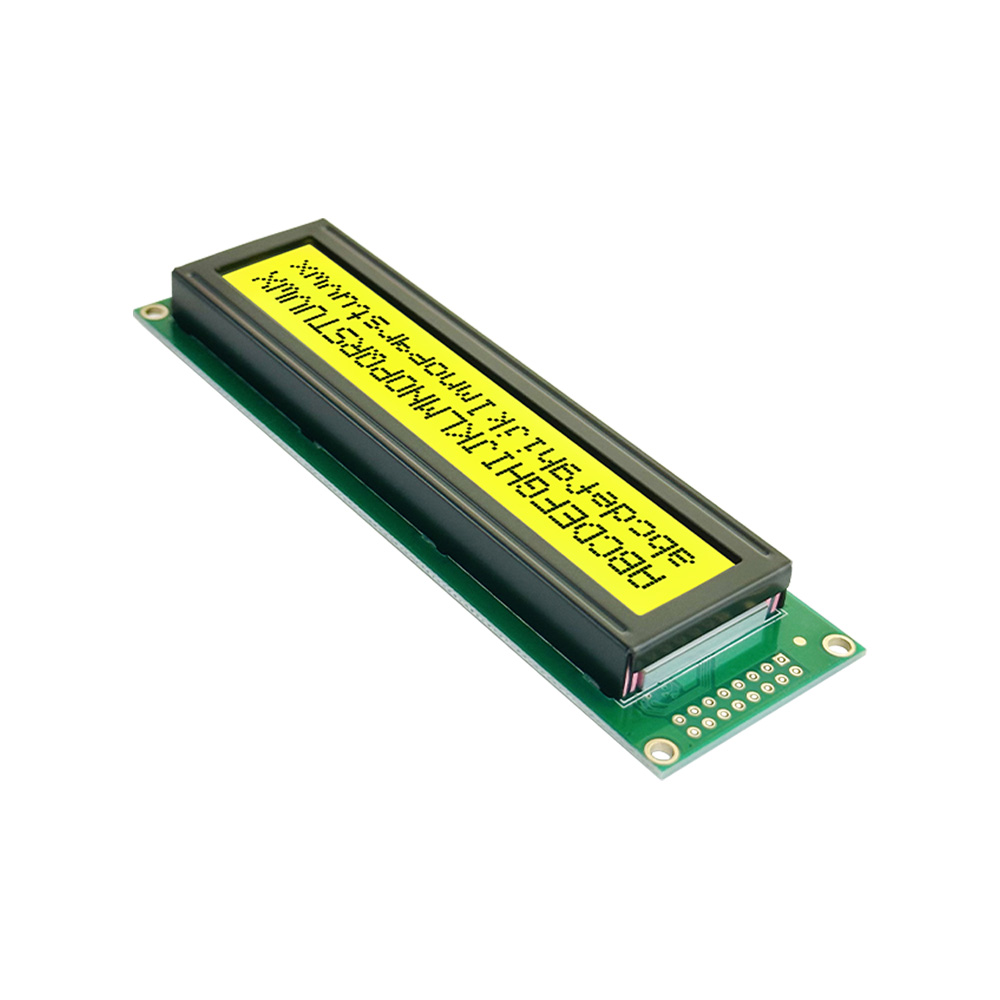

24x2 Character LCD Display SJXD2402A gives devices a wider two-line text area for menus, readings, symbols, and status prompts. It features a 118.0×36.0×13.5 mm module size, 94.5×17.8 mm viewing window, STN positive LCD type, white LED backlight, and ST7066/AIP31066 driver IC. With 3.3V/5.0V drive support, wide temperature operation, low power performance, and customization options, it fits instruments, meters, control terminals, appliances, medical electronics, and embedded systems.
Parameters:
| Character Type | 24×02 |
| Model | SJXD2402A |
| Model Size | 118.0×36.0×13.5 mm |
| VA Size | 94.5×17.8 mm |
|
Drive Voltage
|
5.0V/3.3V
|
|
Drive IC
|
ST7066/AIP31066
|
|
Backlight
|
Yellow LED backlight
|
|
LCD Type
|
STN positive
|
|
Interface
|
16PIN dual interface
|
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
24x2 Character LCD Display SJXD2402A provides 24 characters on each of its two rows, giving more text space for longer labels, readings, and operating messages. The module measures 118.0×36.0×13.5 mm and includes a 94.5×17.8 mm viewing area. It supports 3.3V/5.0V drive voltage, ST7066/AIP31066 driver IC, STN positive LCD mode, white LED backlight, and a 16PIN dual interface. Viewing angles can support 6:00, 9:00, or 12:00 requirements.
Design Standards
24x2 Character LCD Display is designed for compact devices that need wider text capacity while keeping the structure slim and easy to mount. Its STN positive display mode creates dark characters on a light background, helping users read menus and data clearly. The white LED backlight supports stable visibility in indoor panels and equipment interfaces. With -20°C to +70°C operating temperature and -30°C to +80°C storage range, it also offers low power use, anti-interference performance, color options, documentation support, and customization flexibility.
Applications
24x2 Character LCD Display is suitable for equipment that needs more characters per line than standard 16x2 or 20x2 modules. It can show product settings, measurement results, timer values, fault notices, user prompts, and process information. Typical applications include industrial meters, testing instruments, automation controllers, power supply units, medical equipment, household appliances, access control devices, communication terminals, educational electronics, and microcontroller projects. Its wider two-line format helps designers display clearer information without moving to a larger graphic screen.

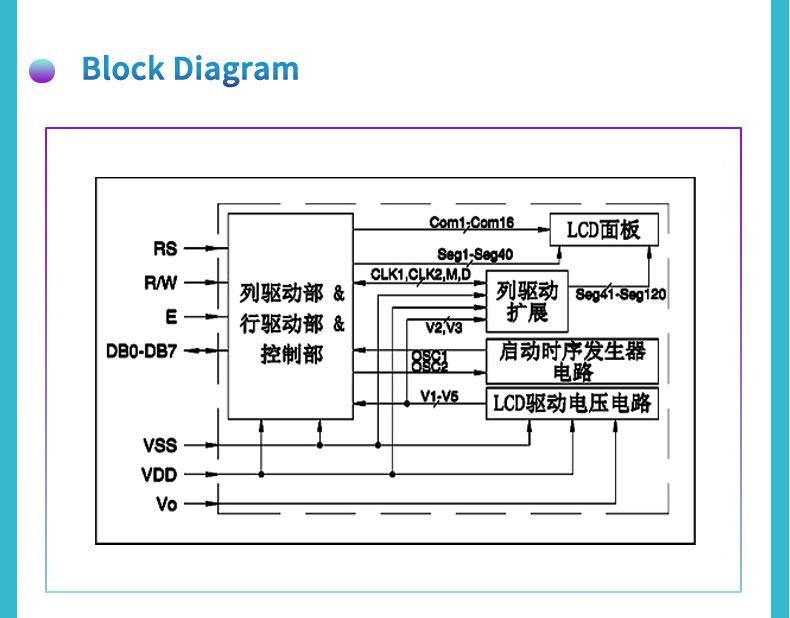

Product Size
FAQ
Q: How to confirm the price if customization is needed?
A: Need to confirm the drawings or samples.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
