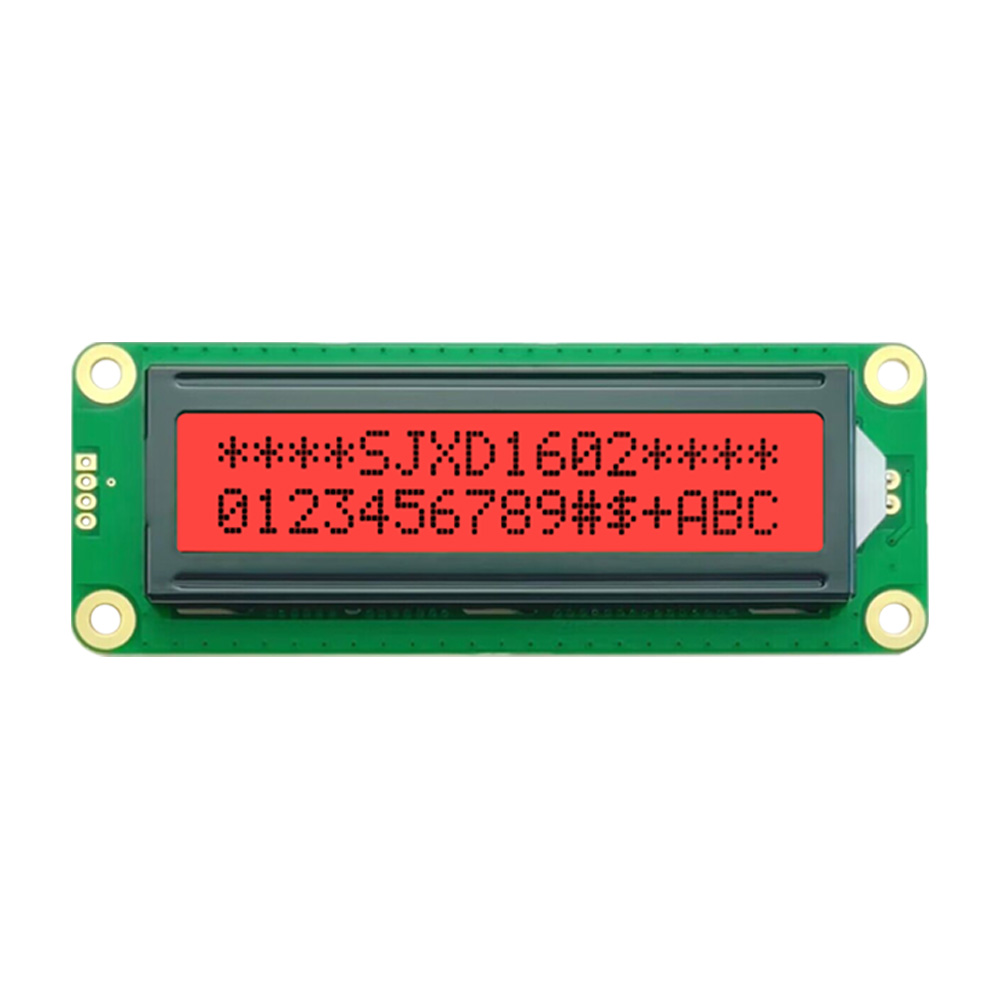

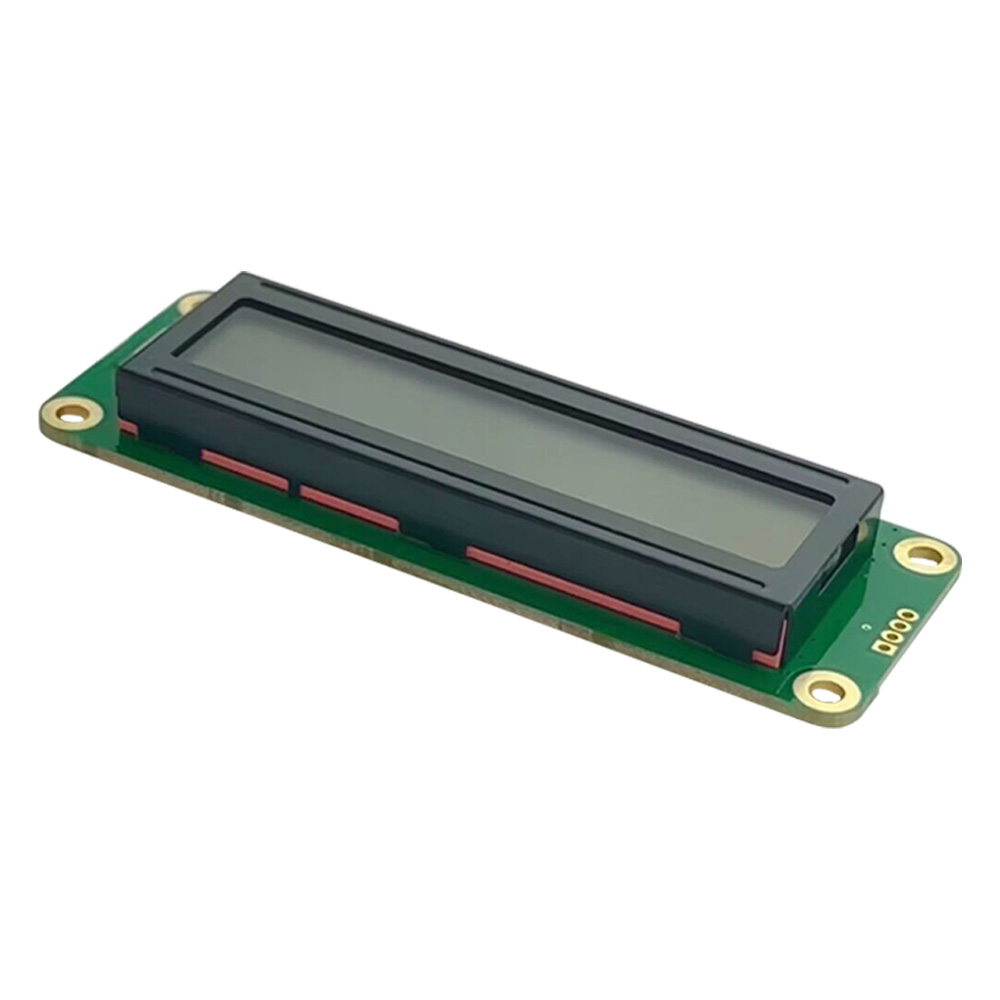

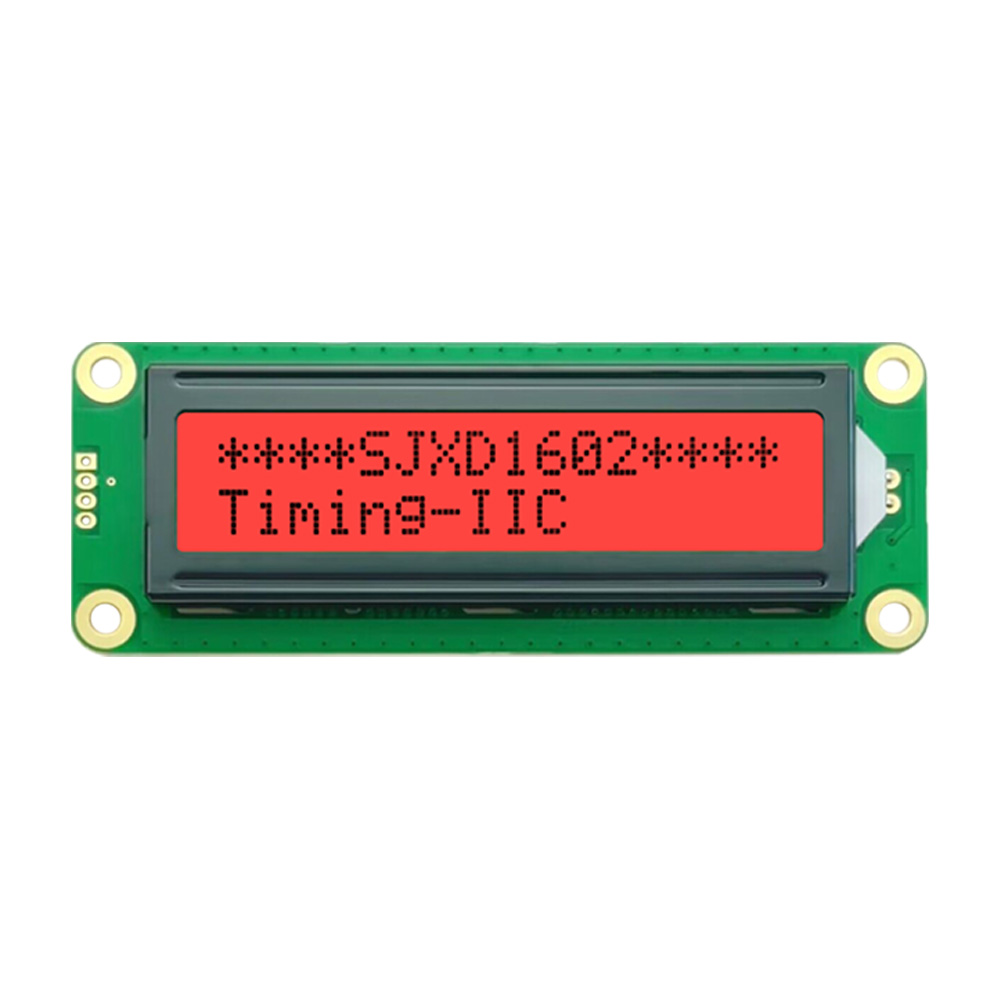

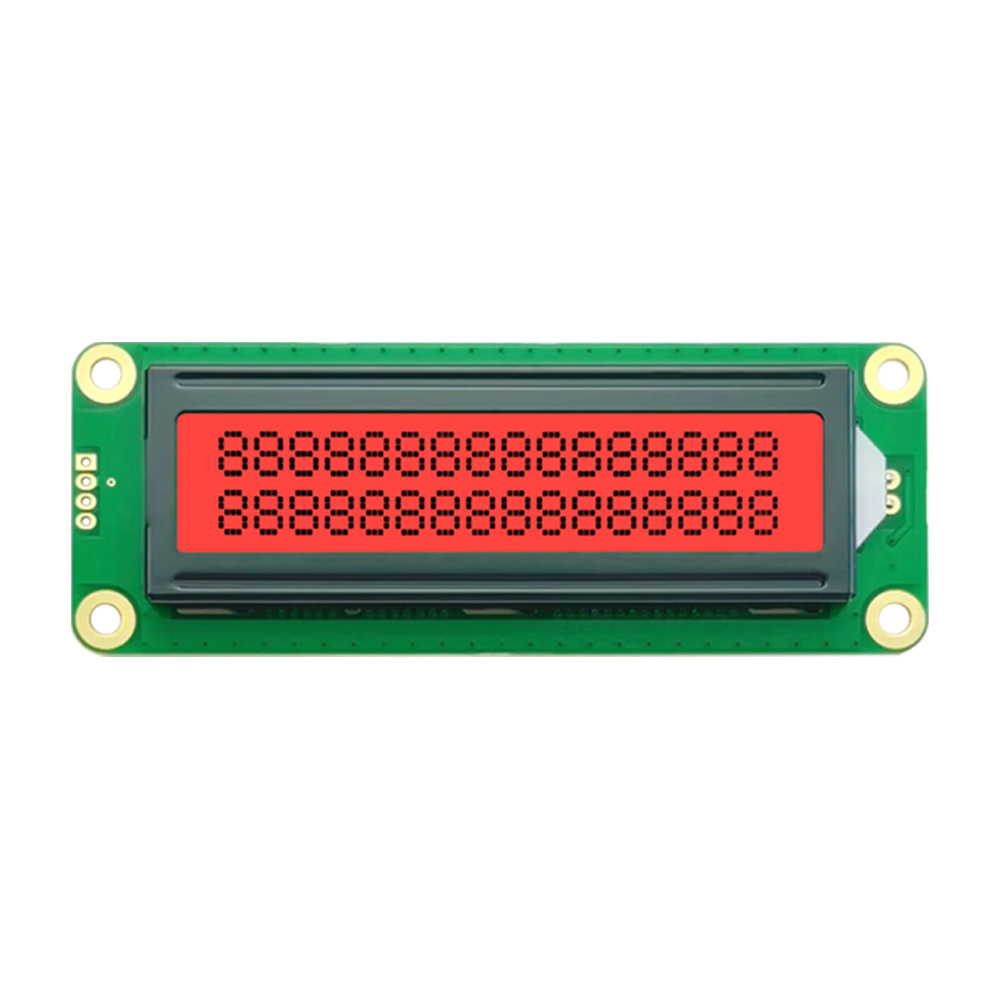

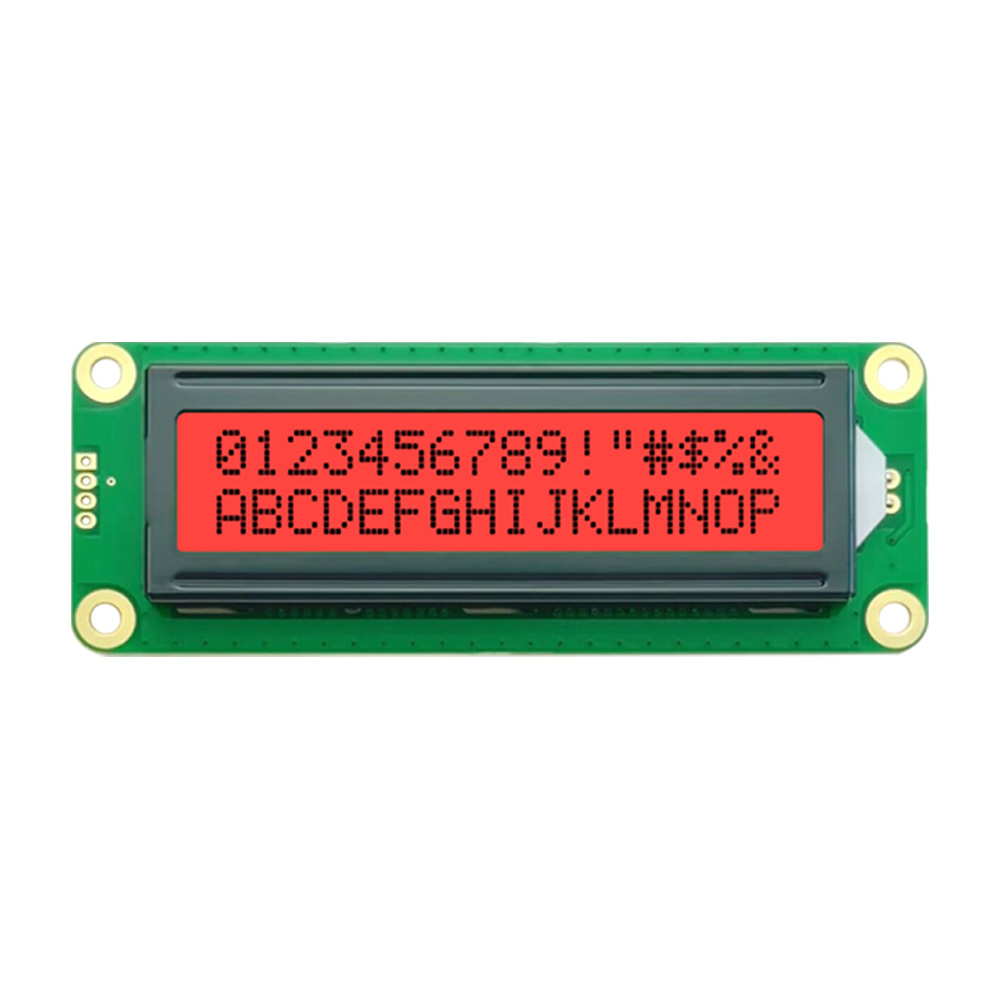

I2C 1602 LCD Display Module Arduino-SJXD1602A-I (FSTN Positive)

I2C 1602 LCD Display Module Arduino is a 16×2 character screen for Arduino projects, sensors, and compact control interfaces. The SJXD1602A-I model features an 87.0×32.0×13.0mm outline, 64.5×14.5mm viewing area, 3.3V/5V drive support, AIP31068L drive IC, white LED backlight, FSTN positive display type, 16 double interfaces, and 06:00 viewing angle. It can show values, timers, counters, menus, warnings, and operating states in DIY controllers, meters, appliances, medical devices, test tools, and embedded products.

Parameters:

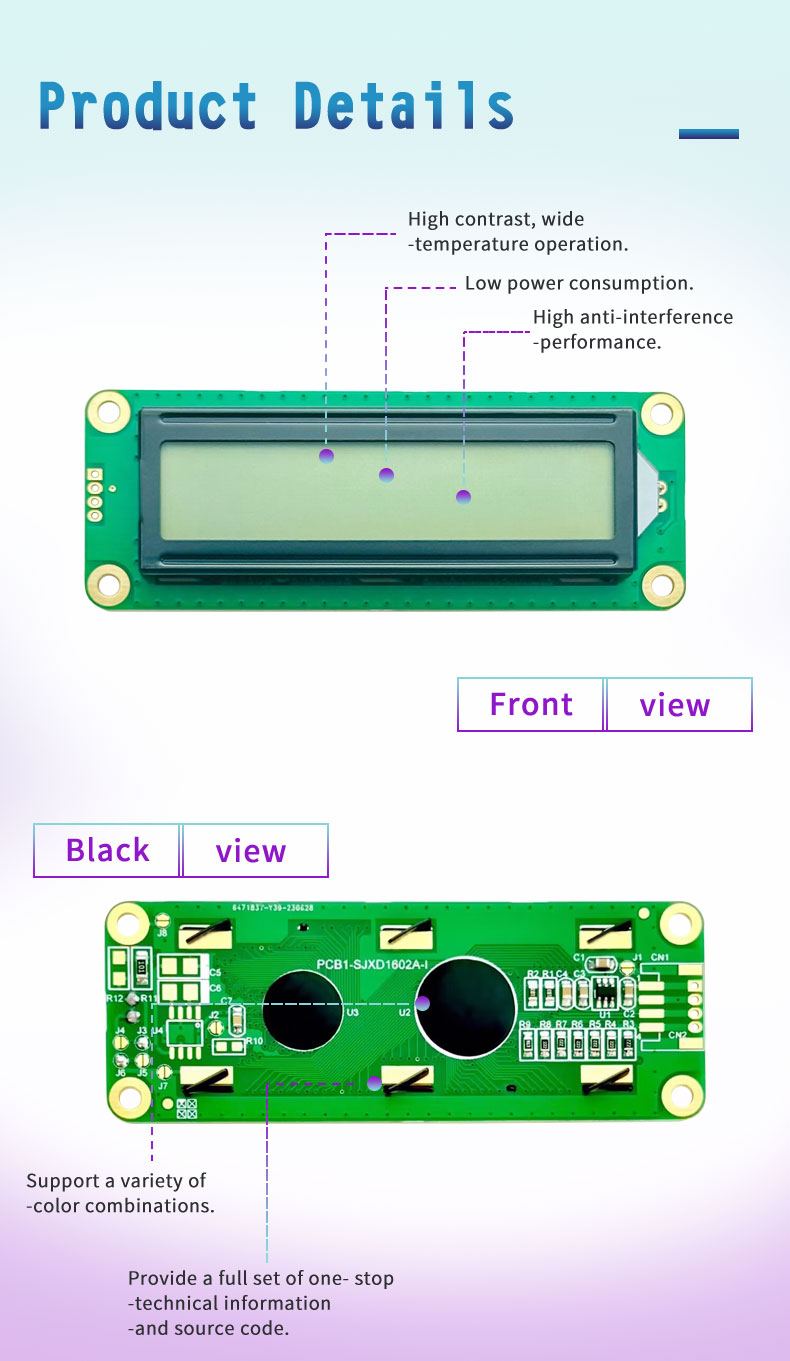

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective

Key Specifications

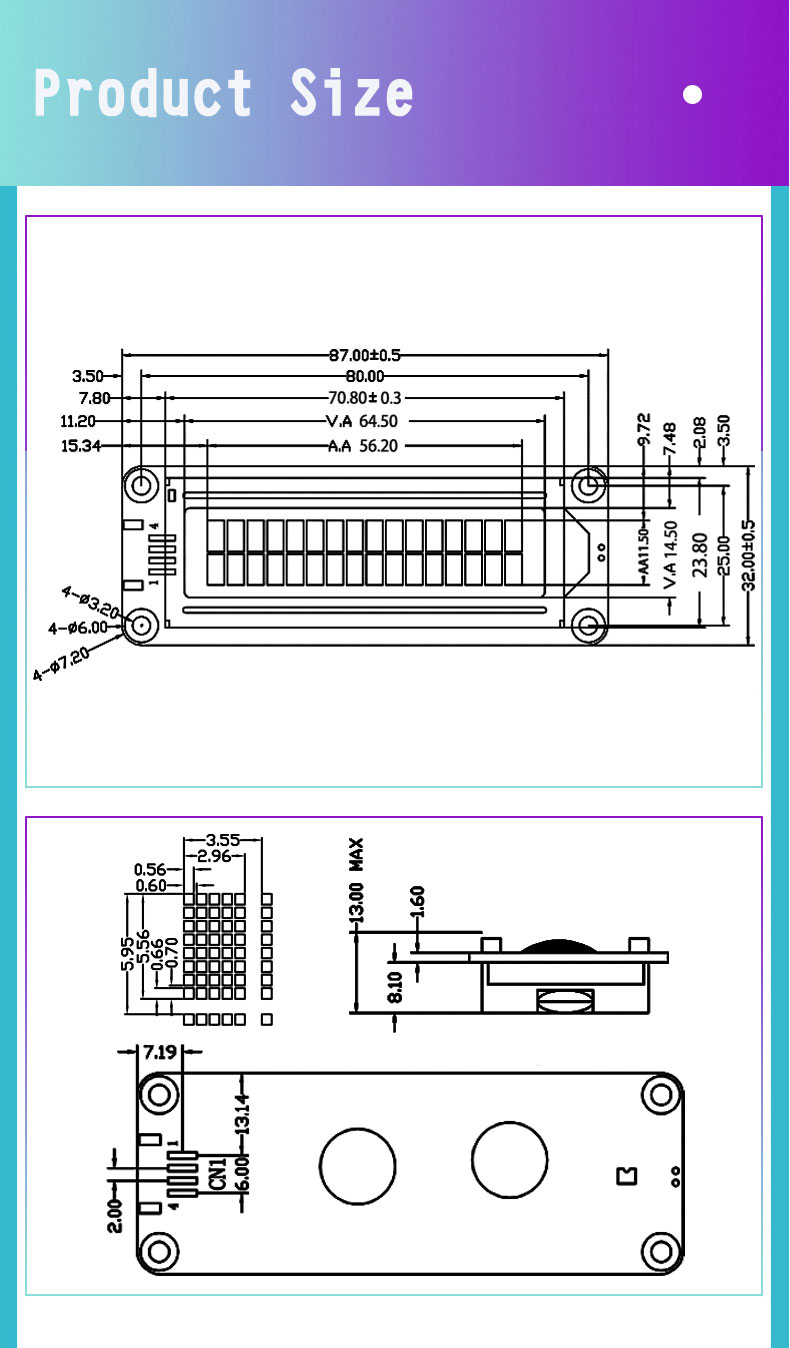

I2C 1602 LCD Display Module Arduino is a 16×2 character LCD module for Arduino projects that need clear two-line text, values, and status information. The SJXD1602A-I model has an 87.0×32.0×13.0mm outline size and a 64.5×14.5mm viewing area. It supports 3.3V/5.0V drive voltage, AIP31068L drive IC, white LED backlight, FSTN positive LCD type, 16 double interfaces, and 06:00 viewing angle. Its working temperature range is -20°C to +70°C, with storage from -30°C to +80°C.

Design Standards

I2C 1602 LCD Display Module Arduino is designed for stable Arduino text output, readable contrast, and efficient prototype integration. The 16×2 layout provides enough space for two-row information, while the FSTN positive display mode and white LED backlight support clear viewing in control panels and development boards. Its interface structure supports reliable command handling for initialization, cursor control, values, prompts, and menu labels. The module also offers wide-temperature operation, low power consumption, strong anti-interference performance, technical documentation, source-code support, sample availability, and customization for backlight color, shell design, display content, and project-specific parameters.

Applications

I2C 1602 LCD Display Module Arduino is suitable for Arduino learning kits, sensor projects, equipment panels, and embedded devices that need simple visual feedback. It can display temperature values, voltage readings, timer data, counters, menu names, warning codes, operating states, and setup prompts. Typical applications include industrial meters, smart appliances, access control systems, medical devices, consumer electronics, test instruments, vending machines, laboratory tools, power monitoring equipment, DIY controllers, and educational electronics. Its 16×2 display capacity makes it practical for both prototype testing and finished product use.

Q: Can it be used under extreme temperatures?
A: Performance with wide temperature range and high strength.

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
