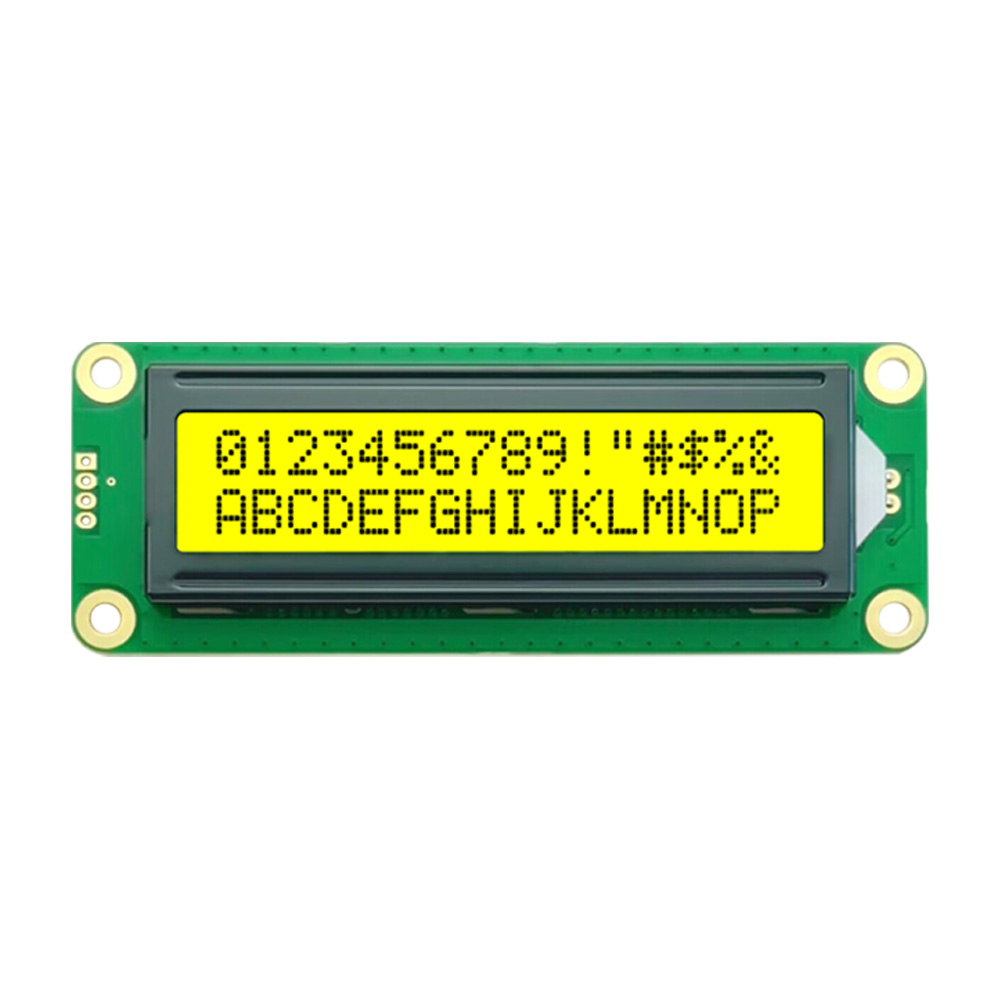

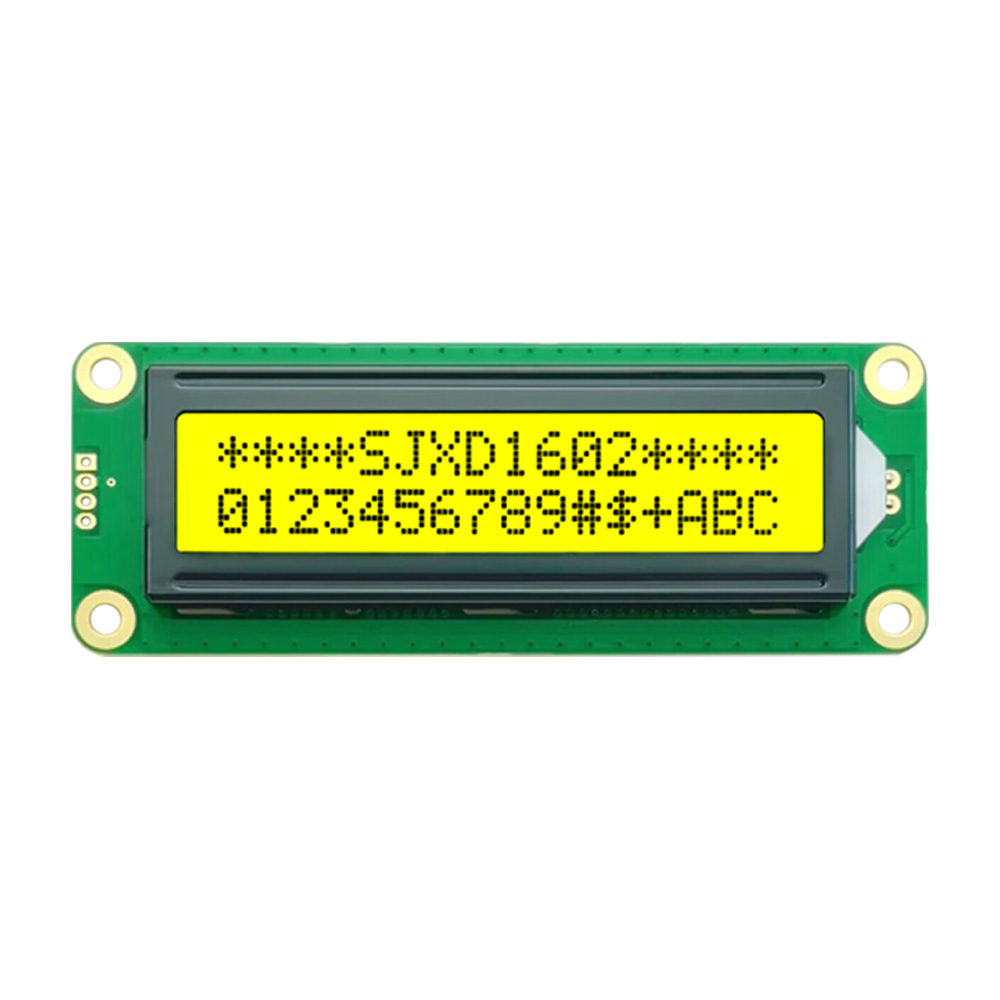

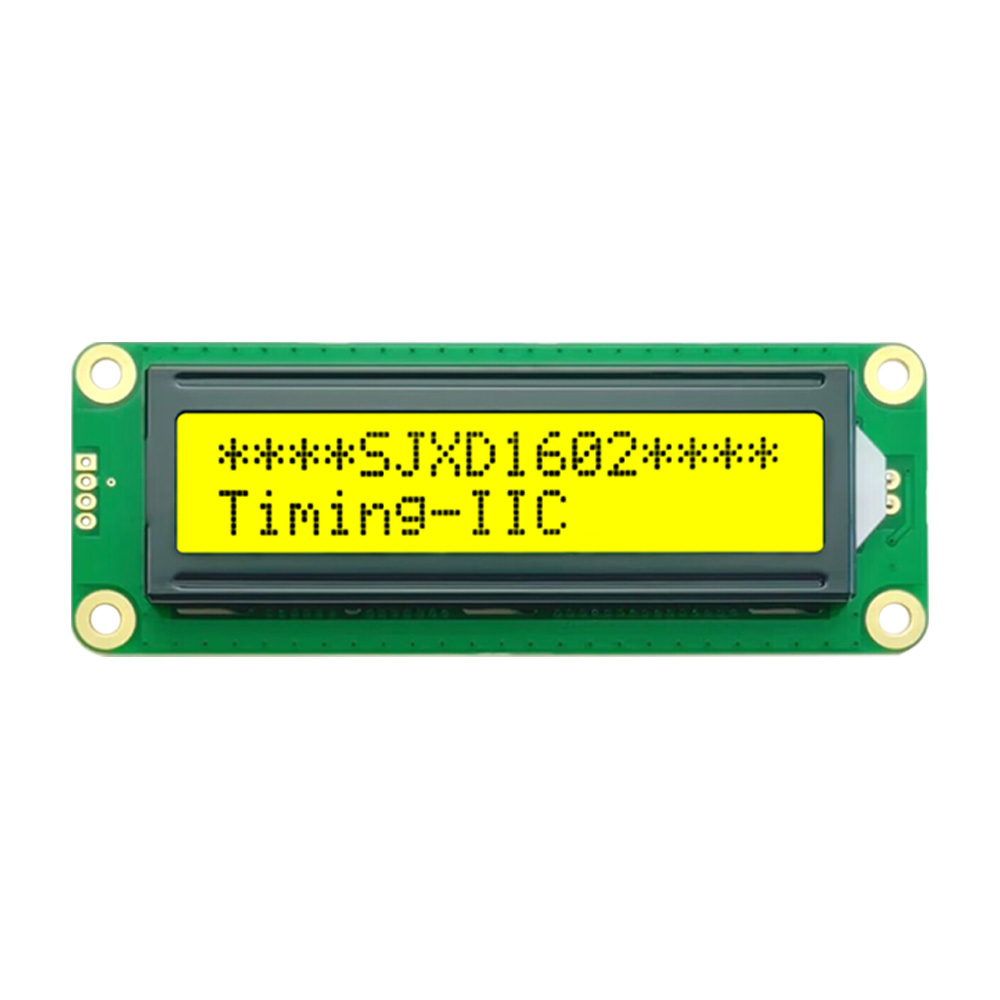

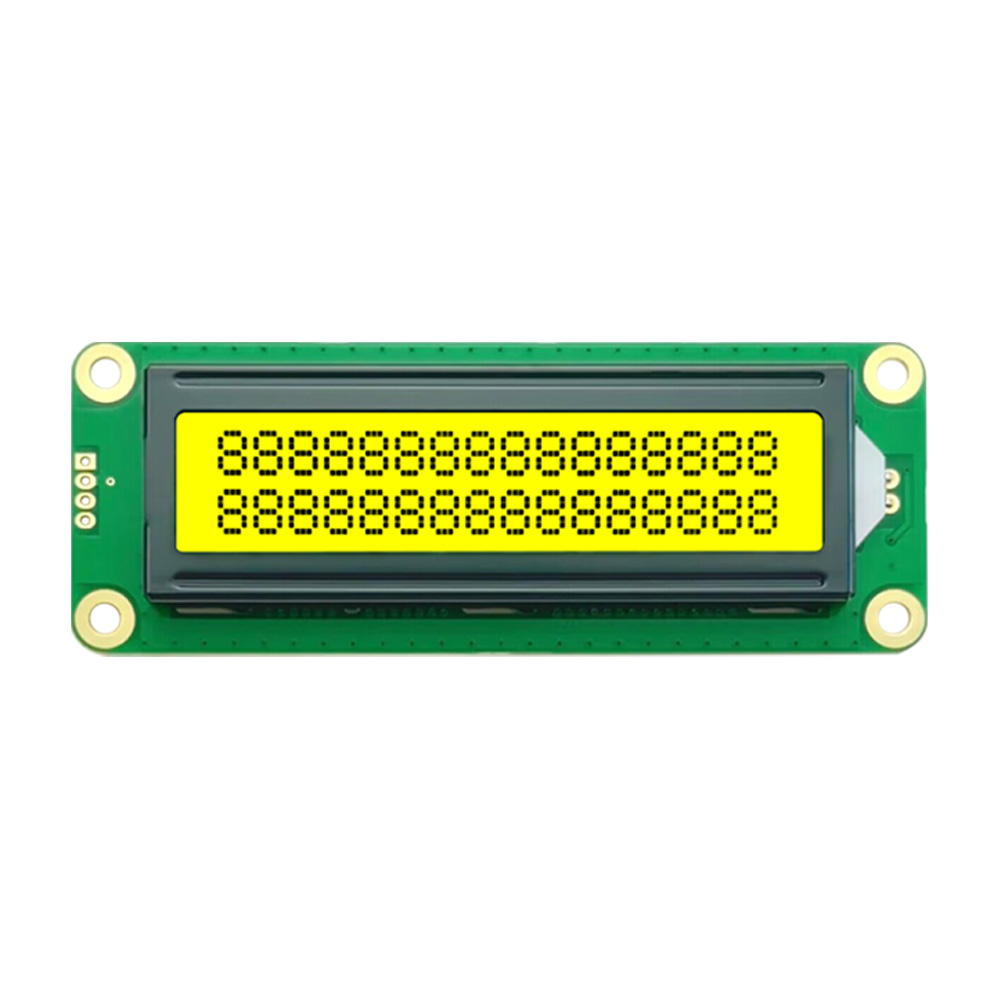

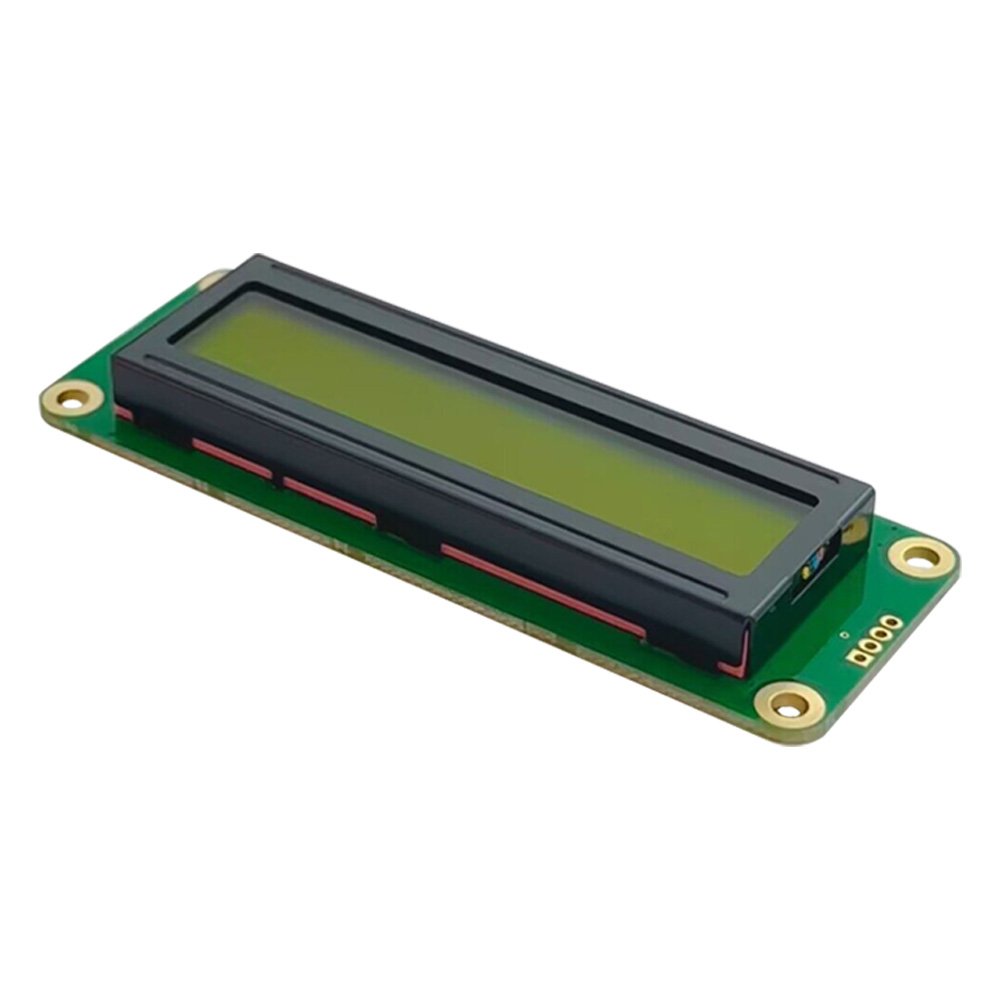

1602 Serial LCD Module Display-SJXD1602A-I (STN Positive)

1602 Serial LCD Module Display is a 16×2 character module for equipment that needs clear two-line text and numeric output. The SJXD1602A-I model features an 87.0×32.0×13.0mm outline, 64.5×14.5mm viewing area, 3.3V/5V drive support, AIP31068L drive IC, yellow LED backlight, STN positive display type, 16 double interfaces, and 06:00 viewing angle. It can show readings, settings, alarms, timers, menu names, and operating status in instruments, appliances, medical devices, vending systems, education kits, and embedded controllers.

Parameters:

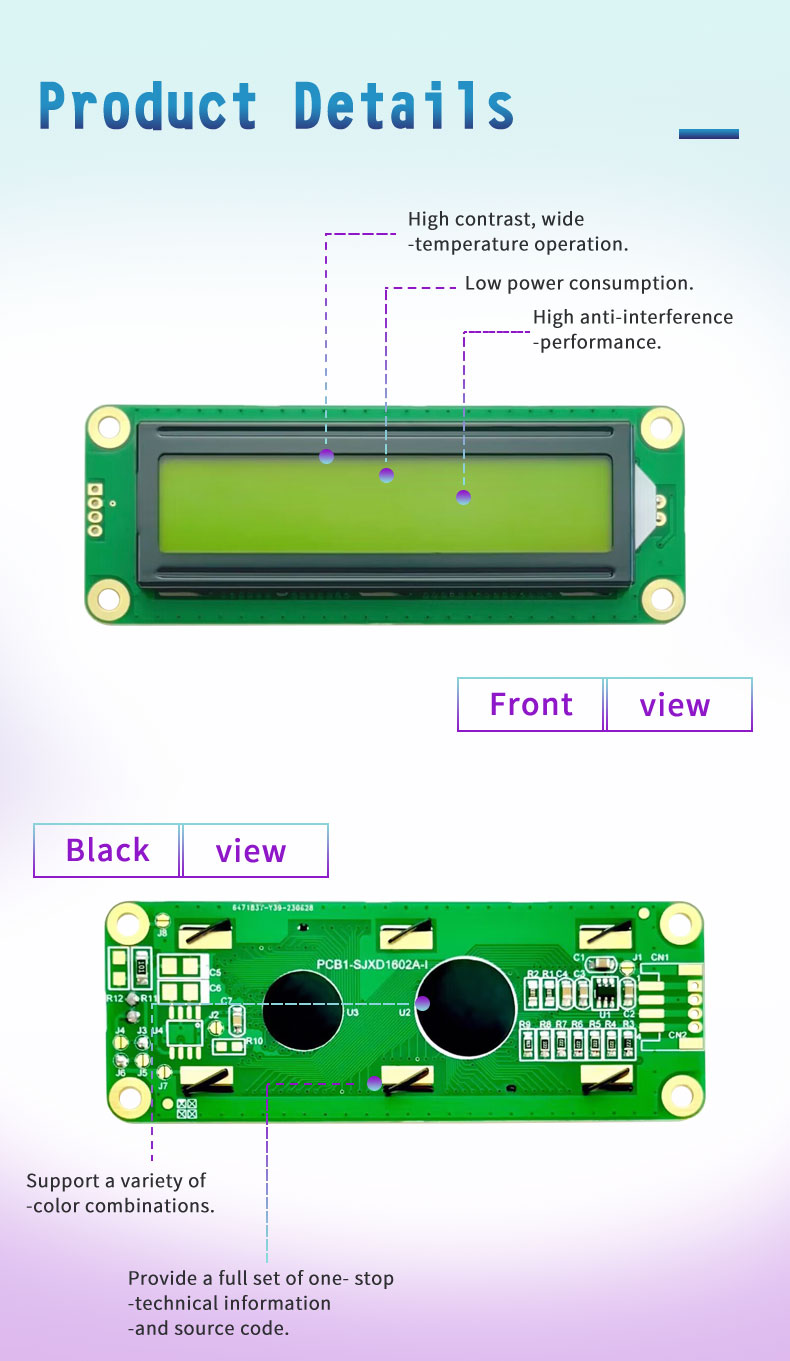

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective

Key Specifications

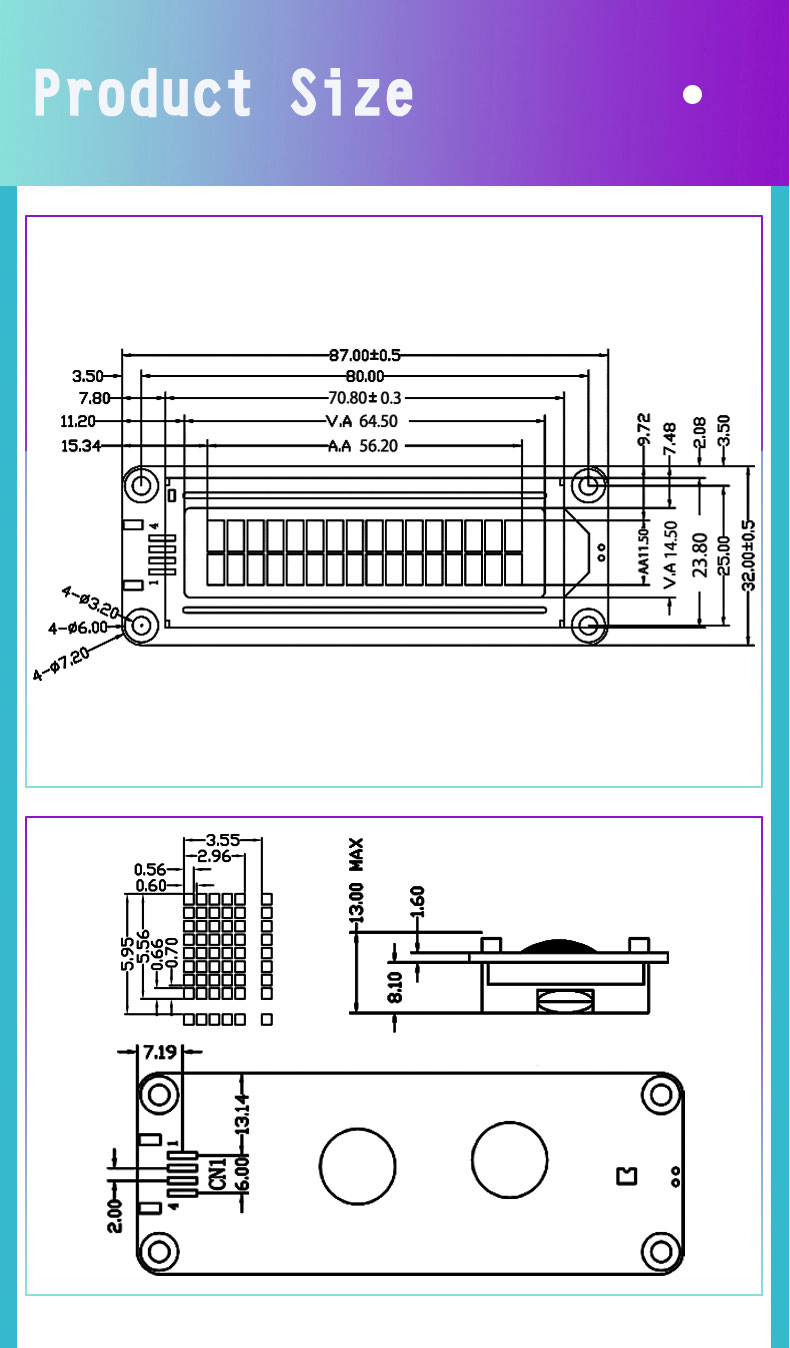

1602 Serial LCD Module Display is a 16×2 character display module for compact electronic products that need two-line text, values, symbols, and operating data. The SJXD1602A-I model has an 87.0×32.0×13.0mm outline size and a 64.5×14.5mm viewing area. It supports 3.3V/5.0V drive voltage, AIP31068L drive IC, yellow LED backlight, STN positive LCD type, 16 double interfaces, and 06:00 viewing angle. It operates from -20°C to +70°C and stores from -30°C to +80°C.

Design Standards

1602 Serial LCD Module Display is designed for stable character output, bright panel visibility, and practical integration in embedded control systems. The STN positive display mode provides clear contrast for menus, readings, counters, and short prompts, while the yellow LED backlight gives the module a distinct visual style for equipment interfaces. Its 16 double interface structure supports dependable connection and command control. The module also emphasizes low power consumption, high anti-interference performance, wide-temperature operation, complete technical data, source-code support, 1-3 day sample availability, multiple color combinations, and customization for backlight color, shell design, display content, and operating parameters.

Applications

1602 Serial LCD Module Display is suitable for products that need a reliable two-row screen for essential user information. It can display measurement values, setting parameters, equipment status, alarm codes, voltage data, timer information, menu names, and operating prompts. Typical applications include electronic instruments, measuring equipment, control panels, industrial controllers, home appliances, medical devices, consumer electronics, vending systems, laboratory tools, educational kits, DIY projects, and embedded control boards. Its 16×2 layout and yellow backlit display make it practical for compact products requiring clear and cost-effective character output.

Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: In electronic instruments or measuring equipment, used for real-time display of measurement values, setting parameters, and operating status.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
