Basic Information

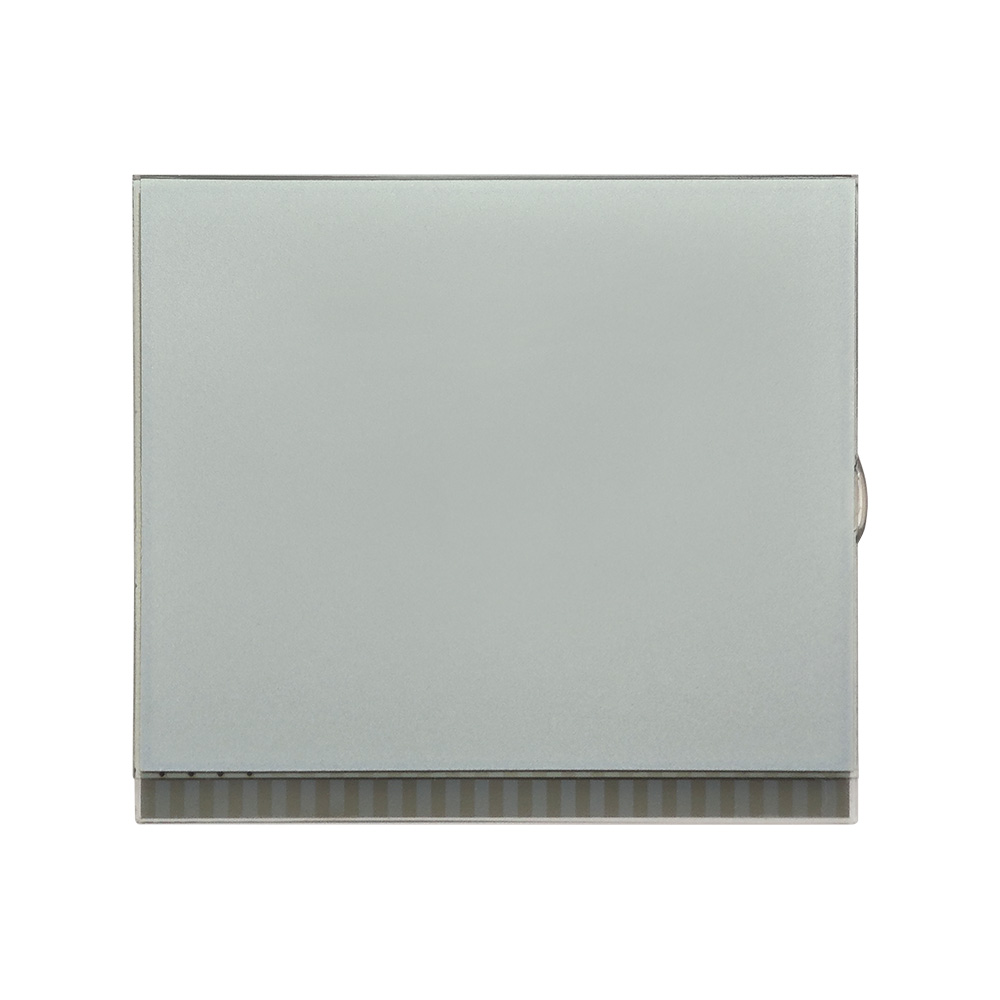

The Small Size Segment Screen SJXDGW034 is a compact segmented LCD display designed for electronic systems that require precise visual output within limited installation space. It is engineered to provide clear and stable numeric and symbolic information in a reduced footprint, making it suitable for miniature devices and embedded instrumentation. With a focus on efficiency, clarity, and long-term reliability, this display is optimized for applications where space-saving design and dependable performance are both critical.
Parameters:
| Character Type | Customized |
| Model | SJXDGW034 |
| Model Size | 50.0×45.0×2.8 mm |
| VA Size | 47.0×39.0 mm |
|
Connector
|
Conductive adhesive strip |
|
LCD Type
|
HTN Positive |
|
Drive Conditions
|
1/4D 1/3B
|
|
Working Temperature
|
-20°C TO +70'C
|
| Storage Temperature |
-30'C TO +80'C
|
|
Working Voltage
|
4.5 V |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications
This Small Size Segment Screen utilizes a finely structured segmented LCD architecture designed for compact device integration. It delivers sharp and well-defined segment rendering, ensuring excellent readability for numeric values and basic symbols. The display provides strong contrast performance, allowing clear visibility under typical indoor lighting conditions. It operates at low voltage, making it compatible with energy-efficient circuits and battery-powered systems. The module is engineered for ultra-low power consumption, supporting extended operational duration in continuous-use applications. It maintains stable electrical performance across a wide temperature range, ensuring reliable functionality in diverse environmental conditions. Its miniature form factor enables easy integration into space-constrained electronic products, portable instruments, and embedded control systems. The fast response of segmented elements ensures accurate real-time display of operational data without delay or visual distortion.
Design Standards
The module is manufactured according to strict industrial-grade display standards to ensure durability, stability, and consistent performance. High-quality LCD materials are selected to maintain optical clarity and segment uniformity over long-term usage. Circuit design is optimized to reduce electromagnetic interference and ensure stable signal transmission in compact electronic environments. The display structure is reinforced to withstand temperature variation, vibration, and mechanical stress commonly encountered in embedded applications. Each unit undergoes comprehensive testing to verify segment accuracy, brightness consistency, and electrical stability. Low power design principles are applied to extend device lifespan and improve energy efficiency.
Applications
The Small Size Segment Screen is widely used in portable measuring devices, compact industrial instruments, smart sensors, handheld electronics, and embedded control modules. It is also suitable for medical devices, utility meters, and miniaturized electronic systems requiring reliable segmented display output. Its combination of compact structure, low power consumption, and stable visual performance makes it an ideal solution for modern electronic products with strict space and efficiency requirements.
Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
