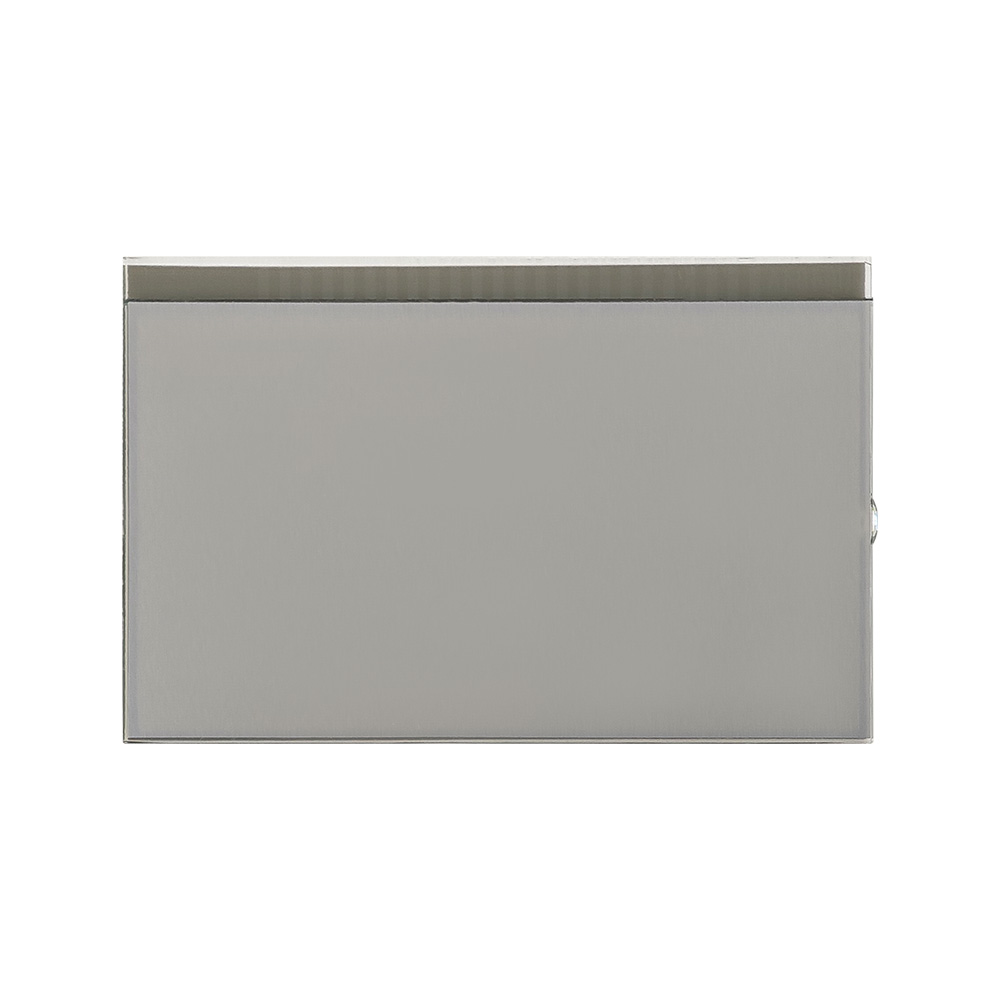

The Monochrome Segment Code Screen SJXDGW035 is a dedicated single-color segmented display solution designed for electronic systems requiring clear, stable, and low-power visual output. It is engineered to present structured numeric and symbolic information in a simplified monochrome format, making it suitable for instrumentation and embedded applications where readability and reliability are essential. The module focuses on delivering consistent performance in compact and industrial-grade environments.
Parameters:
| Character Type | Customized |
| Model | SJXDGW035 |
| Model Size | 70.0×45.8×2.8 mm |
| VA Size | 67.0×38.8 mm |
|
Connector
|
Conductive adhesive strip |
|
LCD Type
|
HTN Positive |
|
Drive Conditions
|
1/4D 1/3B
|
|
Working Temperature
|
-20°C TO +70'C
|
| Storage Temperature |
-30'C TO +80'C
|
|
Working Voltage
|
4.5 V |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications
This Monochrome Segment Code Screen utilizes a specialized segmented LCD architecture optimized for single-color visual representation. It provides stable and clearly defined segment output for numeric values, symbols, and predefined codes. The display ensures high contrast visibility, allowing information to remain legible under various lighting conditions, including indoor and moderately bright environments. It operates at low voltage, making it compatible with energy-efficient electronic systems and battery-powered devices. The module is designed for ultra-low power consumption, supporting extended operational life in continuous-use scenarios. It maintains stable performance across a wide temperature range, ensuring reliable operation in different environmental conditions. Its compact structural design allows easy integration into space-constrained embedded systems and industrial control panels. The fast response of segmented elements ensures accurate real-time display of operational data without delay or flicker.
Design Standards
The module is manufactured according to strict industrial display standards to ensure durability, stability, and long-term reliability. High-quality monochrome LCD materials are used to maintain consistent optical performance and segment clarity over extended usage periods. Circuit design is optimized to minimize electromagnetic interference and ensure stable signal transmission during continuous operation. The display structure is reinforced to withstand environmental stress such as vibration, temperature variation, and humidity exposure. Each unit undergoes comprehensive testing to verify segment accuracy, visual uniformity, and electrical stability. Low power engineering principles are applied to enhance energy efficiency and extend device operational lifespan.
Applications
The Monochrome Segment Code Screen is widely used in industrial meters, smart measurement devices, control panels, embedded instrumentation systems, and portable electronic equipment. It is also suitable for utility monitoring devices, medical instruments, and compact diagnostic tools requiring stable monochrome segmented output. Its combination of clarity, low power consumption, and durable construction makes it an ideal solution for reliable visual data presentation in both industrial and commercial electronic applications.
