Basic Information

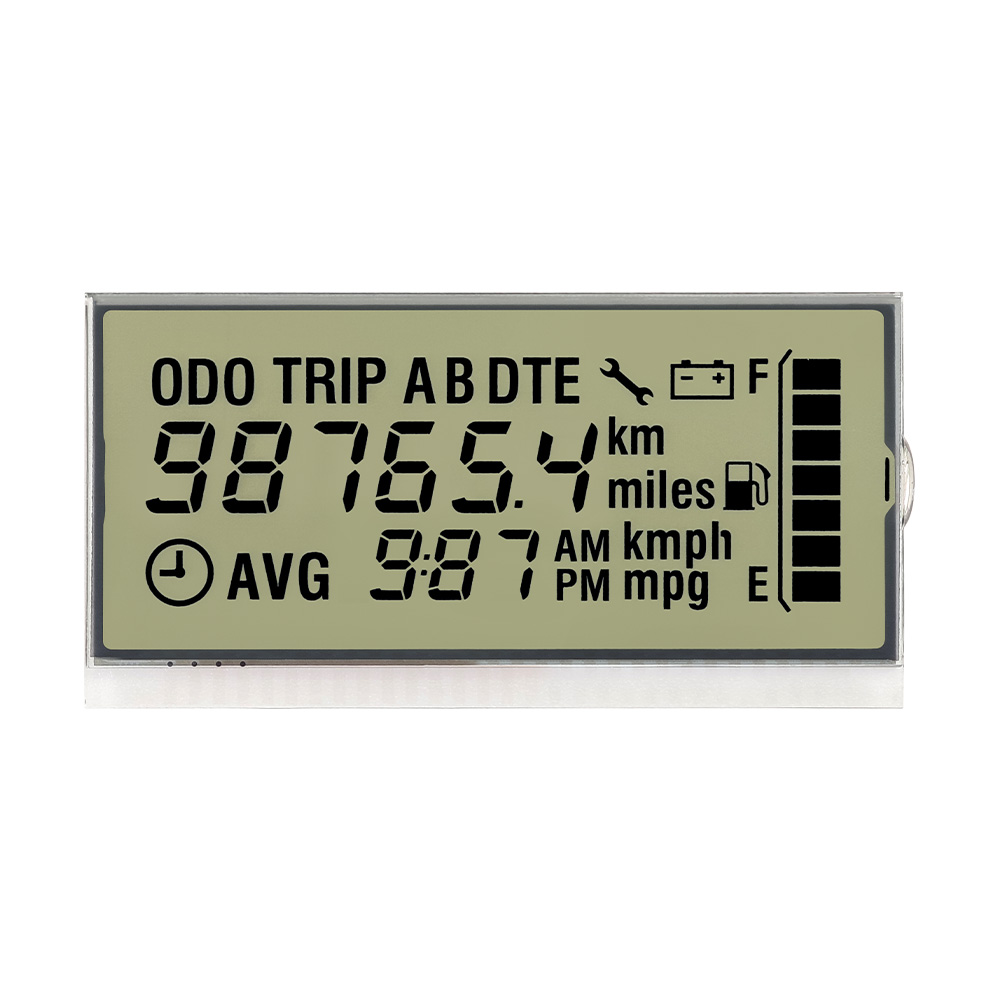

The SJXDGW033 Seven Segment Display Screen is a customized LCD display solution designed for precise numeric and symbolic representation in electronic devices. It is engineered to deliver stable performance, clear visibility, and low power consumption, making it suitable for a wide range of industrial and consumer applications. With its optimized segmented structure, this display ensures accurate and easy-to-read information output in various operating environments.
Parameters:
| Character Type | Customized |
| Model | SJXDGW033 |
| Model Size | 51.0×26.0×2.8 mm |
| VA Size | 48.0×20.5 mm |
|
Connector
|
Conductive adhesive strip |
|
LCD Type
|
HTN Positive |
|
Drive Conditions
|
1/4D 1/3B
|
|
Working Temperature
|
-20°C TO +70'C
|
| Storage Temperature |
-30'C TO +80'C
|
|
Working Voltage
|
4.5 V |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications
The SJXDGW033 Seven Segment Display Screen features a classic segmented layout optimized for numeric display applications. It provides high-contrast visibility, ensuring clear readability of digits under different lighting conditions. The display is designed for low power operation, making it suitable for battery-powered devices and energy-efficient systems. It supports stable driving conditions and consistent signal response, ensuring reliable long-term operation. The compact structure allows easy integration into different electronic products without requiring complex design modifications. The module is engineered to maintain stable electrical performance and reliable display output, ensuring consistent functionality in both consumer and industrial environments.
Design Features
This seven segment display screen is built with durability and functional reliability in mind. It provides fast response time and accurate segment activation, ensuring precise numeric representation. The optimized structure ensures stable performance during continuous operation while maintaining excellent visual clarity. Its customized segment configuration allows flexible adaptation for different display requirements, enabling manufacturers to integrate specific symbols or indicators as needed. The robust design ensures long service life and dependable operation in demanding usage scenarios.
Applications
The SJXDGW033 Seven Segment Display Screen is widely used in digital meters, measuring instruments, timers, counters, household appliances, and industrial control systems. It is commonly found in devices such as power meters, temperature displays, electronic clocks, and portable testing equipment. Its clarity and reliability make it suitable for both consumer-grade and industrial-grade applications.
Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
