Basic Information
The Digital Segment Code Screen SJXDGW032 is a compact and efficient segmented LCD display designed for electronic systems that require structured digital and symbolic information presentation. It is engineered to provide clear and stable segmented output in a simplified visual format, making it suitable for embedded devices, industrial equipment, and compact instrumentation systems. The module focuses on delivering reliable readability and consistent performance in environments where space efficiency and display clarity are essential.

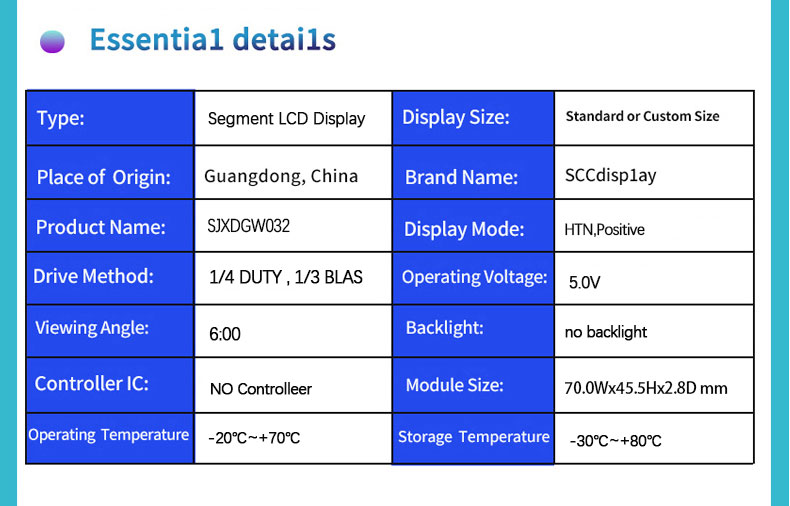

Parameters:
| Character Type | Customized |
| Model | SJXDGW032 |
| Model Size | 70.0×45.5×2.8 mm |
| VA Size | 67.0×40.0 mm |
|
Connector
|
Metal pins |
|
LCD Type
|
HTN Positive |
|
Drive Conditions
|
1/4D 1/3B
|
|
Working Temperature
|
-20°C TO +70'C
|
| Storage Temperature |
-30'C TO +80'C
|
|
Working Voltage
|
5.0 V |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications
This Digital Segment Code Screen adopts a refined segmented LCD architecture optimized for coded digital display applications. It supports clear representation of numeric values, symbols, and predefined segment patterns, ensuring accurate visual communication of system data. The display offers strong contrast characteristics, allowing information to remain legible under various indoor lighting conditions. It operates at low voltage, making it compatible with energy-efficient electronic designs and battery-powered systems. The module is engineered for ultra-low power consumption, supporting long-duration operation in continuous-use environments. It maintains stable electrical and optical performance across a wide temperature range, ensuring reliability in different working conditions. Its compact structure allows seamless integration into space-constrained devices, including embedded control boards and portable instruments. The fast response of segment switching ensures real-time display accuracy without lag or distortion.
Design Standards
The module is manufactured according to strict industrial-grade display standards to ensure durability, consistency, and long-term operational stability. High-quality LCD materials are used to maintain uniform optical performance and segment clarity throughout the product lifecycle. Circuit design is optimized to minimize electromagnetic interference and ensure stable signal transmission in complex electronic environments. The structure is reinforced to withstand mechanical vibration, thermal variation, and environmental stress encountered in industrial applications. Each unit undergoes comprehensive inspection to verify segment accuracy, visual uniformity, and electrical stability. Low power engineering principles are applied to enhance energy efficiency and extend operational lifespan.
Applications
The Digital Segment Code Screen is widely used in industrial meters, embedded control systems, smart measurement devices, portable electronics, and specialized instrumentation equipment. It is also suitable for utility monitoring devices, diagnostic tools, and compact electronic interfaces requiring reliable segmented display output. Its combination of stability, clarity, and low power consumption makes it an effective solution for modern electronic systems requiring precise and efficient visual data representation.
Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
