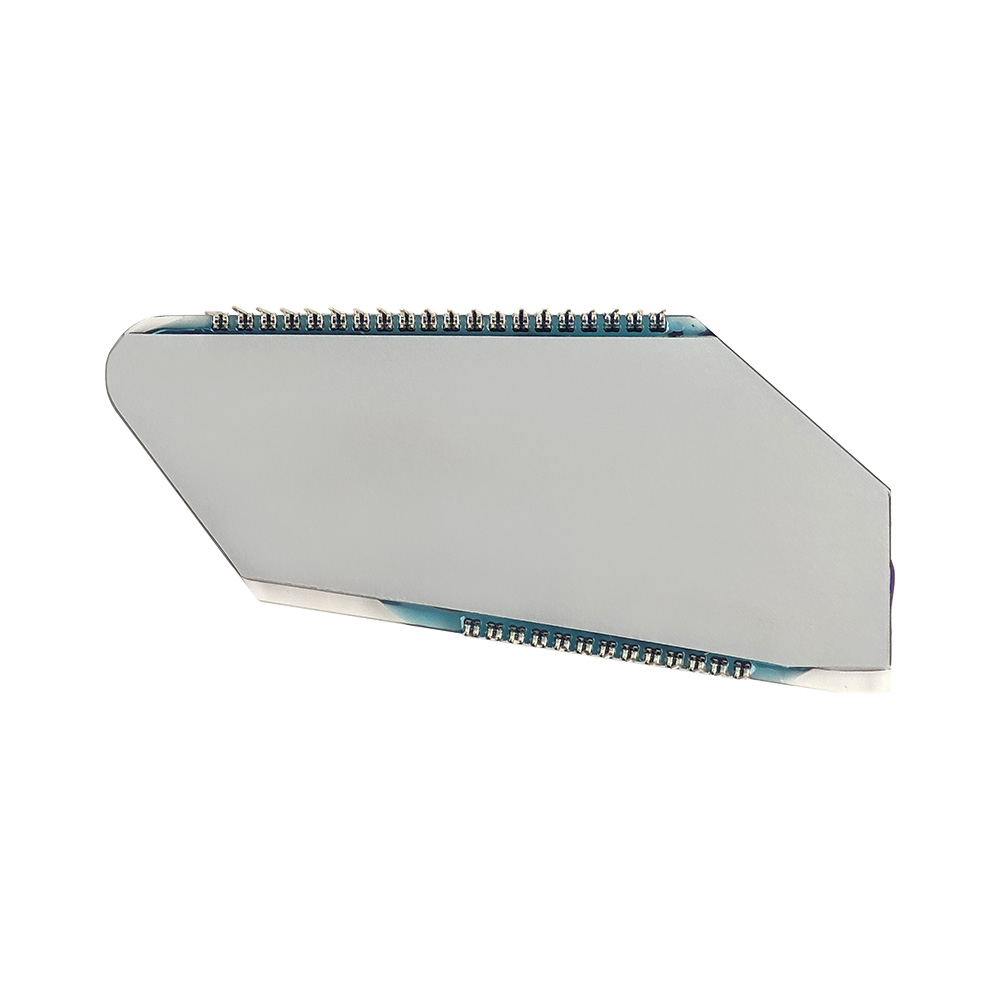

Basic Information
The Segmented LCD SJXDGW047 is a compact and efficient display solution designed for electronic systems that require clear, stable, and low-power visual output. It utilizes segmented liquid crystal technology to present numeric and symbol-based information in a highly readable format. This makes it ideal for devices where simplicity, reliability, and long-term operational stability are essential. The module is engineered to support a wide range of embedded and industrial applications, providing consistent performance in both portable and fixed equipment.
Parameters:
| Character Type | Customized |
| Model | SJXDGW047 |
| Model Size | 87.0×43.0×2.8 mm |
| VA Size | 83.5×35.0 mm |
|

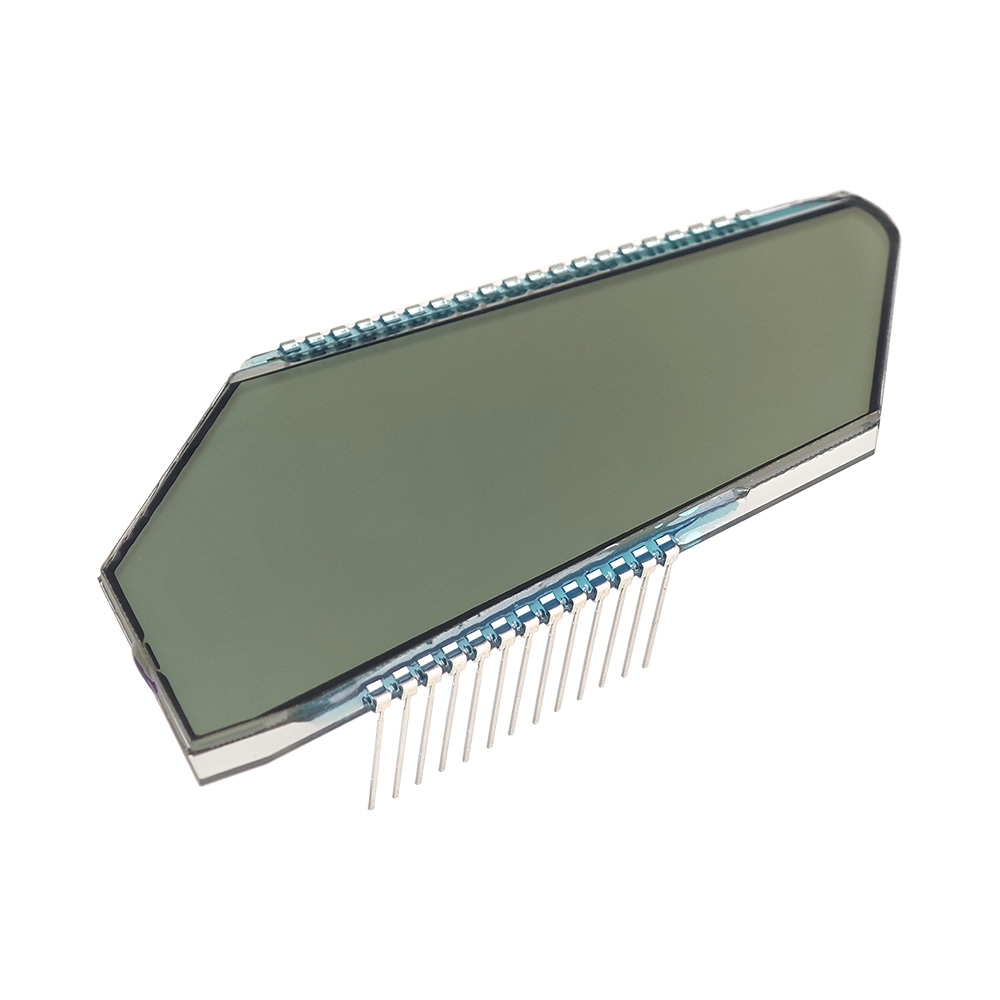

Connector
|
Metal pins |
|
LCD Type
|
HTN Positive |
|
Drive Conditions
|
1/4 D 1/3 B
|
|
Working Temperature
|
-20C TO +70°C
|
| Storage Temperature |
-30°C TO +80°C
|
|
Working Voltage
|
4.5V |

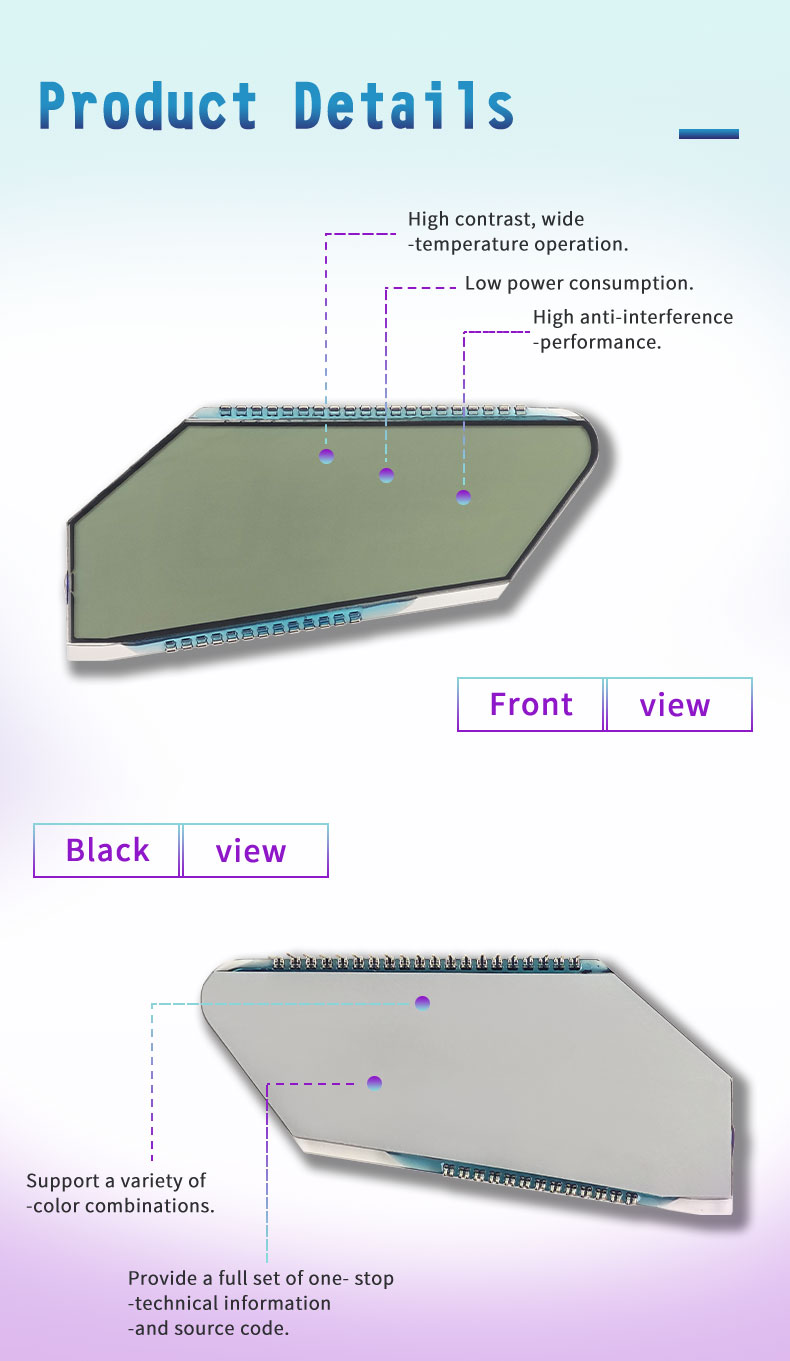

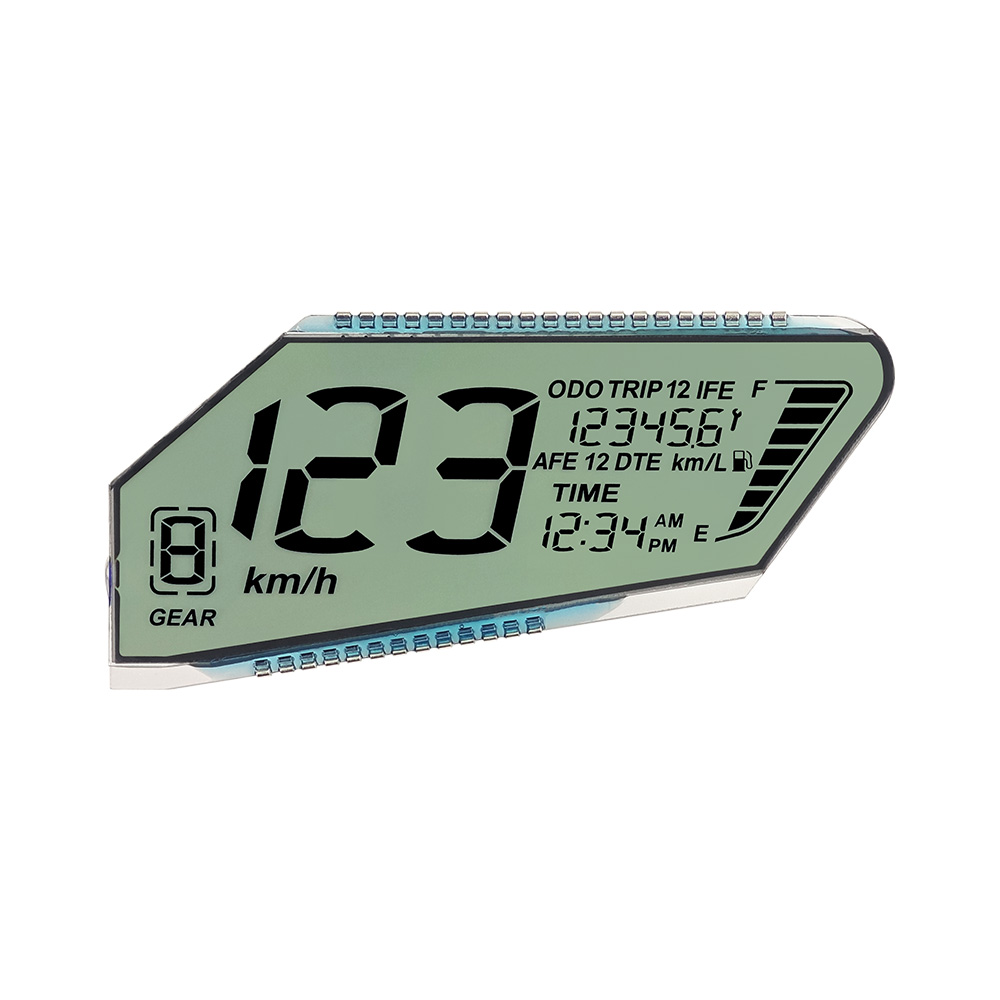

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications
This Segmented LCD features a high-contrast segmented structure optimized for precise numeric and icon display. It ensures excellent visibility under different lighting conditions, including indoor and moderately bright environments. The display operates at low voltage, making it suitable for energy-efficient and battery-powered systems. It is designed to maintain stable electrical characteristics with minimal power consumption, supporting extended operational life in compact devices. The module functions reliably across a wide temperature range, ensuring consistent performance in diverse environmental conditions. Its compact architecture allows easy integration into space-constrained electronic products and embedded system designs. The segmented layout provides fast response and stable visual updates for real-time data representation.
Design Standards
The module is manufactured according to strict industrial-grade electronic display standards to ensure durability, accuracy, and long-term stability. The segmented design is optimized for uniform brightness distribution and clear optical performance. High-quality LCD materials are used to enhance resistance to thermal stress, vibration, and environmental aging. Circuit design is optimized to reduce electromagnetic interference and ensure stable signal transmission during continuous operation. The product follows low power engineering principles to improve energy efficiency and extend device battery life. Each unit undergoes rigorous testing to ensure consistent performance under long-term use and varying environmental conditions such as temperature fluctuations and mechanical stress.
Applications
The Segmented LCD is widely used in industrial control systems, digital meters, medical devices, household appliances, and embedded electronic equipment. It is also suitable for portable instruments, smart sensors, and battery-powered devices requiring clear and efficient numeric display. Its combination of clarity, reliability, and low power consumption makes it an ideal solution for modern electronic systems requiring stable segmented visual output in both industrial and consumer environments.

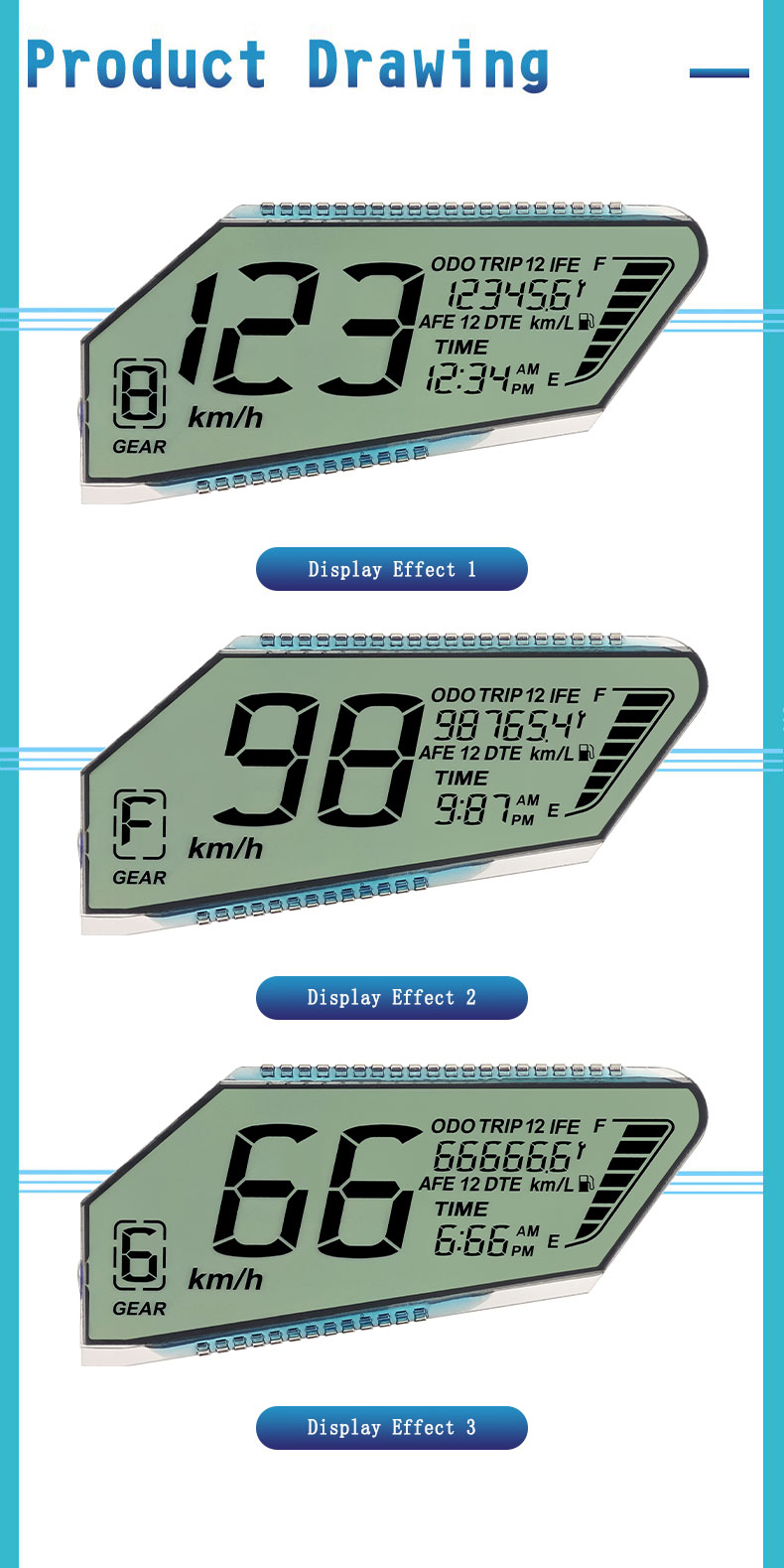

Product Size
