Basic Information
The Segment Code LCD Screen SJXDGW046 is a compact and efficient display solution designed for electronic systems that require structured segmented code representation. It is engineered to present numeric, symbolic, and coded information in a clear and organized format, making it ideal for embedded devices and industrial control applications. With a focus on reliability, low power consumption, and long-term stability, this display ensures consistent performance in both portable and fixed electronic systems where accurate data visualization is essential.
Parameters:
| Character Type | Customized |
| Model | SJXDGW046 |
| Model Size | 157.8×56.0×2.8 mm |
| VA Size | 154.8×50.5 mm |
|
Connector
|
Metal pins |
|
LCD Type
|
HTN Negative |
|
Drive Conditions
|
1/4 D 1/3 B
|
|
Working Temperature
|
-30C TO +80°C
|
| Storage Temperature |
-40°C TO +90°C
|
|
Working Voltage
|
4.5V |

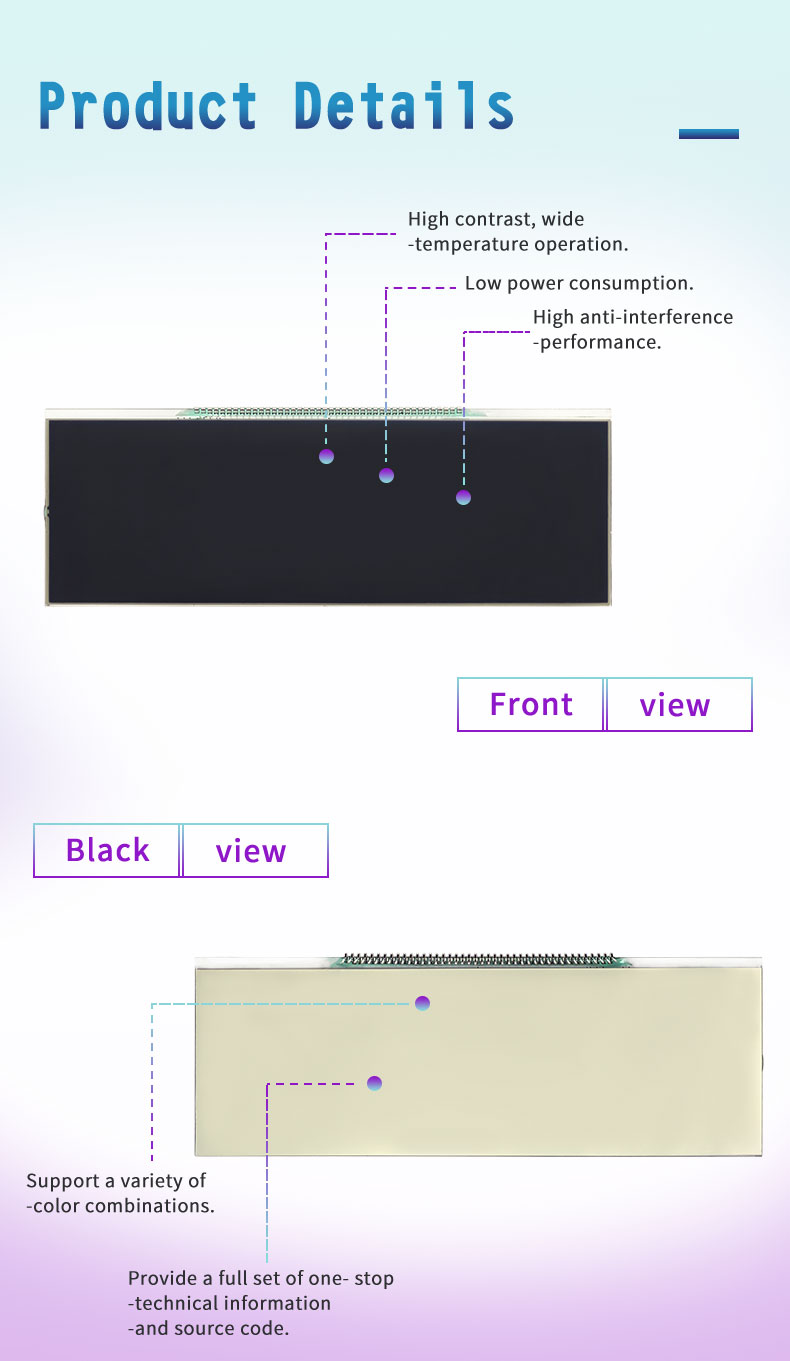

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications
This Segment Code LCD Screen features a segmented coding architecture optimized for displaying structured numeric and symbolic data with high clarity. It provides strong contrast performance to ensure readability under different lighting conditions, including indoor and semi-bright environments. The module operates at low voltage levels, making it suitable for battery-powered and energy-efficient electronic systems. It is designed to maintain stable electrical performance with minimal power consumption, supporting extended operational life in compact devices. The display functions reliably across a wide temperature range, ensuring consistent output in various environmental conditions. Its compact structure allows easy integration into space-limited electronic products and embedded system designs. The segment code layout enables precise data mapping and stable visual representation.
Design Standards
The module is manufactured according to strict industrial-grade electronic display standards to ensure durability, accuracy, and long-term reliability. The segmented code structure is optimized for uniform optical clarity and stable brightness distribution. High-quality LCD materials are used to enhance resistance to thermal stress, vibration, and environmental aging. Circuit design is optimized to reduce electromagnetic interference and ensure stable signal transmission during continuous operation. The product follows low power engineering principles to improve energy efficiency and extend device battery life. Each unit undergoes rigorous testing to ensure consistent performance under long-term usage and varying environmental conditions, including temperature fluctuations and mechanical stress.
Applications
The Segment Code LCD Screen is widely used in industrial instrumentation, digital meters, communication devices, medical equipment, and embedded control systems. It is also suitable for smart sensors, portable testing instruments, and battery-powered electronics requiring structured code-based display output. Its combination of clarity, stability, and low power consumption makes it an ideal solution for modern electronic systems requiring reliable segmented code visualization in both industrial and consumer applications.

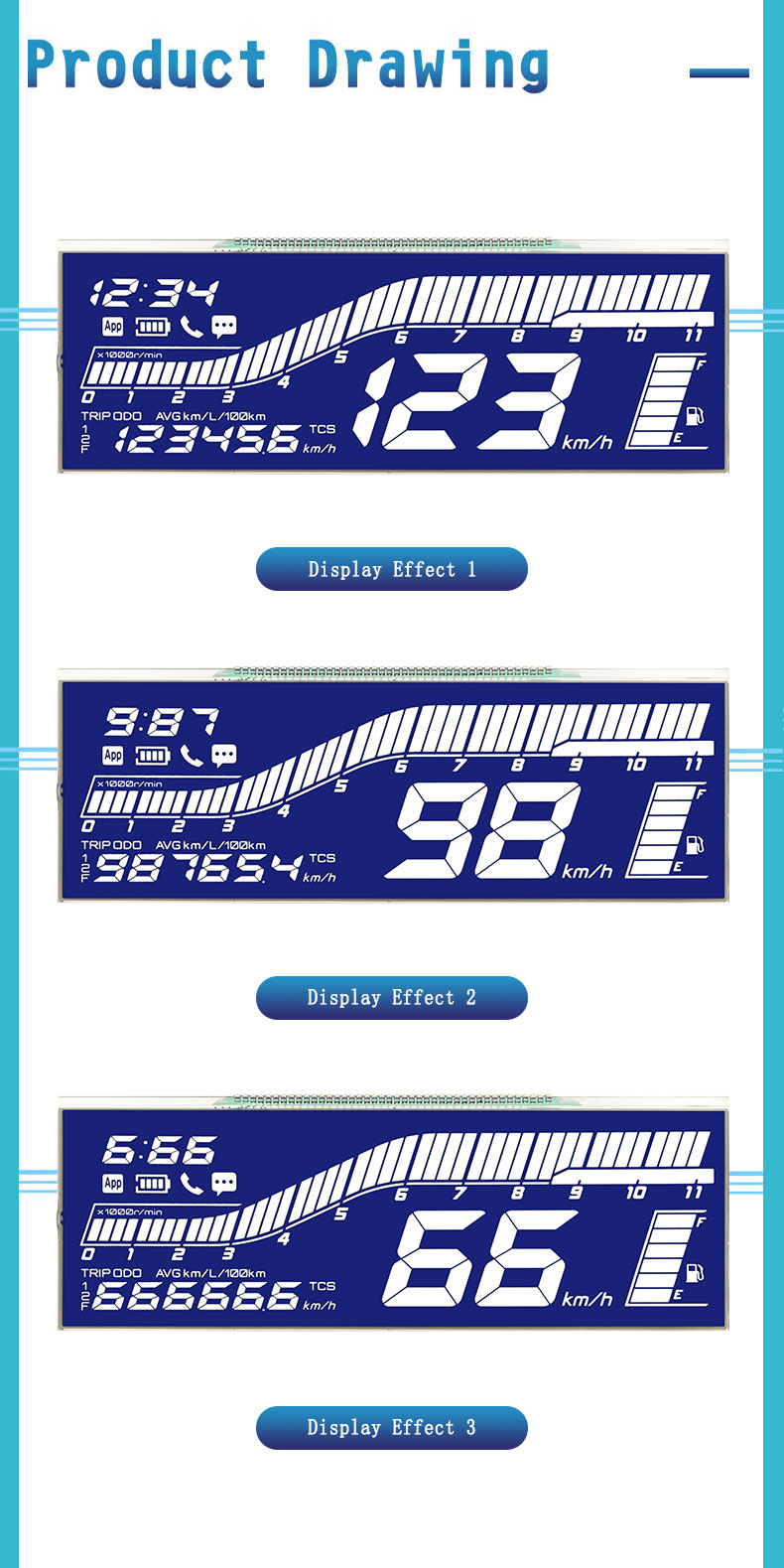

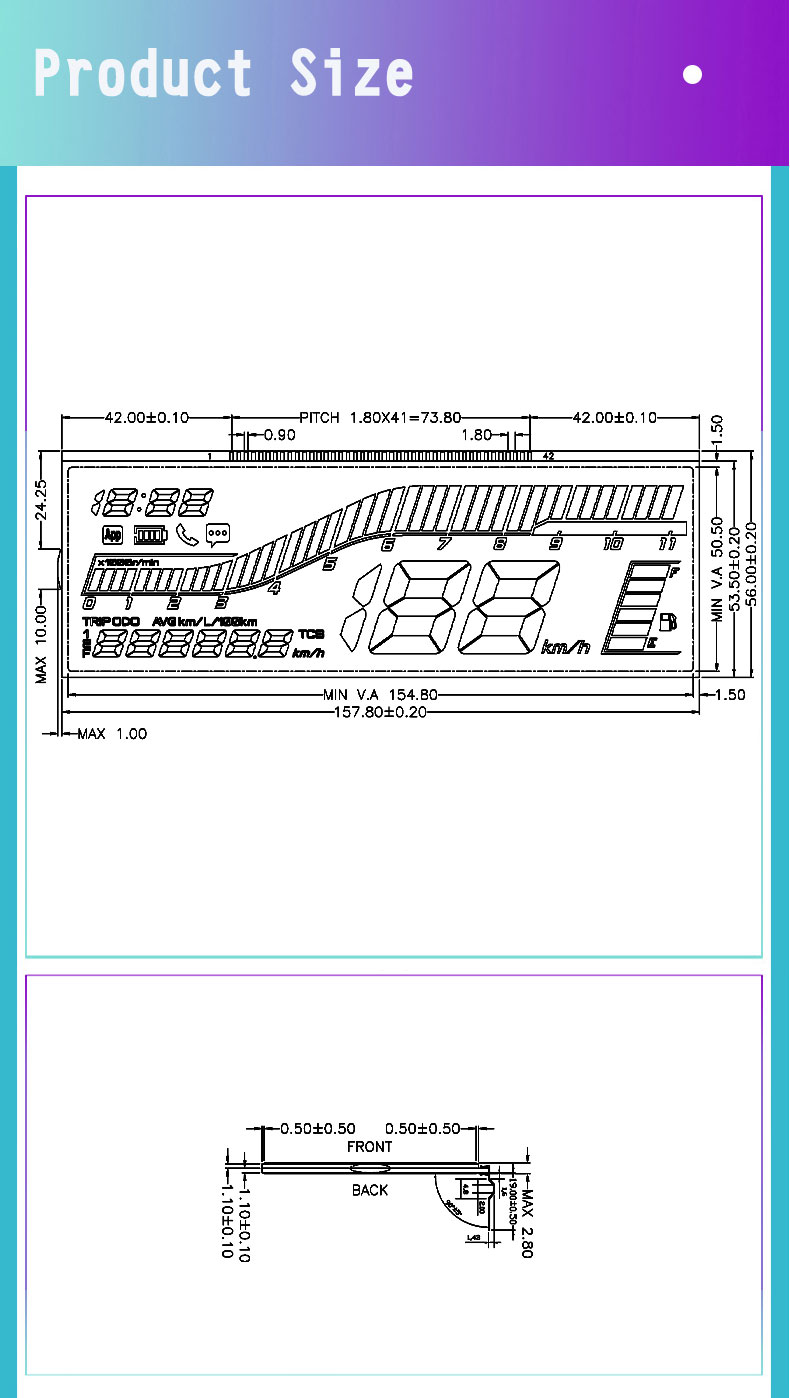

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
