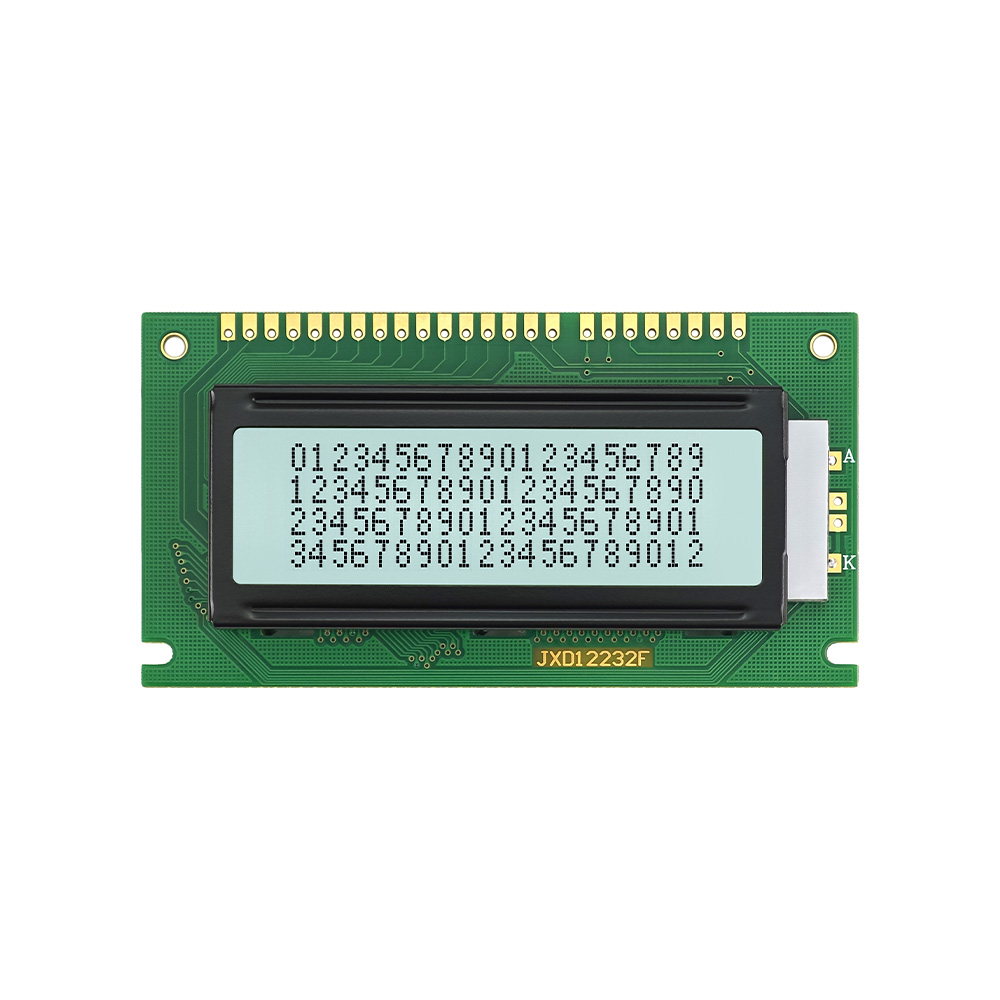

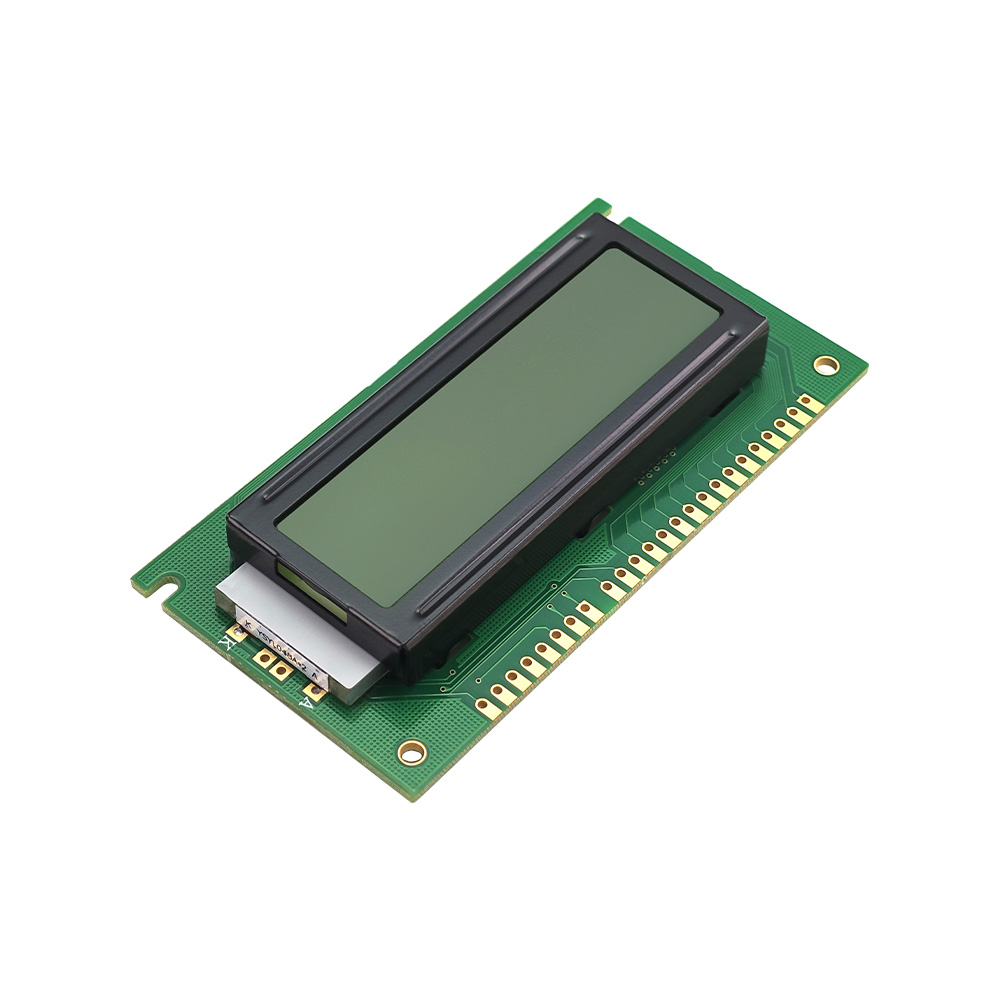

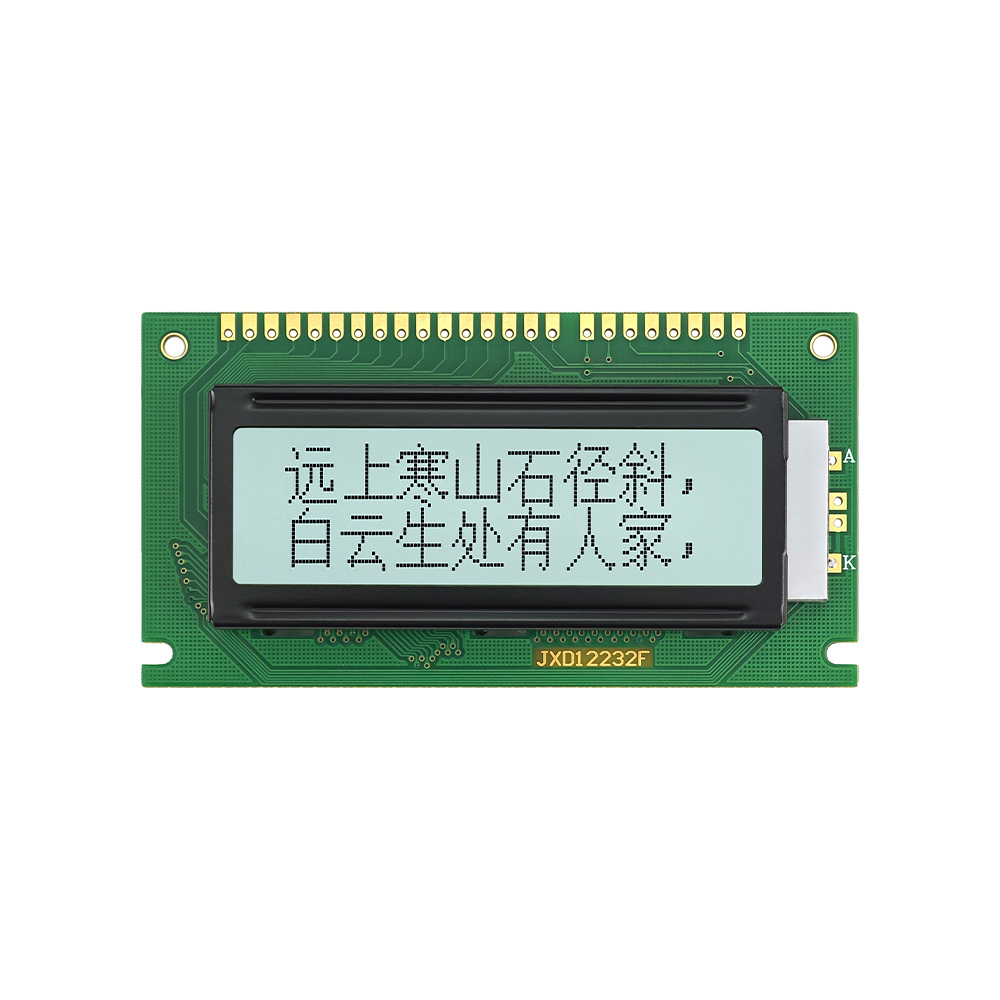

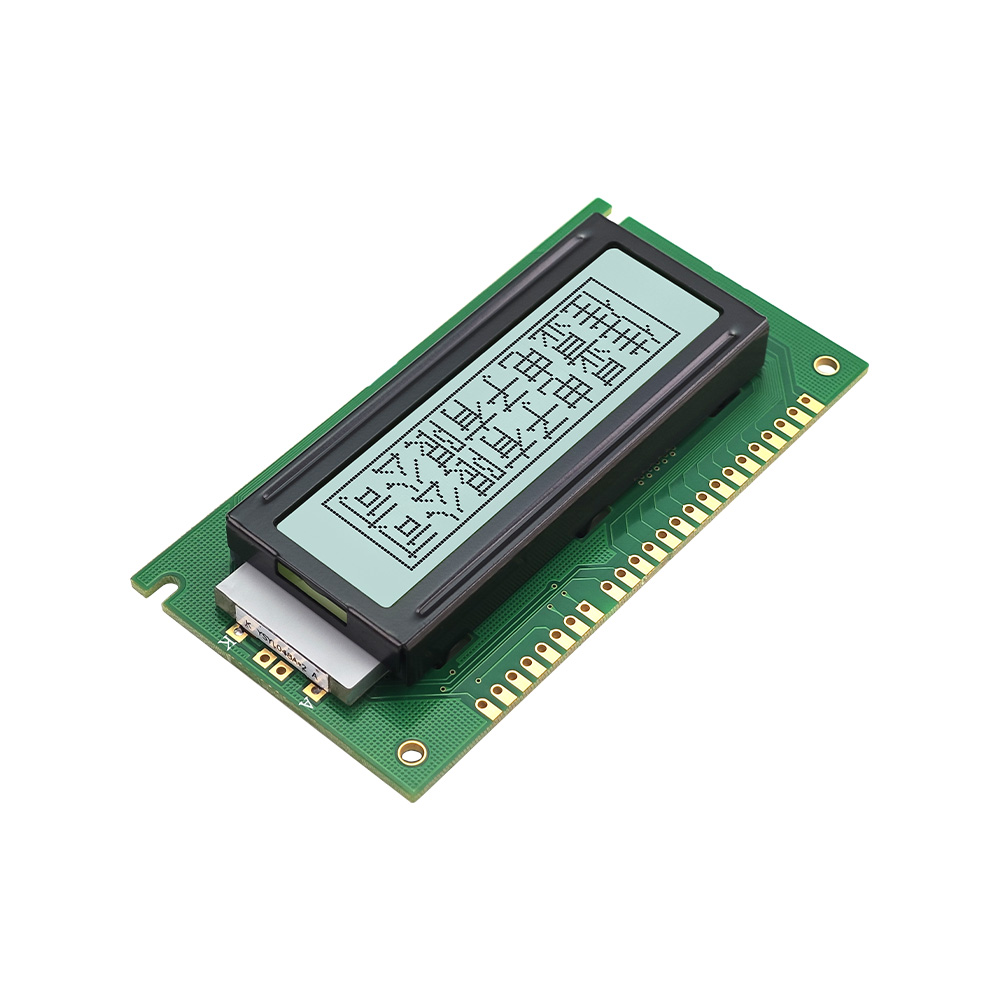

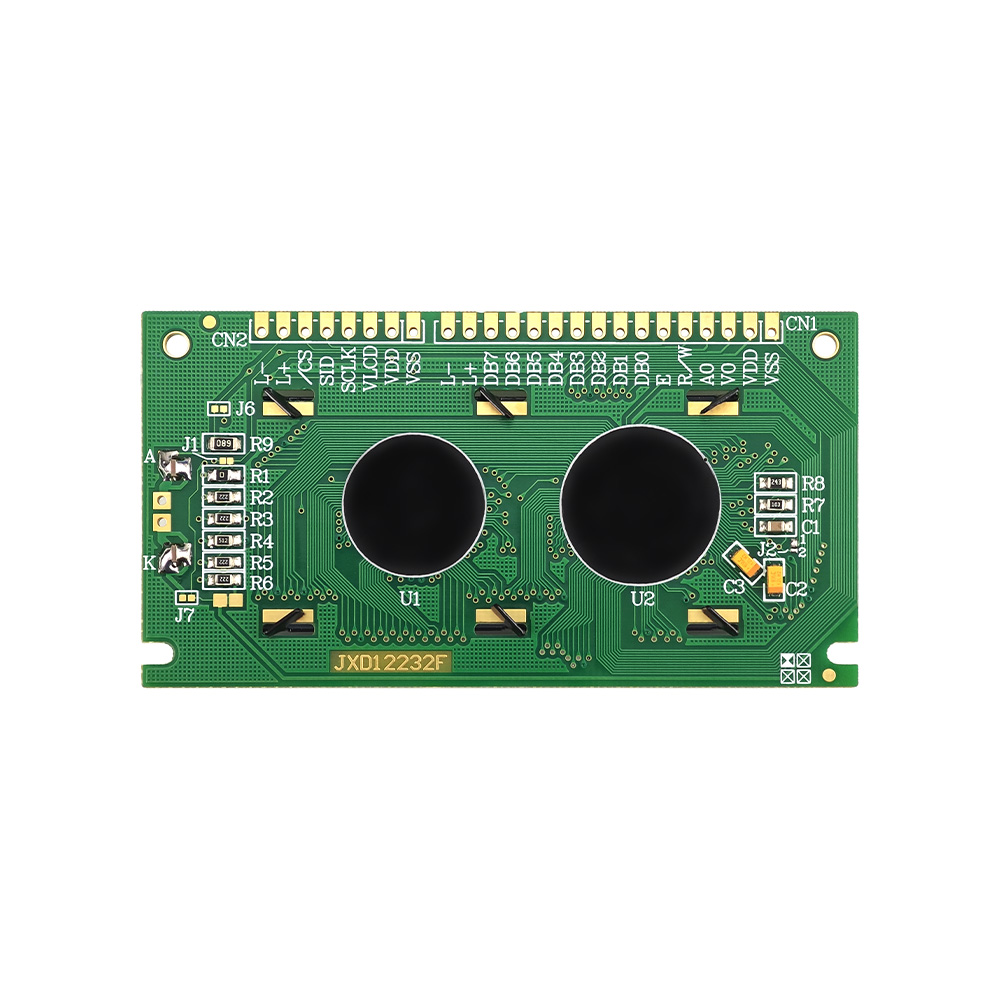

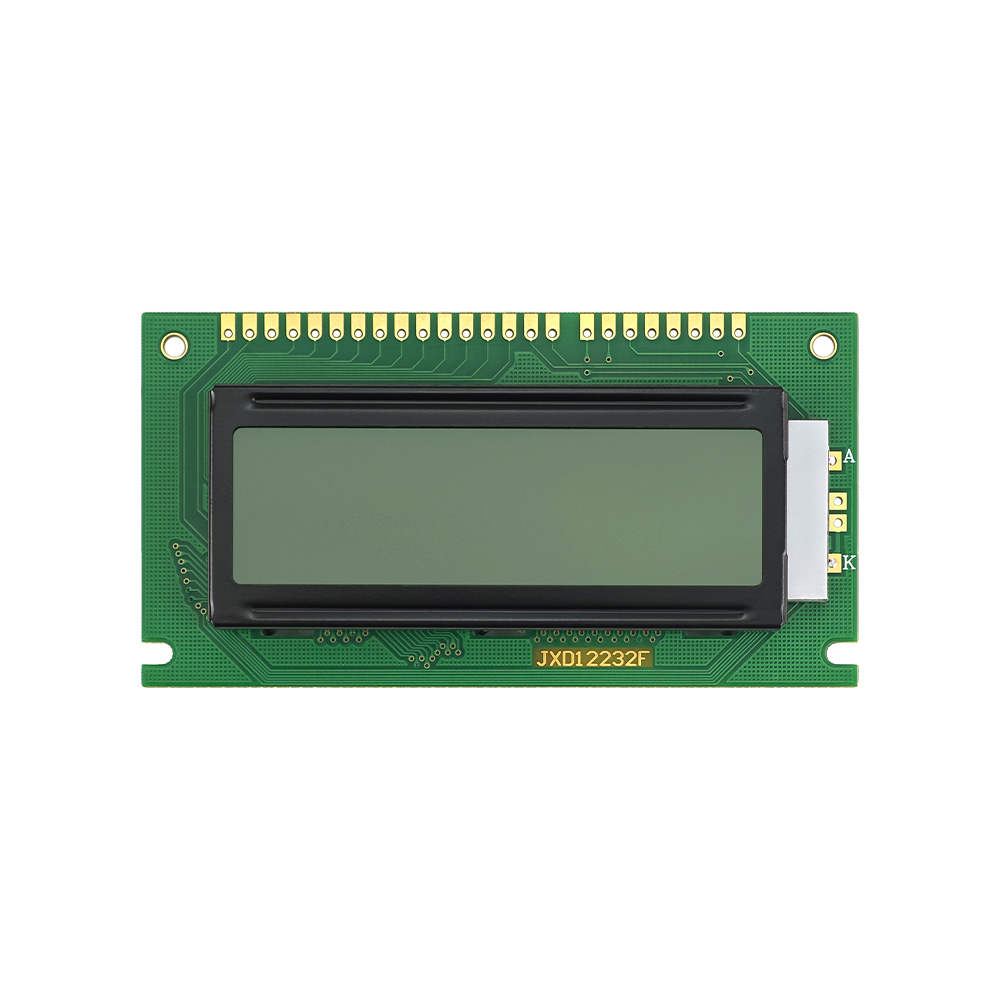

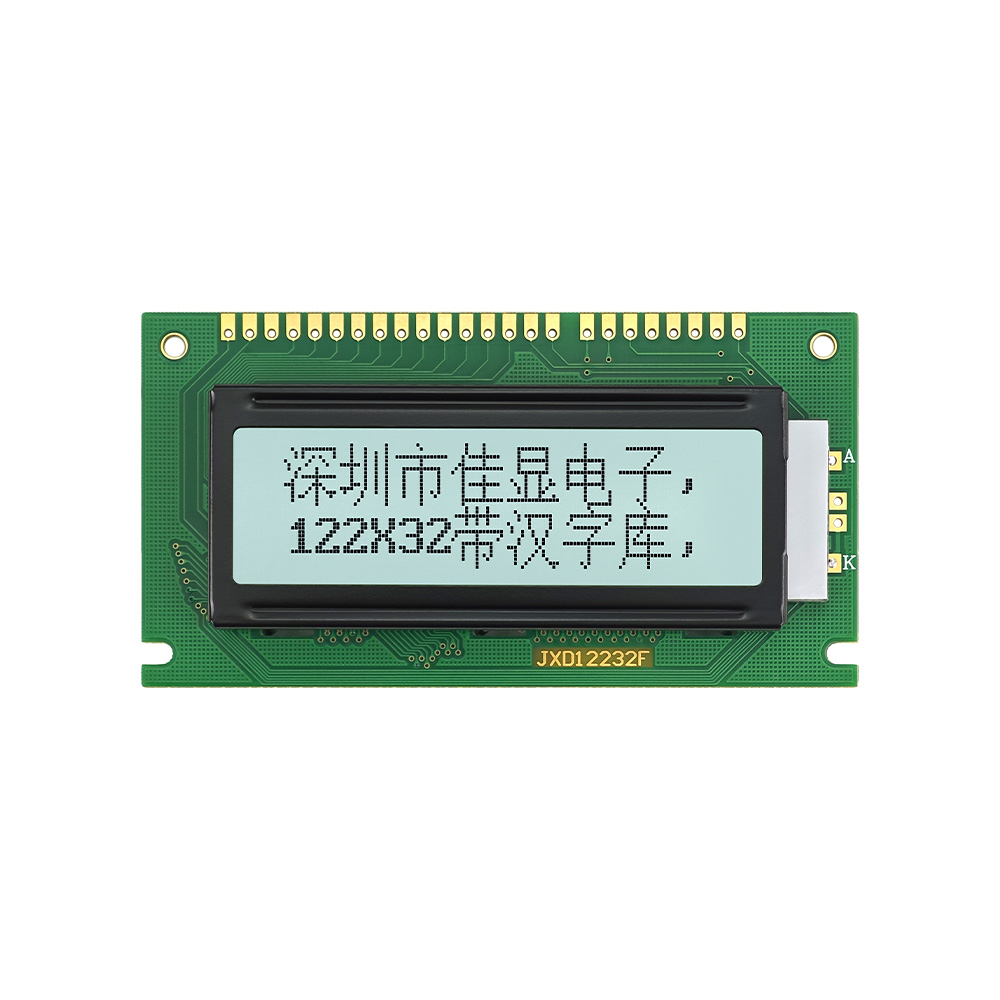

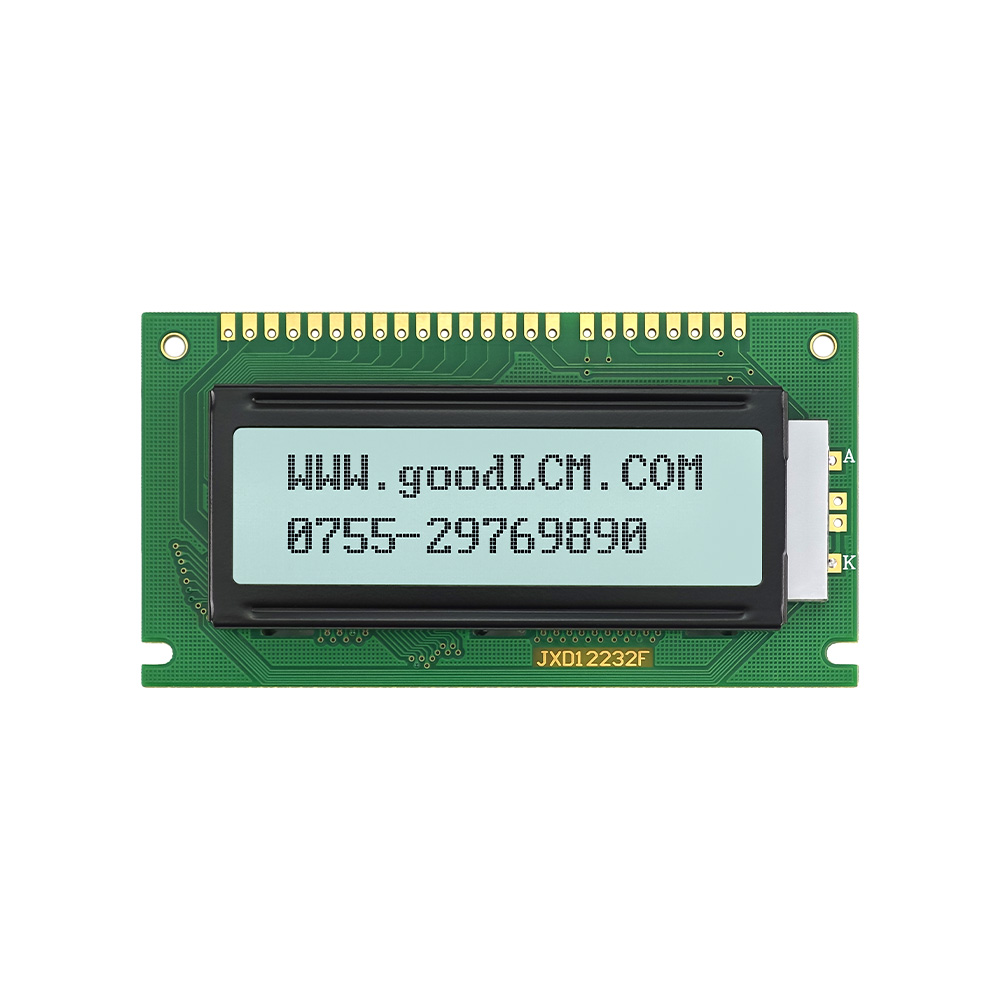

122X32 Graphic Dot Matrix - JXD12232F（FSTN Positive）

122X32 Graphic Dot Matrix is a compact monochrome display module designed for embedded electronics that require clear graphical and alphanumeric output. Built for industrial and instrumentation environments, it provides stable performance and reliable readability for real-time data presentation. The display is optimized for applications where space is limited but information clarity remains essential, making it suitable for a wide range of control and monitoring systems.

Parameters:

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective
• The fastest batch delivery can be achieved within 15 days

Key Specifications

The module features a 122×32 pixel configuration that supports flexible graphic rendering and custom character display. It is engineered with a high-contrast liquid crystal structure to ensure sharp visibility under different lighting conditions. The low-power consumption design makes it ideal for battery-powered or energy-sensitive devices. Standard controller compatibility enables easy integration into microcontroller-based systems. The interface is designed for stable communication, ensuring accurate data transmission and consistent screen refresh performance. Its viewing angle is optimized to maintain legibility across multiple directions, reducing distortion during operation.

Design Standards

122X32 Graphic Dot Matrix is manufactured according to strict industrial reliability standards. The construction includes reinforced glass substrates and precision-aligned liquid crystal layers to enhance durability and operational stability. It is designed to resist electrical noise interference, ensuring stable performance in complex electronic environments. Thermal endurance is also considered, allowing the module to function reliably across extended temperature ranges without performance degradation. Long lifecycle design principles ensure consistent display quality over prolonged usage periods.

Applications

This graphic dot matrix display is widely used in industrial control panels, measurement instruments, medical devices, and communication equipment. It is particularly effective in embedded systems that require compact yet informative display solutions. Engineers utilize it in handheld testers, automation interfaces, and monitoring terminals where clear visual feedback is necessary. The 122X32 Graphic Dot Matrix also supports customization for specialized equipment, making it a versatile component for modern electronic design requirements.

Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
