Basic Information
The Design LCD Segment Display SJXD-GW008 is a customizable segmented LCD solution developed for electronic systems that require tailored visual interfaces and reliable numeric output. It is engineered to support flexible segment design, allowing manufacturers to create application-specific display layouts for instruments, embedded devices, and industrial equipment. This module focuses on adaptability, clarity, and long-term operational stability, making it suitable for both standard and specialized electronic display requirements.
Parameters:
| Character Type | Customized |
| Model | SJXDGW008 |
| Model Size | 101×43×2.8mm |
| VA Size | 97.0×36.5mm |
|
Front Polarizer
|
Transmissive
|
|
Back Polarizer
|
Transflective
|
|
LCD Type
|
HTN Negative
|
|
Drive Conditions
|
1/4 Duty，1/3 Bias 5.0V
|
| Working Temperature |
-30'C TO +80C
|
|
Storage Temperature
|
-40'C TO +90'C |

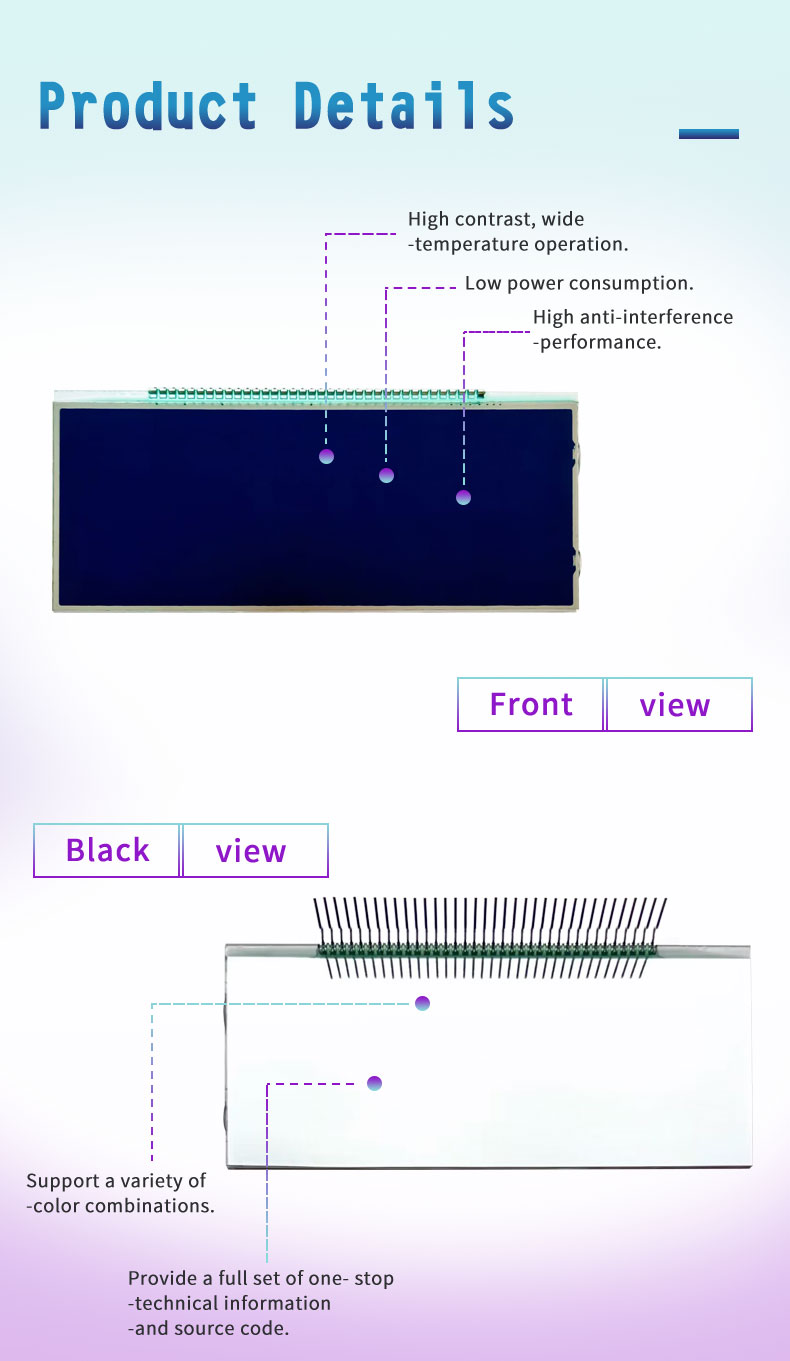

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
This design LCD segment display utilizes a structured liquid crystal segmented architecture optimized for configurable numeric and symbolic representation. It delivers sharp and stable visual output, ensuring accurate display of measurements, counters, and system status information. The module operates at low voltage, making it compatible with energy-efficient designs and battery-powered systems. It is engineered for ultra-low power consumption, supporting continuous long-duration operation with minimal energy usage. The display provides balanced contrast performance, ensuring readability under common indoor lighting conditions. Its compact form factor allows easy integration into space-constrained electronic products such as handheld devices and embedded control units. The module maintains stable optical and electrical characteristics across a wide temperature range, ensuring consistent performance in diverse working environments. Fast segment response enables real-time updates without flicker or delay, supporting accurate data visualization in dynamic applications.
Design Standards
The module is manufactured according to strict LCD engineering and customization standards to ensure consistency, durability, and long-term reliability. High-quality liquid crystal materials are selected to achieve uniform optical performance and stable segment definition across customized layouts. Circuit design is optimized to minimize electromagnetic interference and ensure stable signal transmission in electronic systems. Structural reinforcement improves resistance to mechanical stress, vibration, and temperature variation. Each unit undergoes comprehensive inspection to verify segment accuracy, brightness consistency, and electrical stability. Energy-efficient design principles are applied to enhance performance reliability and extend product lifespan.
Applications
The Design LCD Segment Display is widely used in industrial automation systems, digital meters, medical devices, automotive electronics, and embedded control interfaces. It is also suitable for consumer electronics, portable instruments, smart monitoring equipment, and customized display panels requiring flexible segment configuration. Its combination of design flexibility, stable performance, and low power operation makes it a practical solution for a wide range of electronic display applications.
Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
