Basic Information

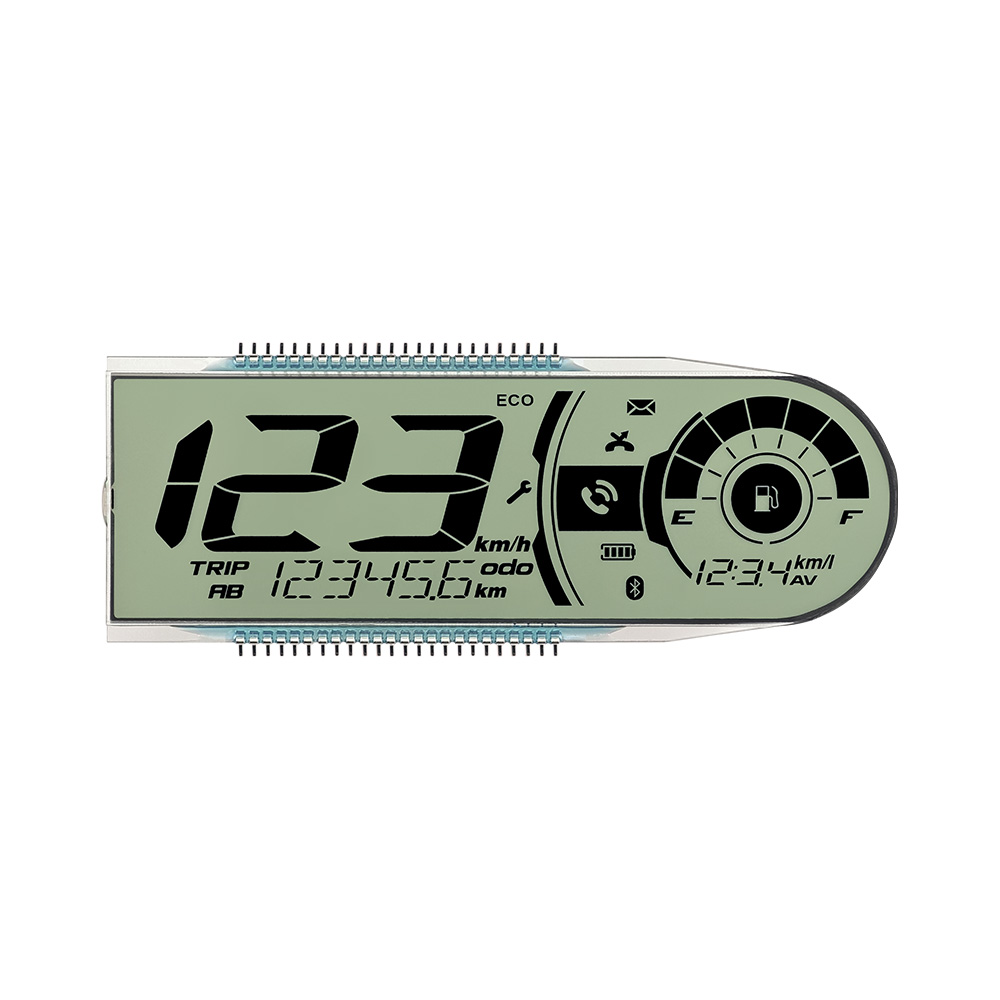

The 7 Segment Display Screen SJXDGW048 is a compact and efficient numeric display solution designed for electronic systems that require clear and stable visual output. It uses a classic 7-segment structure to present numerical information in a simple and highly readable format. Engineered for reliability and long-term performance, this display is suitable for a wide range of industrial, commercial, and embedded applications where accurate data visualization is essential.
Parameters:
| Character Type | Customized |
| Model | SJXDGW048 |
| Model Size | 115.5×42.5×2.8 mm |
| VA Size | 112.5×34.5 mm |
|
Connector
|
Metal pins |
|
LCD Type
|
HTN Positive |
|
Drive Conditions
|
1/4 D 1/3 B
|
|
Working Temperature
|
-20C TO +70°C
|
| Storage Temperature |
-30°C TO +80°C
|
|
Working Voltage
|
4.5V |

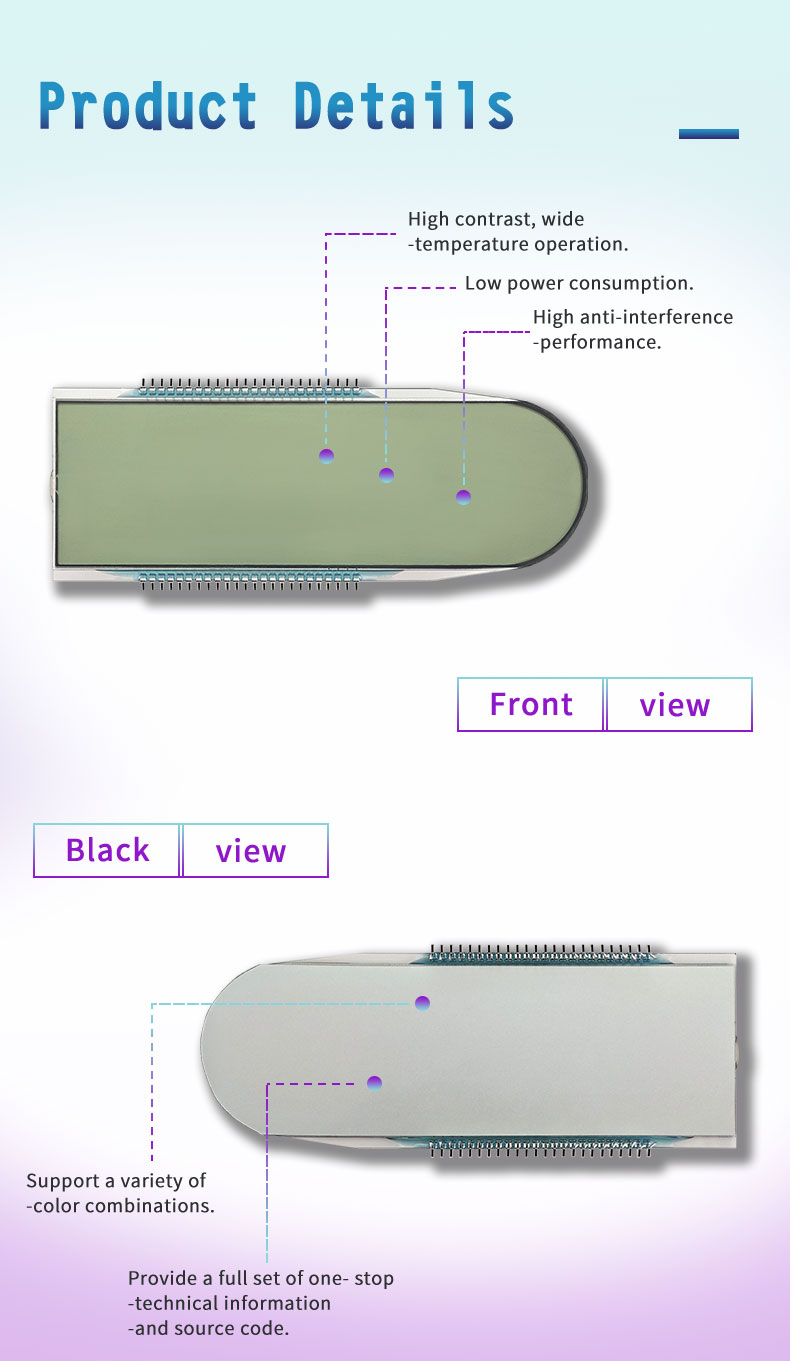

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications
This 7 Segment Display Screen features a segmented display architecture optimized for clear numeric representation under various lighting conditions. It provides high contrast output to ensure excellent readability in both indoor and moderately bright environments. The module operates at low voltage levels, making it suitable for energy-efficient and battery-powered systems. It is designed for stable electrical performance with minimal power consumption, supporting long operational life in compact devices. The display ensures fast response time for real-time numeric updates without delay. It is engineered to function reliably across a wide temperature range, ensuring consistent performance in different environmental conditions. Its compact structure allows easy integration into space-limited electronic devices and control panels. The segmented layout ensures precise and stable digit rendering for accurate information display.
Design Standards
The module is manufactured according to strict industrial-grade electronic display standards to ensure durability, stability, and long-term reliability. The segmented structure is optimized for uniform brightness distribution and consistent optical clarity. High-quality LCD materials are used to enhance resistance to thermal stress, vibration, and environmental aging. Circuit design optimization reduces electromagnetic interference and ensures stable signal transmission during continuous operation. The product follows low power engineering principles to improve energy efficiency and extend device battery life. Each unit undergoes rigorous testing to ensure reliable performance under extended operational use and varying environmental conditions such as temperature changes and mechanical stress.
Applications
The 7 Segment Display Screen is widely used in digital meters, industrial control systems, medical devices, household appliances, automotive electronics, and embedded instrumentation equipment. It is also suitable for portable measurement tools, smart sensors, and battery-powered devices requiring clear numeric output. Its combination of clarity, reliability, and low power consumption makes it an ideal solution for modern electronic systems requiring stable segmented visual output in both industrial and consumer environments.

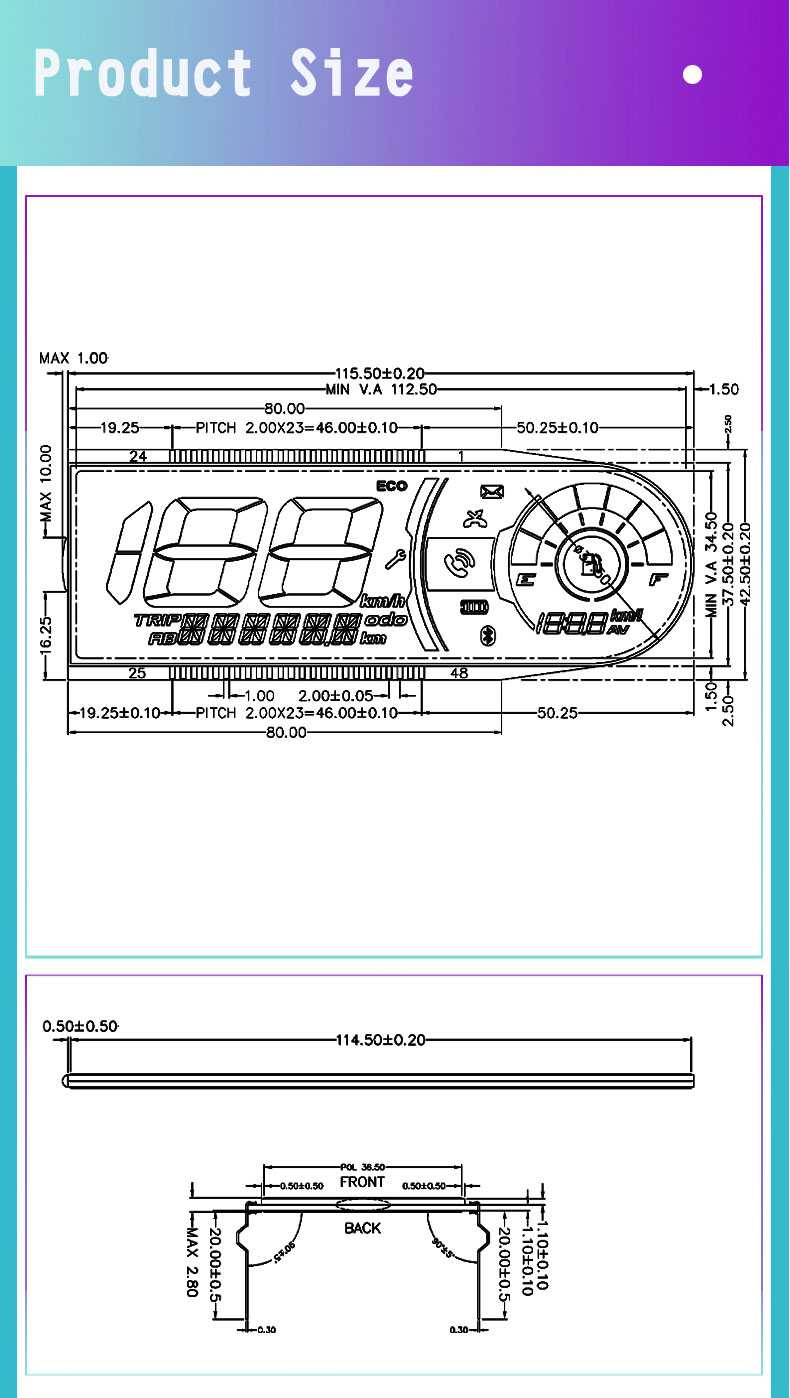

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
