Basic Information
The Motorcycle Segment LCD SJXDGW059 is a specialized display solution designed for two-wheeler instrument systems that require clear, stable, and energy-efficient visual output. It is engineered to present segmented numeric and icon-based information in a highly readable format, ensuring riders can quickly access essential driving data. Built for outdoor and automotive environments, this display is optimized for durability, visibility, and long-term operational reliability under varying riding conditions.
Parameters:
| Character Type | Customized |
| Model | SJXDGW059 |
| Model Size | 74.2×43.5×2.8 mm |
| VA Size | 71.2×35.5 mm |
|
Connector
|
Metal pins |
|
LCD Type
|
HTN Positive |
|
Drive Conditions
|
1/4 D 1/3 B
|
|
Working Temperature
|
-20C TO +70°C
|
| Storage Temperature |
-30°C TO +80°C
|
|
Working Voltage
|
5.0V |

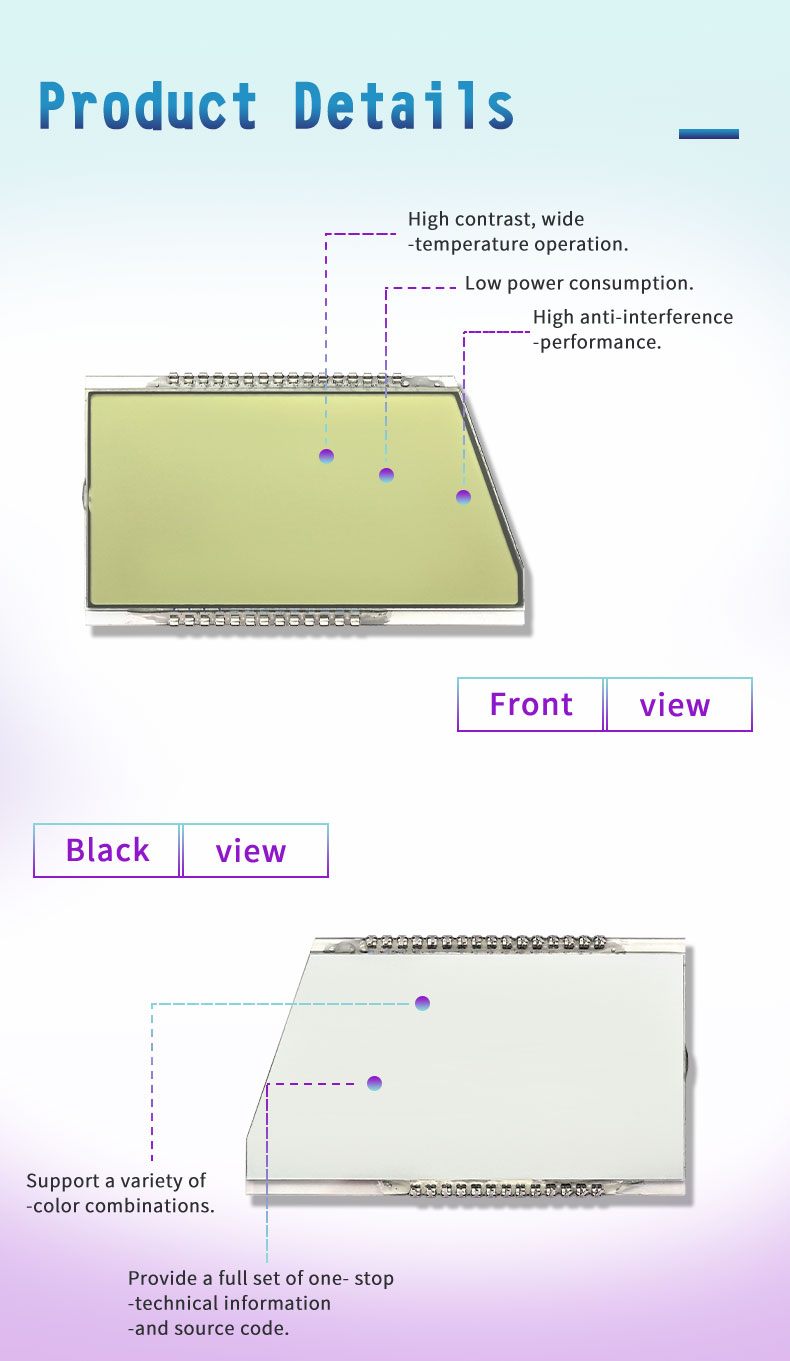

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications
This Motorcycle Segment LCD features a segmented display architecture designed to present speed, fuel level, gear position, and system warning indicators with high clarity. It supports strong contrast performance to ensure readability in both daylight and low-light environments. The module is designed for low power consumption, making it suitable for integration into battery-powered vehicle systems without excessive energy load. It communicates efficiently with motorcycle electronic control units to provide real-time data updates. The display is engineered to operate across wide temperature ranges, ensuring consistent functionality in diverse weather and road conditions. Its compact structure allows easy integration into modern motorcycle dashboards while maintaining a clean and functional layout.
Design Standards
The module is manufactured according to automotive-grade quality and reliability standards to ensure long-lasting performance in demanding environments. The internal structure is designed to resist vibration, shock, and environmental stress commonly encountered during riding. Circuit optimization reduces electromagnetic interference and ensures stable signal transmission during continuous operation. High-quality materials are used to enhance optical performance, mechanical strength, and durability. The display is tested for long-term reliability to ensure consistent operation over extended usage periods. Energy-efficient design principles are applied to minimize power consumption while maintaining strong visibility and stable output.
Applications
The Motorcycle Segment LCD is widely used in motorcycles, scooters, electric bikes, and other two-wheeler transportation systems. It is suitable for commuter vehicles, recreational motorcycles, and smart mobility solutions. Its combination of clear segmented display output, durability, and low power consumption makes it an essential component for modern motorcycle instrument clusters requiring reliable performance and real-time riding information in all operating conditions.

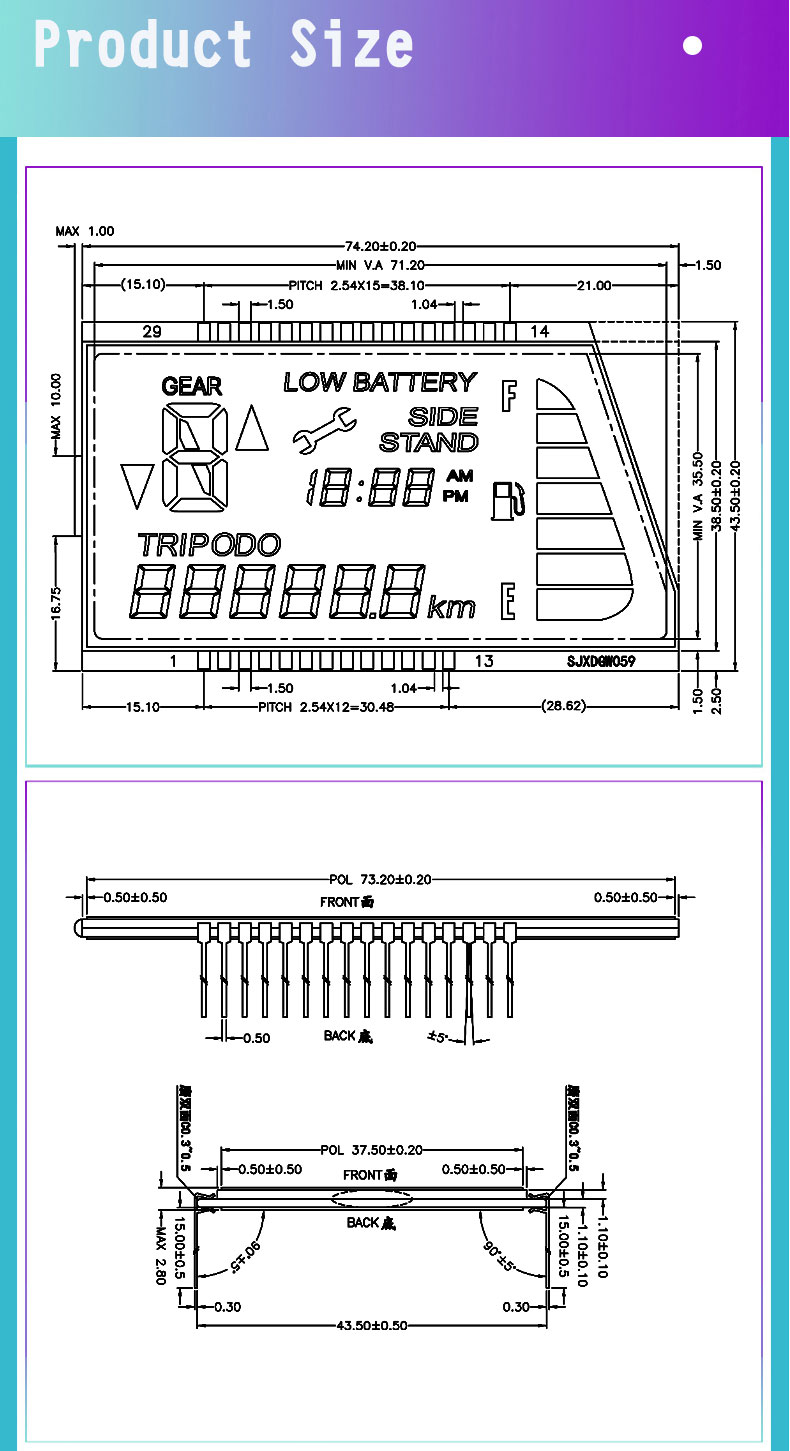

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
