Basic Information
The Motorcycle 7 Segment SJXDGW060 is a specialized numeric display solution designed for modern motorcycle instrument systems. It provides clear and direct numeric visualization using a classic 7-segment structure, ensuring riders can easily read essential driving data at a glance. Engineered for reliability and outdoor performance, this display is built to operate under vibration, temperature changes, and varying lighting conditions commonly encountered in two-wheeler environments. Its simple yet highly effective design makes it a core component for digital motorcycle dashboards.
Parameters:
| Character Type | Customized |
| Model | SJXDGW060 |
| Model Size | 137.7×37.0×2.8 mm |
| VA Size | 134.7×31.5 mm |
|
Connector
|
Metal pins |
|
LCD Type
|
HTN Positive |
|
Drive Conditions
|
1/4 D 1/3 B
|
|
Working Temperature
|
-20C TO +70°C
|
| Storage Temperature |
-30°C TO +80°C
|
|
Working Voltage
|
5.0V |
Feature

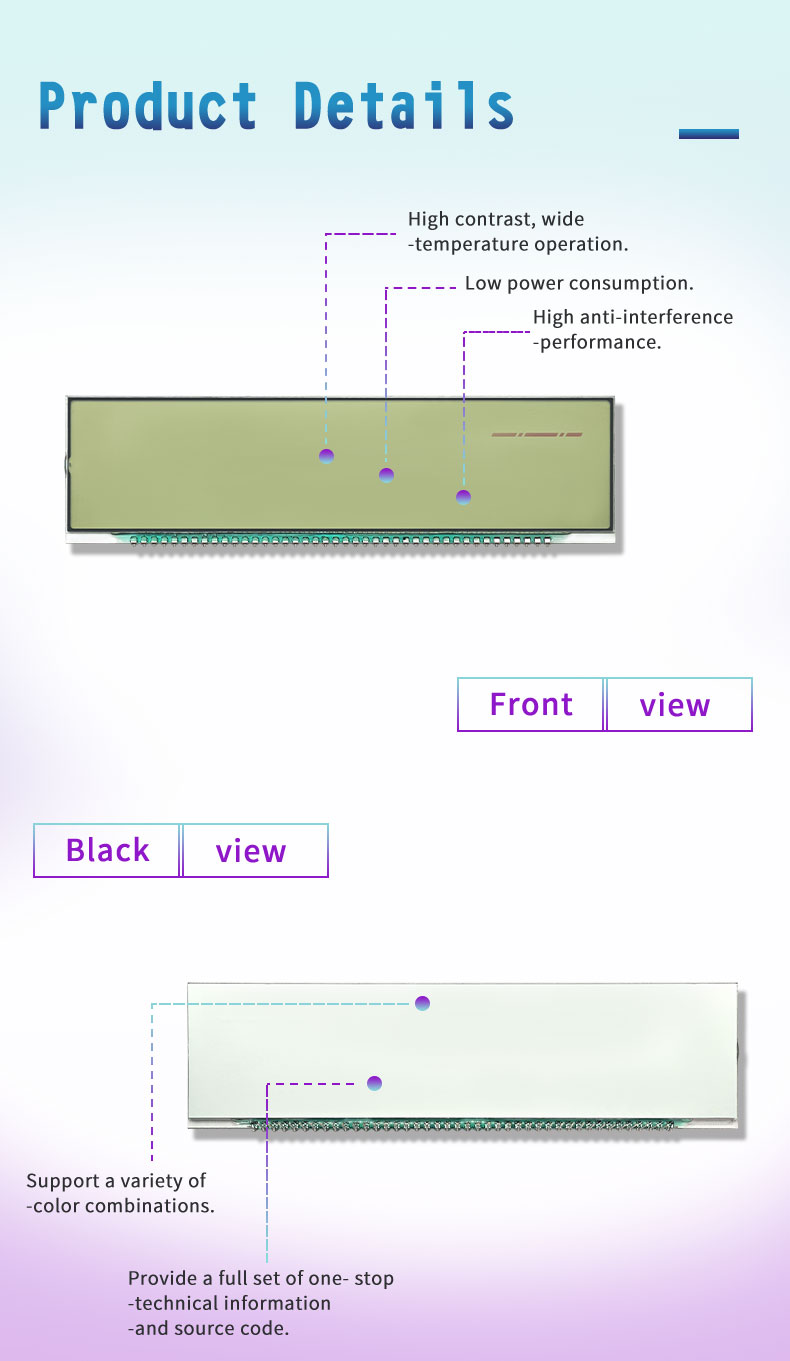

- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications

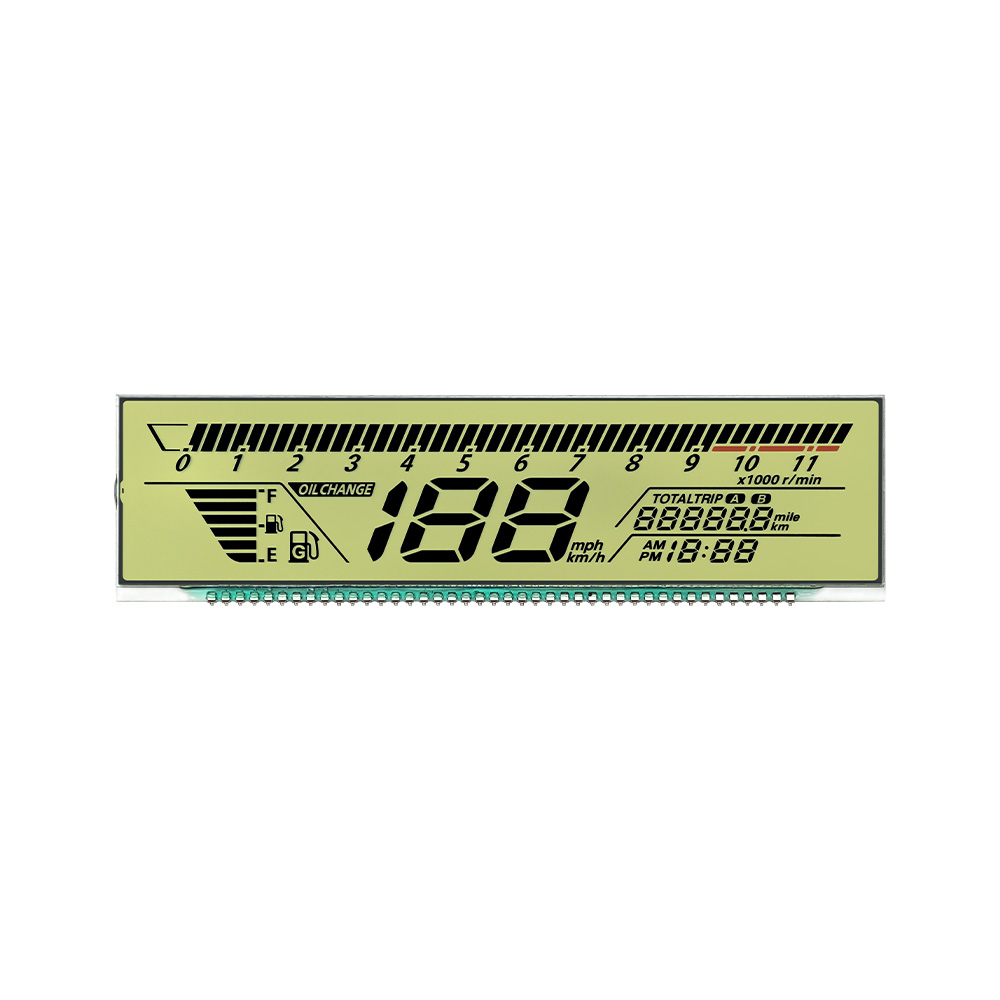

This Motorcycle 7 Segment display features a high-visibility segmented structure optimized for clear numeric output such as speed, odometer readings, fuel indicators, and system alerts. It is designed to maintain strong contrast for excellent readability in both bright daylight and low-light conditions. The module supports low power consumption, making it suitable for integration into battery-powered vehicle systems without excessive energy demand. It is engineered to communicate efficiently with motorcycle electronic control units, ensuring accurate real-time data updates. The display is built to operate reliably across wide temperature ranges, ensuring stable performance in different environmental and riding conditions. Its compact layout allows easy integration into modern motorcycle dashboard designs while maintaining space efficiency and functional clarity.
Design Standards
The module is manufactured according to strict automotive-grade reliability standards to ensure durability and long-term stability. The internal structure is designed to withstand vibration, mechanical shock, and environmental stress typical of motorcycle operation. Circuit design optimization reduces electromagnetic interference and ensures stable signal transmission during continuous use. High-quality materials are used to enhance optical performance, mechanical strength, and overall product lifespan. The display undergoes rigorous testing to ensure consistent operation under extended usage cycles. Energy-efficient design principles are applied to minimize power consumption while maintaining bright and stable numeric output.
Applications
The Motorcycle 7 Segment display is widely used in motorcycles, scooters, electric bikes, and other two-wheeler vehicles. It is suitable for commuter transportation, recreational riding, and smart mobility systems. Its combination of clear numeric display, durability, and low power operation makes it an essential component for modern motorcycle instrument clusters requiring reliable performance and accurate real-time riding information in all conditions.

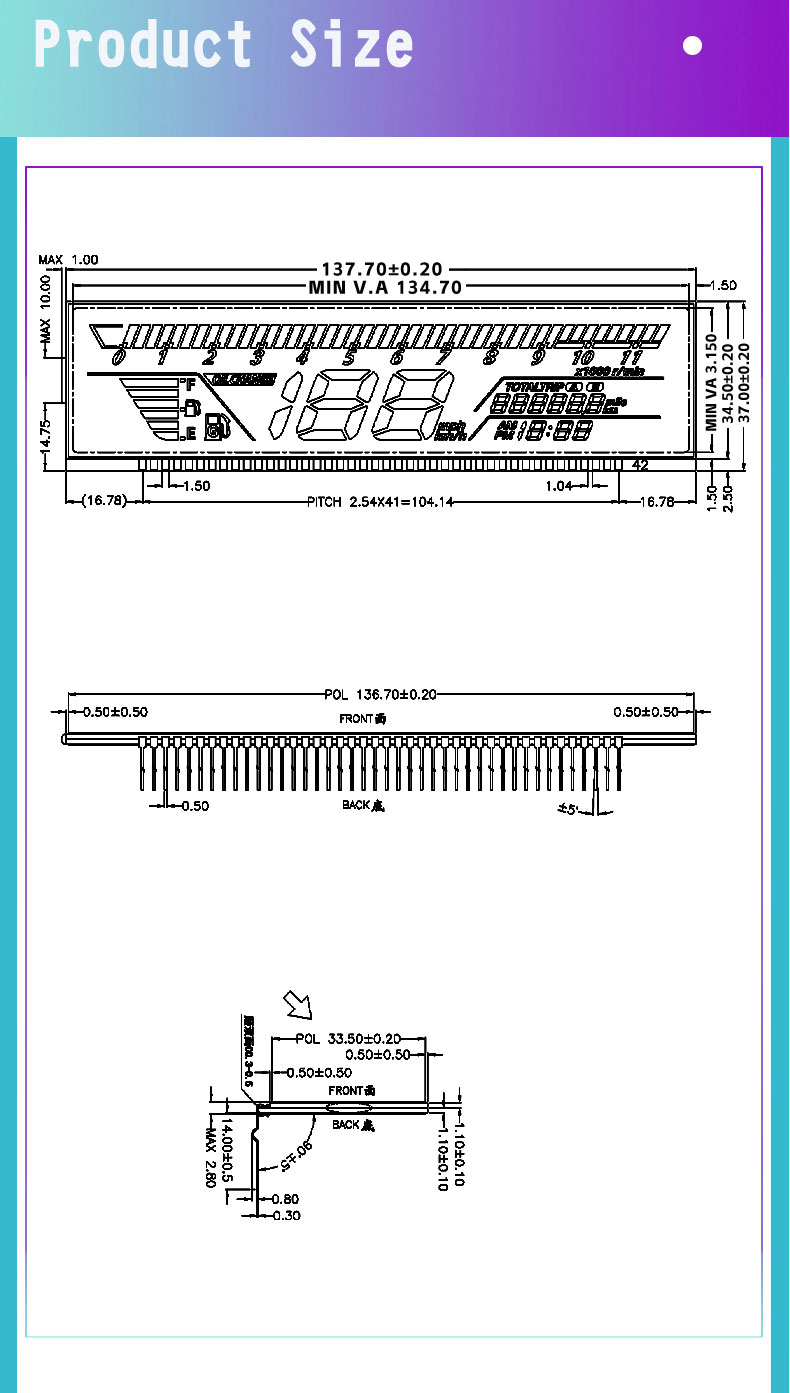

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
