Basic Information
The LCD Monochrome Displays SJXD12864F-6 are high-quality graphical display modules designed for embedded systems, industrial equipment, and electronic control applications. Featuring a 128×64 pixel resolution, this display provides clear and stable monochrome output, making it suitable for presenting text, symbols, and simple graphics. Its compact structure and reliable performance allow easy integration into space-limited devices while maintaining excellent readability and operational stability.

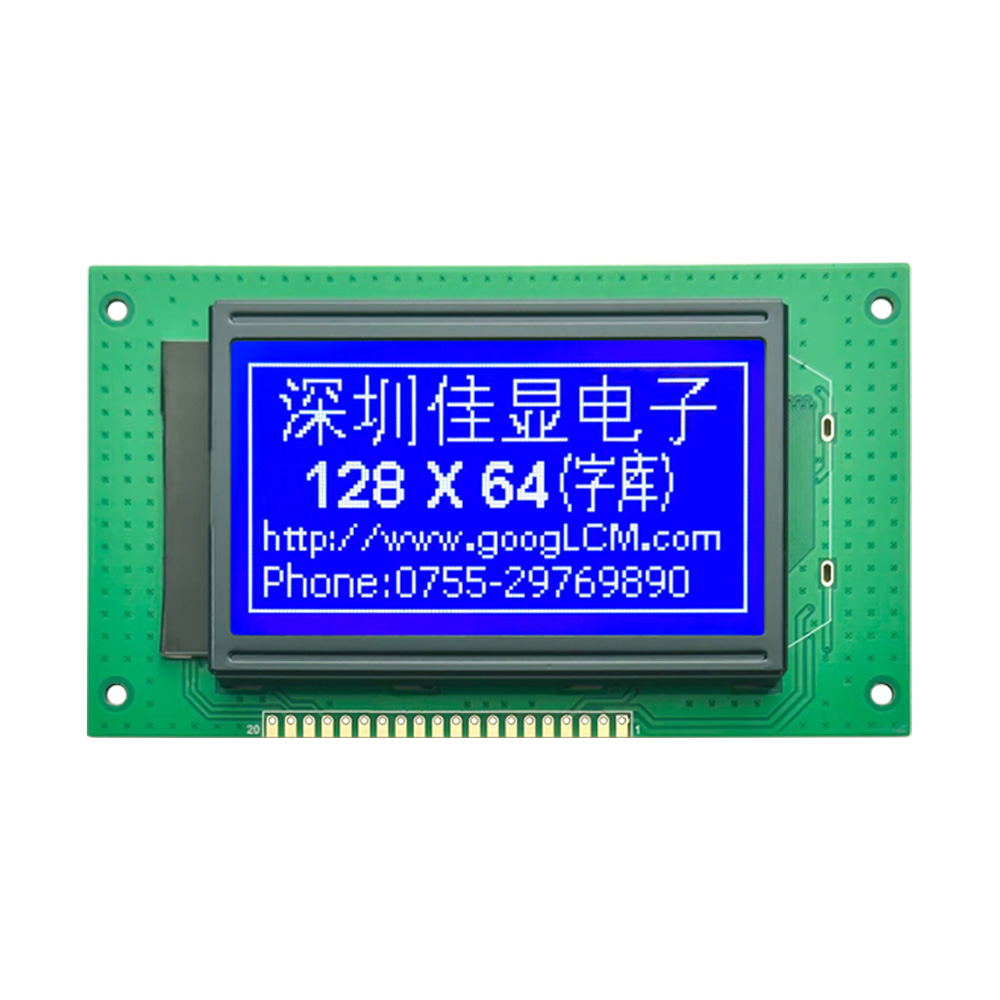

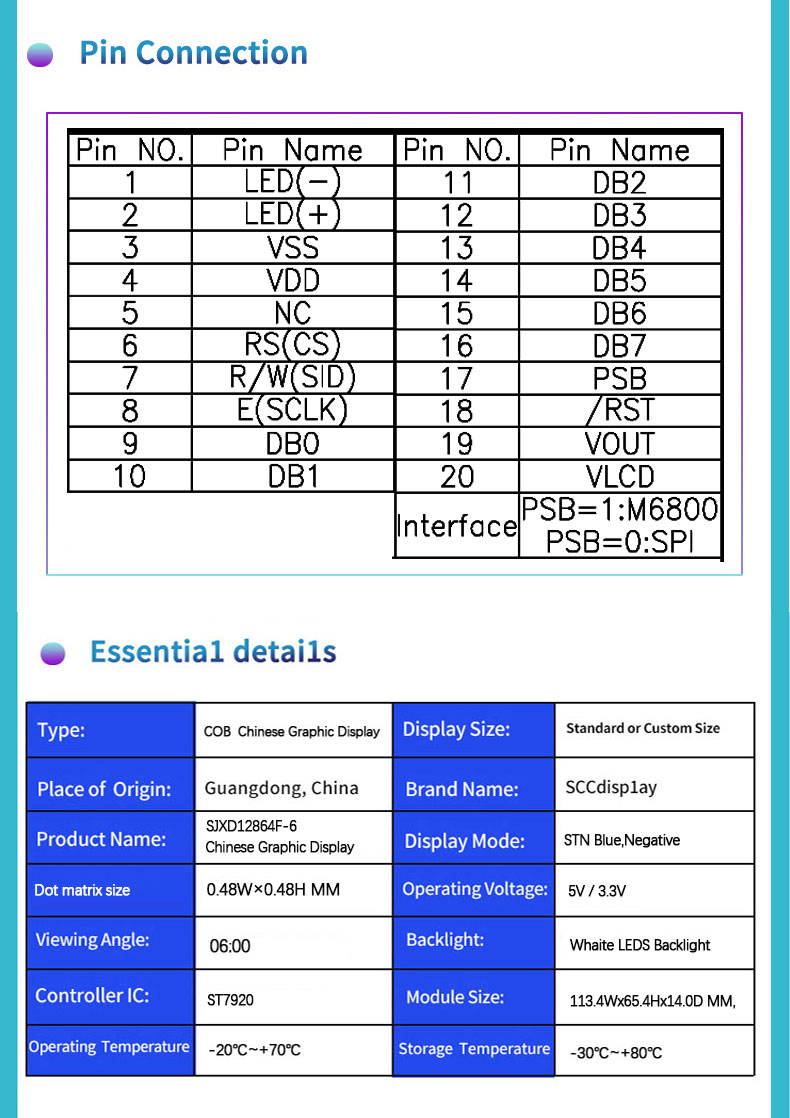

Parameters:
| Model | SJXD12864F-6 |
| Model Size | 113.4×65.4×13.0 mm |
| Field of View Size | 72.0×40.0mm |
| Display Mode | STN Negative |
| Viewing Angle | 6 o'clock |
| Operating Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |
|
Drive IC
|
ST7920 |
|
Backlight
|
White LEDs backight |
|
Drive Voltage
|
5.0V or 3.3V |

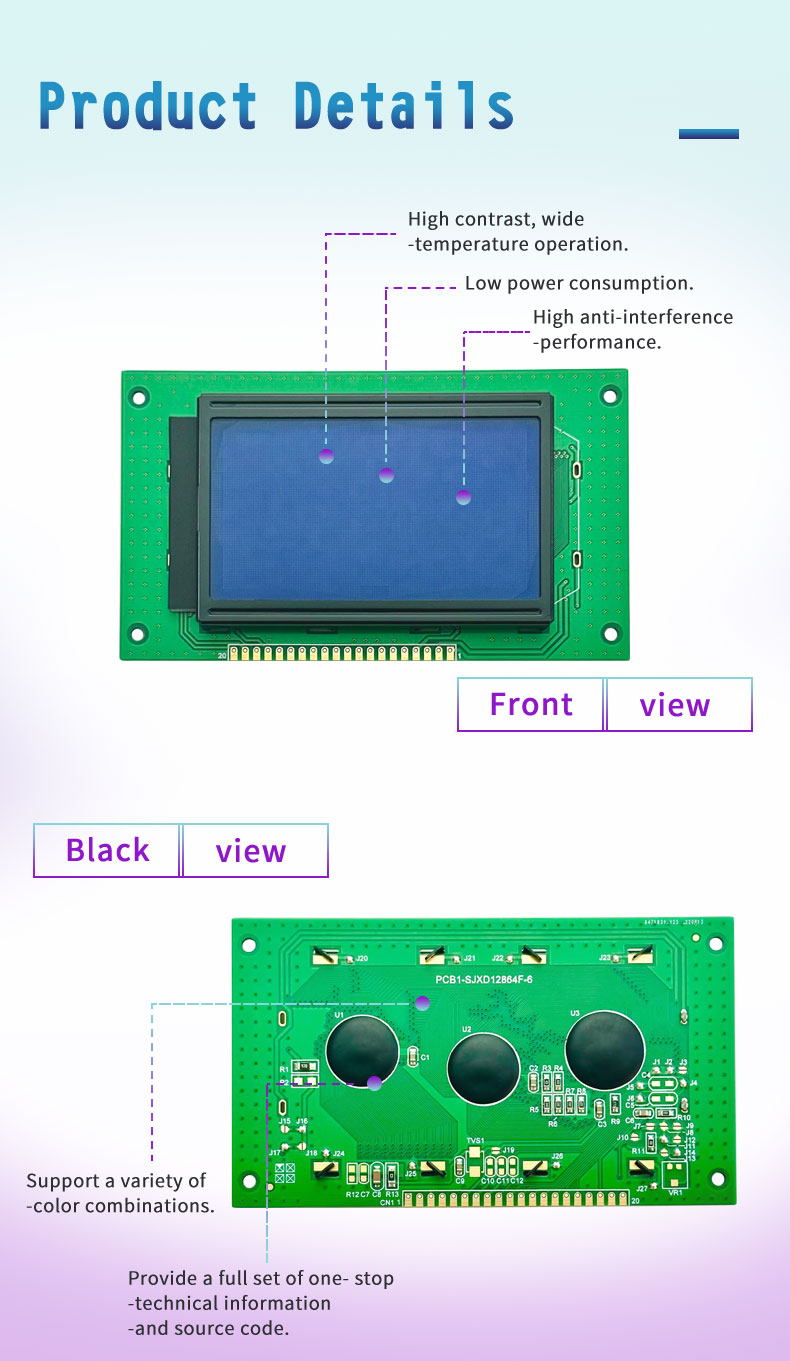

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
The LCD Monochrome Displays offer a 128×64 dot matrix format that ensures precise visual representation for a wide range of applications. The module supports standard communication interfaces such as SPI and parallel data transfer, enabling seamless integration with microcontrollers including Arduino, STM32, and other embedded platforms. Operating at low voltage with optimized power efficiency, it is suitable for battery-powered and low-energy systems. The display provides high contrast, fast response time, and wide viewing angles, ensuring consistent visibility across different environments and lighting conditions.
Design Standards
Manufactured under strict industrial standards, the SJXD12864F-6 ensures long-term stability and durability. The integrated driver IC reduces external component requirements, simplifying circuit design and improving system reliability. The module features a robust PCB layout designed for continuous operation in demanding environments. Its uniform backlighting system enhances readability in both bright and low-light conditions. Developers can quickly implement user interfaces, menus, and data visualization screens using widely supported software libraries, reducing development time and complexity.
Applications
The LCD Monochrome Displays are widely used in industrial control systems, medical devices, laboratory instruments, communication equipment, smart home systems, and embedded electronics projects. They are especially suitable for applications requiring low power consumption, stable performance, and clear data visualization. Engineers and developers prefer this module for both prototyping and mass production due to its reliability and ease of integration.

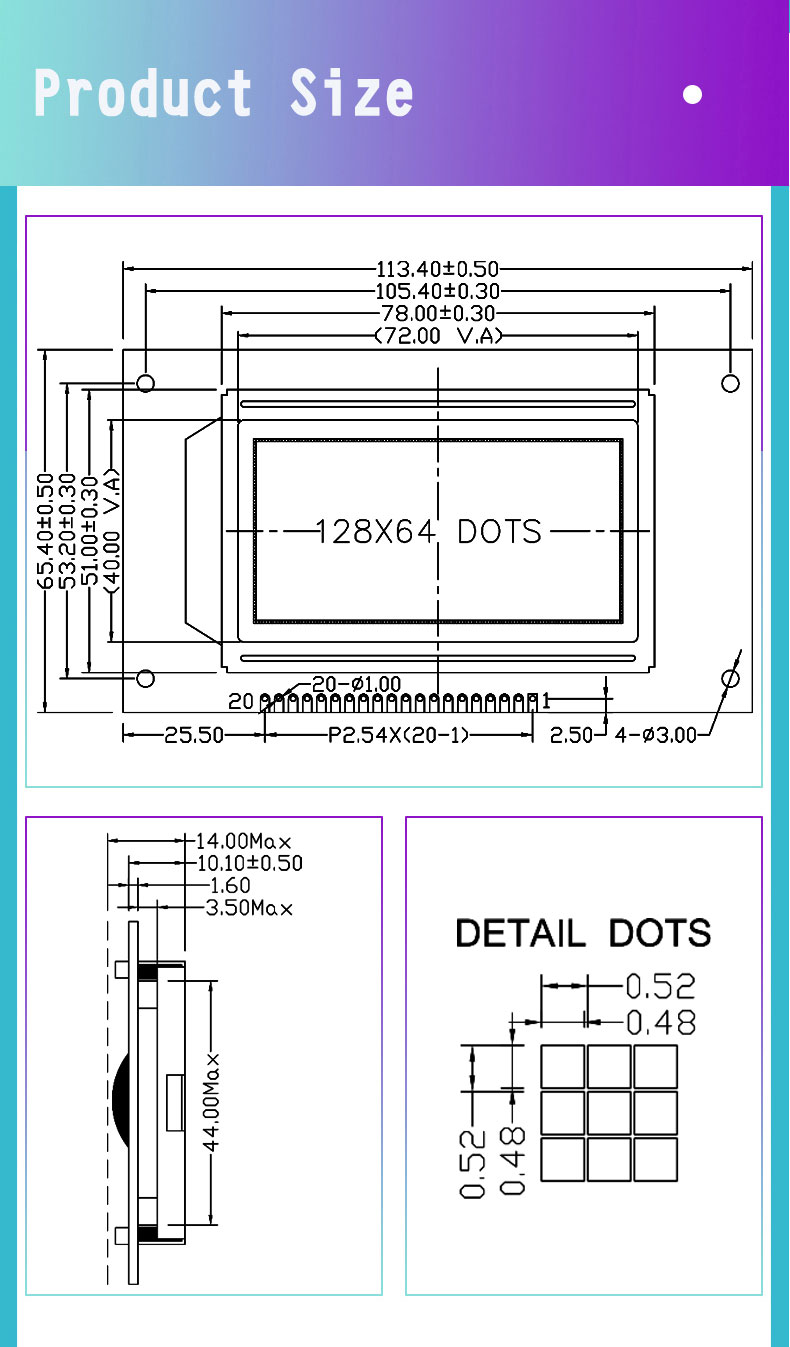

Product Size
FAQ
Q: Do you have stock available?
A: All are in stock, please contact us for purchase if needed.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
