LCD Graphic Display Module Monochrome Graphic LCD is designed for embedded electronic systems that require flexible and reliable visual output. The SJXD12864I-F model provides stable performance for displaying text, icons, and simple graphics in industrial and technical environments. It is well-suited for compact devices where clear information presentation and long-term operational stability are essential. The module supports efficient human-machine interaction in control systems and monitoring applications.
Parameters:

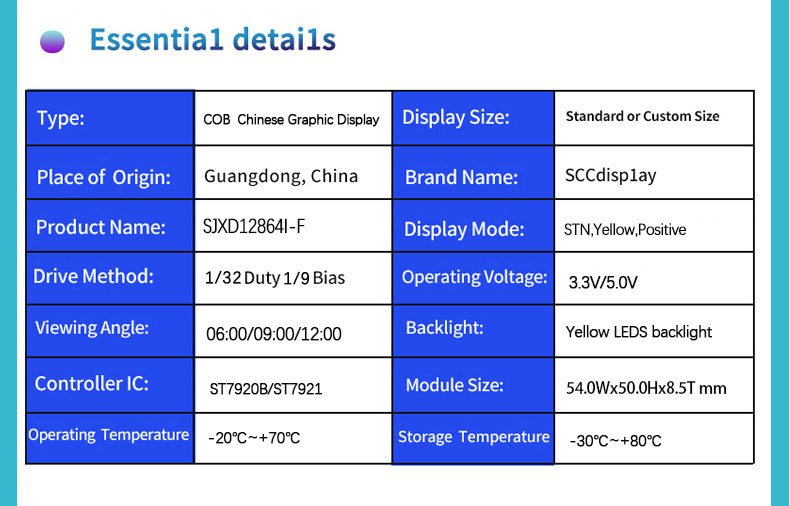

| Model | SJXD12864I-F |
| Model Size | 54.0×50.0×8.5 mm |
| Field of View Size | 44.0×29.0mm |
| Display Mode | STN positive |
| Viewing Angle | 06:00/09:00/12:00 |
| Top |
-20°C~+70°C
|
|
Tst
|
-30°C~+80°C |
|
Backlight
|
White LEDS backlight |
|
Drive IC
|
ST7920B/ST7921 |
|
Drive Voltage
|
5.0V or 3.3V |

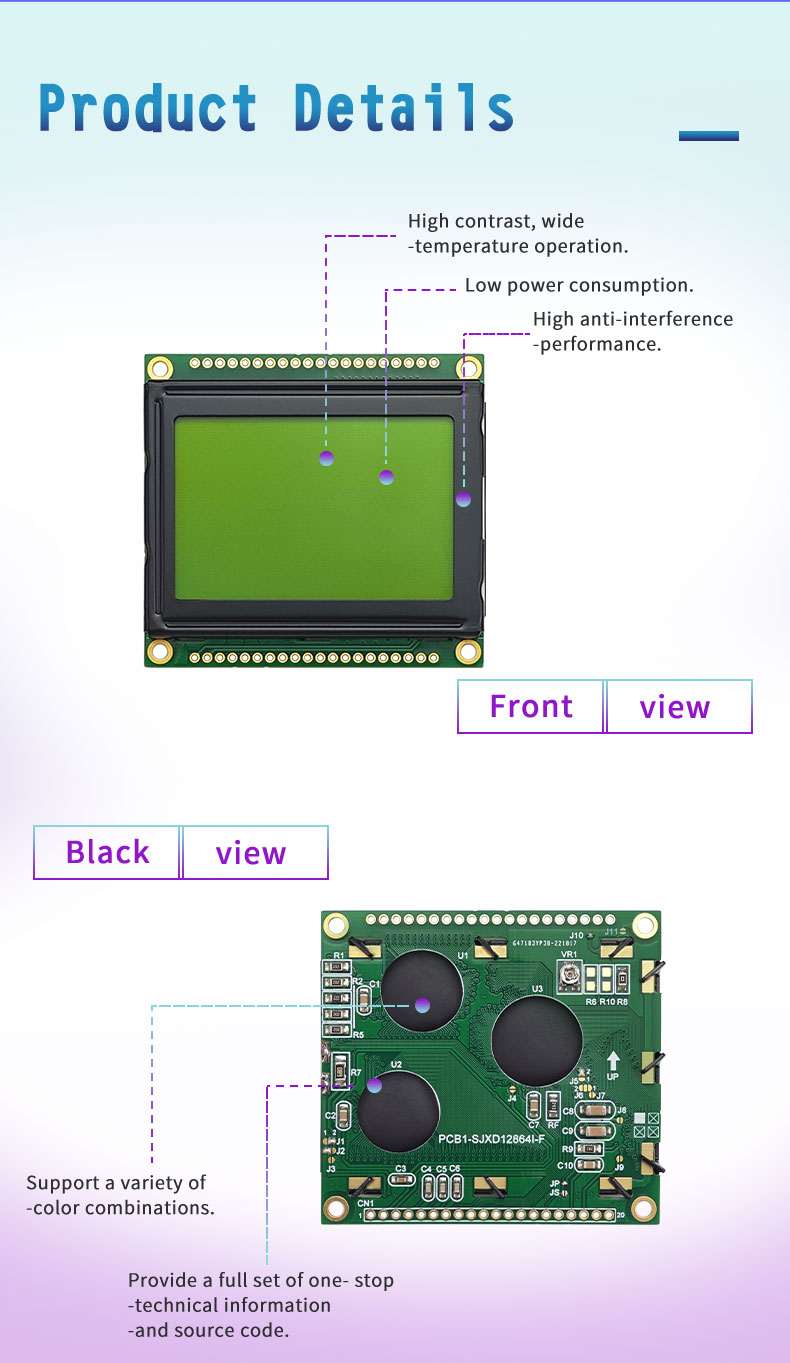

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
This display module is built on a 128×64 dot matrix architecture, enabling structured information display with both alphanumeric and graphical content. The monochrome graphic LCD technology ensures high contrast and clear visibility under typical indoor lighting conditions. It is optimized for low power consumption, making it suitable for portable instruments and continuously operating embedded systems. The module supports standard interface communication, allowing easy integration with microcontrollers and industrial control boards. Stable driving performance ensures consistent refresh behavior and minimizes flickering during real-time updates. Its viewing angle is designed to maintain readability across multiple directions, improving usability in both handheld and fixed-mounted applications.
Design Standards
LCD Graphic Display Module Monochrome Graphic LCD is manufactured according to industrial-grade quality and reliability standards. The structure incorporates reinforced glass substrates and precision-aligned liquid crystal layers to ensure stable optical performance over extended usage periods. Anti-electromagnetic interference design helps maintain signal integrity in electrically noisy environments such as factories and automation systems. Thermal stability engineering ensures reliable operation across a wide temperature range without degradation in contrast or response speed. The design focuses on long lifecycle durability, making it suitable for demanding embedded applications requiring continuous operation.
Applications
This module is widely used in industrial automation systems, medical instruments, testing equipment, and communication devices. It is particularly effective in applications requiring compact yet flexible display solutions for both text and simple graphics. Engineers also apply it in handheld diagnostic tools, educational electronics, and embedded monitoring systems. LCD Graphic Display Module Monochrome Graphic LCD provides a balanced combination of clarity, stability, and efficiency, making it a dependable choice for modern electronic product development.

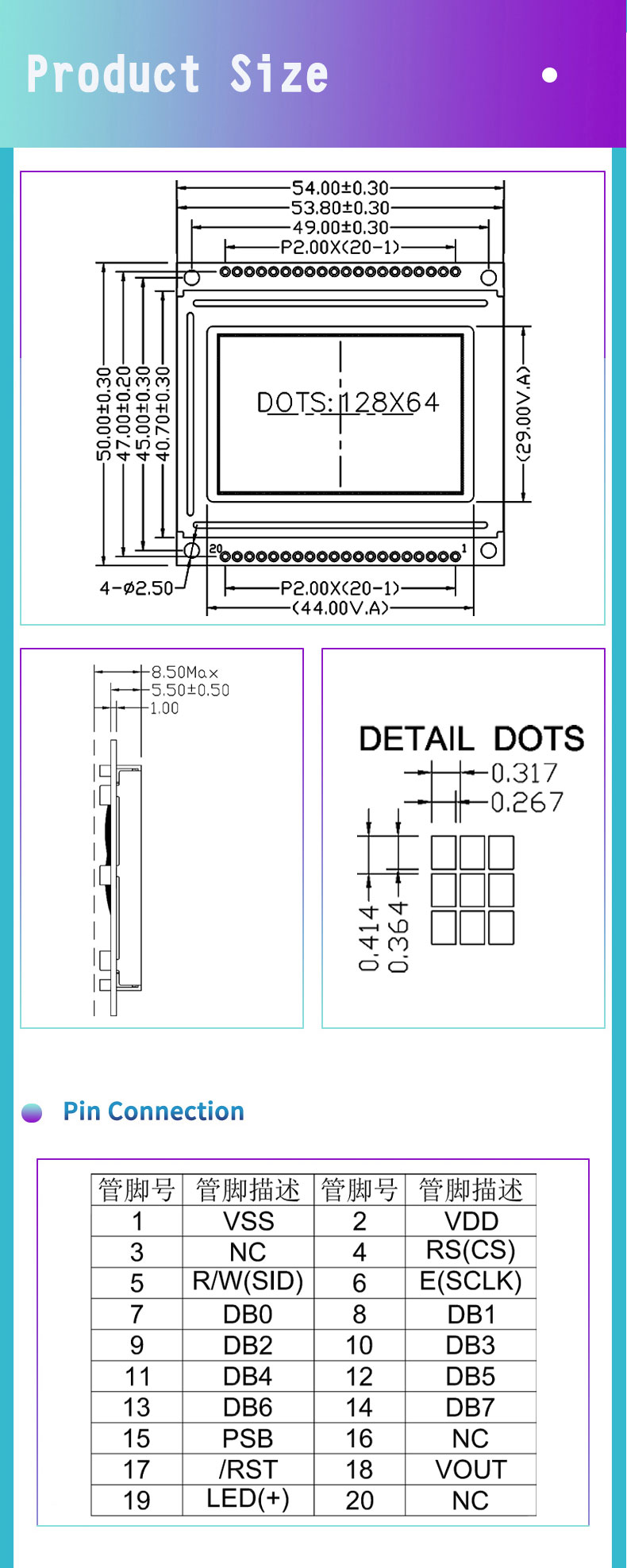

Product Size
FAQ
Q: How long does it usually take to ship?
A: Normally, it takes 1-3 days.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
