Basic Information

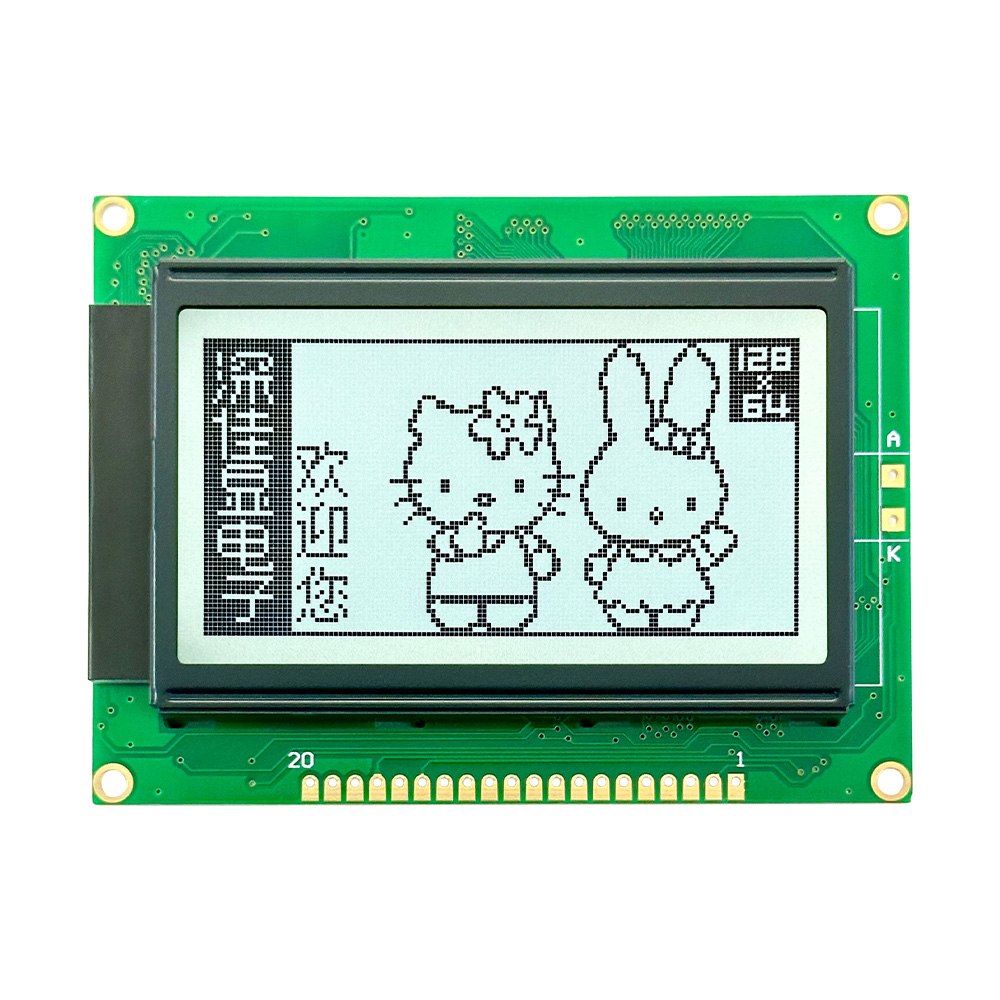

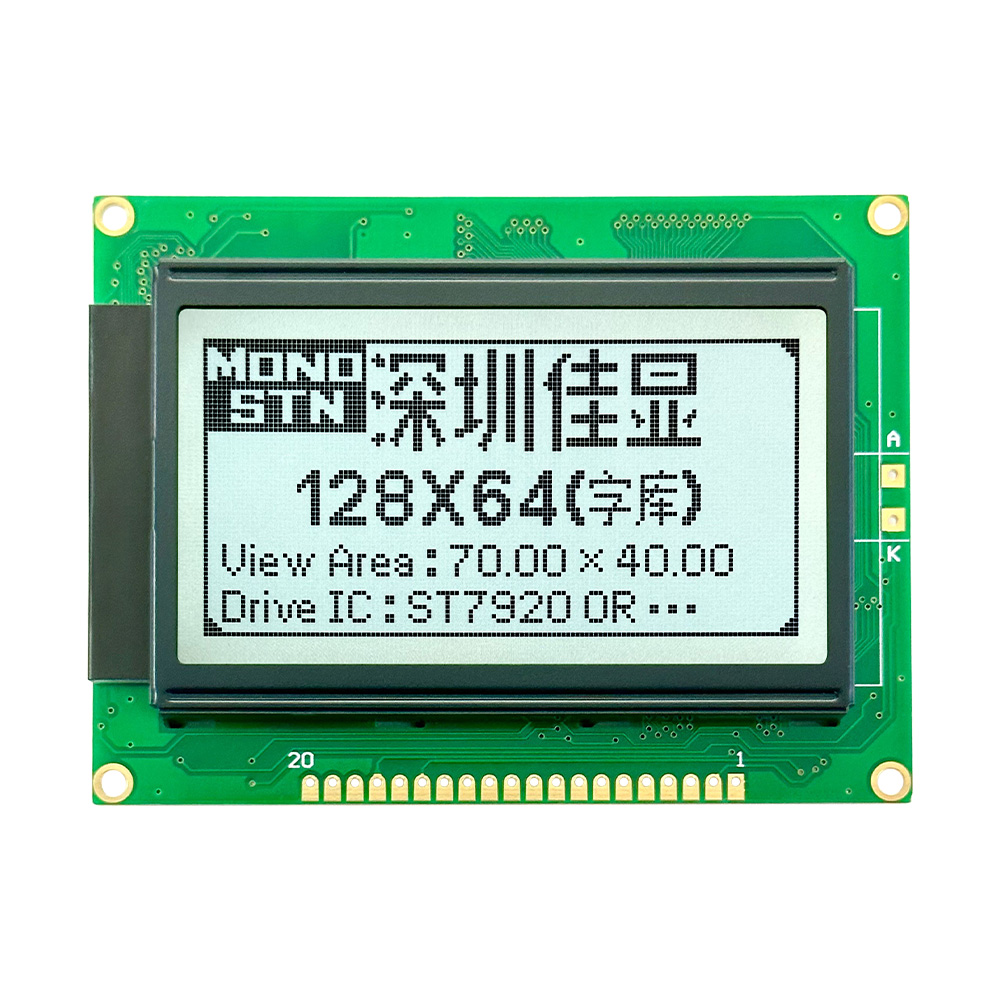

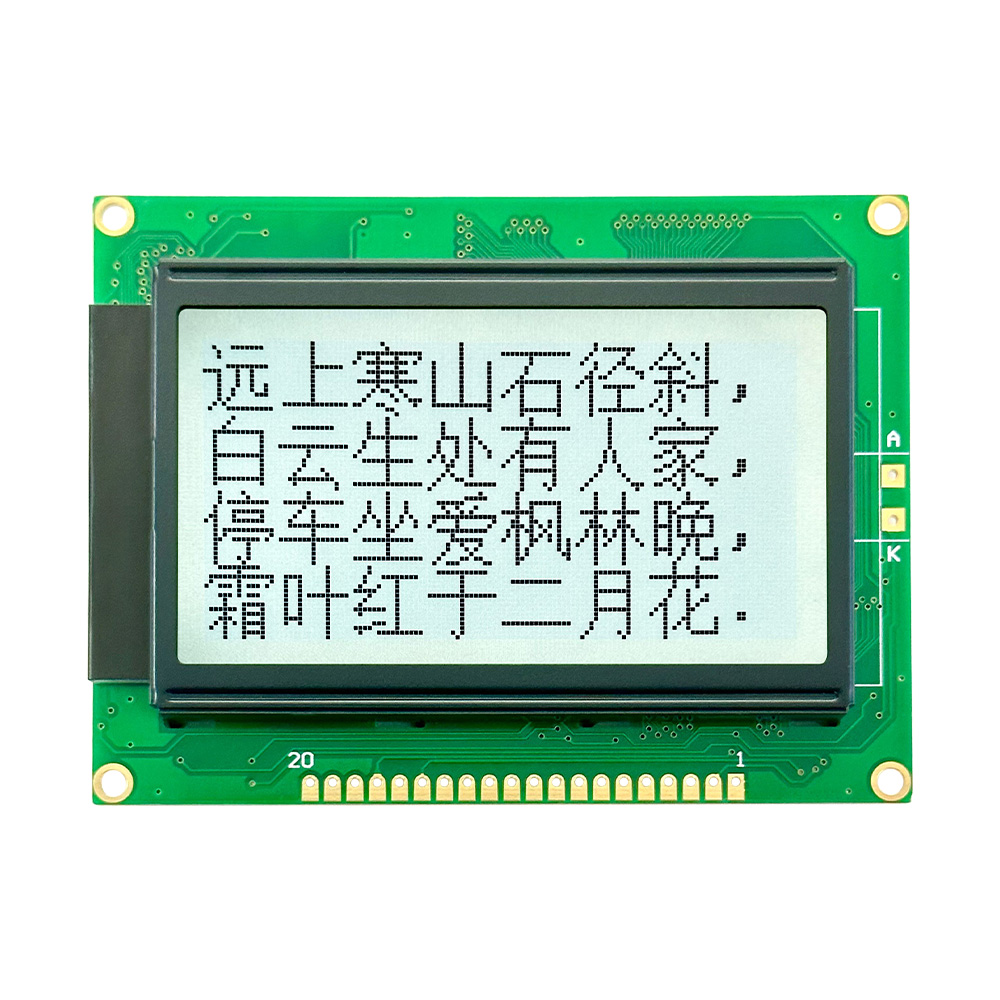

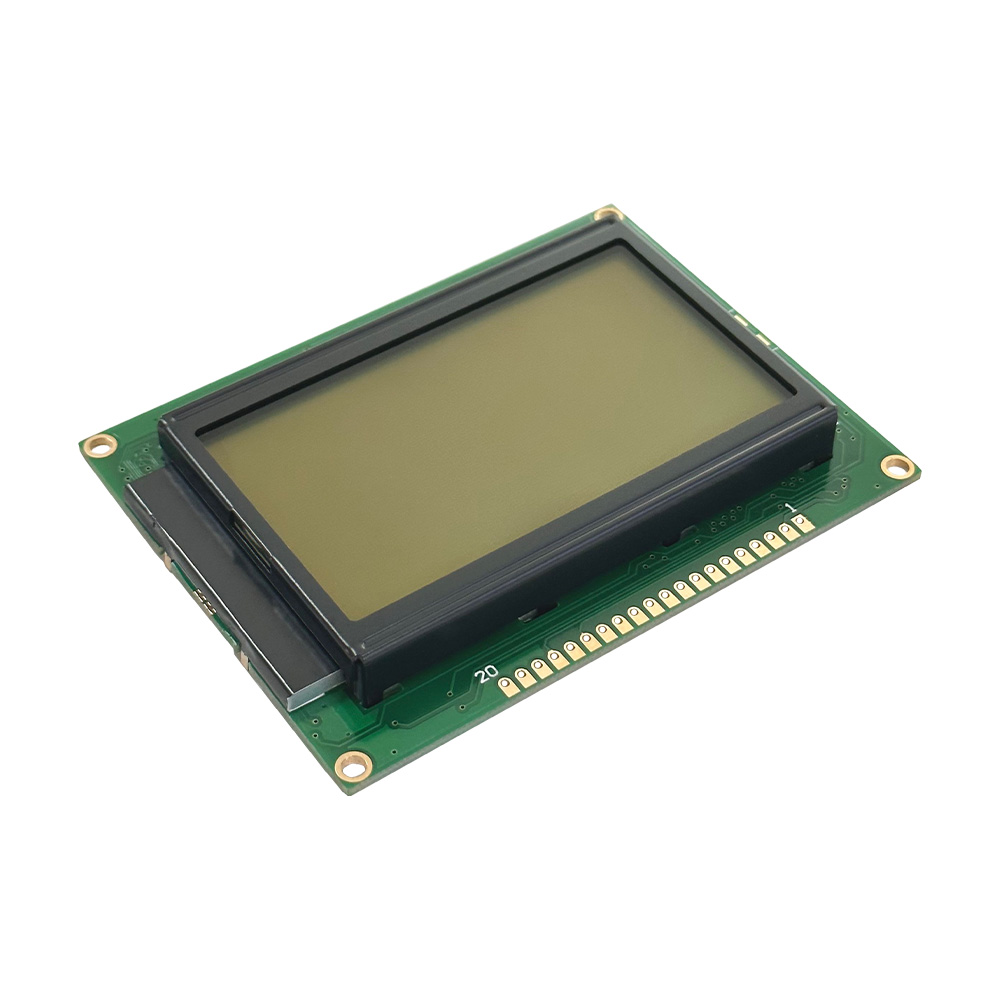

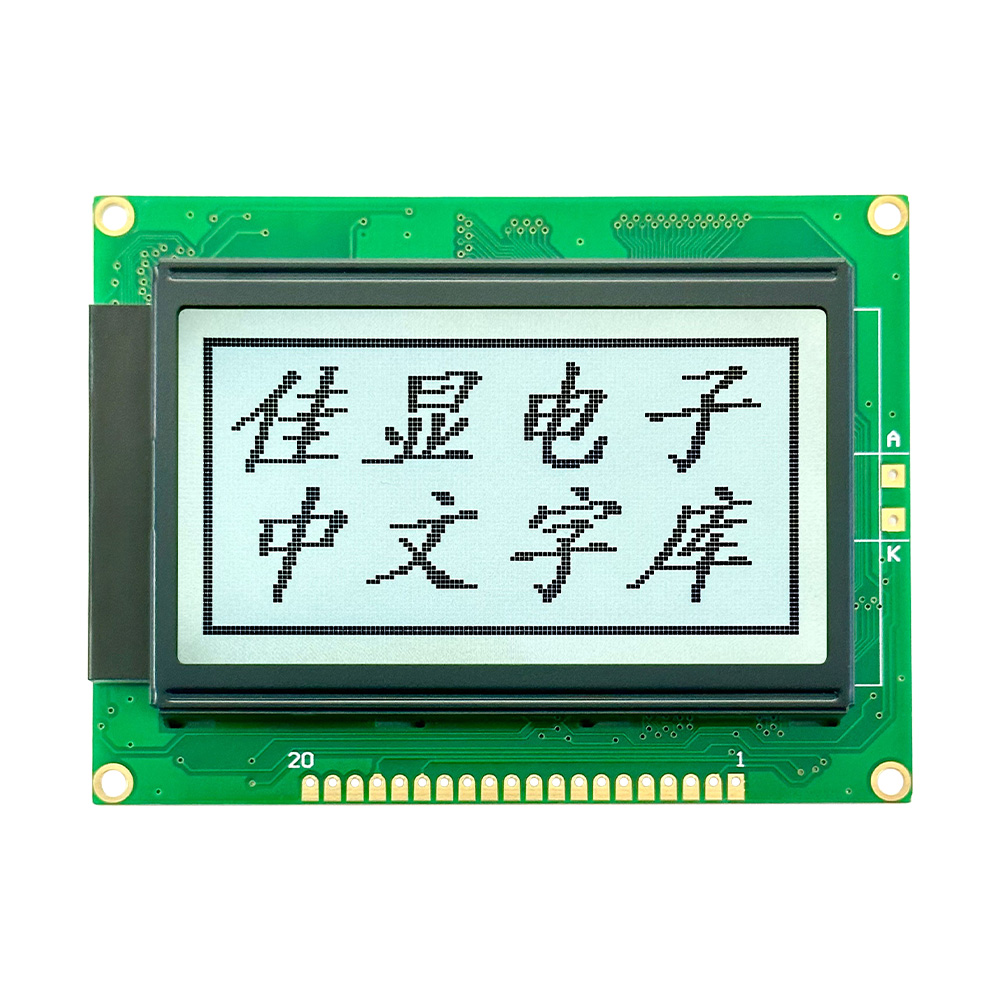

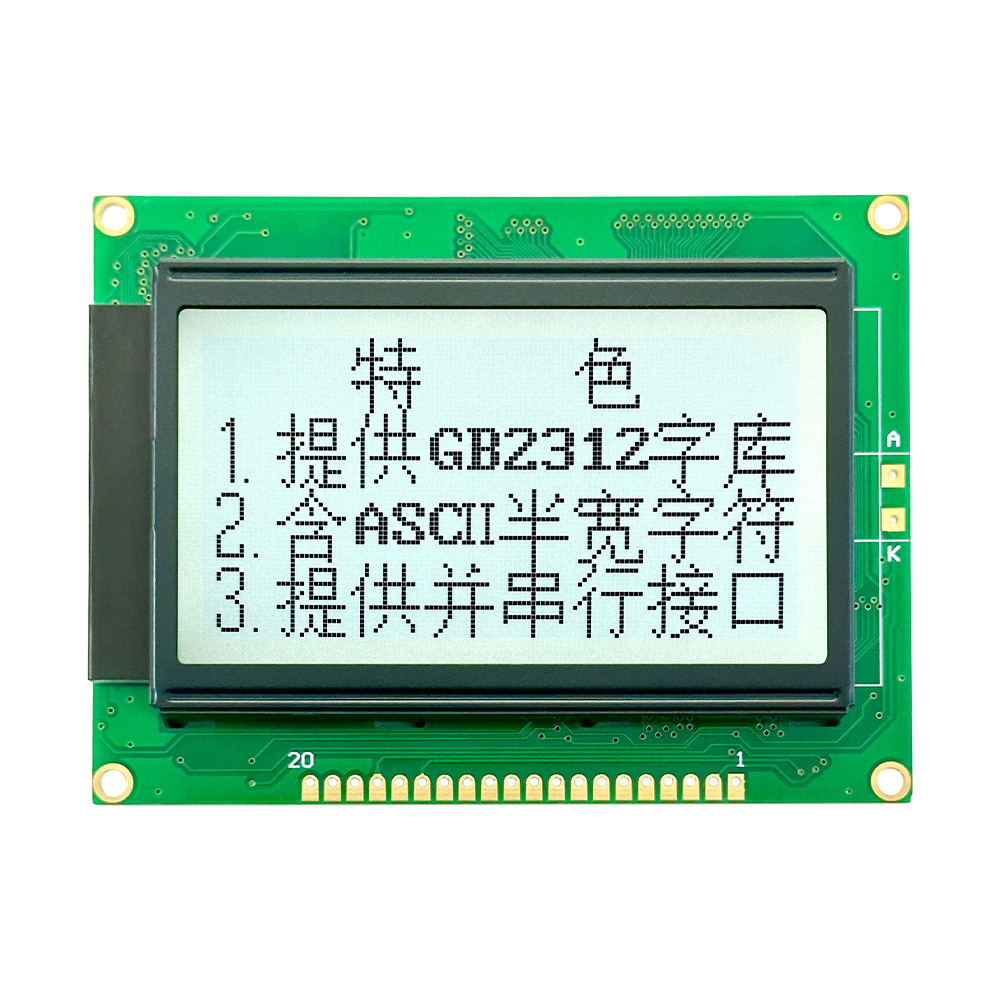

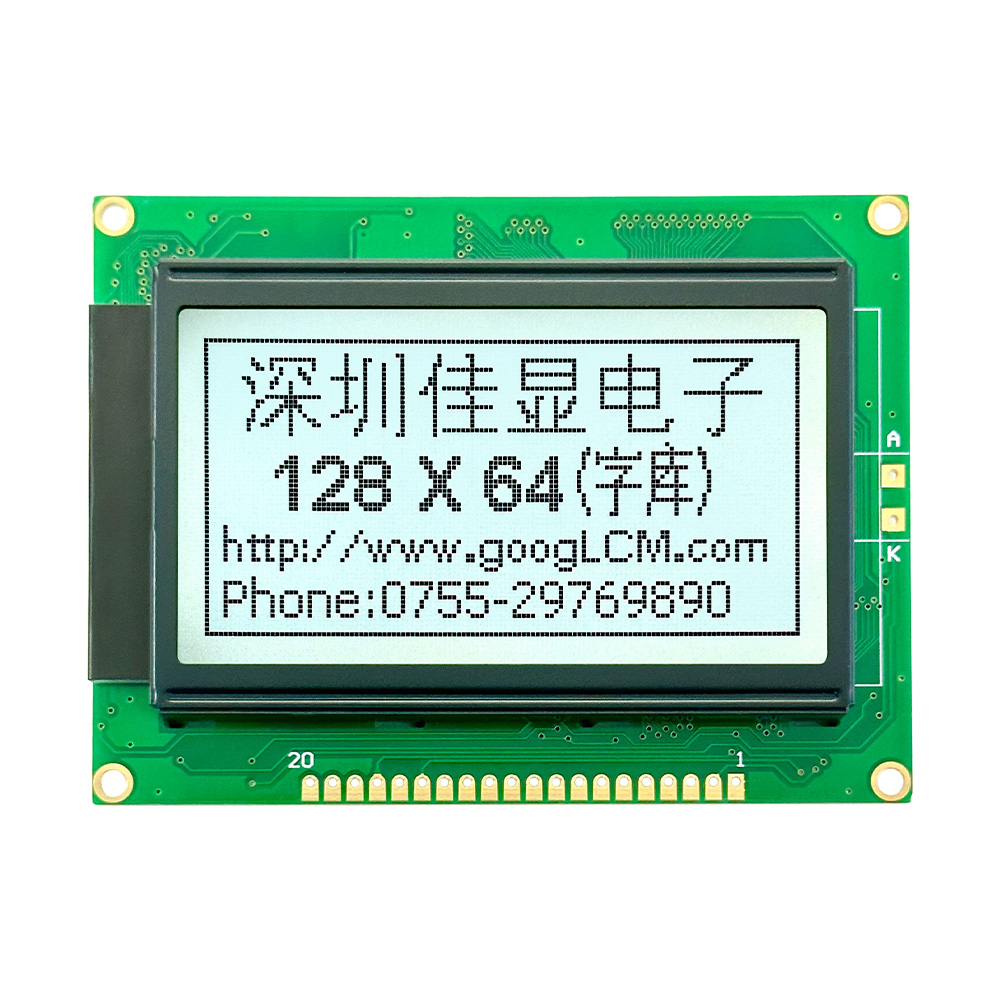

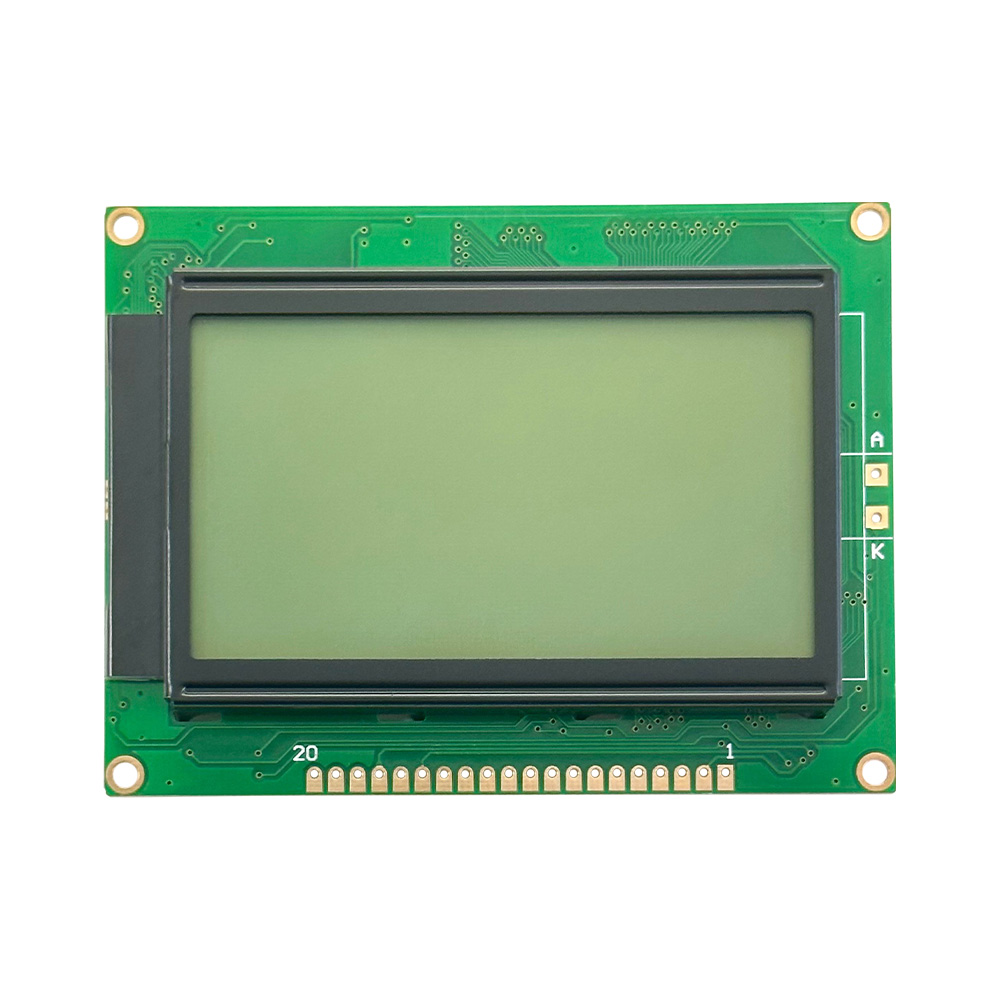

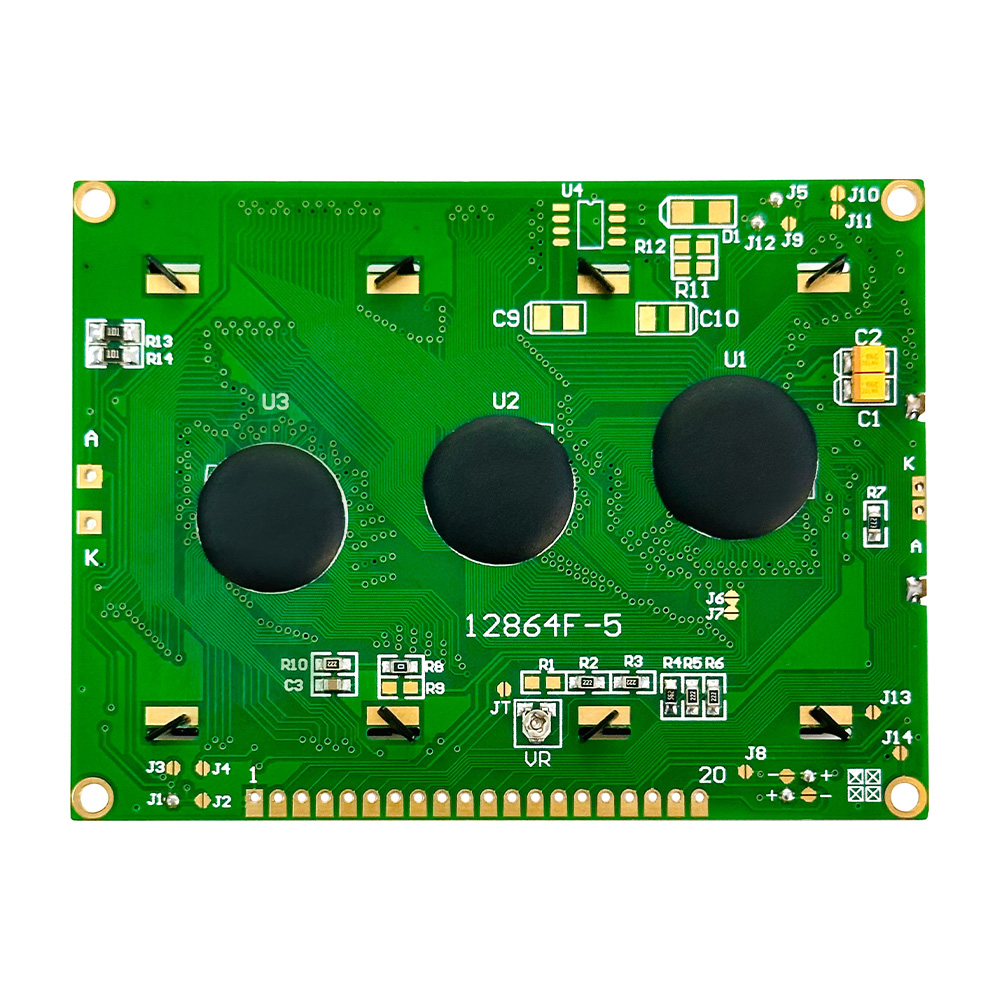

Small LCD Display Module is designed for compact embedded systems that require efficient space utilization and reliable visual output. The JXD12864F-5 FSTN model integrates enhanced display stability with built-in Chinese font library support, making it suitable for multilingual information presentation. It is engineered for industrial instruments and control devices where clarity, compact size, and functional flexibility are essential.

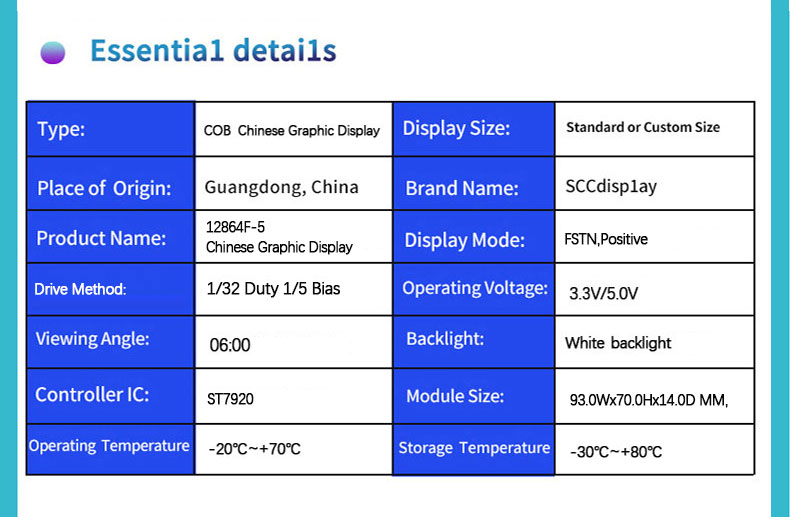

Parameters:
| Model | JXD12864F-5 （FSTN） |
| Model Size | 93×70×14 mm |
| Field of View Size | 72×40mm |
| LCD Type | FSTN Positive |
| Viewing Angle | 6 o'clock |
| Operating Temp |
-20℃~+70℃
|
|
Storage Temp
|
-30℃~-+80℃ |
|
Backlight
|
White;LED(+)-LED(-)=+5.0VDC |
|
Drive Conditions
|
1/32 Duty,1/5 Bias |
|
Working Voltage
|
VDD-VSS=+5.0VDC |

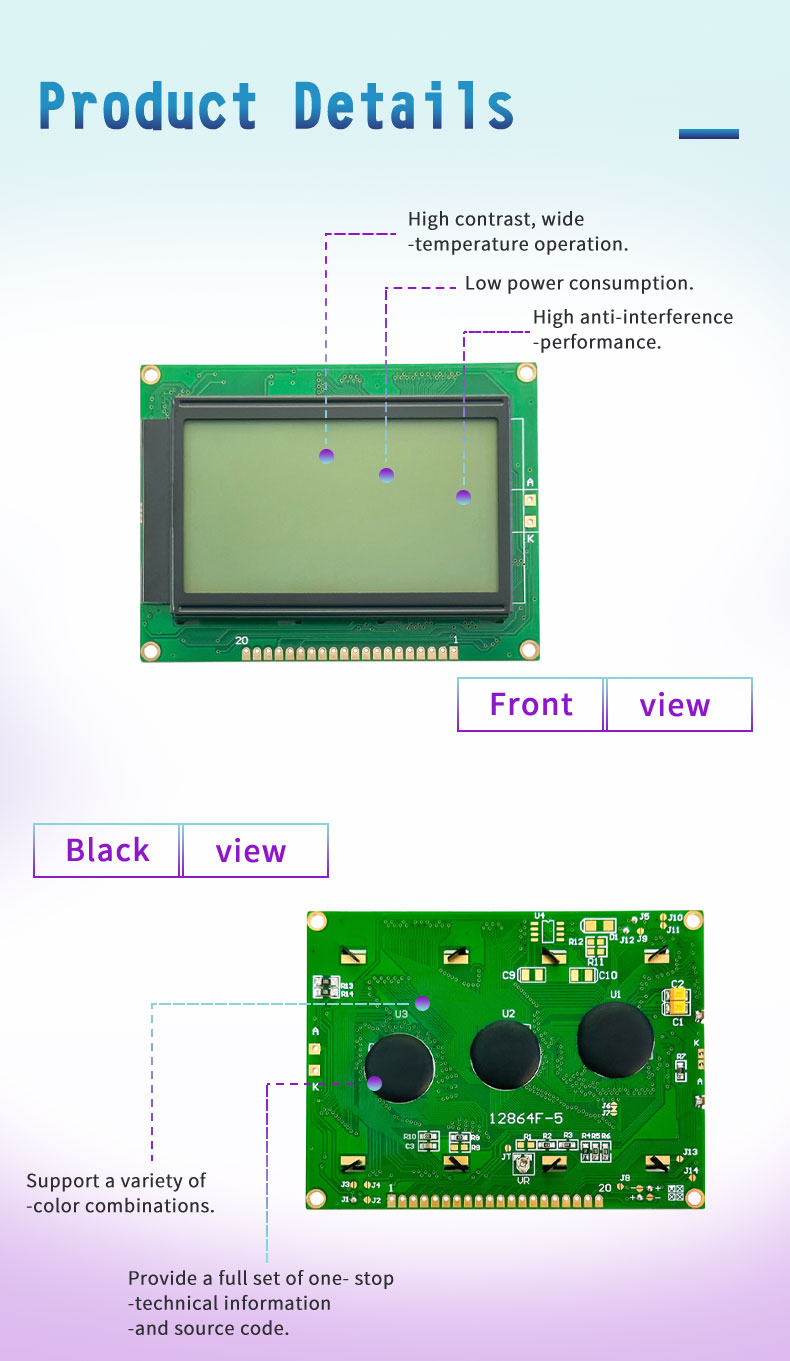

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications

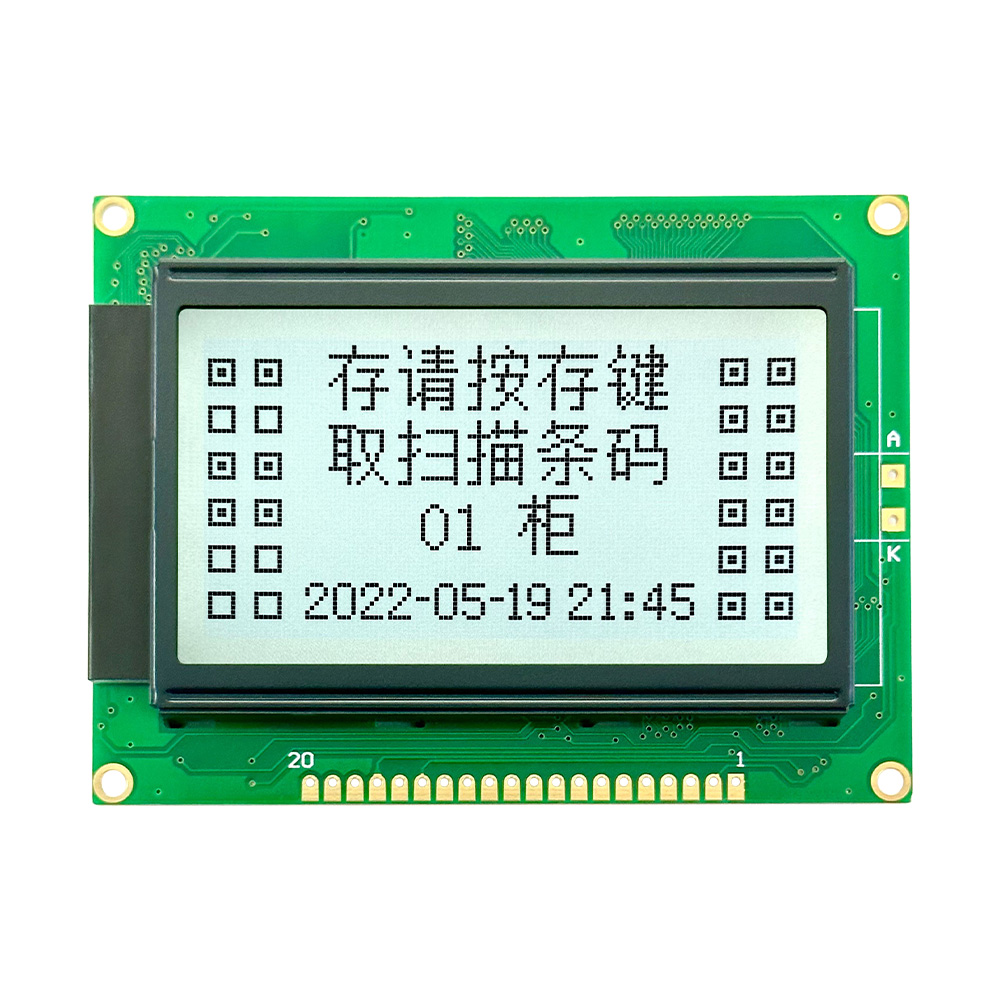

This module features a 128×64 dot matrix structure combined with FSTN technology, improving contrast and readability under a wide range of lighting conditions. The built-in Chinese character font library enables efficient display of complex text without requiring additional external resources. It supports low power operation, making it suitable for battery-powered systems and continuously running embedded applications. The display is compatible with standard controller interfaces, allowing easy integration with microcontrollers and industrial processing platforms. Stable driving circuitry ensures consistent refresh performance and reduces flickering during dynamic content updates. The viewing angle is optimized to maintain readability across multiple perspectives, enhancing usability in handheld and fixed-mounted equipment. Its compact architecture allows integration into space-constrained electronic designs.
Design Standards
Small LCD Display Module products are manufactured under strict industrial-grade reliability standards. The structure incorporates reinforced glass substrates and precisely aligned liquid crystal layers to ensure long-term optical stability. FSTN technology enhances display contrast and improves readability in varied environmental conditions. Anti-electromagnetic interference design ensures stable operation in electrically noisy industrial environments such as automation systems and manufacturing equipment. Thermal stability engineering allows consistent performance across a wide temperature range without degradation in contrast or response speed. The module is designed for long lifecycle operation, ensuring durability in continuous-use applications. Consistent manufacturing processes guarantee uniform quality and reliable performance across production batches.
Applications
This display module is widely used in industrial automation systems, measurement instruments, medical devices, and communication equipment. It is particularly effective in compact control panels, handheld testing devices, and embedded monitoring systems requiring multilingual display capability. Engineers also integrate it into educational electronics, smart devices, and custom industrial solutions. Small LCD Display Module offers a balanced combination of compact design, stability, and functional versatility, making it a dependable choice for modern embedded system development.

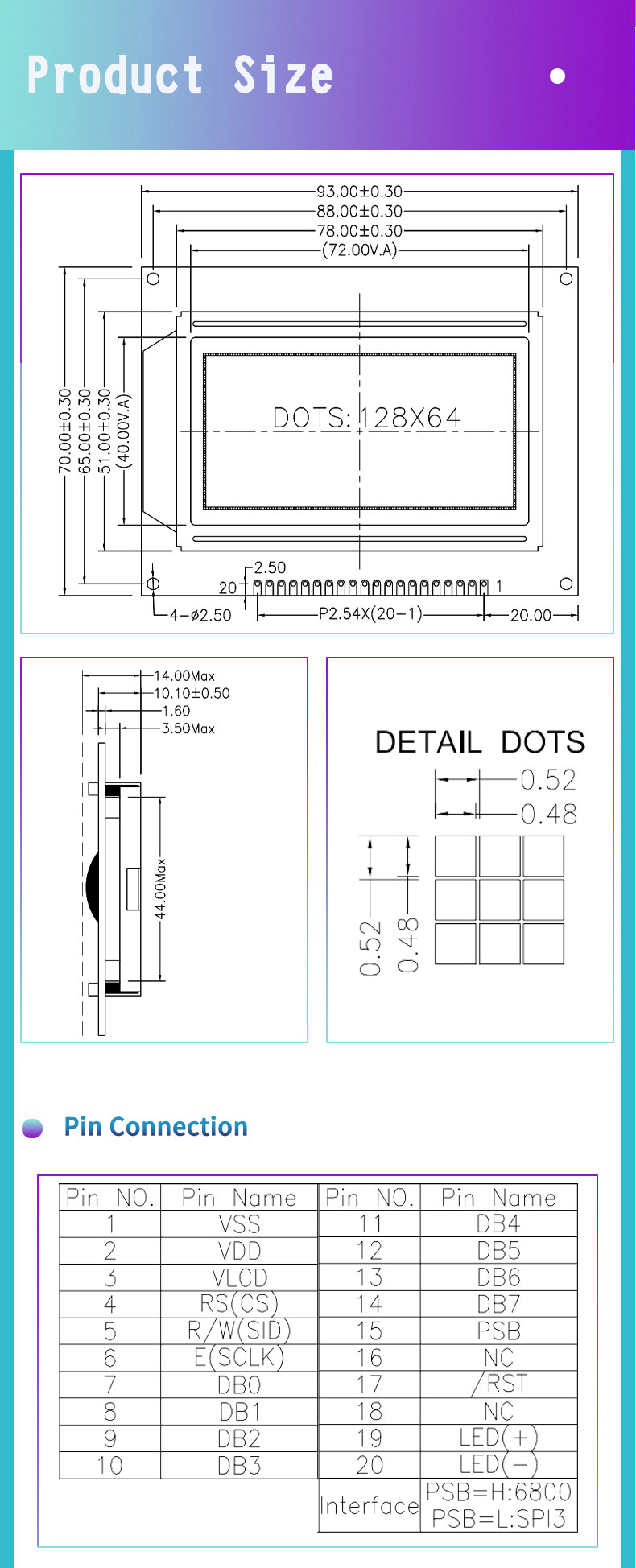

Product Size
FAQ
Q: Does this screen have backlight?
A: Yes, this screen comes with backlight.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
