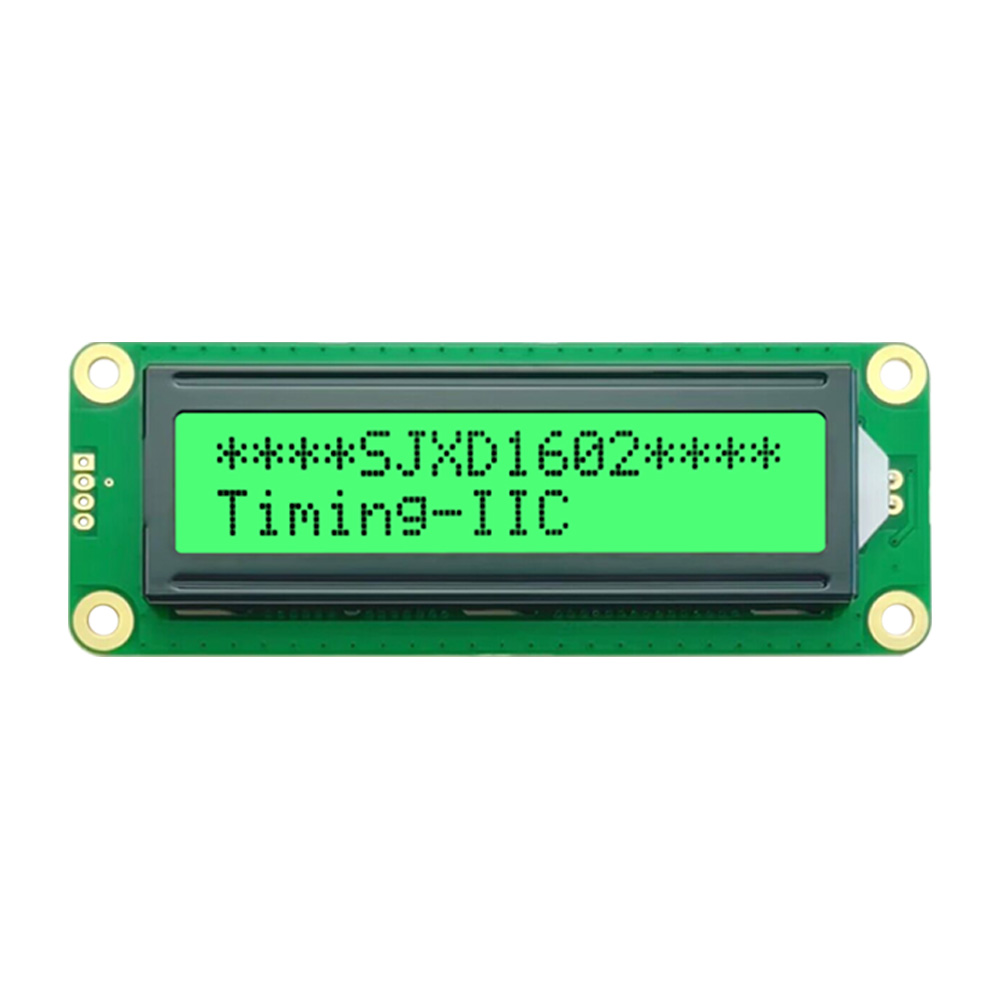

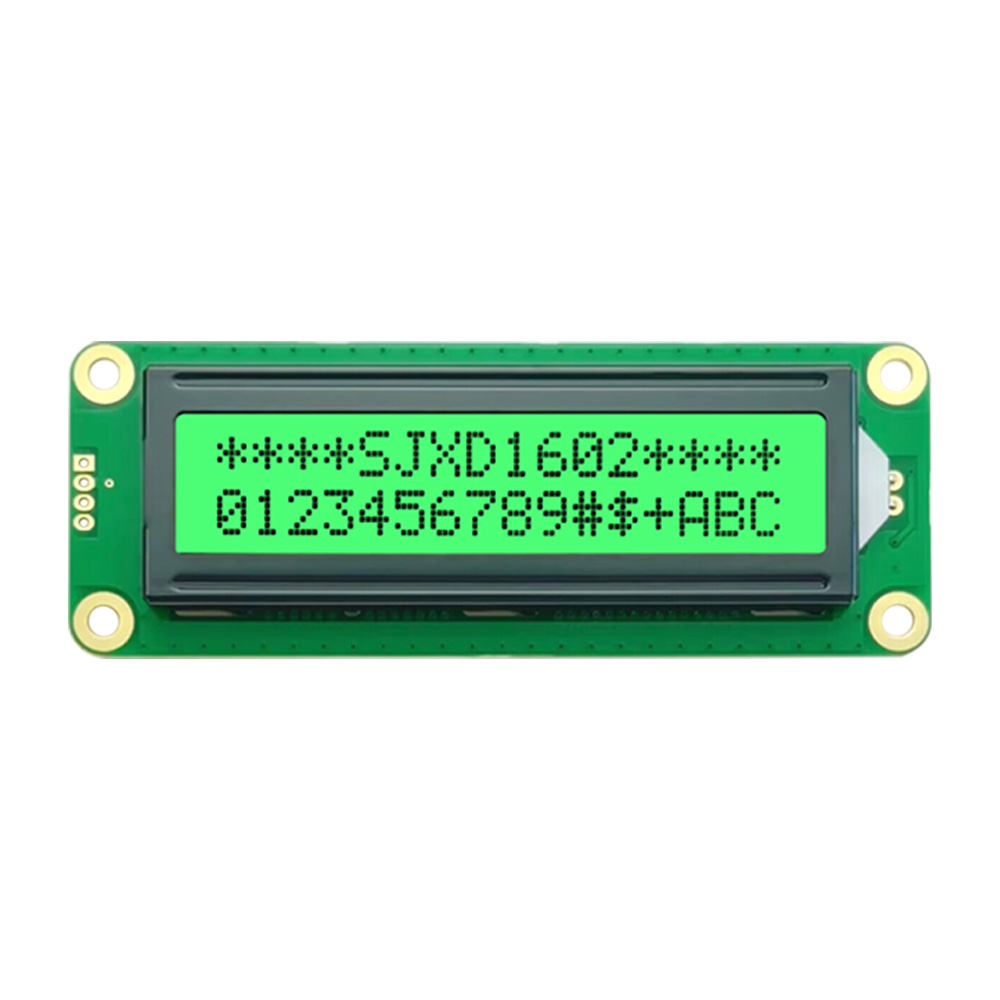

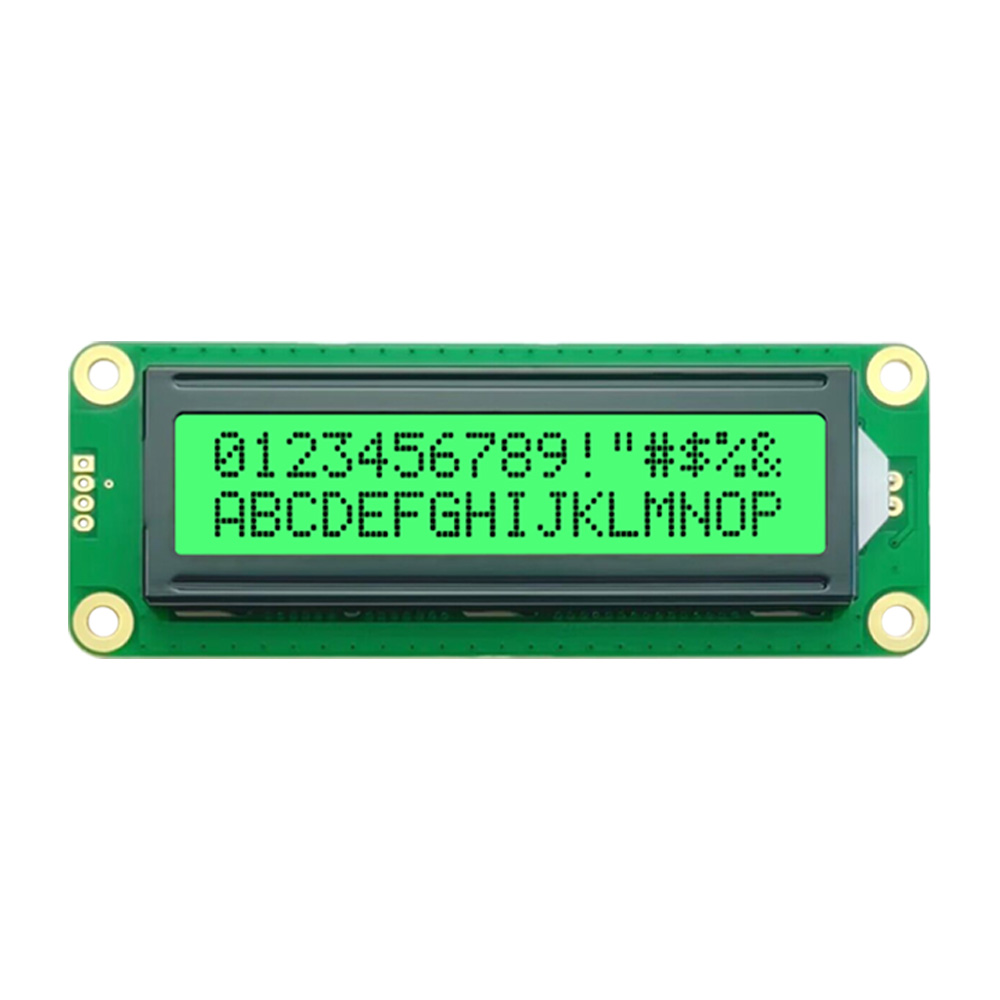

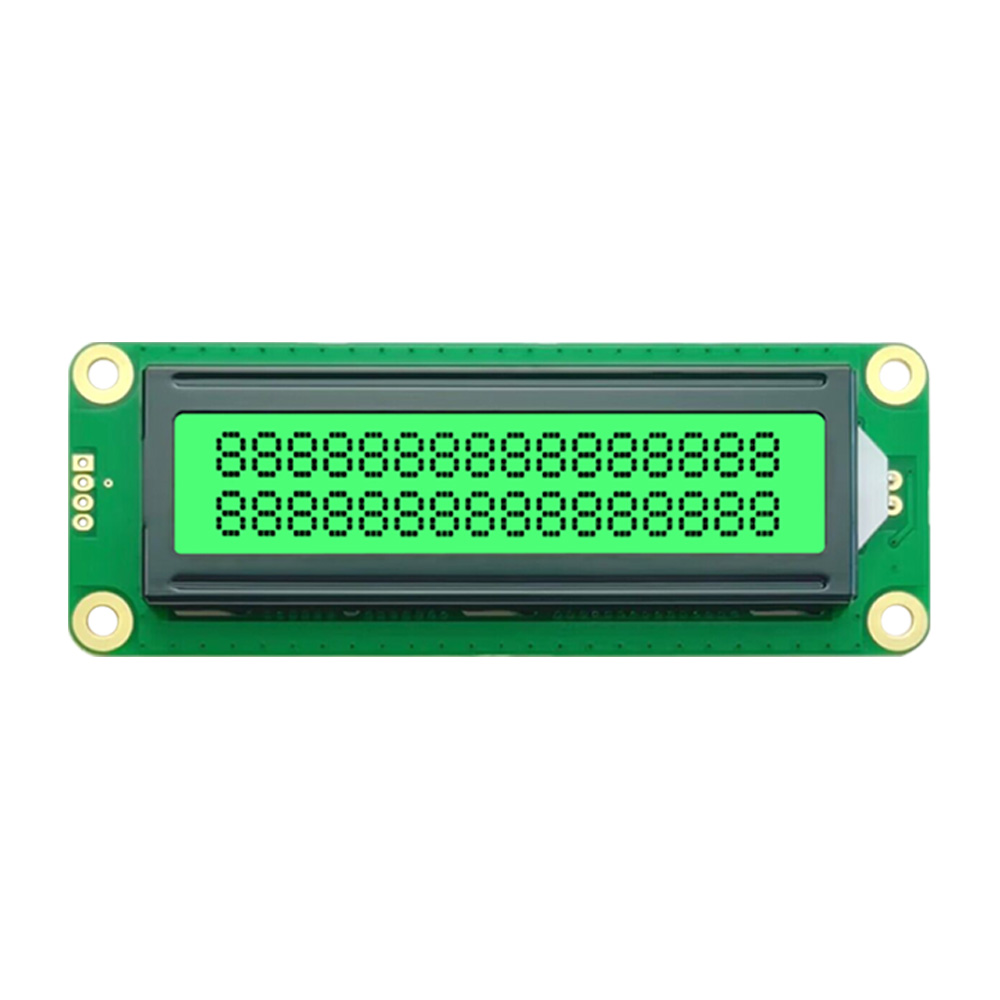

LCD Display Module 16x2-SJXD1602A-I (STN Positive)

LCD Display Module 16x2 is a two-row character screen for compact equipment that needs clear text and numeric output. The SJXD1602A-I model uses an 87.0×32.0×13.0mm outline, 64.5×14.5mm viewing area, 3.3V/5V drive support, AIP31068L drive IC, emerald LED backlight, STN positive display type, 16 double interfaces, and 06:00 viewing angle. It can display values, menus, warnings, counters, timers, and equipment status in meters, appliances, medical devices, control panels, test instruments, vending systems, and embedded products.

Parameters:

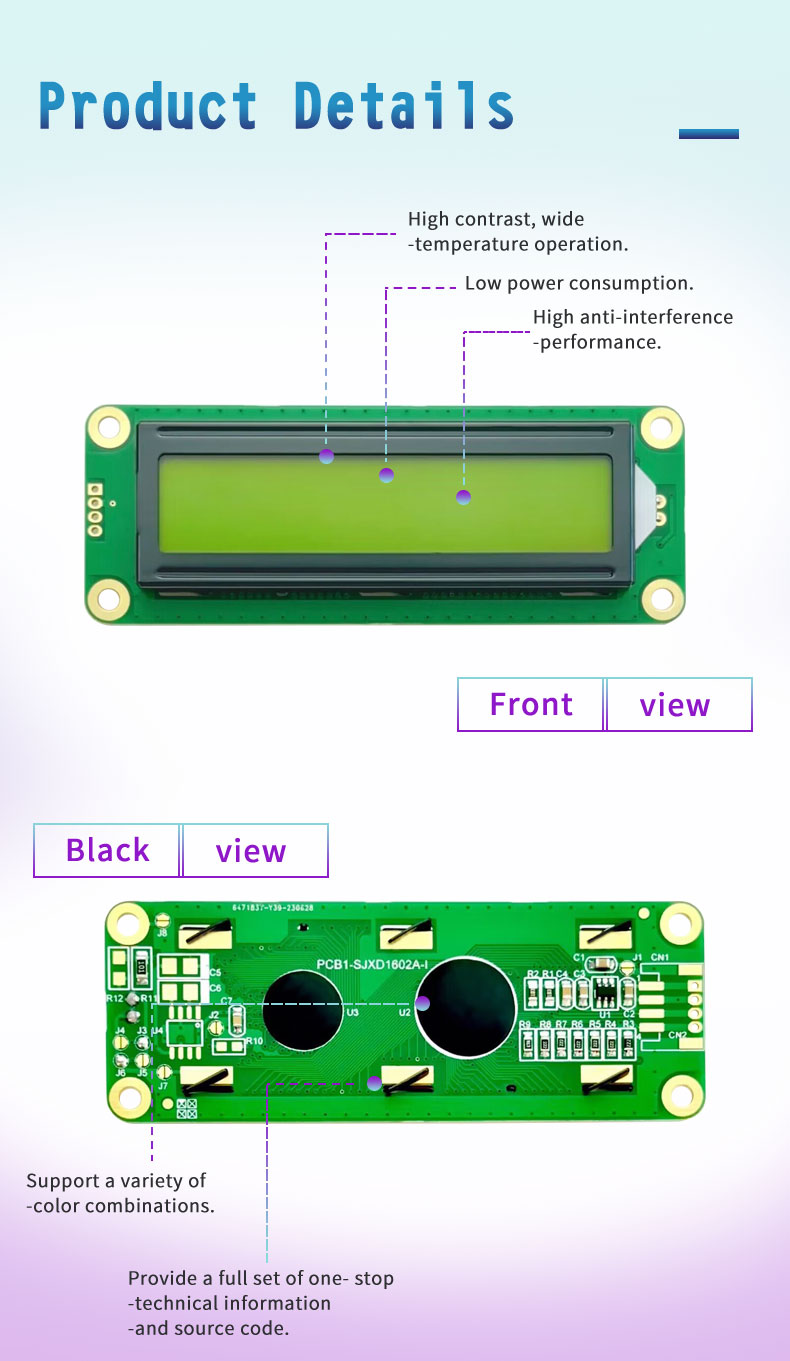

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective

Key Specifications

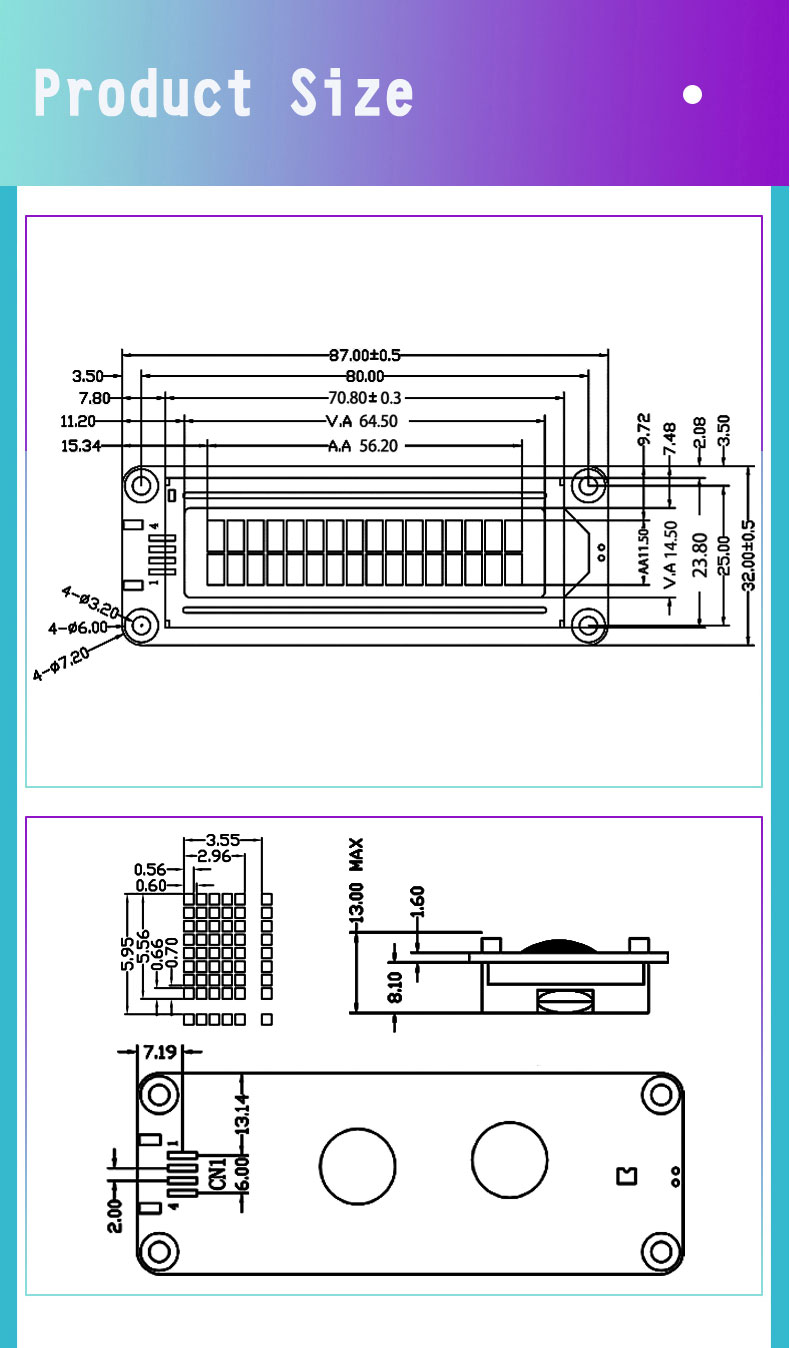

LCD Display Module 16x2 is a character display module for products that need two rows of readable text, numbers, and operating data. The SJXD1602A-I model features an 87.0×32.0×13.0mm outline size and a 64.5×14.5mm viewing area. It supports 3.3V/5.0V drive voltage, AIP31068L drive IC, emerald LED backlight, STN positive LCD type, 16 double interfaces, and 06:00 viewing angle. Its operating temperature range is -20°C to +70°C, with storage from -30°C to +80°C.

Design Standards

LCD Display Module 16x2 is designed for stable character presentation, easy panel integration, and reliable operation in compact electronic products. The STN positive display mode provides clear contrast for values, labels, and short messages, while the emerald LED backlight improves visibility in indoor equipment and control interfaces. Its 16 double interface structure supports dependable signal connection for embedded hardware. The module also supports wide-temperature operation, low power consumption, high anti-interference performance, multiple color combinations, complete technical data, source-code support, 1-3 day samples, and customization for backlight color, shell design, display content, and application parameters.

Applications

LCD Display Module 16x2 is suitable for devices that need a practical two-line display without a graphic screen. It can show large font numbers, sensor values, setting menus, timer data, counter results, warning codes, voltage readings, and equipment status. Typical applications include meters, equipment control panels, information display systems, industrial controllers, home appliances, medical devices, consumer electronics, testing instruments, vending equipment, educational kits, DIY electronics, and embedded control boards. Its 16×2 layout gives enough display capacity for essential user feedback while keeping the module compact and cost-effective.

Q:  General customized delivery time
A: Confirm the time based on the provided drawings or samples

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
