Basic Information

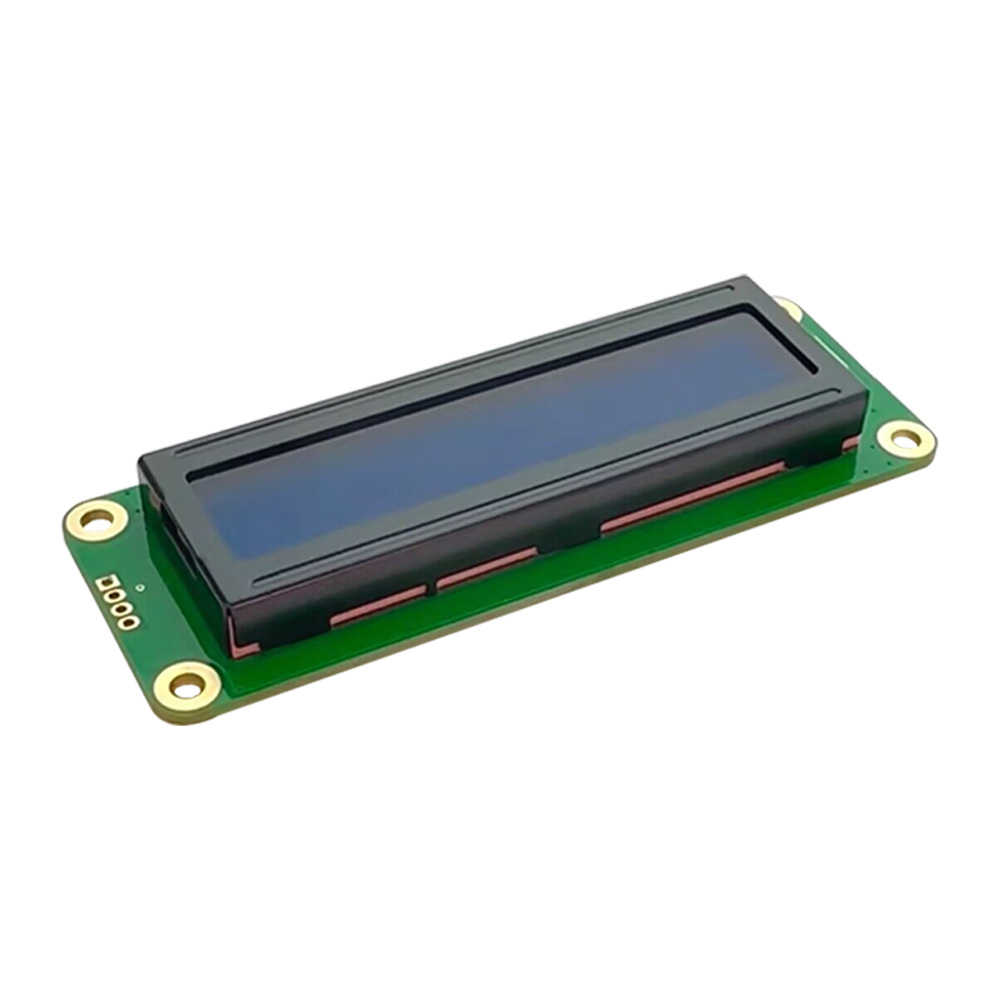

16x2 LCD Display Module For Arduino is a two-row character screen for Arduino projects, MCU development, and compact control devices. The SJXD1602A-I version supports 3.3V/5V drive voltage, standard character command control, white LED backlight, and STN negative display performance for clear text feedback. It can show sensor values, menu labels, counters, warnings, timers, and operating status. This module suits learning kits, DIY controllers, smart appliances, access systems, medical panels, industrial meters, power monitors, and embedded electronic products.
Parameters:
| Character Type | 16×2 |
| Model | SJXD1602A-1 |
| Model Size | 87.0×32.0×13.0 mm |
| VA Size | 64.5×14.5 mm |
|
Drive Voltage
|
3.3V/5.0V
|
|
Drive IC
|
AIP31068L
|
|
Backlight
|
White LED backlight
|
|
LCD Type
|
STN Negative
|
|
Interface
|
16 double interfaces
|
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |

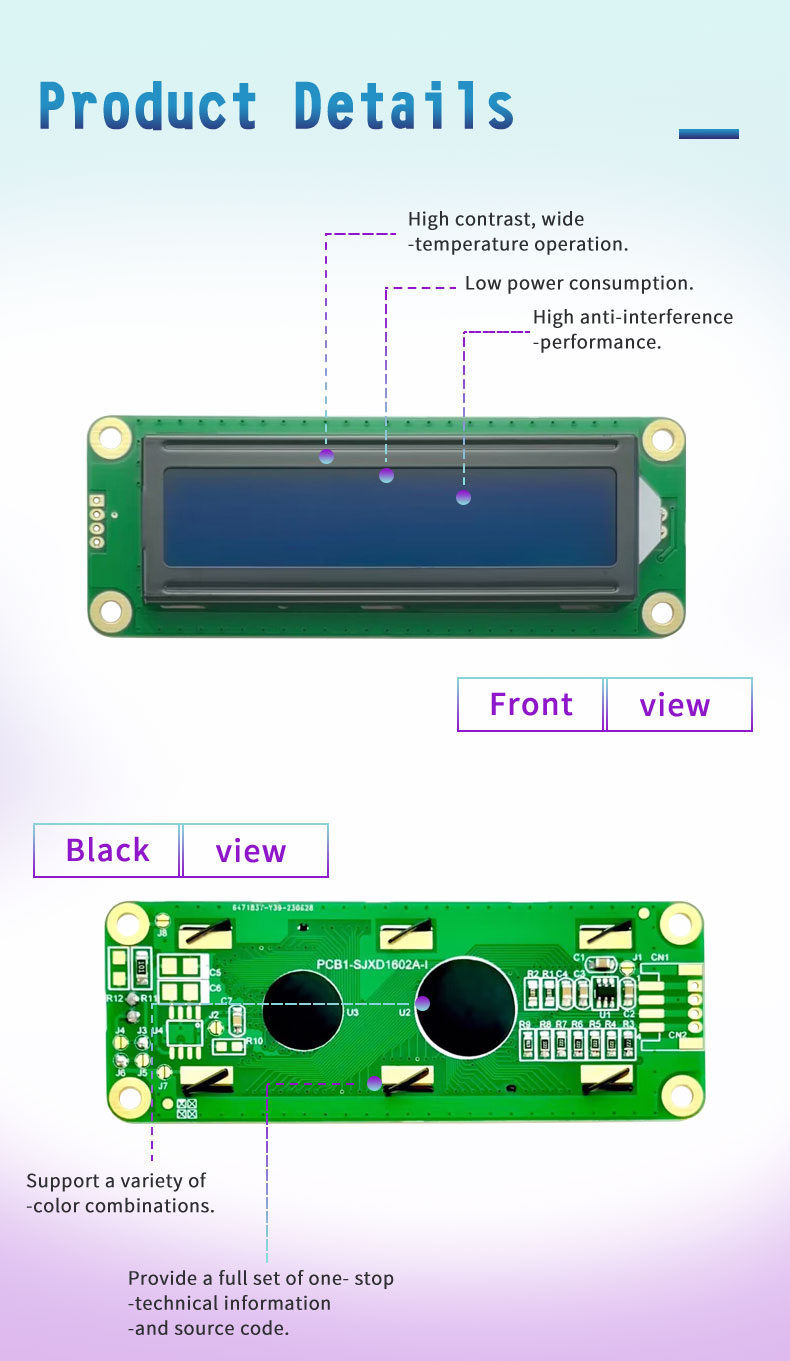

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
16x2 LCD Display Module For Arduino is a two-line character display module designed for Arduino boards and embedded control projects that need clear text feedback. The SJXD1602A-I version provides a 16-column by 2-row display area for values, labels, prompts, counters, warnings, and operating status. It supports 3.3V/5.0V drive voltage, controller IC options for standard character commands, white LED backlight, STN negative display effect, and interface connection suitable for MCU-based development. Its compact structure helps engineers add readable output without using a larger graphic display.
Design Standards
16x2 LCD Display Module For Arduino is developed for stable character control, readable contrast, and practical integration with Arduino-style hardware. The STN negative display mode creates a strong visual effect for white backlit text, making information easier to read on control panels and prototype devices. Standard character command support allows developers to manage initialization, cursor position, row selection, and text writing through simple code. The module also supports low power operation, stable signal response, anti-interference performance, documentation support, sample supply, and customization for backlight color, viewing direction, interface layout, and structure.
Applications
16x2 LCD Display Module For Arduino is suitable for projects that need compact two-row information display during development or final product assembly. It can show temperature data, voltage readings, sensor values, menu options, timer information, alarm codes, counter results, and device status. Typical uses include Arduino learning kits, DIY controllers, smart appliances, access control units, medical equipment panels, industrial meters, laboratory instruments, vending devices, power monitors, and embedded electronics. Its 16×2 format gives enough display capacity for essential user feedback while keeping the circuit simple.

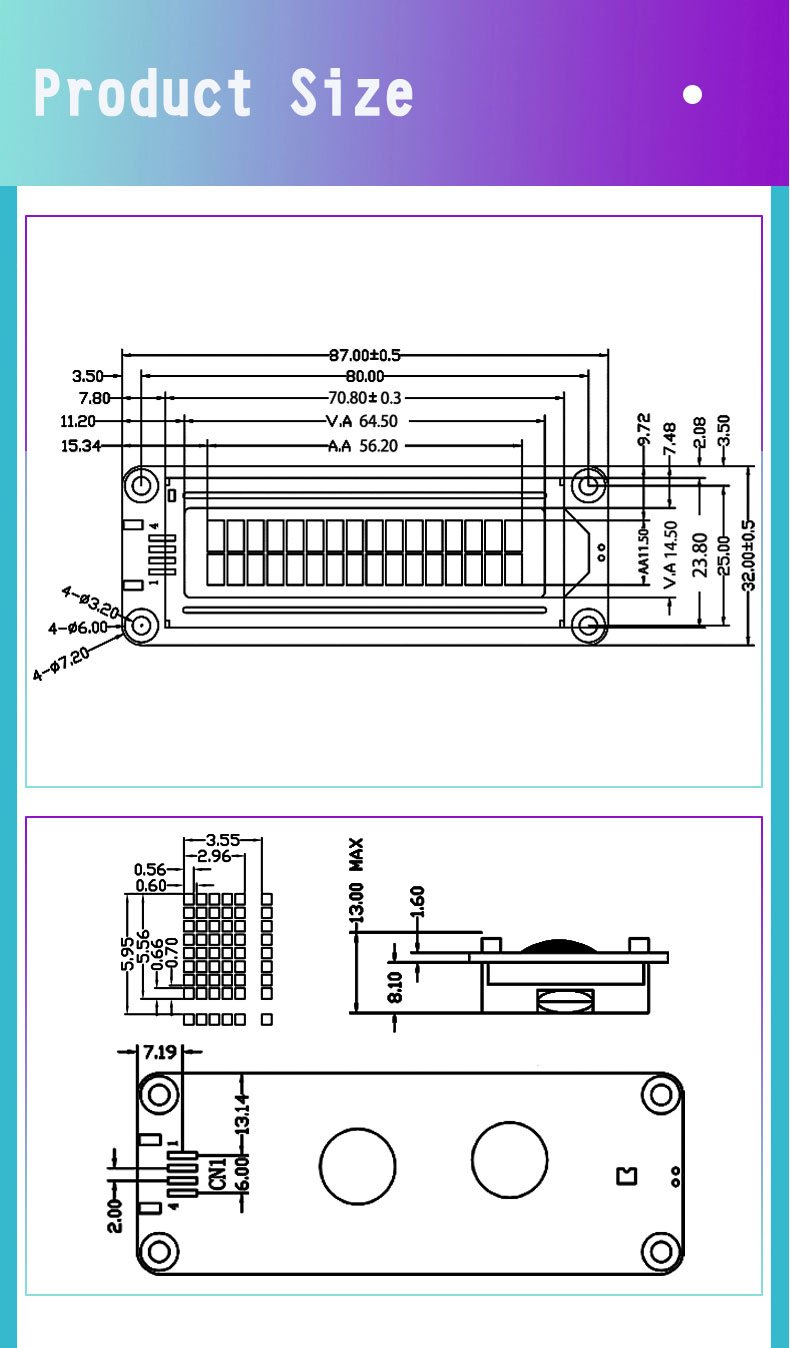

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
