Basic Information

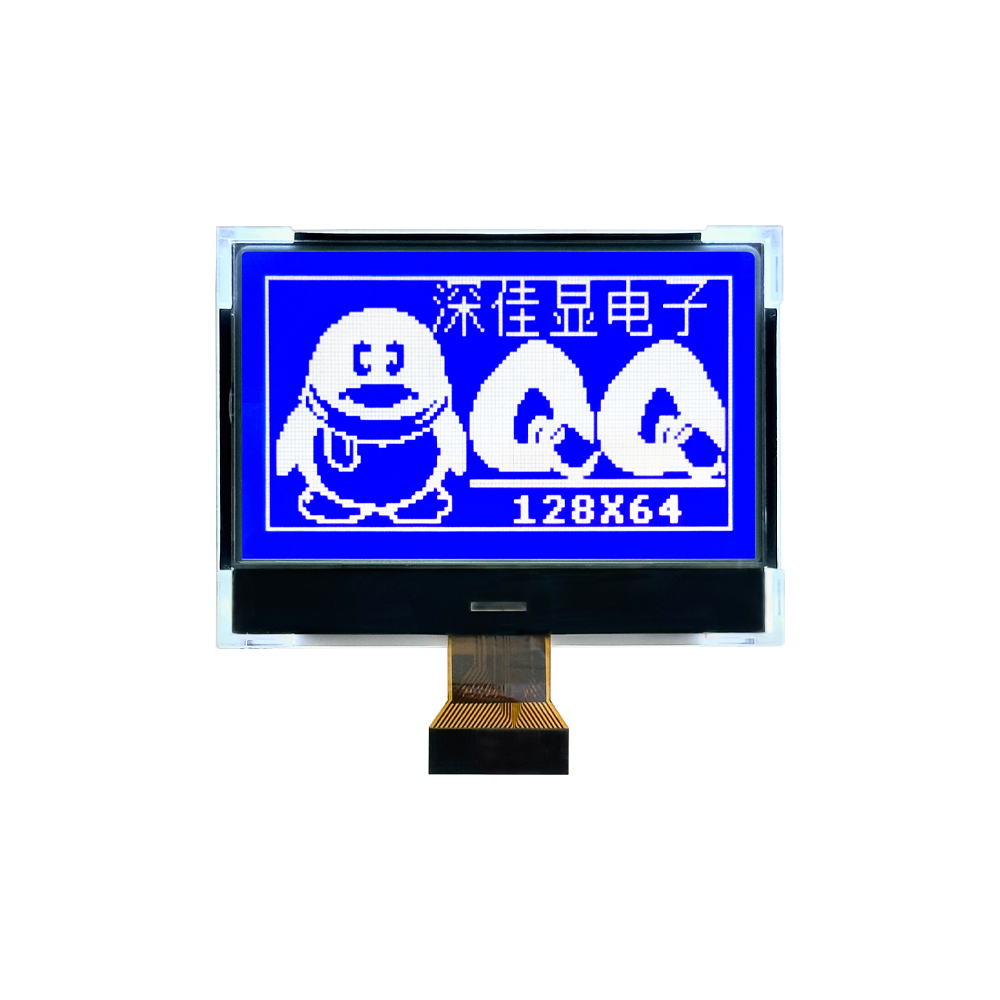

The Display LCD Custom SJXD12864-3435 is a tailored graphic and segmented LCD solution designed for OEM manufacturers requiring flexible display configuration and reliable performance. It is engineered to support customized visual interfaces for embedded systems, allowing developers to define unique screen layouts for numeric, symbolic, and graphical information. This module is well-suited for industrial electronics and consumer devices that demand both adaptability and stable long-term operation.
Parameters:
| Model | SJXD12864-3435 STN Blue |
| Model Size | 60 x 44.5 x 4.7 mm |
| Field of View Size | 53.4 x 31.4mm |
| Viewing Angle | 6 o’clock |
| Display Mode | STN Blue/Negative |
|
Drive Method
|
1/65Duty,1/9Bias |
|
LCM Operating Voltage
|
3.0v |
|
Operating Temp
|
-20℃~+70℃
|
|
Storage Temp
|
-30℃~+80℃
|
| Connector | COG |
|
Unsigned Tolerance
|
±O.20 |
| Polarizer | Transflective |
| IC | ST7565R |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
This Display LCD Custom module features a 128×64 dot matrix structure that enables clear representation of text, icons, and simple graphics. It supports customizable segment arrangements, making it suitable for specialized interface designs in embedded applications. The display operates at low voltage, ensuring compatibility with energy-efficient electronic systems and battery-powered devices. It is designed for low power consumption, supporting continuous use with minimal energy demand. The module provides stable contrast and consistent pixel clarity, ensuring readable output under standard indoor lighting conditions. Its compact structure allows efficient integration into industrial control systems, smart meters, handheld instruments, and embedded devices. The display maintains stable optical and electrical performance across a wide temperature range, ensuring reliable operation in diverse environments. Fast response characteristics ensure smooth updating of content without flicker or delay, supporting real-time data visualization and user interface responsiveness.
Design Standards
The module is manufactured under strict LCD customization and OEM production standards to ensure consistent quality and long-term reliability. High-quality liquid crystal materials are used to maintain uniform optical performance and stable pixel behavior. Circuit design is optimized to reduce electromagnetic interference and ensure stable signal transmission. Structural reinforcement improves resistance to mechanical stress, vibration, and temperature variation. Each unit undergoes comprehensive inspection to verify display uniformity, pixel accuracy, and electrical stability. Efficient manufacturing processes support scalable customization while maintaining strict quality control. Energy-efficient engineering principles are applied to enhance durability and reduce overall power consumption.
Applications
The Display LCD Custom module is widely used in industrial automation systems, medical instruments, smart meters, embedded controllers, and consumer electronics. It is also suitable for portable devices, testing equipment, instrumentation panels, and custom graphical interfaces. Its combination of flexible customization, stable performance, and scalable design makes it an effective solution for OEM LCD display applications across multiple industries.
Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
