Basic Information

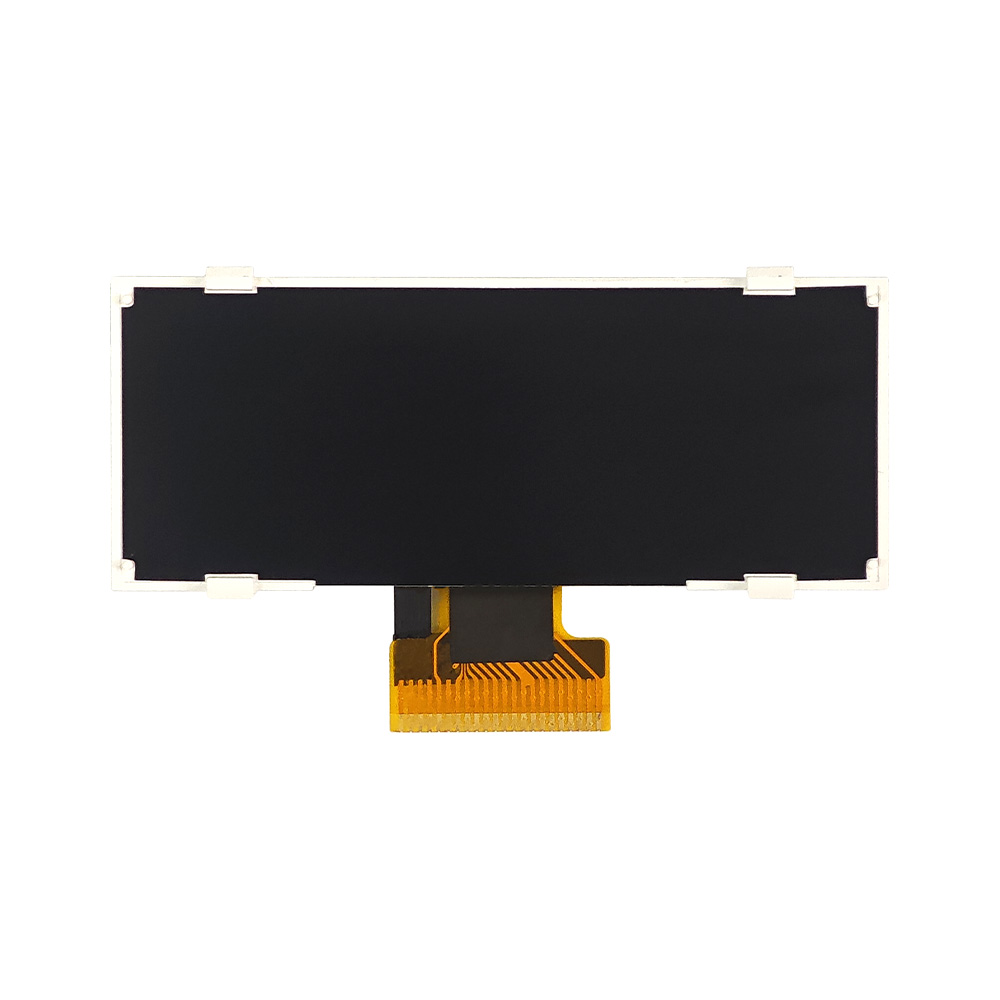

The Make Custom LCD Display SJXD24064-013 is a flexible segmented and graphic LCD solution designed for OEM and industrial electronic applications. It is developed to support fully customized display structures, allowing manufacturers to define specific visual layouts for embedded systems. This module is suitable for projects that require reliable numeric and graphical output combined with adaptable design capability and stable long-term performance.
Parameters:
| Model | SJXD24064-013 |
| Model Size | 81.5 x 33 x5.68mm |
| Field of View Size | 75.2 x21.7mm |
| Viewing Direction | 12 o'clock |
| Display Mode | FSTN/Positive/Transmissive. |
|
Drive Method
|
1/65Duty，1/9Bias,Vlcd=8.0±0.2V，VDD=3.0V. |
|
Backlight Type
|
RGB LED, 5pcS. |
|
0perating Temp
|
-20'C~+70°C
|
|
Storage Temp
|
-30'C~+80°C.
|
| Unmarked Tolerance | t0.2mm |
|
Connector
|
COG+FPC |
| Drive IC | ST75256-G2(COG) |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
This Make Custom LCD Display module features a 240×64 dot matrix structure that enables detailed graphical representation and multi-line information display. It supports customized segment arrangements for text, icons, and system indicators, making it suitable for complex interface requirements. The display operates at low voltage, ensuring compatibility with energy-efficient electronic systems and portable devices. It is engineered for low power consumption, supporting continuous operation with minimal energy usage. The module provides strong contrast and stable pixel performance, ensuring clear readability under standard lighting conditions. Its compact architecture allows efficient integration into industrial equipment, smart meters, handheld instruments, and embedded control systems. The display maintains stable optical and electrical characteristics across a wide temperature range, ensuring reliable performance in different environmental conditions. Fast response behavior ensures smooth updating of graphical content without flicker or delay, supporting real-time data visualization and system interaction.
Design Standards
The module is manufactured under strict LCD customization and OEM production standards to ensure consistent quality and long-term operational reliability. High-quality liquid crystal materials are used to maintain uniform optical performance and stable pixel behavior. Circuit design is optimized to reduce electromagnetic interference and ensure stable signal transmission in electronic systems. Structural reinforcement improves resistance to mechanical stress, vibration, and temperature variation. Each unit undergoes comprehensive inspection to verify display uniformity, pixel accuracy, and electrical stability. Efficient production processes support scalable customization while maintaining strict quality control standards. Energy-efficient design principles are applied to enhance performance stability and extend product lifespan.
Applications
The Make Custom LCD Display module is widely used in industrial automation systems, medical devices, smart meters, embedded controllers, and consumer electronics. It is also suitable for portable instruments, testing equipment, instrumentation panels, and custom graphical interfaces. Its combination of high flexibility, stable performance, and scalable design makes it an ideal solution for OEM LCD display development projects requiring tailored visual output.
Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
