Basic Information

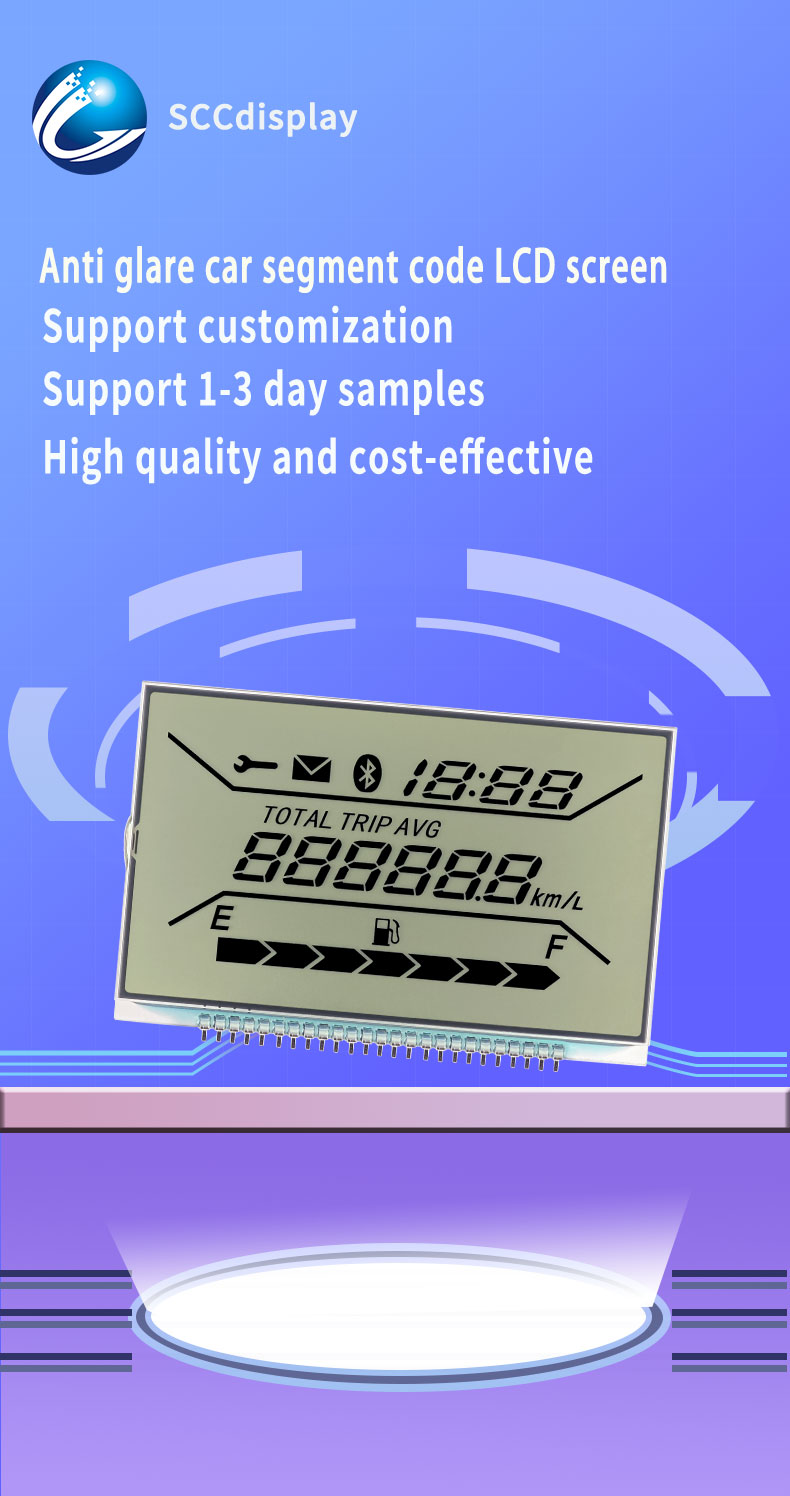

The SJXDGW037 Digital Segment Screen is a customized segmented display solution designed for clear and reliable numeric and symbolic visualization in electronic devices. It is engineered to provide stable performance, low power consumption, and excellent readability, making it suitable for a wide range of industrial and consumer applications. With its optimized segment layout and durable structure, this display ensures accurate information presentation in various operating environments.
Parameters:
| Character Type | Customized |
| Model | SJXDGW037 |
| Model Size | 65.0×41.5×2.8 mm |
| VA Size | 62.0×36.0 mm |
|
Connector
|
Metal pins |
|
LCD Type
|
HTN Positive |
|
Drive Conditions
|
1/4D 1/3B
|
|
Working Temperature
|
-20°C TO +70'C
|
| Storage Temperature |
-30'C TO +80'C
|
|
Working Voltage
|
5.0 V |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications
The SJXDGW037 Digital Segment Screen features a high-contrast segmented LCD design that delivers clear digit and symbol display performance. It is optimized for low power operation, making it ideal for battery-powered and energy-efficient systems. The display supports stable electrical characteristics, ensuring consistent operation during long-term use. Its compact design allows seamless integration into different electronic products without requiring major structural changes. The module is designed to maintain good visibility under various lighting conditions, improving readability in both indoor and semi-outdoor environments. It also offers stable signal response and reliable driving performance, ensuring smooth operation in practical applications.
Design Features
This digital segment screen is developed with durability and functional stability in mind. It provides fast response time and precise segment control, ensuring accurate data display. The structure is designed to withstand continuous operation while maintaining consistent visual quality. Its customized segment configuration allows flexible display content, enabling manufacturers to adapt it to different product requirements. The robust design ensures long service life and reliable performance even in demanding usage conditions.
Applications
The SJXDGW037 Digital Segment Screen is widely used in digital meters, measuring instruments, household appliances, industrial control systems, timers, counters, and portable electronic devices. It is commonly applied in power meters, temperature controllers, electronic clocks, and monitoring equipment. Its clarity and stability make it suitable for both consumer-grade and industrial-grade applications.
Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
