The HTN Segment SJXDGW058 is a high-performance segmented LCD display designed for industrial and electronic systems that require stable, low-power, and highly readable numeric output. Utilizing High Twisted Nematic (HTN) technology, it delivers improved contrast and enhanced viewing angles compared to conventional segment displays. This makes it suitable for applications where clear visibility and reliable data presentation are essential in both static and dynamic environments. Its compact structure allows seamless integration into a wide range of embedded and control systems.

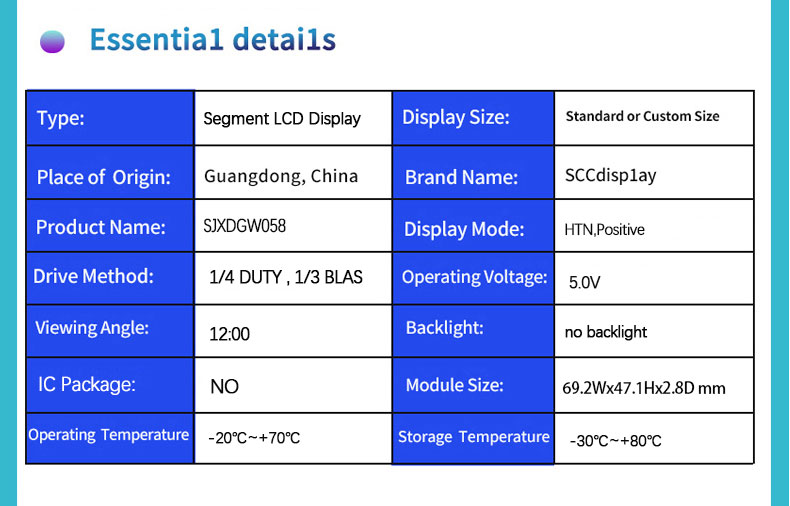

Parameters:
| Character Type | Customized |
| Model | SJXDGW058 |
| Model Size | 69.2×47.1×2.8 mm |
| VA Size | 66.2×41.6 mm |
|
Connector
|
Metal pins |
|
LCD Type
|
HTN Positive |
|
Drive Conditions
|
1/4 D 1/3 B
|
|
Working Temperature
|
-20C TO +70°C
|
| Storage Temperature |
-30°C TO +80°C
|
|
Working Voltage
|
5.0V |
Feature

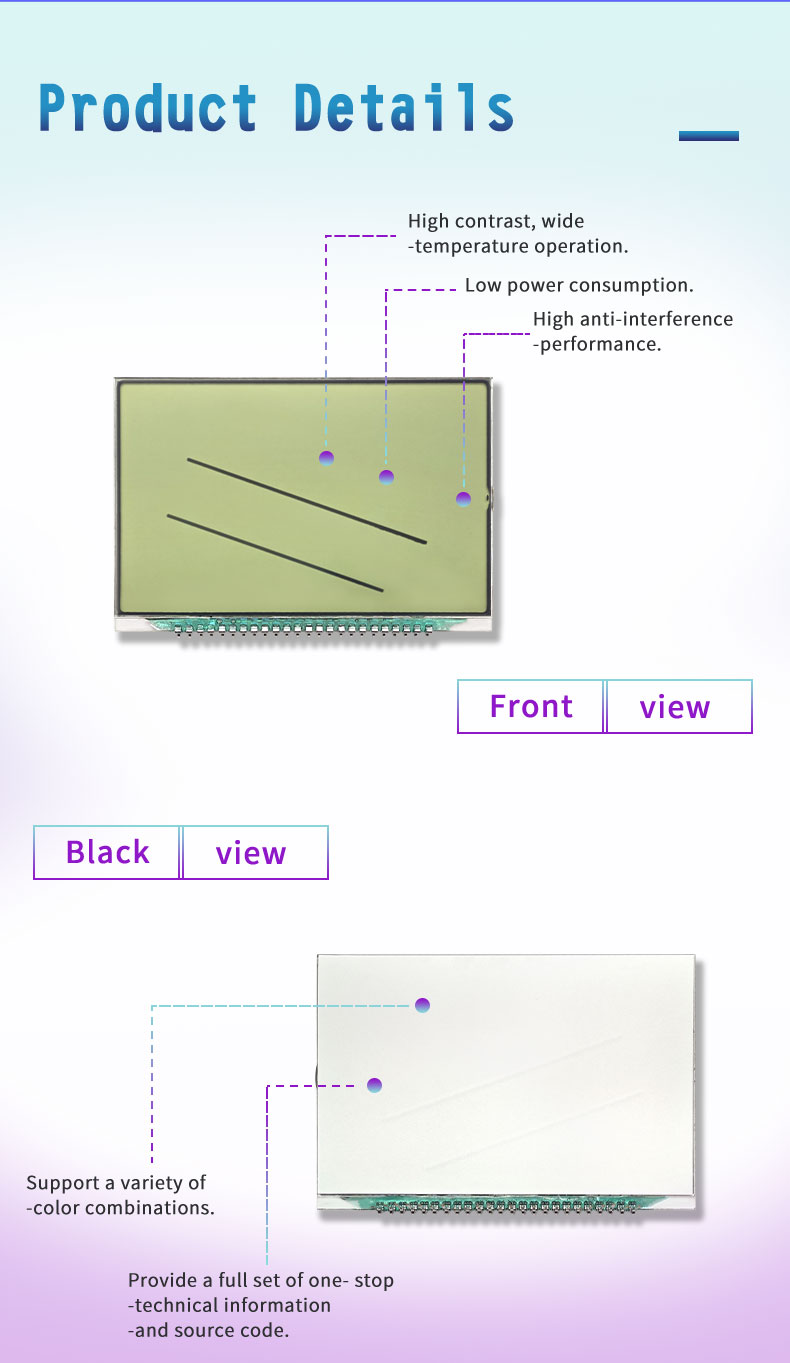

- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications
This HTN Segment display features optimized segmented LCD architecture designed for crisp numeric and icon representation. The HTN technology enhances contrast performance, ensuring clear visibility even under varying lighting conditions. It operates at low voltage levels, making it highly suitable for battery-powered and energy-efficient devices. The module is designed for stable electrical performance with minimal power consumption, extending the operational life of the host system. It supports reliable functionality across a wide temperature range, ensuring consistent performance in industrial and outdoor environments. The display is engineered for fast response and stable signal handling, enabling accurate real-time data visualization. Its compact layout allows efficient integration into space-limited electronic products and instrumentation panels.
Design Standards
The module is manufactured under strict industrial-grade quality standards to ensure long-term reliability and consistent performance. The HTN liquid crystal technology is optimized for improved optical alignment, resulting in higher contrast and better viewing clarity. Circuit design is engineered to minimize electromagnetic interference and maintain stable signal transmission during continuous operation. High-quality materials are used to enhance durability, thermal resistance, and mechanical stability. The design follows low power consumption principles to support energy-efficient system integration. Each unit undergoes rigorous testing to ensure stable performance under extended usage and varying environmental conditions, including temperature fluctuations and vibration.
Applications
The HTN Segment display is widely used in industrial control systems, digital meters, medical devices, consumer electronics, and embedded instrumentation equipment. It is also suitable for portable measurement tools, smart monitoring systems, and battery-powered devices requiring clear numeric output and long operational life. Its combination of high contrast, low power consumption, and wide viewing capability makes it an ideal solution for modern electronic systems requiring reliable segmented display performance in diverse application environments.

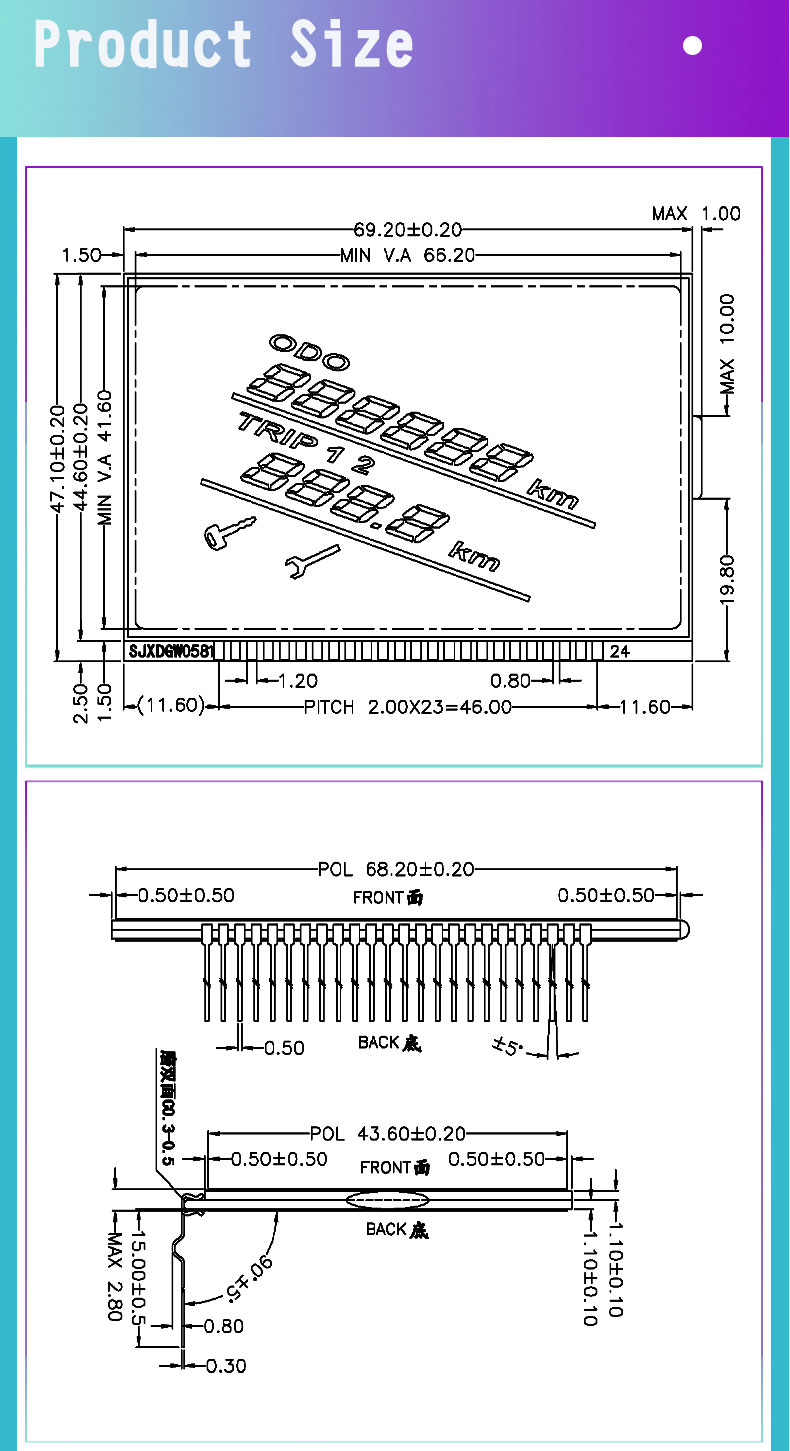

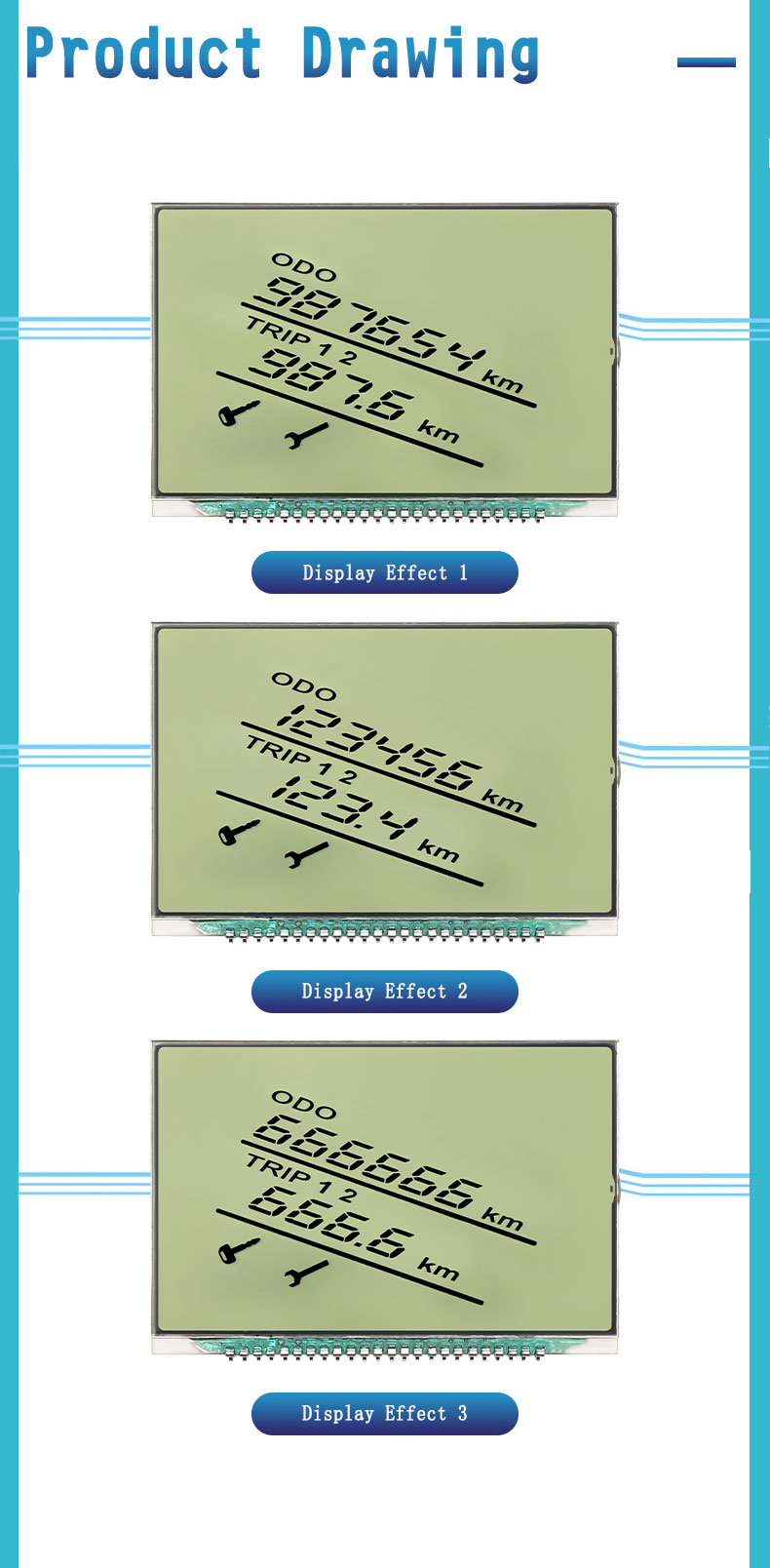

Product Size
