Font Library LCD 12864 - SJXD12864F-4（STN Positive）

The Font Library LCD 12864 SJXD12864F-4 (STN positive) is a graphic liquid crystal display module developed for embedded electronic products that require efficient character rendering and graphical information presentation. With built-in font display capability and a stable dot matrix structure, this module provides an effective solution for systems that need clear menus, status indicators, operational data, and multilingual text output. Its STN positive display mode enhances viewing comfort while maintaining reliable long-term performance.

Parameters:

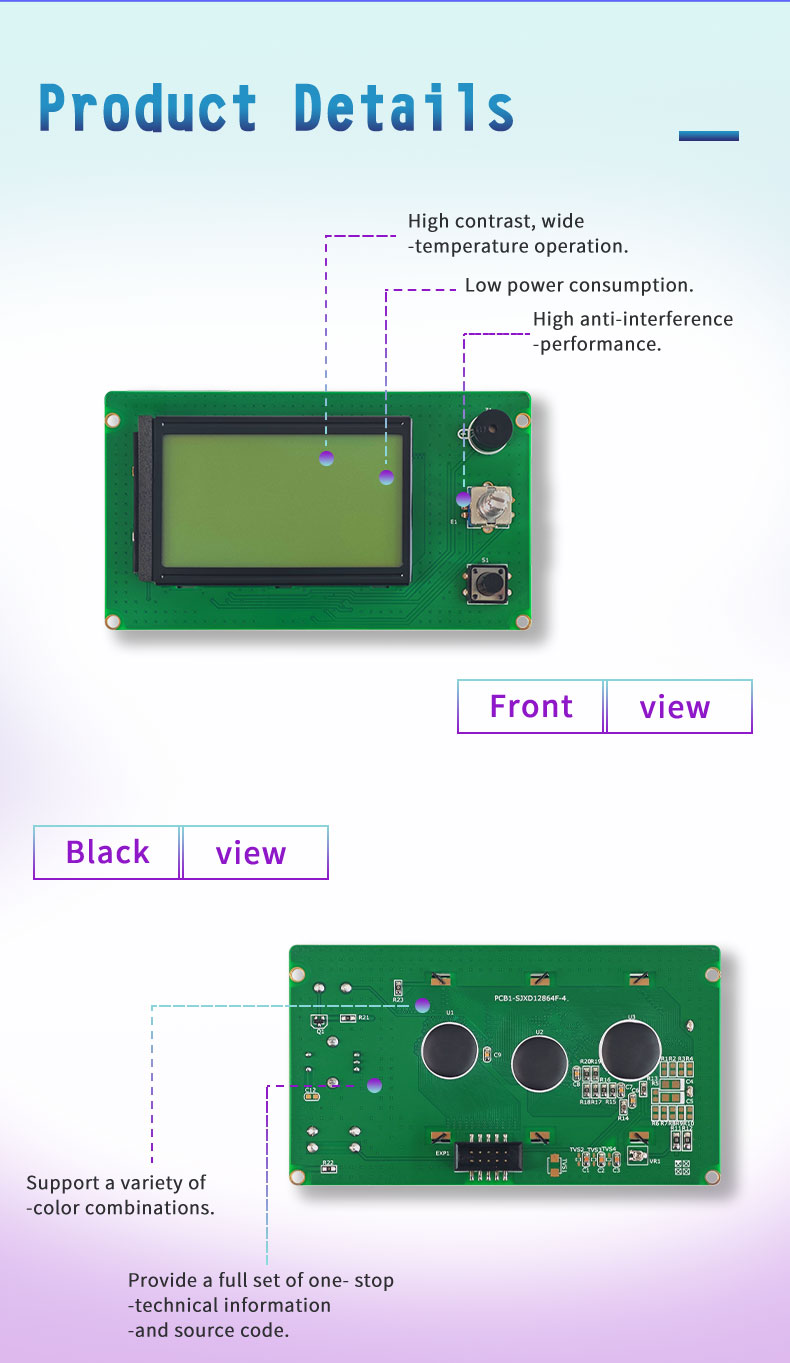

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective
• The fastest batch delivery can be achieved within 15 days

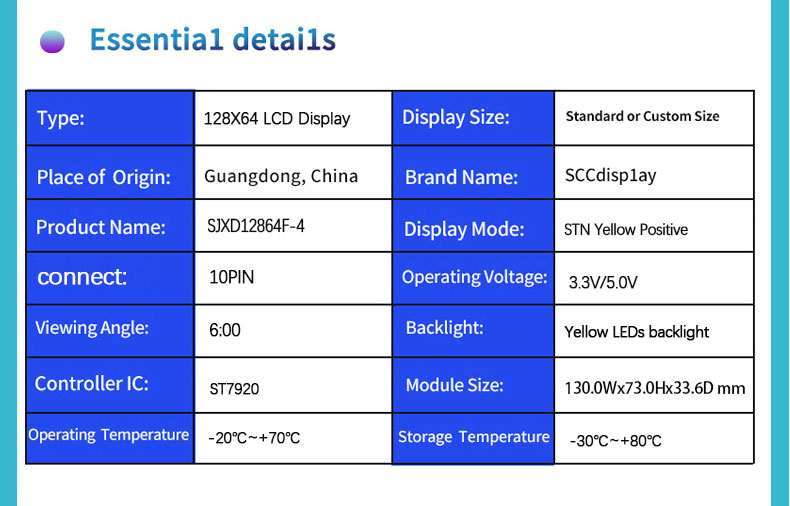

Key Specifications

This Font Library LCD 12864 module utilizes a 128×64 dot matrix configuration, allowing the display of characters, symbols, graphical icons, and interface elements within a compact viewing area. The STN positive technology delivers dark pixels on a bright background, creating a clean and professional visual appearance. The module is engineered for low-voltage operation and reduced power consumption, making it suitable for energy-conscious embedded designs. It supports stable refresh performance for smooth content updates and accurate character rendering. The display structure offers uniform pixel arrangement and consistent contrast characteristics, helping maintain readability during continuous operation. Its compact dimensions simplify installation in industrial equipment, measurement devices, communication terminals, and control panels. Reliable performance across varying environmental conditions ensures dependable operation in demanding applications.

Design Standards

The module is produced according to rigorous LCD manufacturing standards to ensure optical consistency, electrical reliability, and mechanical durability. High-grade liquid crystal materials are selected to support stable display behavior and long service life. Circuit architecture is optimized to improve signal integrity and reduce potential interference from surrounding electronic components. Structural reinforcement enhances resistance to vibration, thermal fluctuation, and mechanical stress. Every module undergoes detailed inspection procedures covering display uniformity, character accuracy, pixel performance, and electrical functionality. Energy-efficient engineering practices are incorporated to support extended operational life while maintaining stable visual quality.

Applications

The Font Library LCD 12864 is widely applied in industrial automation equipment, intelligent metering systems, medical devices, communication instruments, and embedded control platforms. It is also suitable for security equipment, environmental monitoring devices, diagnostic instruments, and customized user interfaces. Its combination of character display capability, graphic support, stable STN positive performance, and compact design makes it an excellent choice for electronic products requiring dependable visual communication and efficient information management.

Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
