Graphic LCD 12864 - SJXD12864F-4（FSTN Positive）

The Graphic LCD 12864 SJXD12864F-4 (FSTN positive) is a high-performance monochrome display module developed for embedded systems that require clear graphic presentation, stable operation, and efficient power management. Utilizing FSTN positive display technology, the module delivers enhanced visual sharpness and improved contrast characteristics compared with conventional LCD structures. It is suitable for professional electronic equipment where reliable information display is essential.

Parameters:

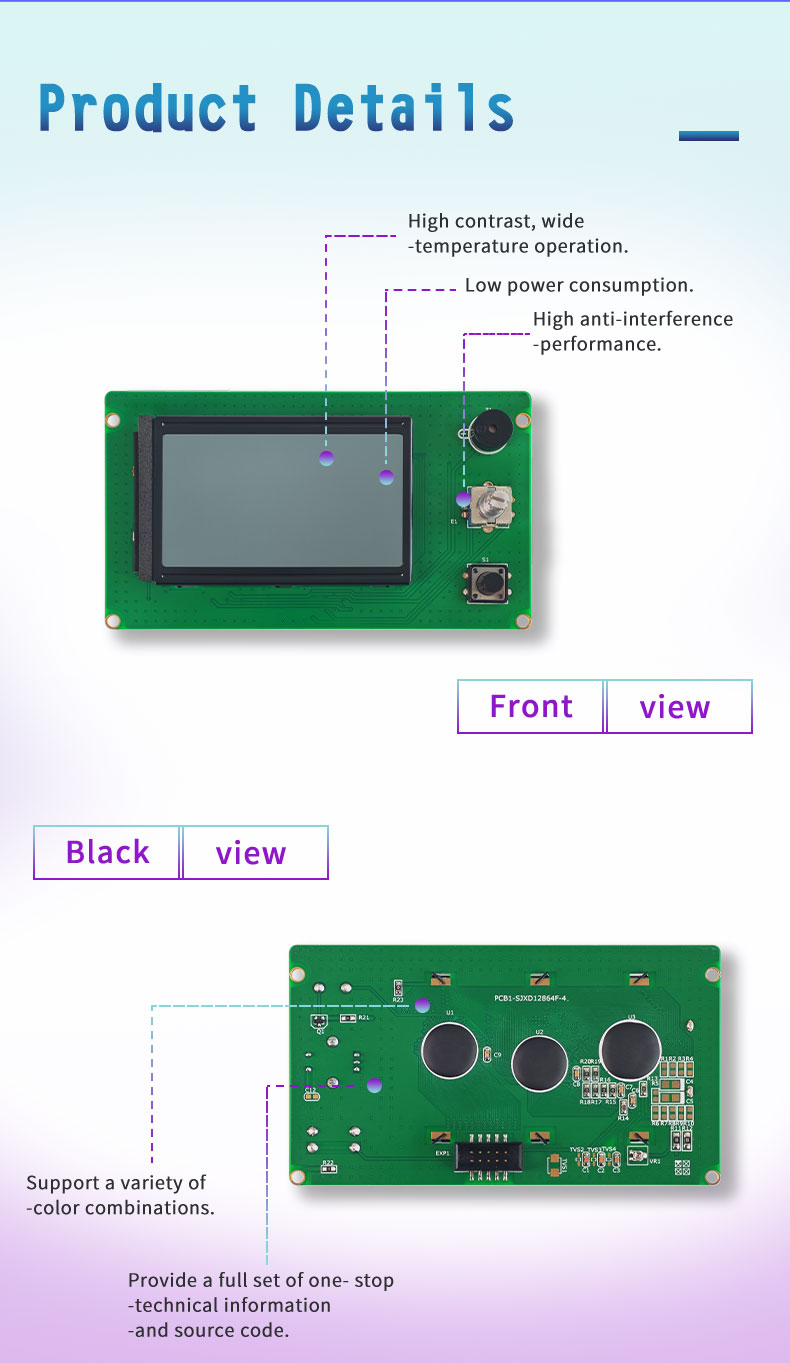

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective
• The fastest batch delivery can be achieved within 15 days

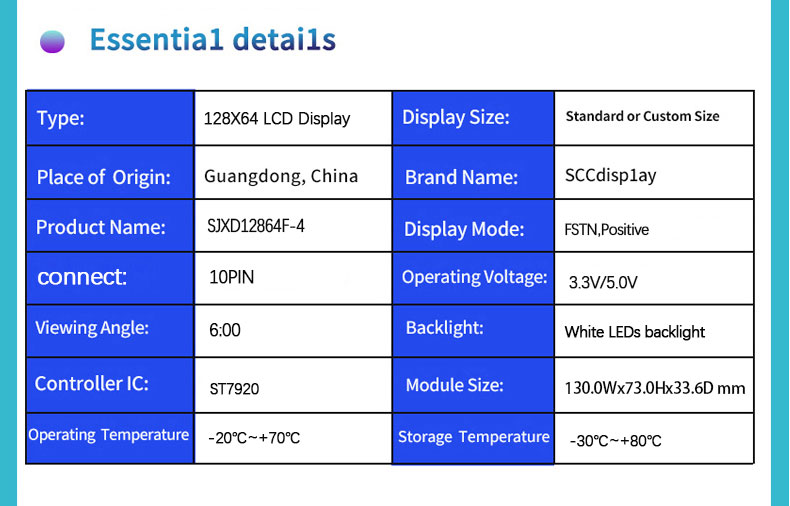

Key Specifications

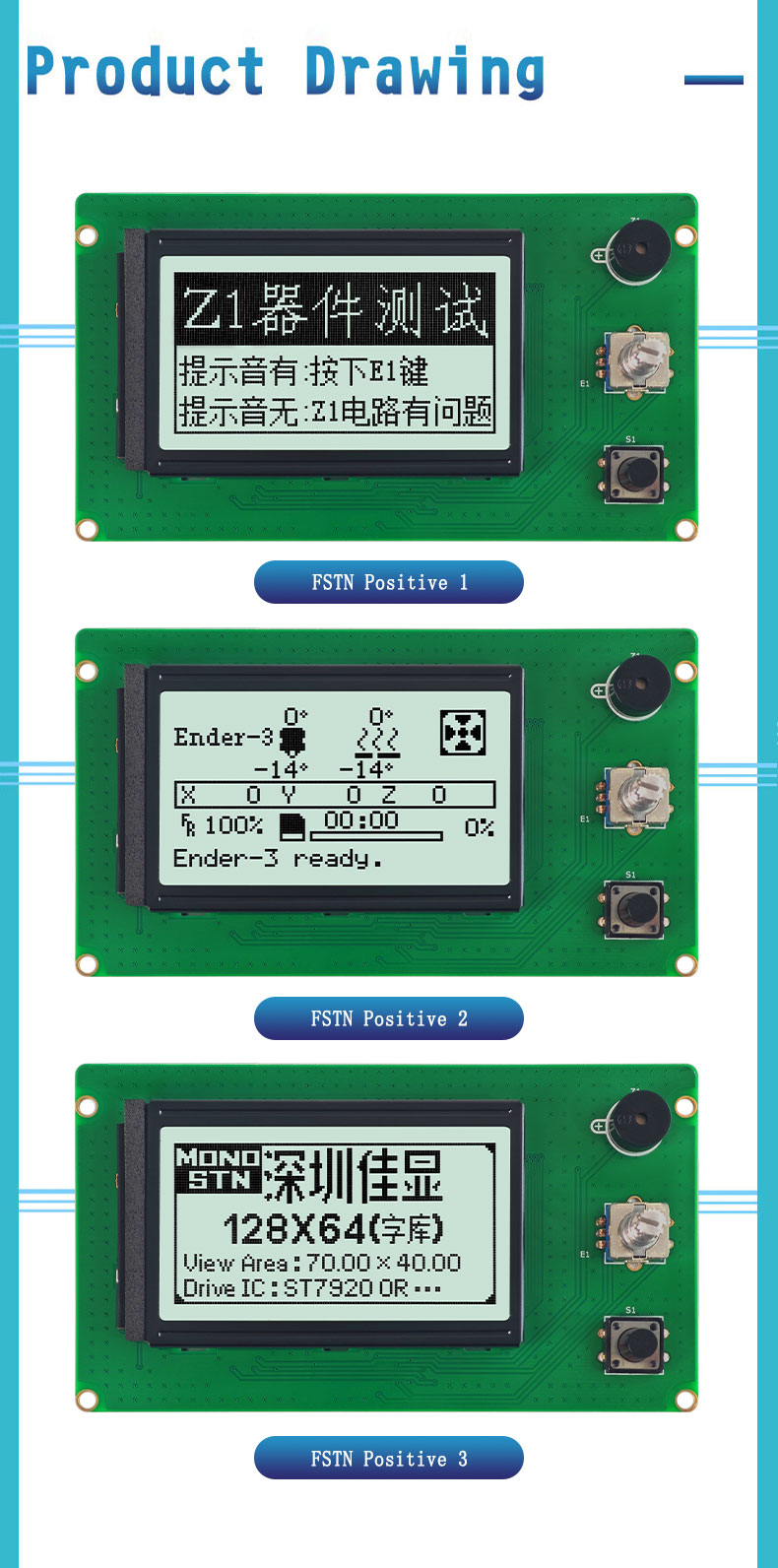

This Graphic LCD 12864 module features a 128×64 dot matrix resolution capable of displaying characters, symbols, interface graphics, and operational data with excellent clarity. The FSTN positive technology provides a bright background with dark display elements, improving viewing comfort and readability. The module is optimized for low-power operation, making it suitable for portable equipment and energy-sensitive embedded systems. Stable display performance ensures smooth rendering of graphical content and accurate presentation of critical information. The display maintains consistent optical characteristics across a broad operating temperature range, supporting dependable use in various environments. Its compact mechanical structure simplifies installation in instruments, industrial controllers, monitoring devices, and electronic terminals. Uniform pixel arrangement and high display precision contribute to a professional visual appearance.

Design Standards

The module is manufactured according to strict FSTN LCD production standards to ensure long-term durability and consistent quality. Premium liquid crystal materials are selected to provide stable contrast performance and reliable optical behavior. The internal circuit layout is optimized to enhance signal stability and minimize electromagnetic interference. Structural reinforcement improves resistance to vibration, temperature variation, and mechanical stress encountered in demanding applications. Every module undergoes detailed inspection procedures covering display uniformity, pixel integrity, contrast consistency, and electrical functionality. Energy-efficient engineering methods are applied to reduce operational consumption while maintaining reliable display performance throughout the product lifecycle.

Applications

The Graphic LCD 12864 is widely utilized in industrial automation equipment, smart metering systems, medical instruments, communication terminals, environmental monitoring devices, and embedded control platforms. It is also suitable for testing instruments, security equipment, electronic measurement systems, and customized user interfaces. With its FSTN positive technology, stable graphical output, compact dimensions, and dependable operational characteristics, this module provides an effective display solution for electronic products requiring precise visual communication and long-term reliability.

Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
