The Dot Matrix 12864 LCD SJXD12864F-3 is a reliable monochrome display module designed for industrial and embedded electronic systems that require stable graphical output, long operational life, and efficient power consumption. Built on dot matrix LCD technology, it delivers clear visual representation of characters, symbols, and basic graphics, making it suitable for professional control and monitoring applications.

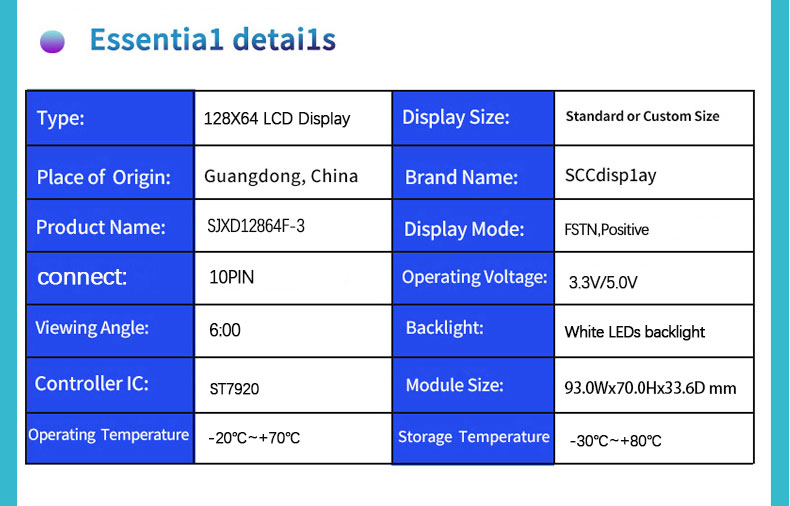

Parameters:
| Character Type | 128X64 |
| Model | SJXD12864F-3 |
| Model Size | 93.0×89.0×33.6 MM |
| VA Size | 72.0×40.0 MM |
|
Drive Voltage
|
3.3V/5.0V
|
|
Drive IC
|
ST7920
|
|
Backlight
|
White LED backlight
|
|
LCD Type
|
FSTN Positive
|
|
Interface
|
10PIN |
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- The fastest batch delivery can be achieved within 15 days
Key Specifications
This Dot Matrix 12864 LCD features a 128×64 dot matrix resolution, enabling accurate display of alphanumeric data, icons, and simple interface graphics. It provides stable contrast performance to ensure readable content in various industrial lighting environments. The module is designed for low power operation, making it ideal for continuously running embedded systems and energy-sensitive devices. It supports stable refresh behavior, ensuring smooth updates of displayed information without flicker or visual instability. The compact mechanical structure allows easy integration into industrial equipment, measurement instruments, automation controllers, and embedded monitoring systems. It maintains consistent optical performance across a wide operating temperature range, ensuring reliable operation in harsh environmental conditions. Uniform pixel alignment and controlled liquid crystal response contribute to clear and precise visual output.
Design Standards
The module is manufactured under strict industrial LCD production standards to ensure durability, stability, and long-term reliability. High-quality liquid crystal materials are used to achieve consistent optical performance and stable contrast characteristics. Circuit design is optimized to reduce electromagnetic interference and ensure stable signal transmission in industrial environments. The structural design is reinforced to withstand vibration, temperature fluctuations, and long-term mechanical stress. Each unit undergoes comprehensive inspection for pixel accuracy, display uniformity, electrical stability, and contrast consistency. Energy-efficient engineering principles are applied to minimize power consumption while maintaining stable performance over extended operational cycles.
Applications
The Dot Matrix 12864 LCD is widely used in industrial automation systems, smart metering devices, medical equipment, instrumentation panels, communication systems, and embedded controllers. It is also suitable for testing instruments, security systems, monitoring terminals, and factory control interfaces. Its combination of stable dot matrix output, industrial-grade durability, and low-power operation makes it a dependable solution for electronic systems requiring clear and consistent visual communication in demanding environments.
Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
