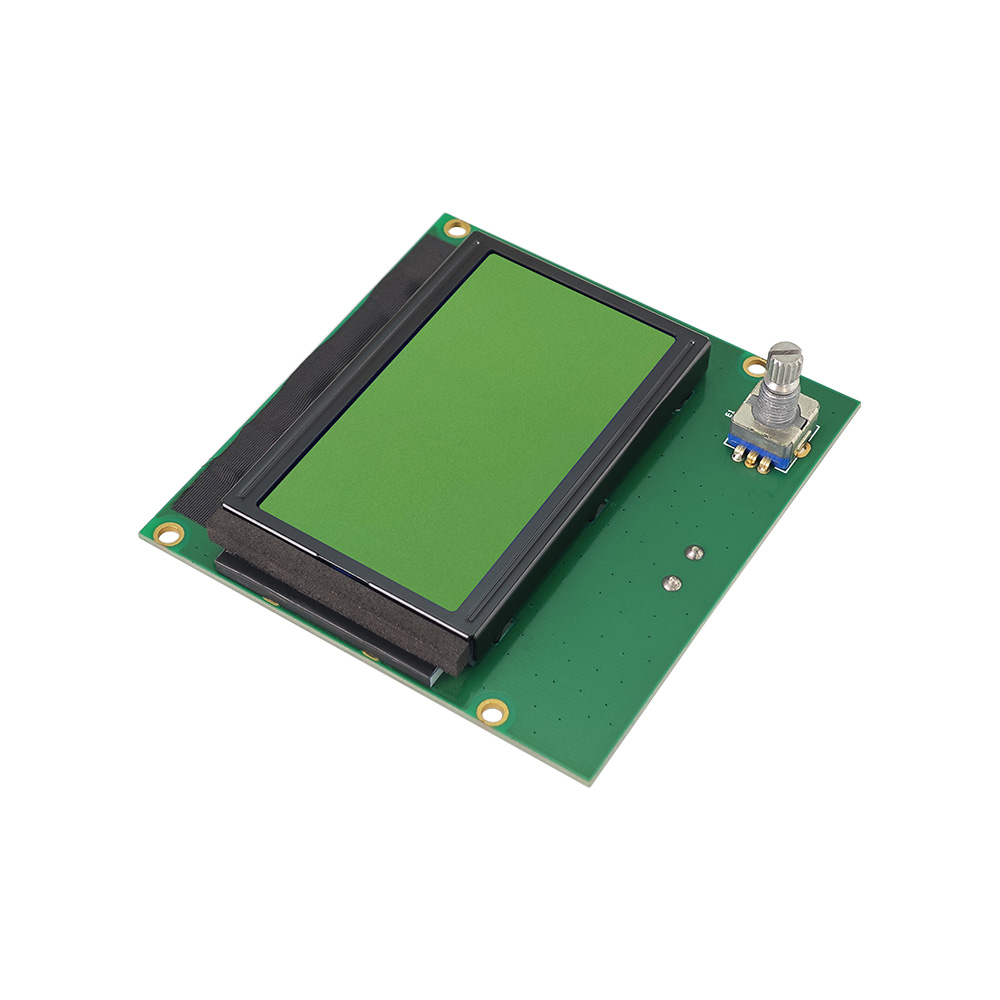

The Industrial 12864 LCD SJXD12864F-3 is a high-reliability dot matrix display module designed specifically for industrial-grade electronic systems. It provides stable monochrome visual output with strong durability and consistent readability, making it suitable for equipment operating in demanding environments. This module focuses on long-term performance stability, ensuring dependable information display in automation and control applications.

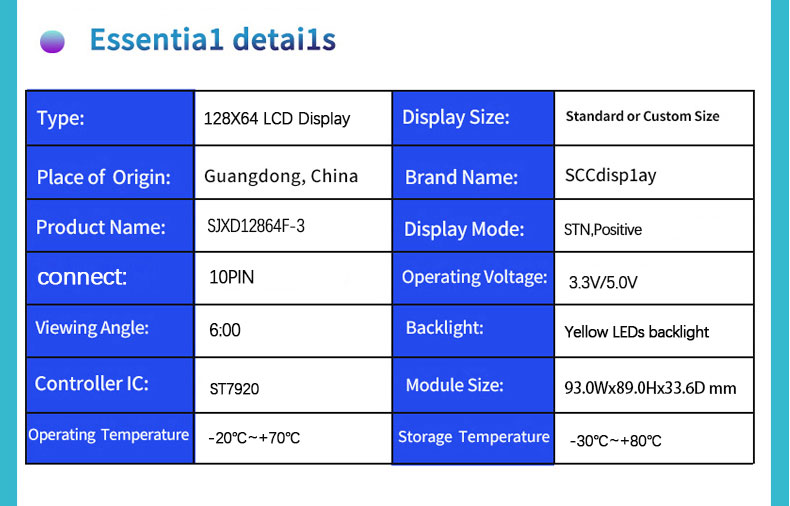

Parameters:
| Character Type | 128X64 |
| Model | SJXD12864F-3 |
| Model Size | 93.0×89.0×33.6 MM |
| VA Size | 72.0×40.0 MM |
|
Drive Voltage
|
3.3V/5.0V
|
|
Drive IC
|
ST7920
|
|
Backlight
|
Yellow LED backlight
|
|
LCD Type
|
STN Positive
|
|
Interface
|
10PIN |
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- The fastest batch delivery can be achieved within 15 days
Key Specifications
This Industrial 12864 LCD features a 128×64 dot matrix resolution, enabling clear rendering of text, numerical data, symbols, and basic graphical interfaces. It is designed to deliver stable contrast performance for clear visibility under typical industrial lighting conditions. The module operates with low power consumption, making it suitable for continuously running embedded systems and energy-efficient devices. It supports reliable refresh behavior, ensuring that displayed content updates smoothly without flicker or distortion. The structure is optimized for compact integration into industrial controllers, measurement systems, instrumentation panels, and monitoring devices. It maintains consistent optical performance across a wide operating temperature range, ensuring dependable use in harsh or variable environments. Stable pixel alignment and controlled liquid crystal response contribute to clear and accurate visual output.
Design Standards
The module is manufactured under strict industrial LCD engineering standards to ensure mechanical durability, optical stability, and long service life. High-quality liquid crystal materials are selected to guarantee consistent display performance and stable contrast characteristics. Circuit design is optimized to enhance signal integrity and reduce electromagnetic interference commonly found in industrial settings. The mechanical structure is reinforced to withstand vibration, temperature fluctuation, and long-term operational stress. Each unit undergoes comprehensive testing for pixel accuracy, brightness uniformity, and electrical reliability. Energy-efficient design principles are applied to minimize power consumption while maintaining stable display performance over extended operation cycles.
Applications
The Industrial 12864 LCD is widely used in industrial automation systems, smart metering equipment, medical devices, control panels, instrumentation systems, and monitoring terminals. It is also suitable for communication equipment, testing instruments, embedded controllers, and factory machinery interfaces. Its combination of stable dot matrix output, industrial-grade reliability, and low-power operation makes it a dependable solution for professional electronic systems requiring clear and consistent visual communication.

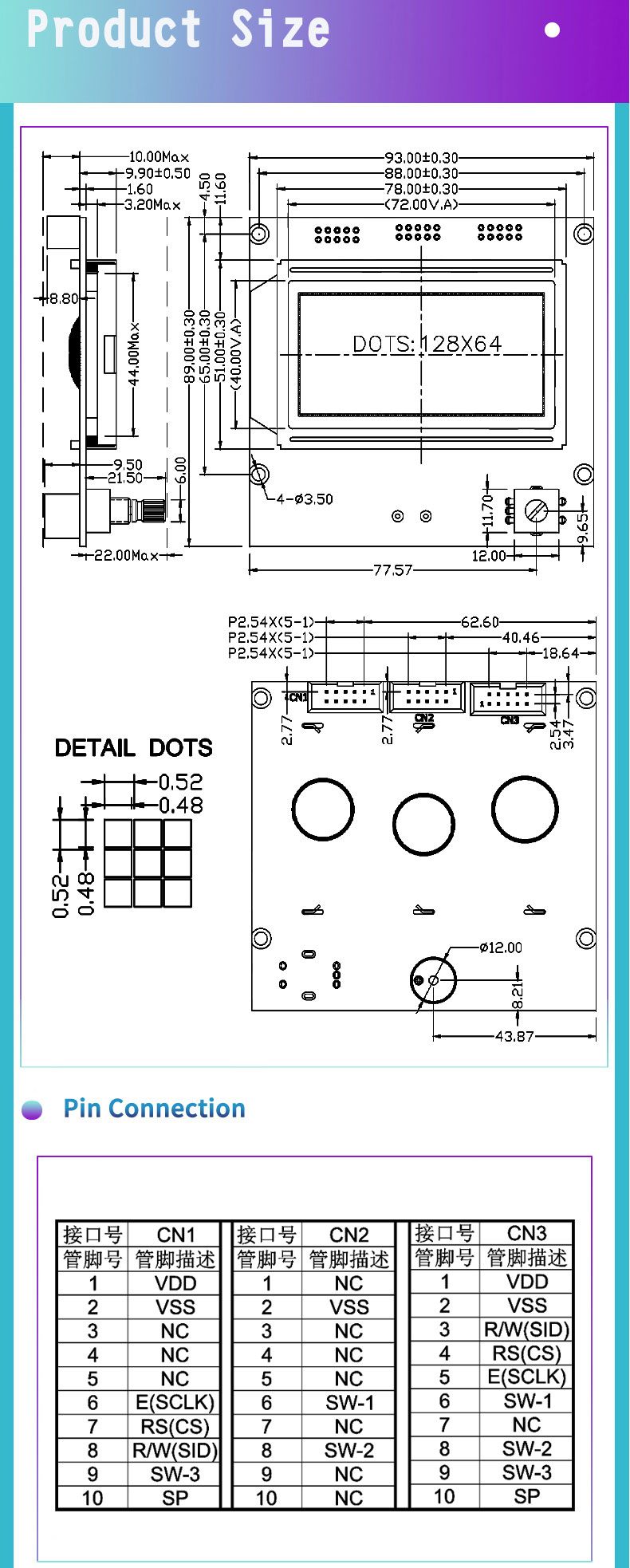

Product Size
