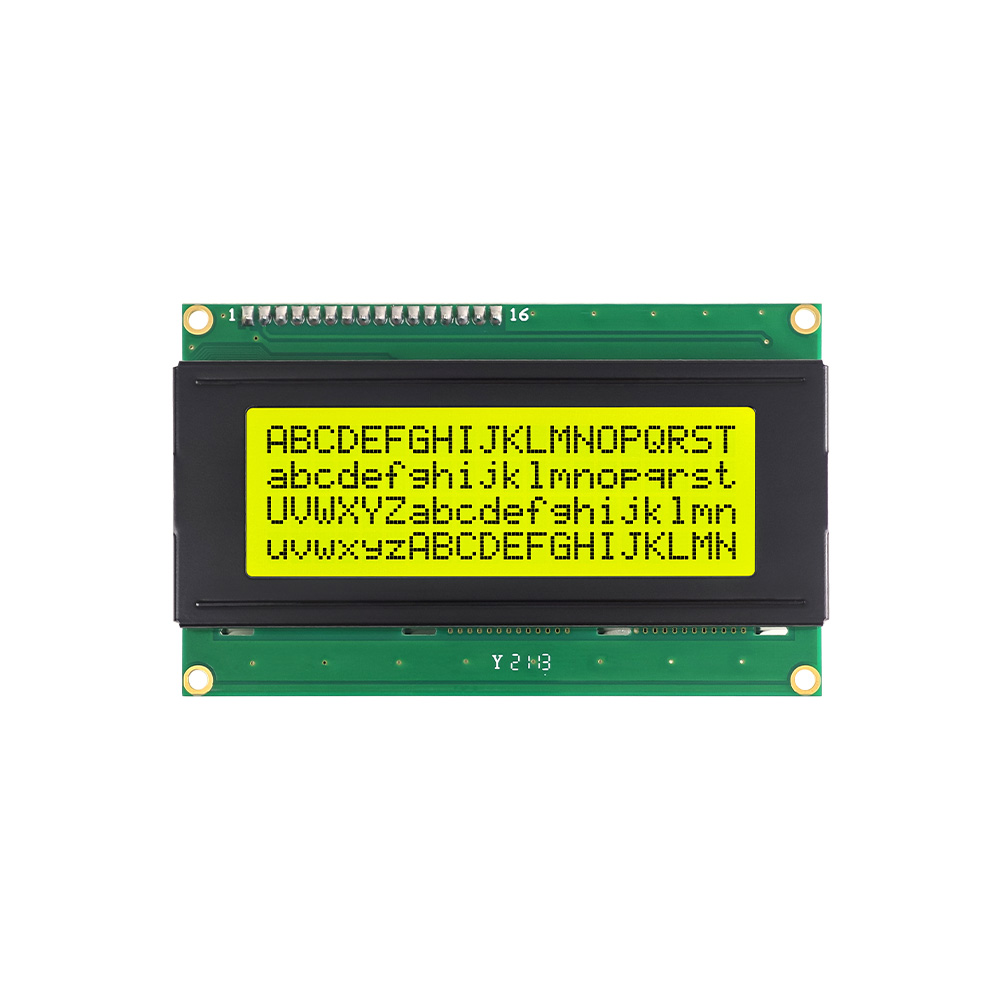

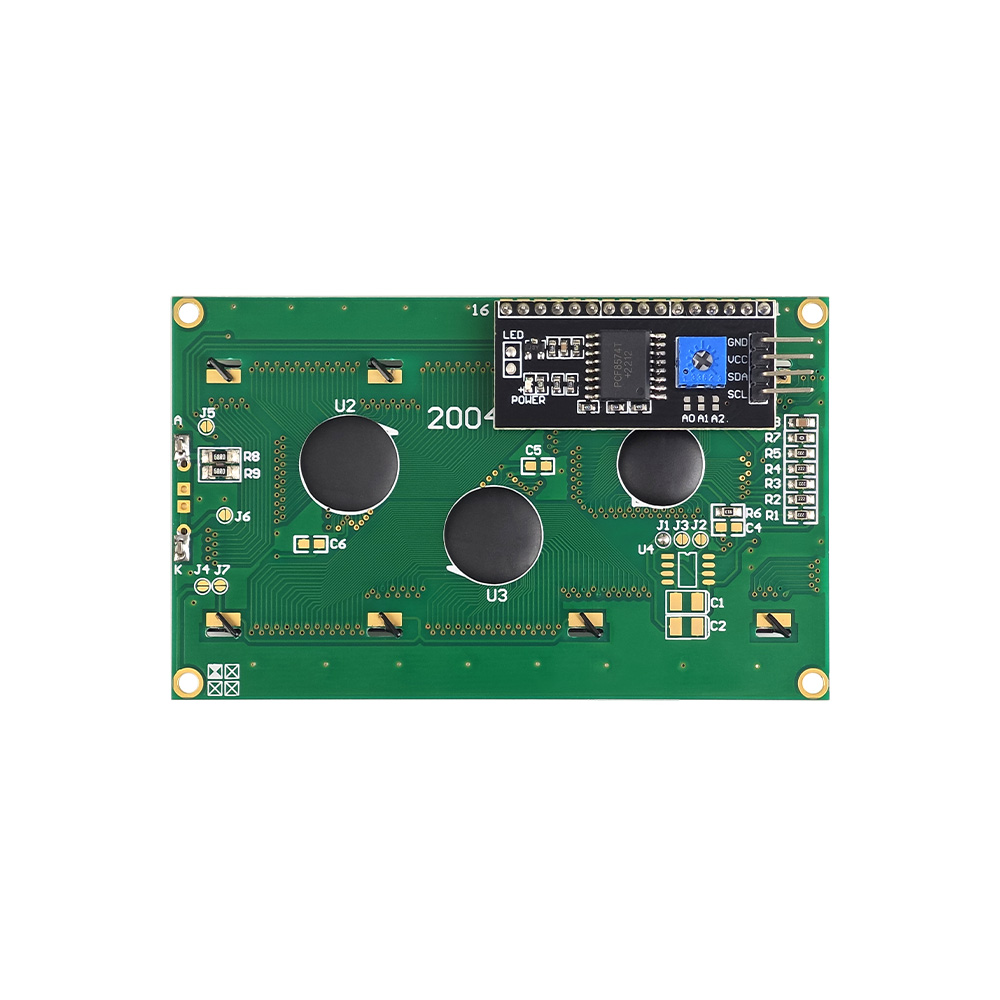

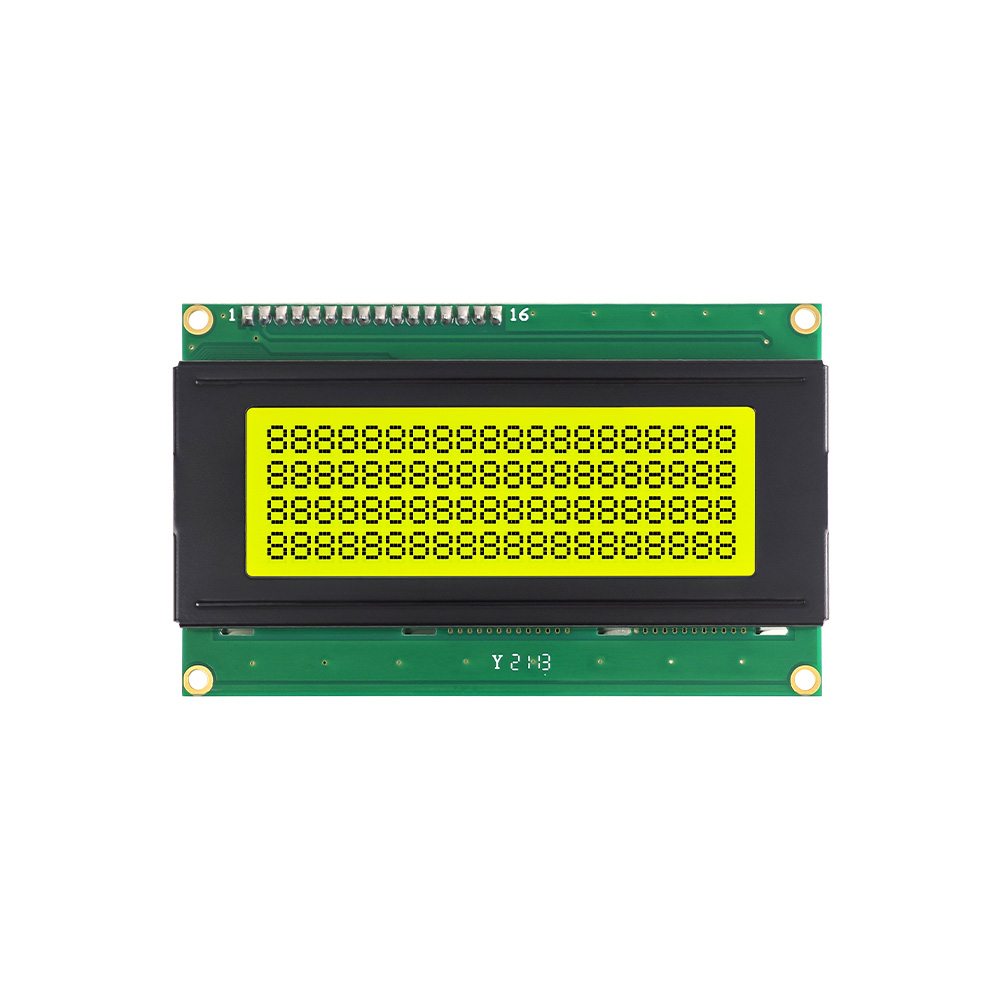

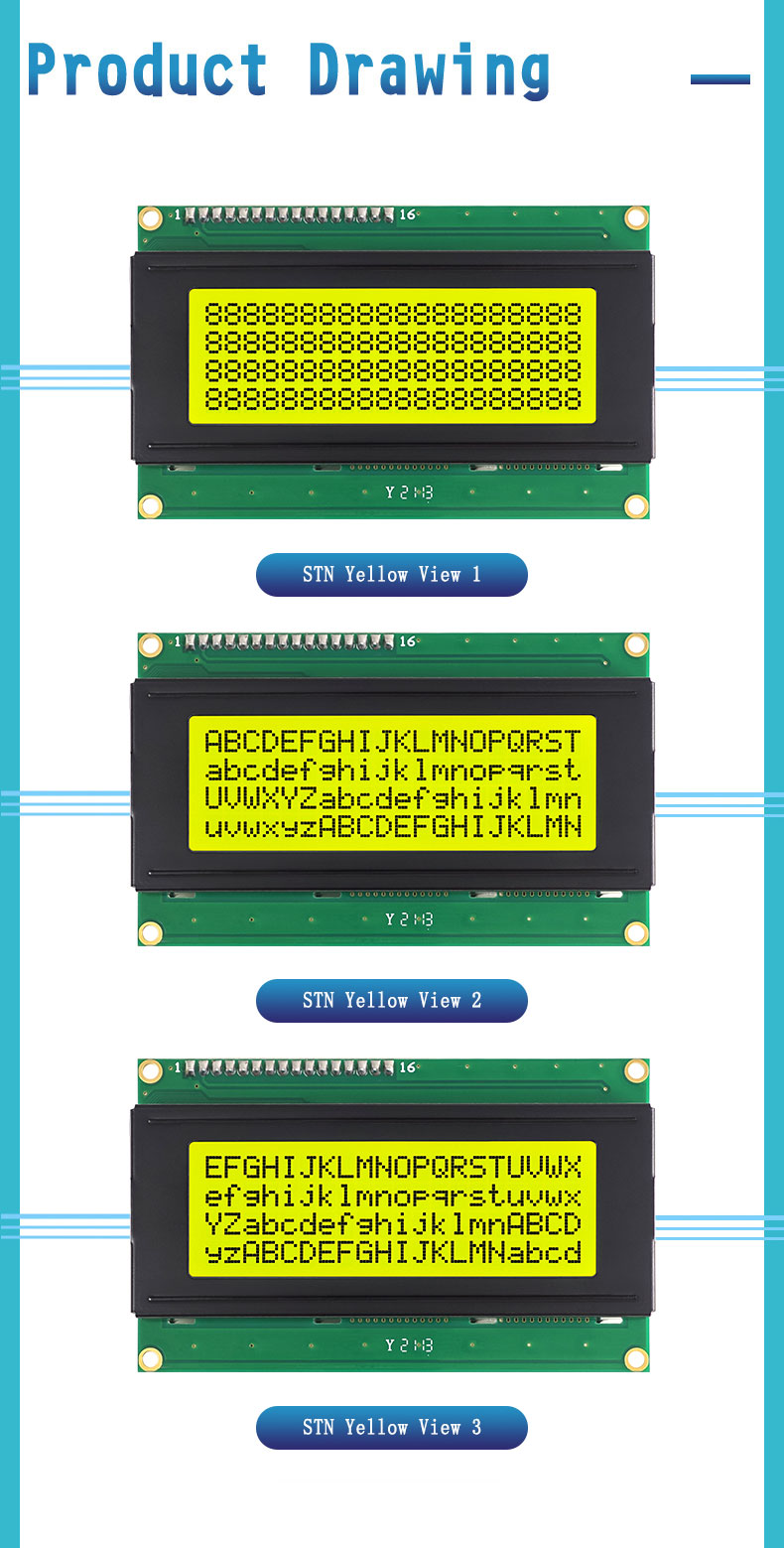

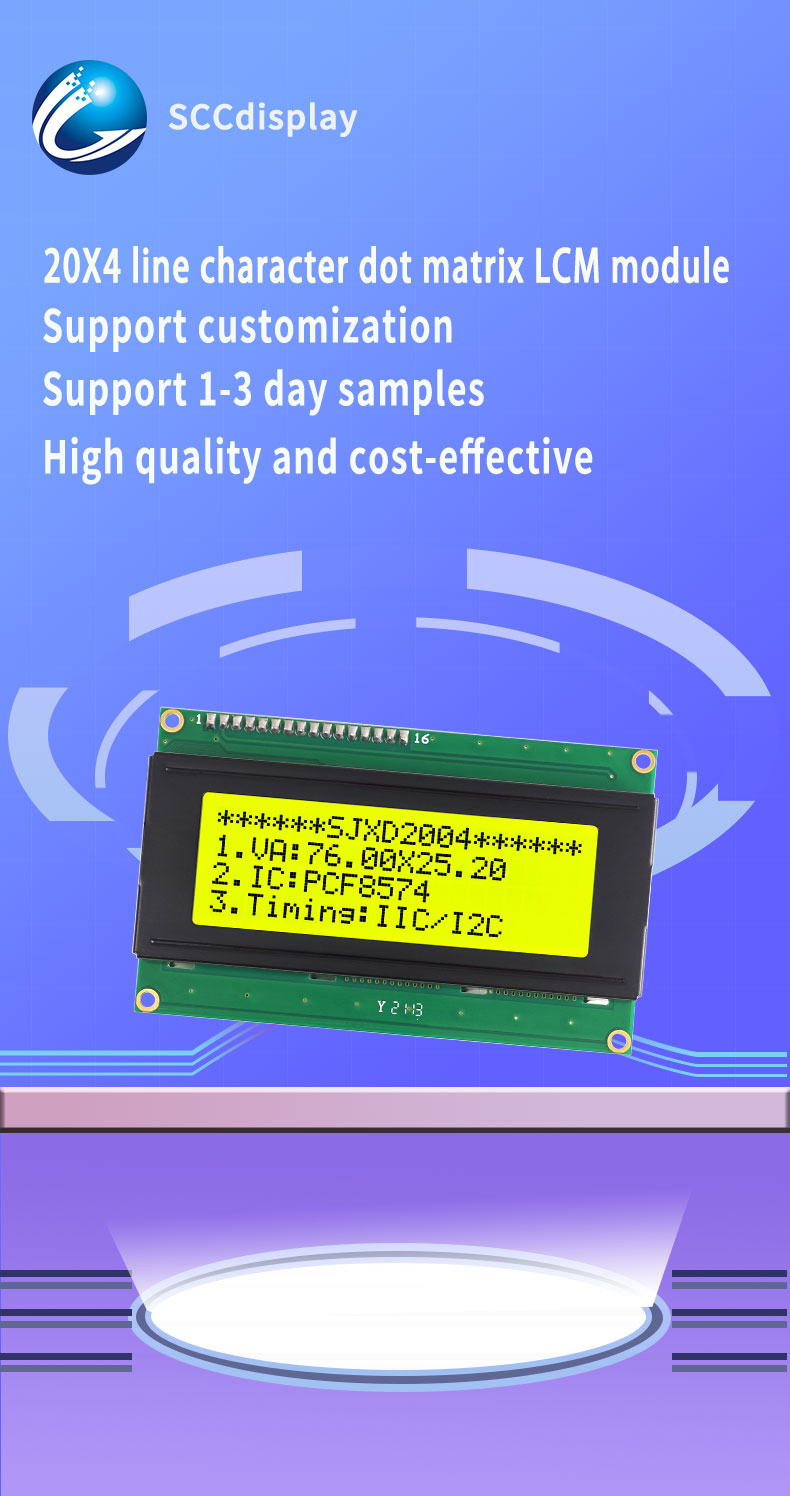

I2C Characters LCD delivers a 20x4 character display format for equipment that needs grouped menus, values, alerts, and operation notes on one compact panel. Its STN positive screen, yellow LED backlight, IIC interface, and 3.3V/5V drive support simple integration with clear viewing. The 98.0x60.0mm module fits controllers, instruments, medical devices, terminals, appliances, and development boards requiring stable four-line text output during setup, monitoring, troubleshooting, maintenance, and daily product operation tasks.
Parameters:
| Character Type | 20X4 |
| Model | SJXD2004A-IIC |
| Model Size | 98.0×60.0×20.0 MM |
| VA Size | 76.0×25.2 MM |
|
Drive Voltage
|
3.3V/5.0V
|
|
Drive IC
|
AIP31066/ST7066
|
|
Backlight
|
Yellow LED Backlight
|
|
LCD Type
|
STN Positive
|
|

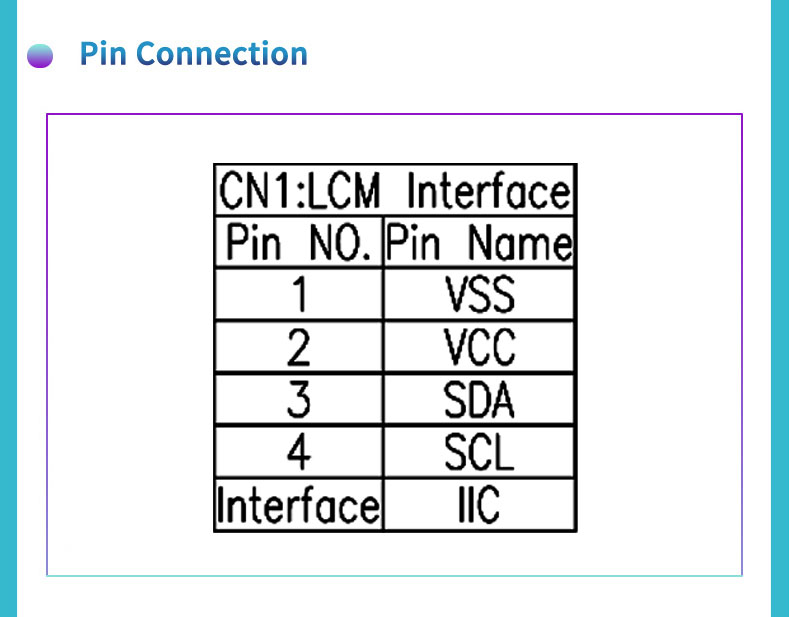

Interface
|
IIC/I2C |
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |
Feature

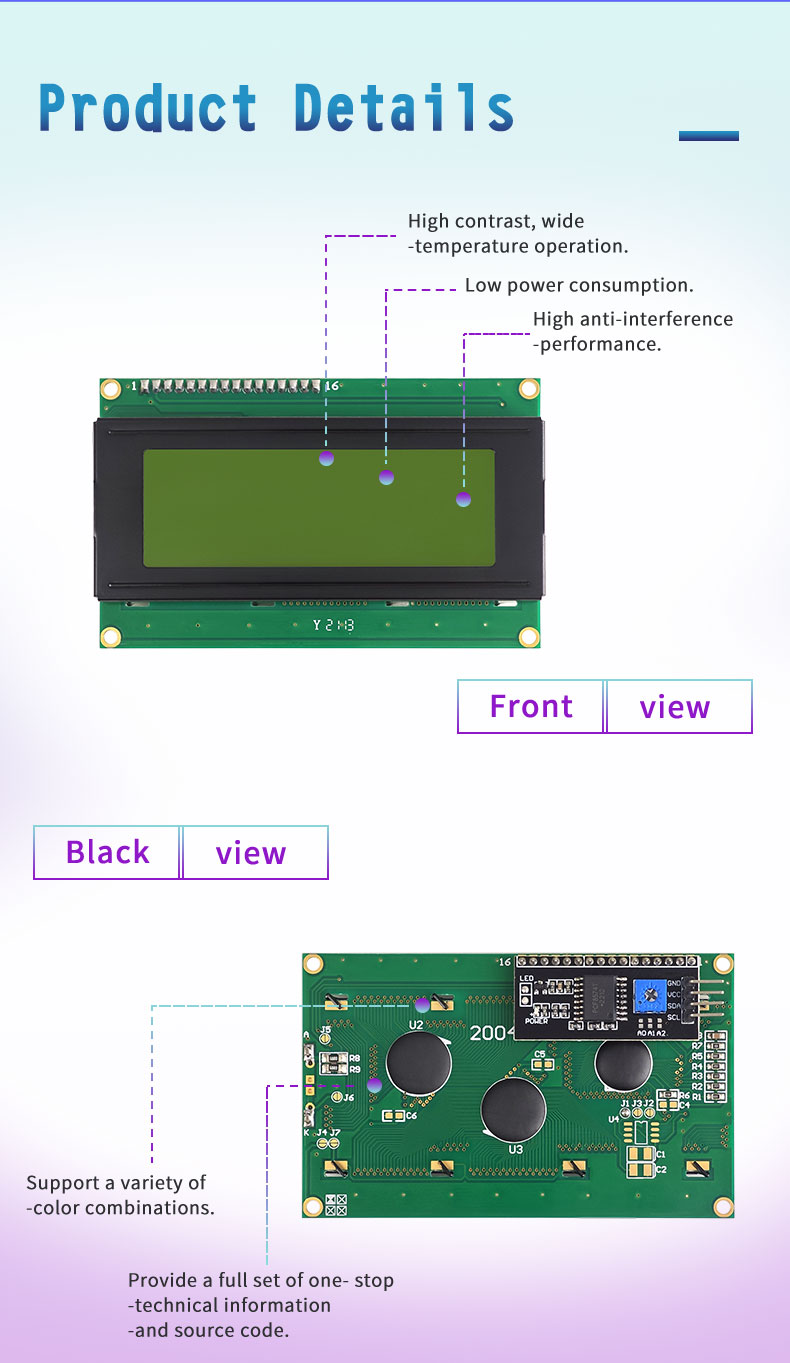

- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- The fastest batch delivery can be achieved within 15 days
Key Specifications
I2C Characters LCD is a 20×4 character display module built for equipment that needs more visible text content on one compact screen. The SJXD2004A-IIC model provides four display rows, allowing users to view menus, values, alerts, and operation notes with better spacing. It features a 98.0×60.0×20.0 mm module size, 76.0×25.2 mm viewing area, 3.3V/5.0V drive voltage, AIP31066/ST7066 driver IC, IIC/I2C interface, yellow LED backlight, STN Positive LCD type, 06:00 viewing direction, -20°C to +70°C working temperature, and -30°C to +80°C storage temperature.
Design Standards
I2C Characters LCD is developed for clear multi-row character presentation, efficient controller connection, and stable embedded operation. The IIC/I2C interface helps reduce signal-line usage, making the module easier to integrate into compact PCB designs where extra MCU pins are needed for keys, sensors, relays, or communication ports. The STN Positive display mode creates a light-background viewing style, while the yellow LED backlight gives the interface a distinctive visual appearance. The module also supports high contrast, low power consumption, anti-interference performance, multiple color options, technical documentation, source code support, customization service, 1–3 day sample testing, and fast batch production planning.
Applications
I2C Characters LCD is suitable for products that need organized four-line information display without using a complex graphic screen. It can present setting pages, measurement values, alarm records, system feedback, timer data, operating steps, service reminders, and diagnostic messages in a readable character format. Common application fields include measuring instruments, industrial controllers, automation panels, medical devices, access terminals, household appliances, consumer electronics, information display systems, and DIY development boards. Its 20×4 layout, IIC connection, STN Positive readability, and yellow backlight make it practical for compact interfaces requiring richer text output and smooth hardware integration.
Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
