Basic Information

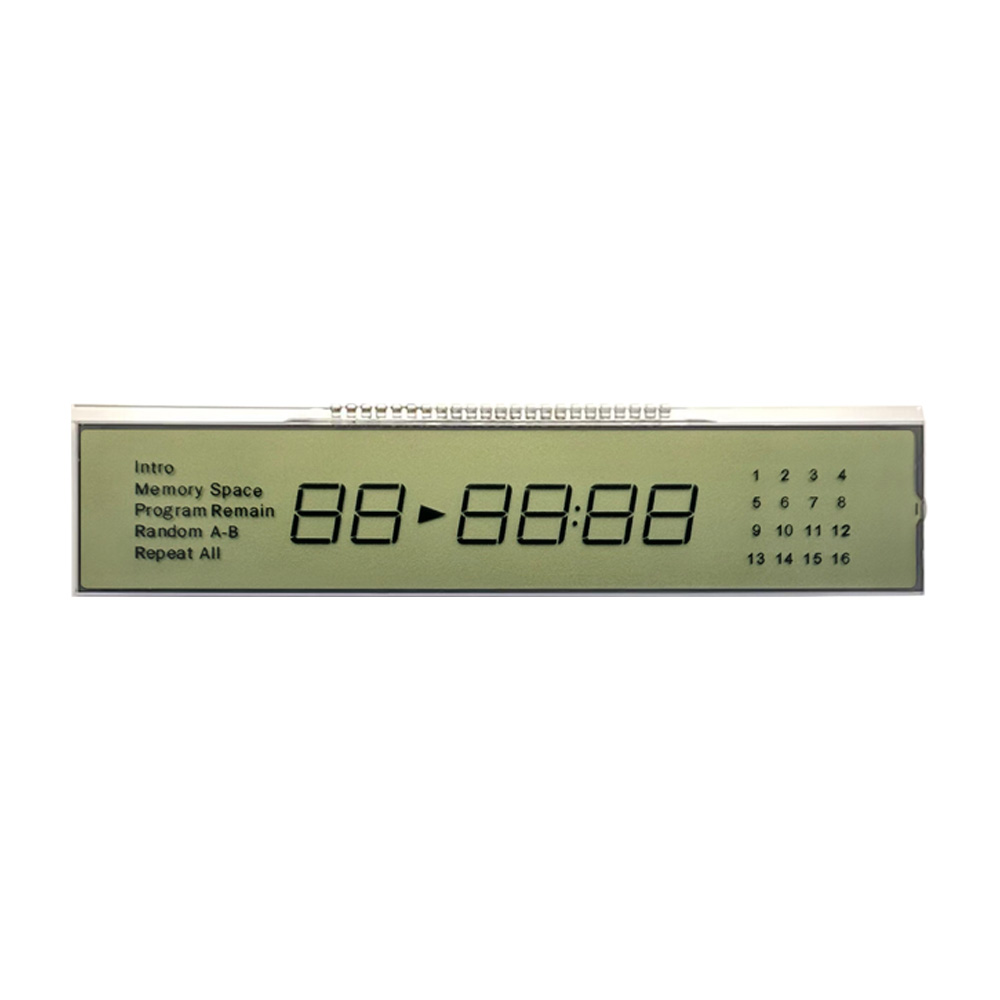

The GN0054C Display LCD 7 Segment Datasheet module is a customized segmented LCD display designed for reliable numeric visualization in electronic systems. Developed to meet the requirements of modern instruments and control devices, it provides clear digital output, low power consumption, and stable operating performance. The datasheet-based design approach allows engineers and manufacturers to quickly understand technical specifications and integrate the display into a variety of applications.
Parameters:
| Character Type | Customized |
| Model | SJXDGN0054C |
| Model Size | 113×25.7×2.8mm |
| VA Size | 110×20.2mm |
|
Polarizer
|
Transflective |
|
Connector
|
PIN |
|
LCD Type
|
HTN positive
|
|
Drive Conditions
|
1/4 DUTY,1/3 BIAS Vop=5.0V
|
| Working Temperature |
-40'C TO +85°C
|
|
Storage Temperature
|
-45°C TO +90“C |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
The GN0054C Display LCD 7 Segment Datasheet features a classic seven segment LCD architecture optimized for accurate digit presentation. The module delivers high-contrast visual performance, ensuring clear readability under different lighting conditions. It is designed for low power operation, making it suitable for battery-powered equipment and energy-efficient electronic products. The display supports stable electrical characteristics, helping maintain reliable signal transmission and consistent segment activation. Its compact construction enables easy integration into different device layouts while minimizing space requirements. The module is engineered for dependable long-term performance and stable display output throughout continuous operation.
Design Features
This 7 segment LCD display is designed with practicality, reliability, and integration efficiency in mind. The segmented structure provides precise numeric representation while maintaining simple driving requirements. Fast response performance and stable segment control help ensure accurate visual communication of important data. The display is built for long service life and can operate consistently in demanding environments. Its optimized design supports straightforward installation and compatibility with a wide range of electronic systems. The module also provides reliable visibility, making it suitable for applications where accurate data presentation is essential.
Applications
The GN0054C Display LCD 7 Segment Datasheet module is widely used in digital measuring instruments, industrial controllers, electronic counters, timers, household appliances, monitoring systems, and portable electronic devices. It is suitable for displaying voltage, temperature, pressure, time, speed, and other numerical information. The module is also commonly applied in engineering projects and product development where dependable segmented display technology is required.
Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
